maserati qtp. (2010) 4.2 driver controls for automatic gearbox parts diagram

028 - driver controls for automatic gearbox

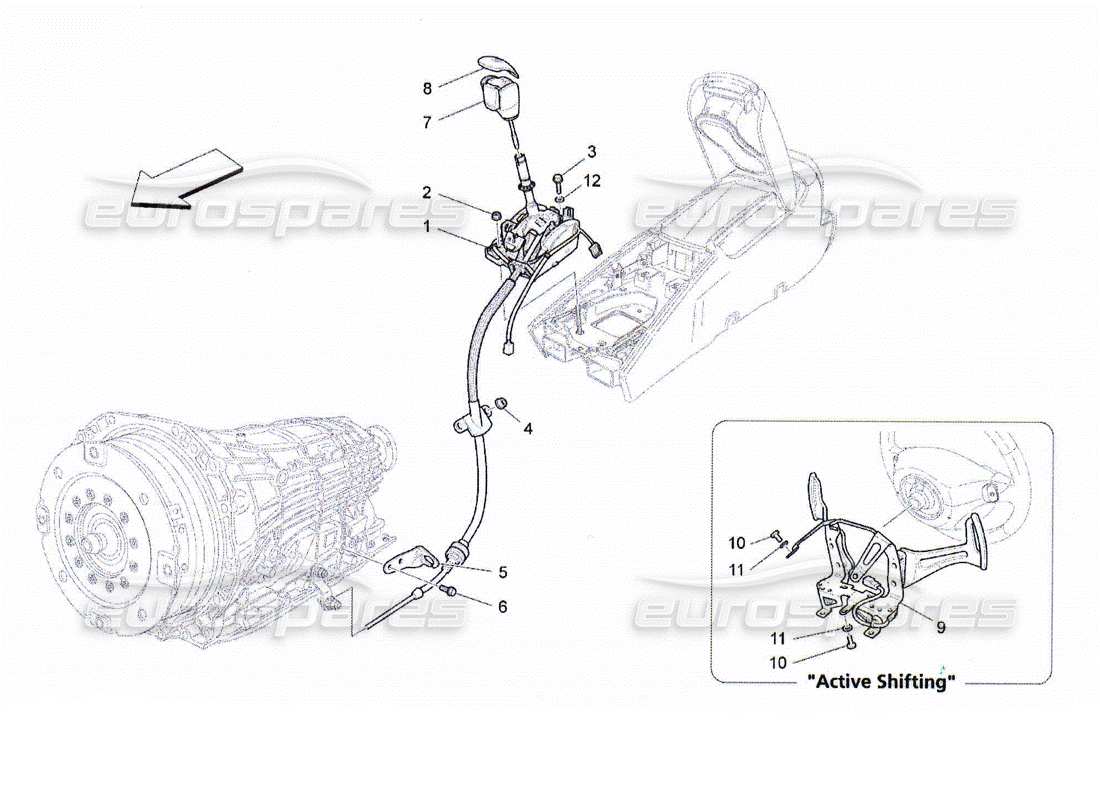

Maserati QTP. (2010) 4.2 Driver Controls for Automatic Gearbox Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 002
                          MPN: 14059214
                          NUT M6
                          from £0.47
                          from £0.47
                          This part replaces part number 12578121
                          # 003
                          MPN: 14305821
                          SCREW
                          from £0.53
                          from £0.53
                          # 004
                          MPN: 14059121
                          NUT
                          from £0.54
                          from £0.54
                          # 005
                          MPN: 222488
                          BRACKET
                          from £14.38
                          from £14.38
                          # 006
                          MPN: 16286024
                          SCREW
                          from £0.47
                          from £0.47
                          # 007
                          -
                          AUTOMATIC GEARBOX CONTROL KNOB
                          # 008
                          MPN: 9814318
                          INSERT FOR KNOB
                          # 009
                          MPN: 261433
                          LEVERS SET
                          from £466.19
                          from £466.19
                          This part replaces part number 235836 - and 1 more. Click to view details
                          # 010
                          MPN: 13025787
                          SCREW
                          from £0.47
                          from £0.47
                          # 011
                          MPN: 12601174
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 675000100
                          # 012
                          MPN: 12601274
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 12601270
