020 - oil vapour recirculation system

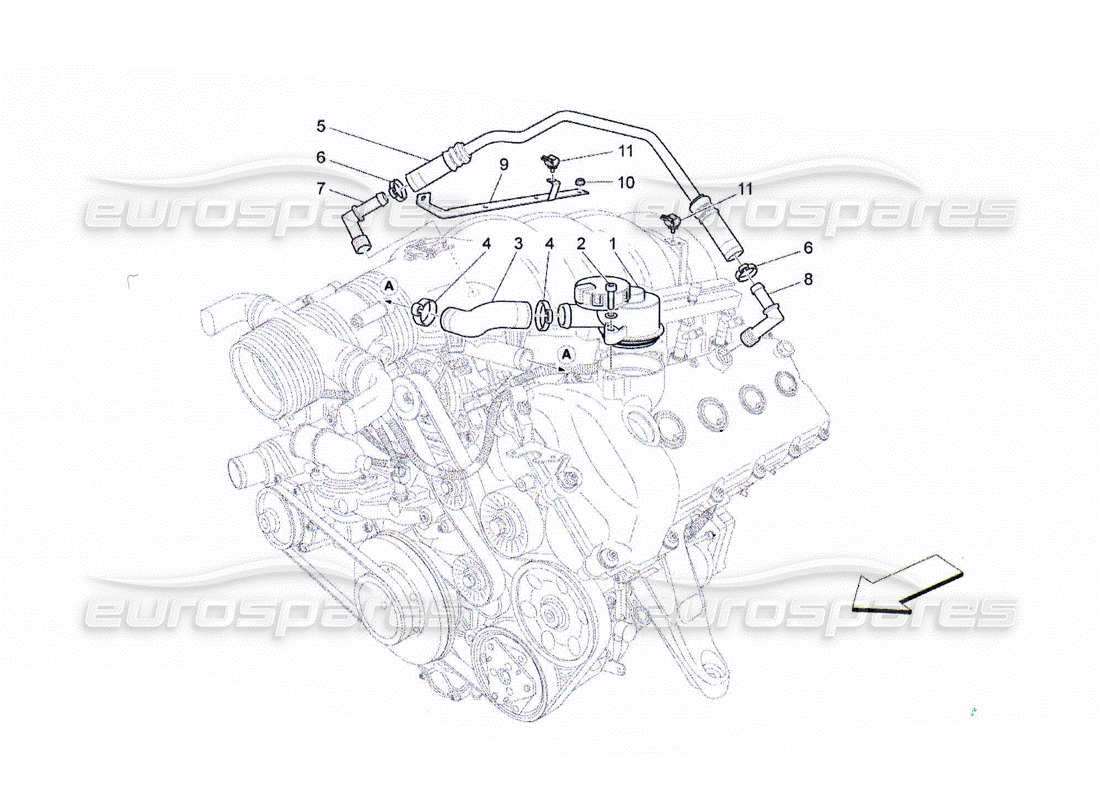

Maserati QTP. (2010) 4.2 Oil Vapour Recirculation System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 219111

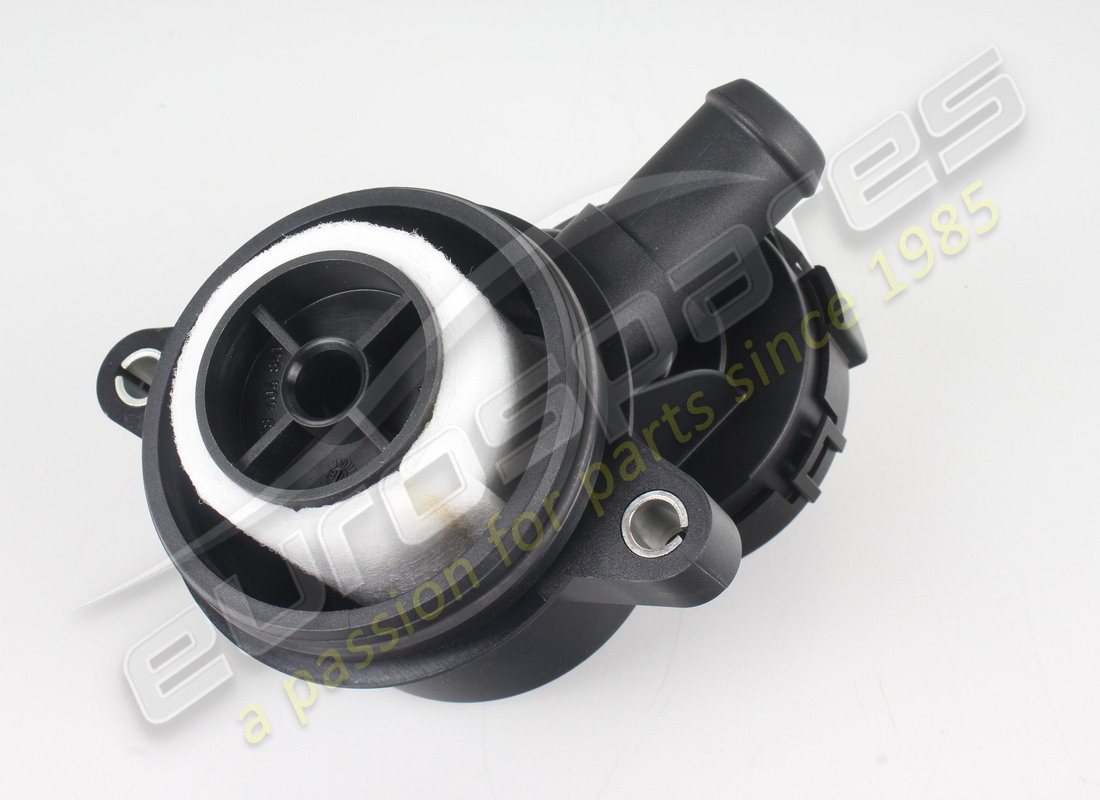

                        OIL DISAREATOR
                        from £111.56
                        from £111.56
                        # 001
                        MPN: 219111
                        OIL DISAREATOR
                        from £111.56
                        from £111.56
                        # 002
                        MPN: 231621
                        SCREW
                        from £0.47
                        from £0.47
                        # 003
                        MPN: 224272
                        PIPE FROM DISAREATOR TO SUCTION MANIFOLD
                        from £9.47
                        from £9.47
                        # 004
                        MPN: 224271
                        CLAMP
                        from £0.88
                        from £0.88
                        # 005
                        MPN: 227297
                        HEAD CONNECTING VENT PIPE
                        from £736.19
                        from £736.19
                        # 006
                        MPN: 178053
                        CLAMP
                        from £0.70
                        from £0.70
                        # 007
                        MPN: 235288
                        THREADED UNION
                        from £17.04
                        from £17.04
                        This part replaces part number 224597
                        # 007
                        MPN: 235288
                        THREADED UNION
                        from £17.04
                        from £17.04
                        This part replaces part number 224597
                        # 007
                        MPN: 235288
                        THREADED UNION IN THE RH HEAD
                        from £17.04
                        from £17.04
                        This part replaces part number 224597
                        # 007
                        MPN: 235288
                        THREADED UNION IN THE RH HEAD
                        from £17.04
                        from £17.04
                        This part replaces part number 224597
                        # 008
                        MPN: 235287
                        THREADED UNION
                        from £17.04
                        from £17.04
                        This part replaces part number 224596
                        # 008
                        MPN: 235287
                        THREADED UNION
                        from £17.04
                        from £17.04
                        This part replaces part number 224596
                        # 008
                        MPN: 235287
                        THREADED UNION IN THE LH HEAD
                        from £17.04
                        from £17.04
                        This part replaces part number 224596
                        # 008
                        MPN: 235287
                        THREADED UNION IN THE LH HEAD
                        from £17.04
                        from £17.04
                        This part replaces part number 224596
                        # 009
                        MPN: 227301
                        BRACKET
                        from £15.31
                        from £15.31
                        # 011
                        MPN: 191273
                        CLIP
                        from £0.71
                        from £0.71
