maserati qtp. (2010) 4.2 additional air system parts diagram

015 - additional air system

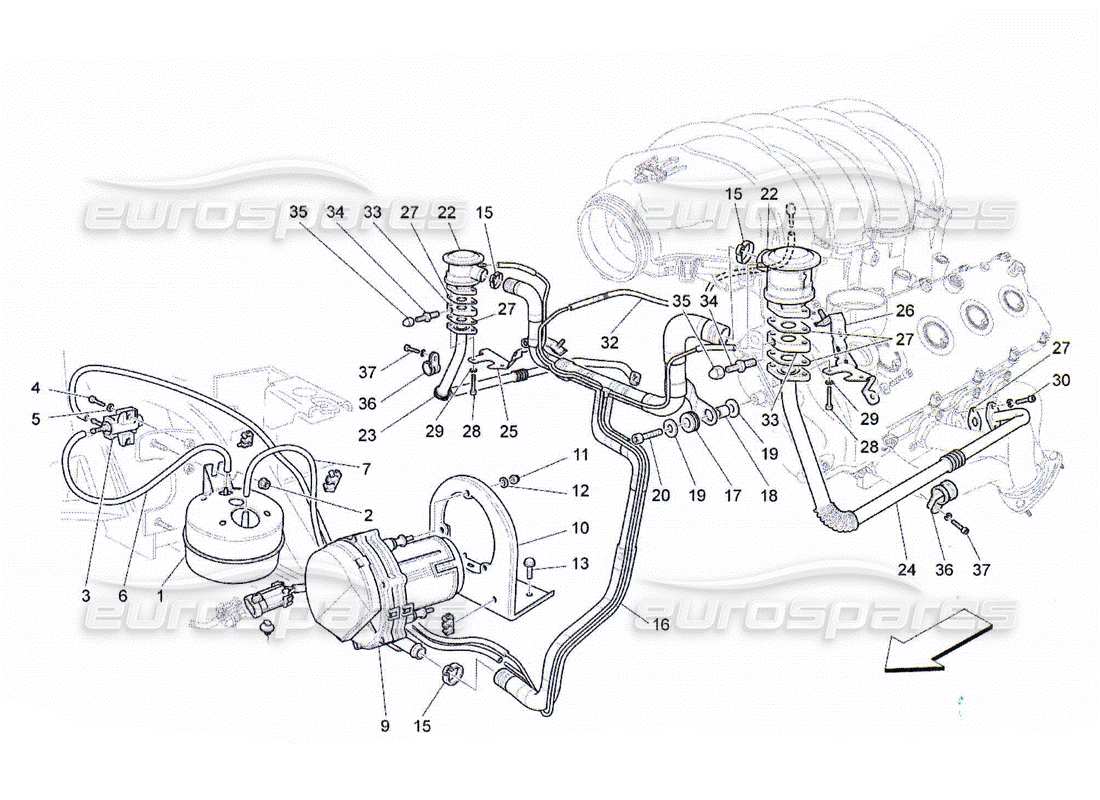

Maserati QTP. (2010) 4.2 Additional Air System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 330328400
                                                                    VACUUM TANK
                                                                    from £9.16
                                                                    from £9.16
                                                                    # 001
                                                                    MPN: 330328400
                                                                    VACUUM TANK
                                                                    from £9.16
                                                                    from £9.16
                                                                    # 002
                                                                    MPN: 14059211
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 675000181
                                                                    # 003
                                                                    MPN: 315769

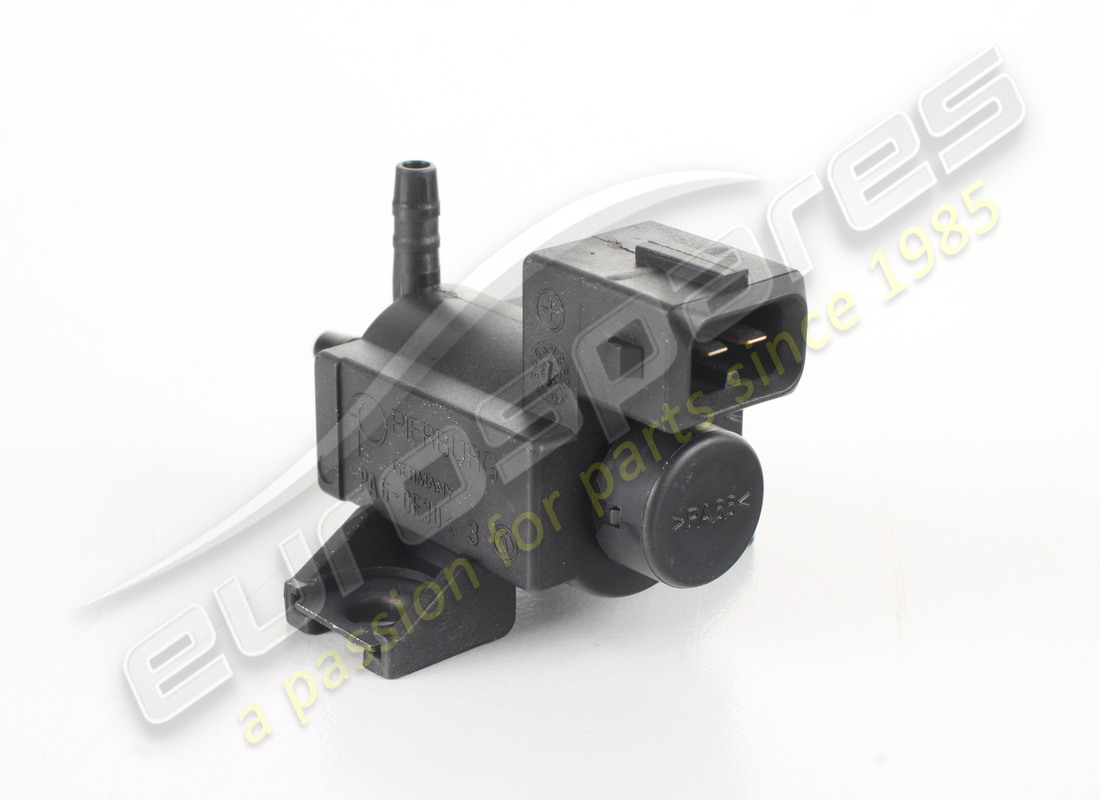

                                                                    ON/OFF SOLENOID VALVE
                                                                    from £28.93
                                                                    from £28.93
                                                                    This part replaces part number 184363
                                                                    # 004
                                                                    MPN: 14304624
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 005
                                                                    MPN: 12601174
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 675000100
                                                                    # 006
                                                                    MPN: 238513
                                                                    SLEEVE
                                                                    from £1.27
                                                                    from £1.27
                                                                    This part replaces part number 200131
                                                                    # 006
                                                                    MPN: 238513
                                                                    SLEEVE
                                                                    from £1.27
                                                                    from £1.27
                                                                    This part replaces part number 200131
                                                                    # 007
                                                                    MPN: 246373
                                                                    SLEEVE
                                                                    from £2.19
                                                                    from £2.19
                                                                    # 010
                                                                    MPN: 215965
                                                                    AIR PUMP FIXING BRACKET
                                                                    from £12.21
                                                                    from £12.21
                                                                    # 011
                                                                    MPN: 102948
                                                                    NUT
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 012
                                                                    MPN: 12601274
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 12601270
                                                                    # 013
                                                                    MPN: 16285924
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 015
                                                                    MPN: 226356
                                                                    CLAMP
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 016
                                                                    MPN: 241777
                                                                    COMPLETE VALVE AIR DELIVERY TUBE
                                                                    from £118.59
                                                                    from £118.59
                                                                    # 017
                                                                    MPN: 219456
                                                                    ANTI-VIBRATION SUPPORT
                                                                    from £1.41
                                                                    from £1.41
                                                                    This part replaces part number 315520375
                                                                    # 018
                                                                    MPN: 219457
                                                                    SPACER
                                                                    from £14.69
                                                                    from £14.69
                                                                    # 019
                                                                    MPN: 12647727
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12647729
                                                                    # 020
                                                                    MPN: 231618
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 023
                                                                    MPN: 226274
                                                                    RH AIR VALVE PIPE
                                                                    from £52.59
                                                                    from £52.59
                                                                    # 024
                                                                    MPN: 226275
                                                                    LH AIR VALVE PIPE
                                                                    from £120.68
                                                                    from £120.68
                                                                    # 025
                                                                    MPN: 227001
                                                                    RH AIR VALVE FIXING BRACKET
                                                                    from £5.31
                                                                    from £5.31
                                                                    # 026
                                                                    MPN: 227000
                                                                    LH AIR VALVE FIXING BRACKET
                                                                    from £7.69
                                                                    from £7.69
                                                                    # 027
                                                                    MPN: 186781
                                                                    GASKET
                                                                    from £2.89
                                                                    from £2.89
                                                                    # 028
                                                                    MPN: 231621
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 029
                                                                    MPN: 127494
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 030
                                                                    MPN: 231616
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 032
                                                                    MPN: 230835
                                                                    RUBBER HOSE
                                                                    from £13.04
                                                                    from £13.04
                                                                    # 033
                                                                    MPN: 210653
                                                                    SPACER
                                                                    from £15.23
                                                                    from £15.23
                                                                    # 034
                                                                    MPN: 210868
                                                                    THREADED UNION
                                                                    from £9.23
                                                                    from £9.23
                                                                    # 035
                                                                    MPN: 150595
                                                                    CAP NUT
                                                                    from £0.58
                                                                    from £0.58
                                                                    # 036
                                                                    MPN: 10441590
                                                                    BRACKET WITH SHEATH
                                                                    from £0.51
                                                                    from £0.51
                                                                    # 037
                                                                    MPN: 233600
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
