Maserati QTP. (2007) 4.2 auto Lines Parts Diagram

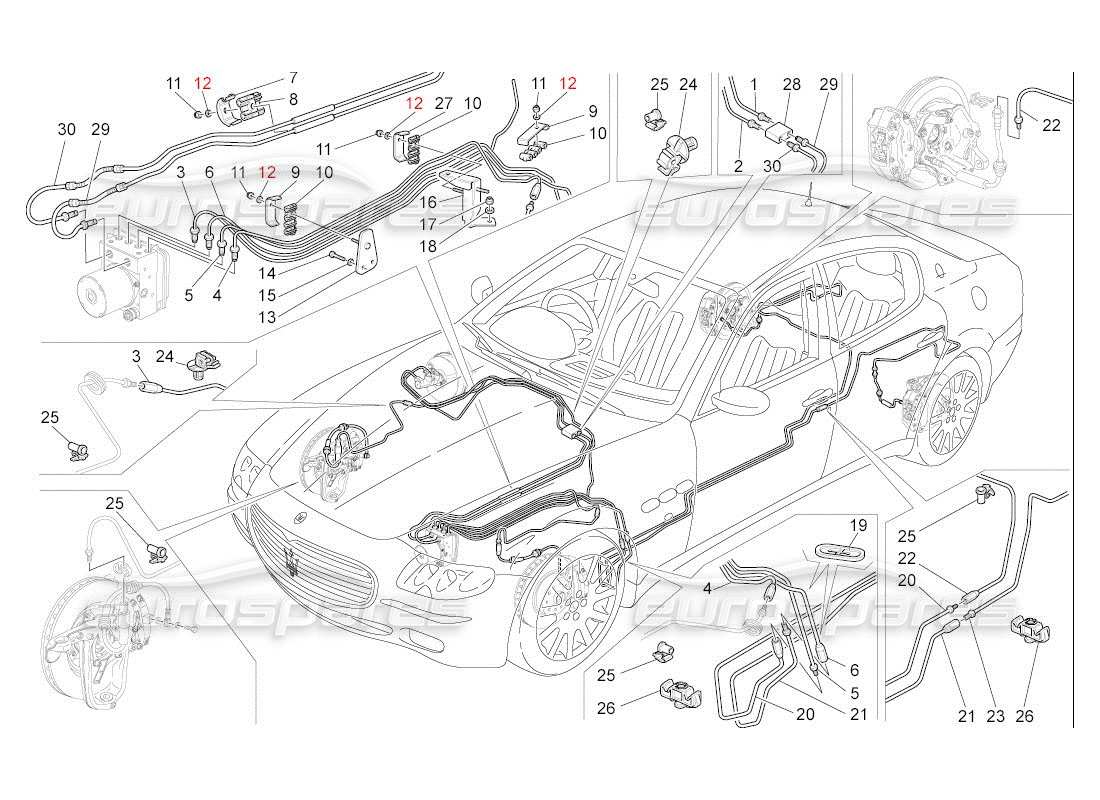

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 01
                                                              MPN: 208028
                                                              RIGID PIPE FROM PUMP TO UNION (MC1)
                                                              from £50.51
                                                              from £50.51
                                                              # 02
                                                              MPN: 208031
                                                              RIGID PIPE FROM PUMP TO UNION (MC2)
                                                              from £50.16
                                                              from £50.16
                                                              # 03
                                                              MPN: 207434
                                                              RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION
                                                              from £28.11
                                                              from £28.11
                                                              # 04
                                                              MPN: 207435
                                                              RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION
                                                              from £10.84
                                                              from £10.84
                                                              # 05
                                                              MPN: 207436
                                                              RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE
                                                              from £11.70
                                                              from £11.70
                                                              # 06
                                                              MPN: 207437
                                                              RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE
                                                              from £11.70
                                                              from £11.70
                                                              # 07
                                                              MPN: 193722
                                                              RETAINER
                                                              from £6.41
                                                              from £6.41
                                                              # 08
                                                              MPN: 192275
                                                              CLIP
                                                              from £2.85
                                                              from £2.85
                                                              # 08
                                                              MPN: 255406
                                                              CLIP
                                                              Supersession
                                                              Supersession
                                                              # 09
                                                              MPN: 200288
                                                              RETAINER
                                                              from £6.81
                                                              from £6.81
                                                              This part replaces part number 193721
                                                              # 10
                                                              MPN: 192276
                                                              CLIP
                                                              from £2.85
                                                              from £2.85
                                                              # 11
                                                              MPN: 14075611
                                                              NUT
                                                              from £1.31
                                                              from £1.31
                                                              # 12
                                                              MPN: 12637824
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 15
                                                              MPN: 12637824
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 16
                                                              MPN: 204366
                                                              BRACKET
                                                              from £26.97
                                                              from £26.97
                                                              # 18
                                                              MPN: 14496524
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 19
                                                              MPN: 221727
                                                              GASKET
                                                              from £4.17
                                                              from £4.17
                                                              # 19
                                                              MPN: 60624899
                                                              GASKET
                                                              from £1.55
                                                              from £1.55
                                                              # 20
                                                              MPN: 194858
                                                              RH INTERMEDIATE RIGID PIPE
                                                              from £21.91
                                                              from £21.91
                                                              # 21
                                                              MPN: 194859
                                                              LH INTERMEDIATE RIGID PIPE
                                                              from £18.81
                                                              from £18.81
                                                              # 22
                                                              MPN: 227265
                                                              RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL
                                                              from £29.02
                                                              from £29.02
                                                              # 23
                                                              MPN: 194857
                                                              RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL
                                                              from £86.43
                                                              from £86.43
                                                              # 24
                                                              MPN: 192277
                                                              CLIP
                                                              from £1.55
                                                              from £1.55
                                                              # 25
                                                              MPN: 192279
                                                              CLIP
                                                              from £1.08
                                                              from £1.08
                                                              # 26
                                                              MPN: 192278
                                                              CLIP
                                                              from £1.08
                                                              from £1.08
                                                              # 27
                                                              MPN: 193721
                                                              RETAINER
                                                              Supersession
                                                              Supersession
                                                              # 28
                                                              MPN: 208035
                                                              UNION
                                                              from £34.17
                                                              from £34.17
                                                              # 29
                                                              MPN: 222932
                                                              RIGID PIPE FROM UNION TO CONTROL UNIT (MC1)
                                                              from £58.25
                                                              from £58.25
                                                              # 30
                                                              MPN: 222933
                                                              RIGID PIPE FROM UNION TO CONTROL UNIT (MC2)
                                                              from £58.25
                                                              from £58.25
