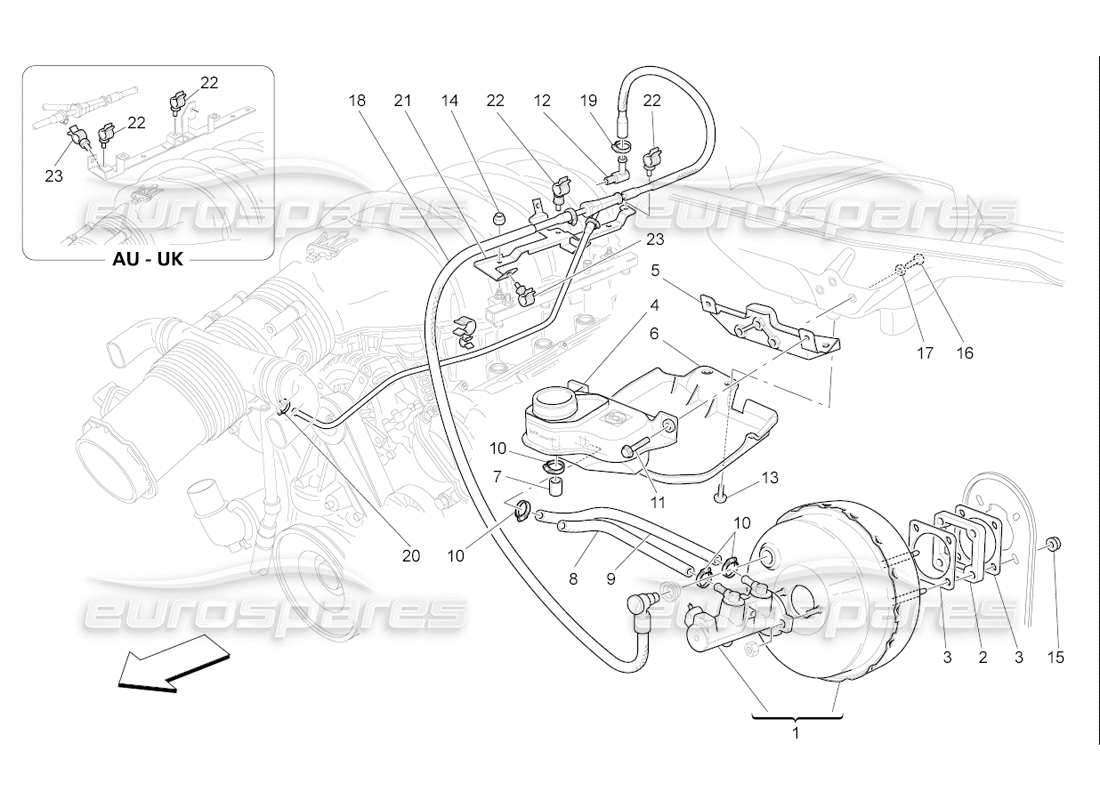

Maserati QTP. (2006) 4.2 F1 Brake Servo System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 01
                                            MPN: 250082
                                            COMPLETE BRAKE BOOSTER
                                            from £633.87
                                            from £633.87
                                            This part replaces part number 204154
                                            # 01
                                            MPN: 250082
                                            COMPLETE BRAKE BOOSTER
                                            from £633.87
                                            from £633.87
                                            This part replaces part number 204154
                                            # 02
                                            MPN: 196080
                                            SPACER
                                            from £20.48
                                            from £20.48
                                            # 03
                                            MPN: 190378
                                            GASKET
                                            from £0.73
                                            from £0.73
                                            # 05
                                            MPN: 203979
                                            BRACKET FOR FUEL FIXING
                                            from £16.30
                                            from £16.30
                                            # 07
                                            MPN: 248008
                                            PLUG
                                            from £4.64
                                            from £4.64
                                            This part replaces part number 136379
                                            # 08
                                            MPN: 200462
                                            PIPE FOR FEED FRONT PUMP
                                            from £22.83
                                            from £22.83
                                            # 09
                                            MPN: 200463
                                            PIPE FOR FEED REAR PUMP
                                            from £23.53
                                            from £23.53
                                            # 10
                                            MPN: 13000190
                                            SCREW COLLAR
                                            from £0.52
                                            from £0.52
                                            # 11
                                            MPN: 11612824
                                            SCREW
                                            from £1.31
                                            from £1.31
                                            # 12
                                            MPN: 124342
                                            THREADED UNION
                                            from £3.59
                                            from £3.59
                                            # 13
                                            MPN: 15784004
                                            SCREW
                                            from £0.47
                                            from £0.47
                                            # 15
                                            MPN: 12578211
                                            NUT
                                            from £0.47
                                            from £0.47
                                            # 16
                                            MPN: 10902111
                                            SCREW
                                            from £1.08
                                            from £1.08
                                            # 17
                                            MPN: 12639724
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            # 18
                                            MPN: 208037
                                            COMPLETE DEPRESSION PIPE
                                            from £99.82
                                            from £99.82
                                            # 19
                                            MPN: 13432070
                                            COLLAR
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 13434670
                                            # 20
                                            MPN: 13432270
                                            SCREW COLLAR
                                            from £0.61
                                            from £0.61
                                            # 22
                                            MPN: 206536
                                            CLIP
                                            from £0.53
                                            from £0.53
                                            # 23
                                            MPN: 67063200
                                            CLIP
                                            from £0.63
                                            from £0.63
