510 - Steering Box & Servo-Control Pump

Maserati QTP. (2006) 4.2 Steering Box & Servo-Control Pump Parts Diagram

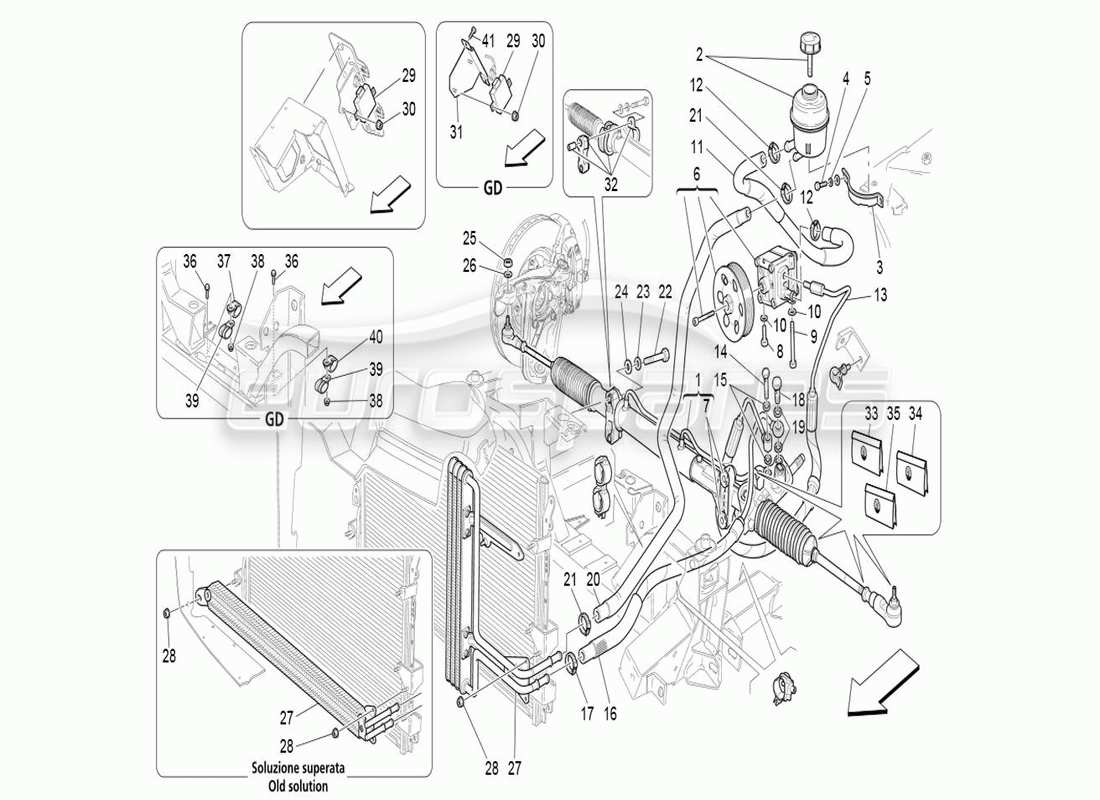

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 321589
                                                        STEERING RACK (LHD)
                                                        from £2,335.58
                                                        from £2,335.58
                                                        This part replaces part number 267184
                                                        # 001
                                                        MPN: 321590
                                                        STEERING RACK (RHD)
                                                        from £3,100.73
                                                        from £3,100.73
                                                        This part replaces part number 267185
                                                        # 002
                                                        MPN: 185820
                                                        OIL TANK FOR HYDRAULIC SERVO CONTROL PUMP
                                                        Valid from car Ass. Nr. 24275
                                                        from £10.45
                                                        from £10.45
                                                        # 002
                                                        MPN: 193933
                                                        OIL TANK FOR HYDRAULIC SERVO CONTROL PUMP
                                                        Valid till car Ass. Nr. 24274
                                                        from £16.43
                                                        from £16.43
                                                        # 003
                                                        MPN: 194873
                                                        COLLAR
                                                        Valid till car Ass. Nr. 24274
                                                        from £6.98
                                                        from £6.98
                                                        # 003
                                                        MPN: 224325
                                                        COLLAR
                                                        Valid from car Ass. Nr. 24275
                                                        from £6.98
                                                        from £6.98

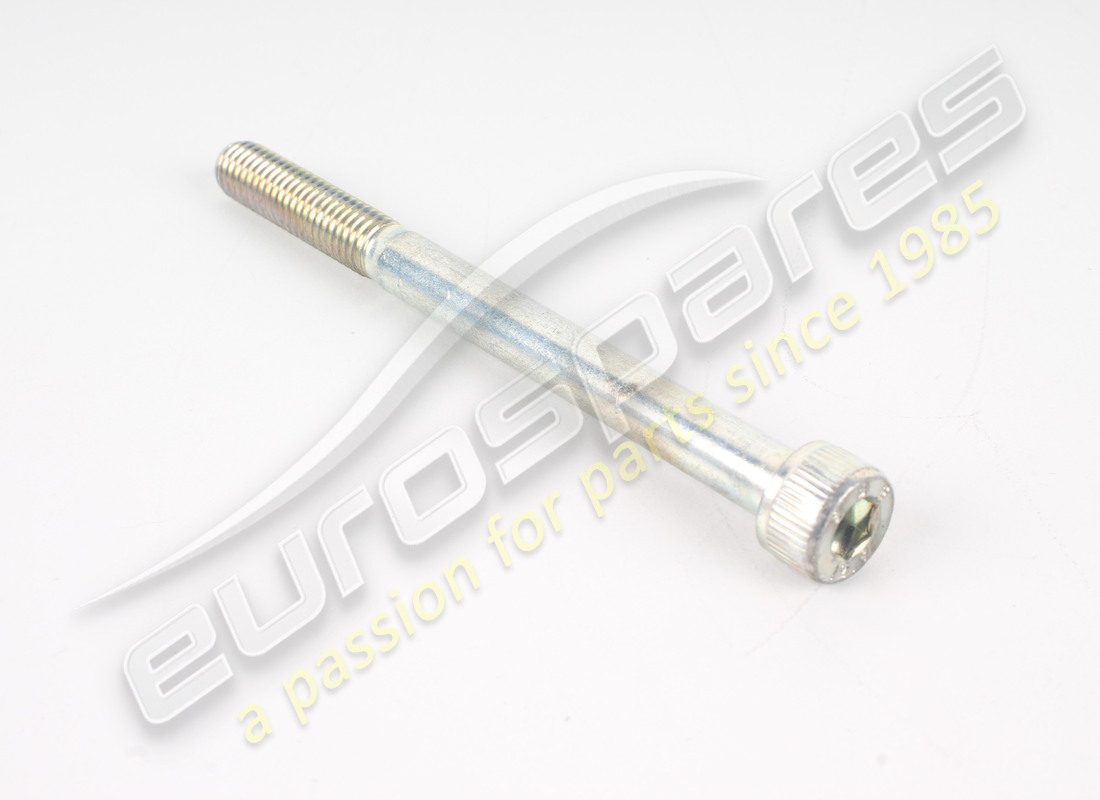

                                                        # 004
                                                        MPN: 10902424
                                                        SCREW
                                                        from £0.53
                                                        from £0.53
                                                        # 005
                                                        MPN: 12644424
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 13550214
                                                        # 006
                                                        MPN: 255278
                                                        HYDRAULIC SERVO CONTROL PUMP
                                                        from £226.23
                                                        from £226.23
                                                        This part replaces part number 204070
                                                        # 007
                                                        MPN: 980138228
                                                        SILENTBLOCK
                                                        from £13.89
                                                        from £13.89
                                                        # 010
                                                        MPN: 11193874
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 011
                                                        MPN: 192320
                                                        PIPE FROM TANK TO HYDRAULIC SERVO CONTROL PUMP
                                                        Valid till car Ass. Nr. 24274
                                                        from £13.20
                                                        from £13.20
                                                        # 011
                                                        MPN: 210128
                                                        PIPE FROM TANK TO HYDRAULIC SERVO CONTROL PUMP
                                                        Valid from car Ass. Nr. 24275
                                                        from £16.50
                                                        from £16.50
                                                        # 012
                                                        MPN: 13000490
                                                        SCREW COLLAR
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 13127870 - and 1 more. Click to view details
                                                        # 013
                                                        MPN: 205784
                                                        PIPE FROM PUMP TO STEERING BOX
                                                        Not for GD
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 192317
                                                        # 013
                                                        MPN: 210379
                                                        PIPE FROM PUMP TO STEERING BOX
                                                        Valid for GD
                                                        from £66.80
                                                        from £66.80
                                                        # 014
                                                        MPN: 205821
                                                        UNION
                                                        from £8.96
                                                        from £8.96
                                                        # 015
                                                        MPN: 10261360
                                                        GASKET
                                                        from £0.47
                                                        from £0.47
                                                        # 016
                                                        MPN: 192318
                                                        PIPE FROM STEERING BOX TO EXCHANGER
                                                        Not for GD - Valid till car Ass. Nr. 24274
                                                        from £48.08
                                                        from £48.08
                                                        # 016
                                                        MPN: 212179
                                                        PIPE FROM STEERING BOX TO EXCHANGER
                                                        Valid for GD
                                                        from £58.14
                                                        from £58.14
                                                        This part replaces part number 210381 which we have in stock - and 3 more. Click to view details
                                                        # 016
                                                        MPN: 224000
                                                        PIPE FROM STEERING BOX TO EXCHANGER
                                                        Not for GD - Valid from car Ass. Nr. 24275
                                                        from £75.80
                                                        from £75.80
                                                        # 017
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 018
                                                        MPN: 188930
                                                        UNION
                                                        from £8.64
                                                        from £8.64
                                                        # 019
                                                        MPN: 10280060
                                                        GASKET
                                                        from £0.47
                                                        from £0.47
                                                        # 020
                                                        MPN: 192319
                                                        PIPE FROM EXCHANGER TO TANK
                                                        Valid till car Ass. Nr. 24274
                                                        from £29.06
                                                        from £29.06
                                                        # 020
                                                        MPN: 224662
                                                        PIPE FROM EXCHANGER TO TANK
                                                        Valid from car Ass. Nr. 24275
                                                        from £14.23
                                                        from £14.23
                                                        # 021
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 022
                                                        MPN: 206926
                                                        SCREW
                                                        from £5.63
                                                        from £5.63
                                                        # 023
                                                        MPN: 11198374
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 675000618
                                                        # 024
                                                        MPN: 12641024
                                                        WASHER
                                                        from £1.02
                                                        from £1.02
                                                        # 025
                                                        MPN: 102742
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        # 026
                                                        MPN: 12626224
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        # 027
                                                        MPN: 233098
                                                        COMPLETE POWER STEERING EXCHANGER
                                                        from £189.50
                                                        from £189.50
                                                        This part replaces part number 231014
                                                        # 028
                                                        MPN: 102741
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 12575421
                                                        # 029
                                                        MPN: 211697
                                                        HYDRAULIC STEERING CONTROL ELECTRIC UNIT
                                                        from £117.98
                                                        from £117.98
                                                        # 030
                                                        MPN: 14059211
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 675000181
                                                        # 031
                                                        MPN: 67720200
                                                        CONTROL UNIT SUPPORT BRACKET
                                                        Valid for GD
                                                        from £5.67
                                                        from £5.67
                                                        # 032
                                                        MPN: 980138275
                                                        STEERING BOX FIXING KIT
                                                        from £120.45
                                                        from £120.45
                                                        # 033
                                                        MPN: 980139057

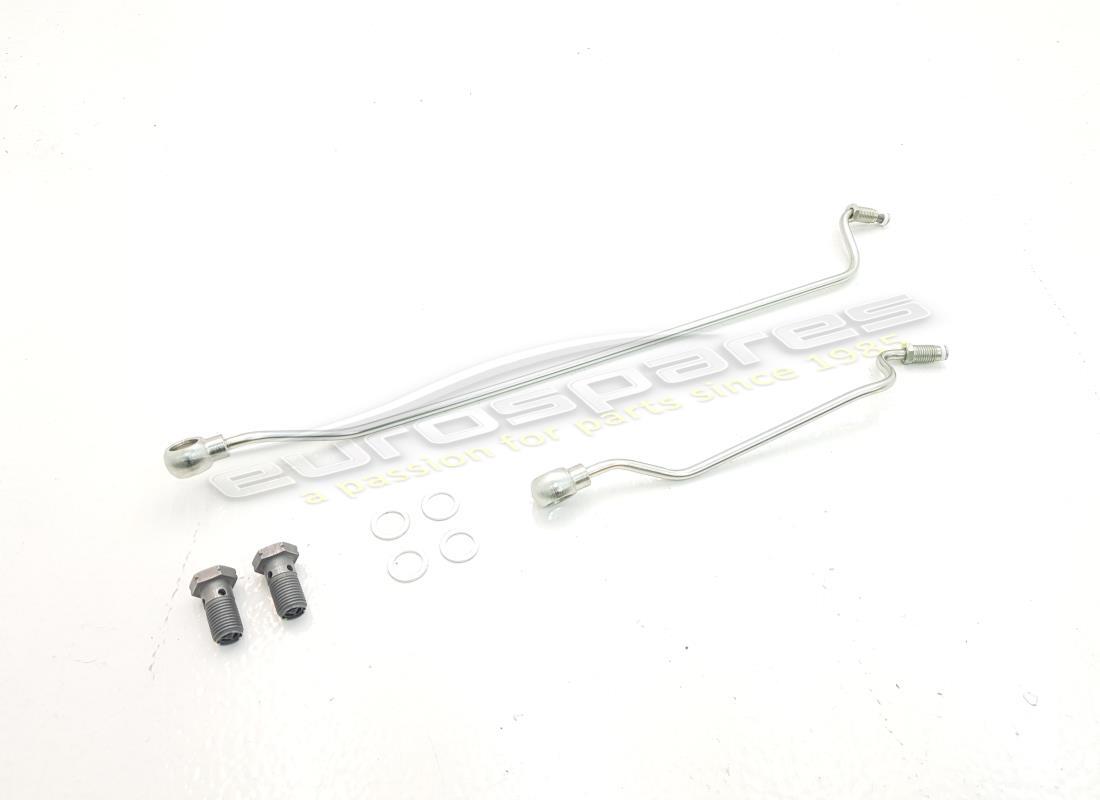

                                                        PIPES REPLACEMENT KIT FOR STEERING BOX
                                                        Not for GD
                                                        from £247.92
                                                        from £247.92
                                                        # 033
                                                        MPN: 980139058
                                                        PIPES REPLACEMENT KIT FOR STEERING BOX
                                                        Valid for GD
                                                        from £242.06
                                                        from £242.06
                                                        # 034
                                                        MPN: 980001706
                                                        TRACK ROD END
                                                        from £90.51
                                                        from £90.51
                                                        This part replaces part number 980000968
                                                        # 035
                                                        MPN: 980139056

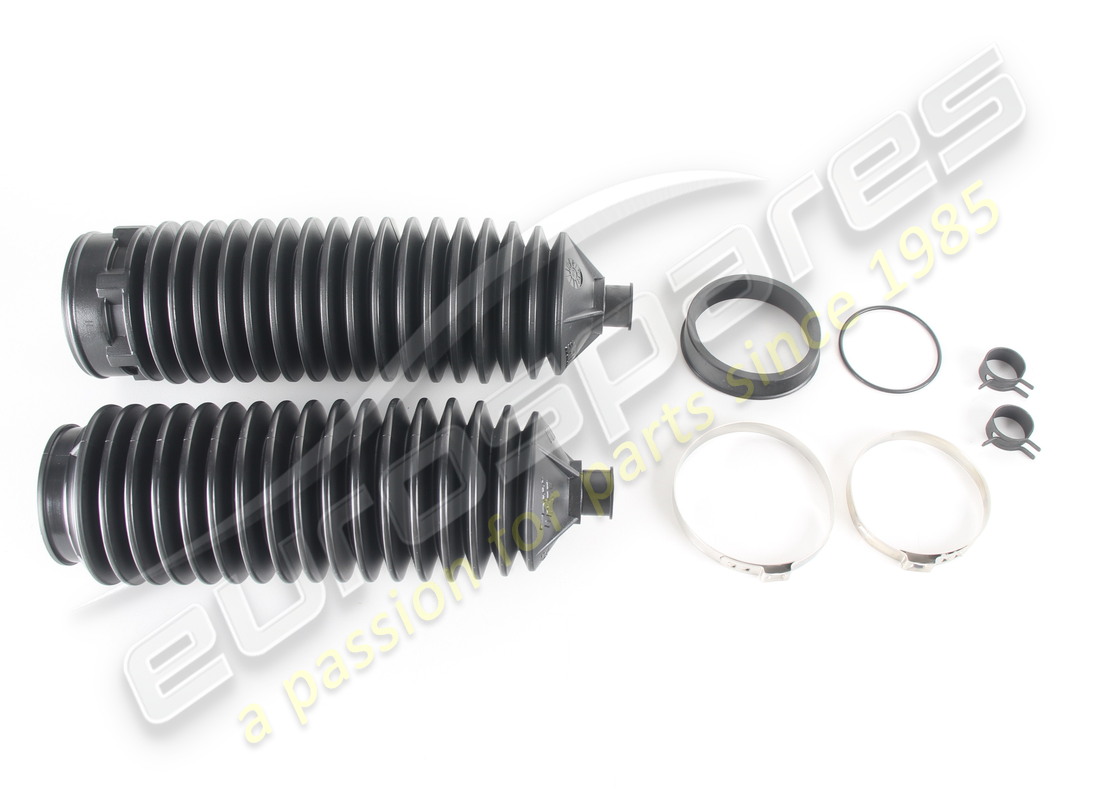

                                                        STEERING RACK BOOTS KIT
                                                        from £70.50
                                                        from £70.50
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
