510 - Steering Box & Servo-Control Pump

Maserati QTP. (2003) 4.2 Steering Box & Servo-Control Pump Parts Diagram

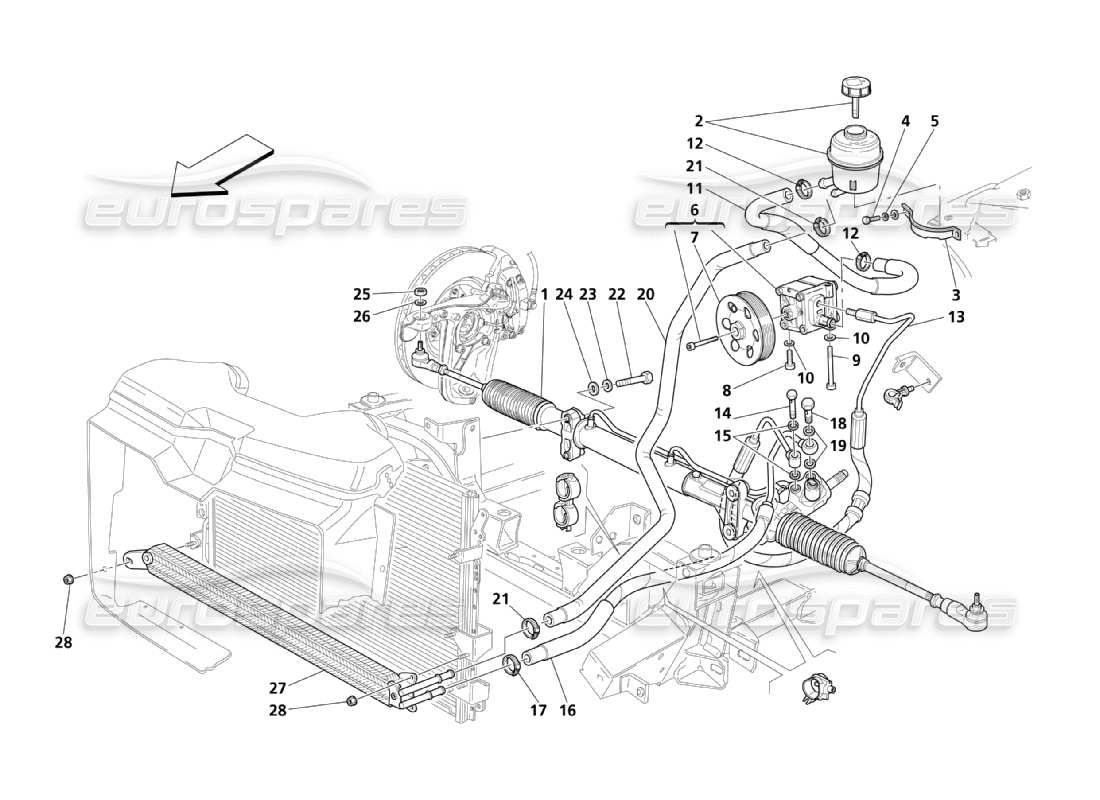

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 203519
                                                        RACK STEERING BOX
                                                        (LHD) use part number: 205783
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 205783
                                                        RACK STEERING BOX
                                                        (LHD)
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 203519
                                                        # 001
                                                        MPN: 206055
                                                        RACK STEERING BOX
                                                        (RHD)
                                                        from £3,750.79
                                                        from £3,750.79
                                                        # 002
                                                        MPN: 193933
                                                        OIL TANK FOR HYDRAULIC SERVO-CONTROLPUMP
                                                        from £15.94
                                                        from £15.94
                                                        # 003
                                                        MPN: 194873
                                                        COLLAR
                                                        from £6.77
                                                        from £6.77
                                                        # 004
                                                        MPN: 10902424
                                                        SCREW
                                                        from £0.53
                                                        from £0.53
                                                        # 005
                                                        MPN: 12644424
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 13550214
                                                        # 006
                                                        MPN: 199219
                                                        HYDRAULIC SERVO-CONTROL PUMP
                                                        Supersession
                                                        Supersession
                                                        # 007
                                                        MPN: 187475
                                                        PULLEY
                                                        from £42.25
                                                        from £42.25
                                                        # 010
                                                        MPN: 11193874
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 011
                                                        MPN: 192320
                                                        PIPE FROM TANK TO HYDRAULIC SERVO-CONTROLPUMP
                                                        from £12.81
                                                        from £12.81
                                                        # 012
                                                        MPN: 13000490
                                                        SCREW COLLAR
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 13127870 - and 1 more. Click to view details
                                                        # 013
                                                        MPN: 192317
                                                        PIPE FROM PUMP TO STEERING BOX
                                                        Supersession
                                                        Supersession
                                                        # 014
                                                        MPN: 188929
                                                        UNION
                                                        from £7.68
                                                        from £7.68
                                                        # 015
                                                        MPN: 10298460
                                                        GASKET
                                                        from £0.47
                                                        from £0.47
                                                        # 016
                                                        MPN: 192318
                                                        PIPE FROM STEERING BOX TO EXCHANGER
                                                        from £46.65
                                                        from £46.65
                                                        # 017
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 018
                                                        MPN: 188930
                                                        UNION
                                                        from £8.38
                                                        from £8.38
                                                        # 019
                                                        MPN: 10280060
                                                        GASKET
                                                        from £0.47
                                                        from £0.47
                                                        # 020
                                                        MPN: 192319
                                                        PIPE FROM EXCHANGER TO TANK
                                                        from £28.19
                                                        from £28.19
                                                        # 021
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 022
                                                        MPN: 16236974
                                                        SCREW
                                                        from £6.01
                                                        from £6.01
                                                        # 023
                                                        MPN: 11190574
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 024
                                                        MPN: 12641024
                                                        WASHER
                                                        from £1.02
                                                        from £1.02
                                                        # 025
                                                        MPN: 102742
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        # 026
                                                        MPN: 12626224
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        # 027
                                                        MPN: 200951
                                                        COMPLETE POWER STEERING EXCHANGER
                                                        Supersession
                                                        Supersession
                                                        # 028
                                                        MPN: 14058411
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
