maserati qtp. (2003) 4.2 brake booster system parts diagram

400 - Brake Booster System

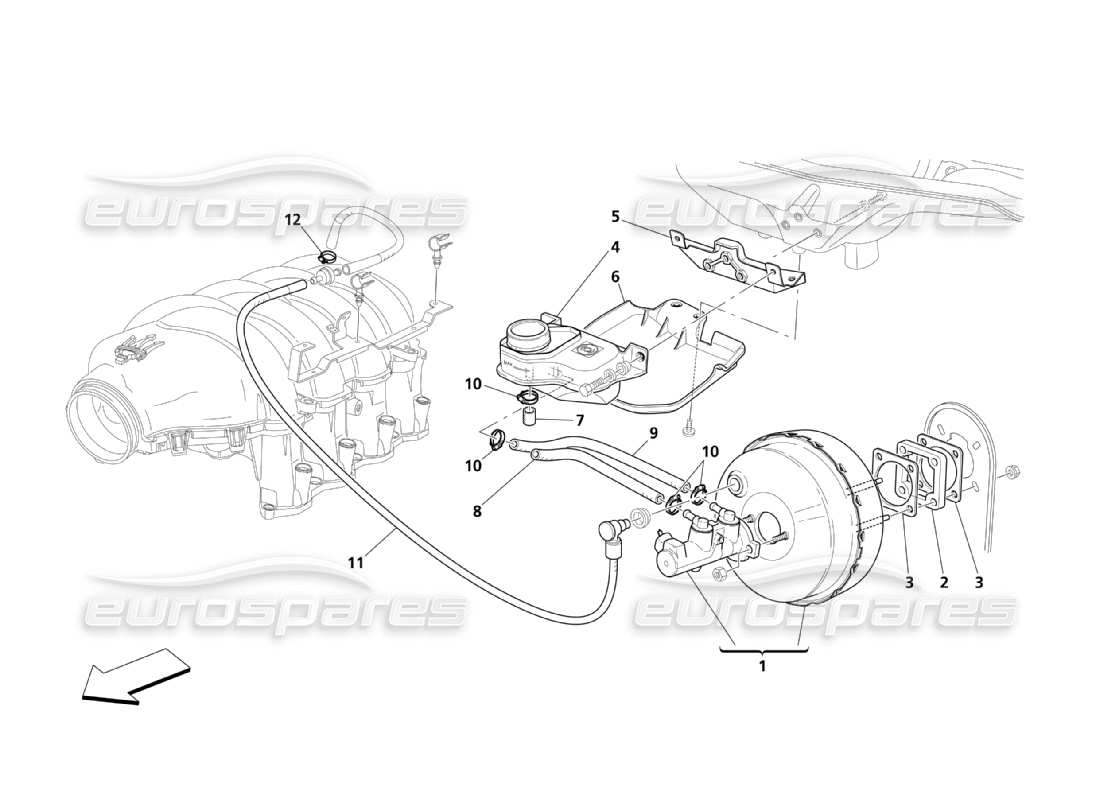

Maserati QTP. (2003) 4.2 Brake Booster System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 204154
                        COMPLETE BRAKE BOOSTER
                        USE 250082
                        Supersession
                        Supersession
                        This part replaces part number 190387
                        # 002
                        MPN: 196080
                        SPACER
                        from £20.30
                        from £20.30
                        # 003
                        MPN: 190378
                        GASKET
                        from £0.67
                        from £0.67
                        # 005
                        MPN: 199057
                        BRACKET FOR FUEL FIXING
                        from £16.70
                        from £16.70
                        # 006
                        MPN: 199058
                        SHIELD
                        from £6.34
                        from £6.34
                        # 008
                        MPN: 198852
                        PIPE FOR FEED FRONT PUMP
                        from £12.19
                        from £12.19
                        # 009
                        MPN: 198853
                        PIPE FOR FEED REAR PUMP
                        from £13.25
                        from £13.25
                        # 010
                        MPN: 13000190
                        SCREW COLLAR
                        from £0.52
                        from £0.52
                        # 011
                        MPN: 199560
                        DEPRESSION RUBBER HOSE
                        Supersession
                        Supersession
                        # 012
                        MPN: 13000290
                        SCREW COLLAR
                        from £0.56
                        from £0.56
