312 - Lay Shaft Gears

Maserati QTP. (2003) 4.2 Lay Shaft Gears Parts Diagram

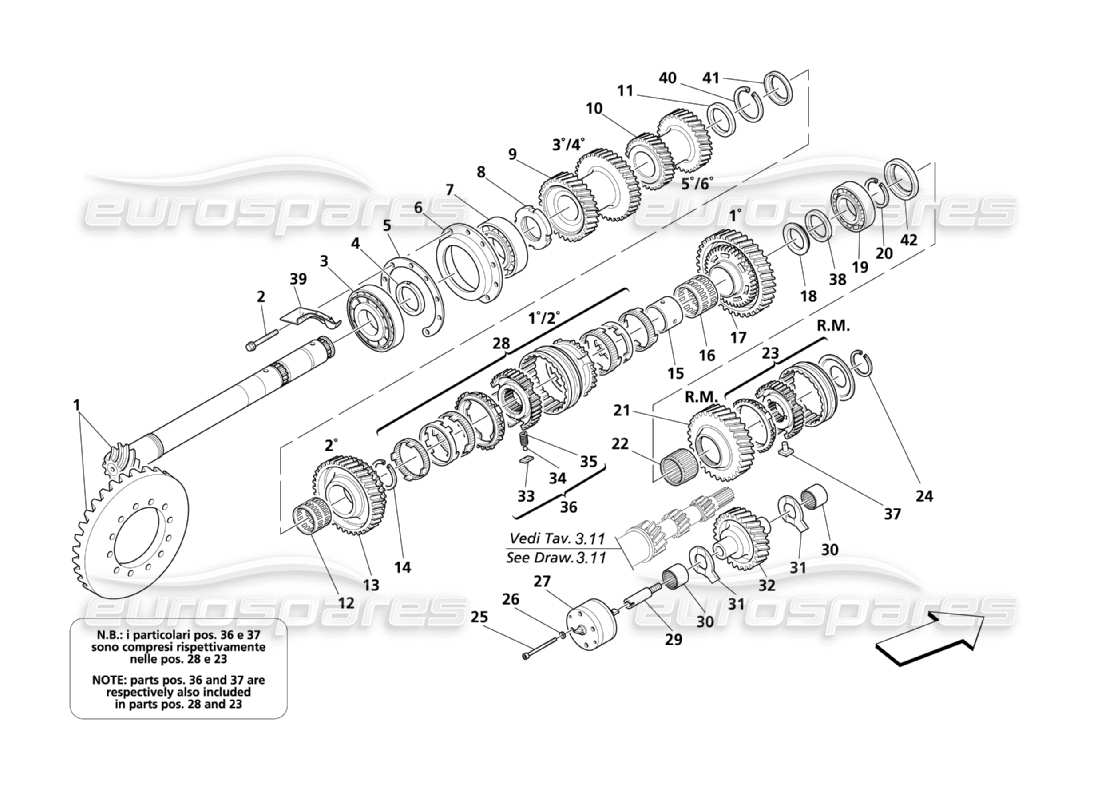

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 201163
                                                                            COMPLETE BEVEL SET
                                                                            from £706.89
                                                                            from £706.89
                                                                            # 002
                                                                            MPN: 16287731
                                                                            SCREW
                                                                            from £1.11
                                                                            from £1.11
                                                                            # 003
                                                                            MPN: 185022
                                                                            ROLLER BEARING
                                                                            from £84.87
                                                                            from £84.87
                                                                            # 004
                                                                            MPN: 185045
                                                                            REGISTER RING
                                                                            from £17.93
                                                                            from £17.93
                                                                            # 004
                                                                            MPN: 185046
                                                                            REGISTER RING
                                                                            from £17.93
                                                                            from £17.93
                                                                            # 004
                                                                            MPN: 185047
                                                                            REGISTER RING
                                                                            from £17.93
                                                                            from £17.93
                                                                            # 005
                                                                            MPN: 185042
                                                                            REGISTER RING
                                                                            from £5.66
                                                                            from £5.66
                                                                            # 005
                                                                            MPN: 185043
                                                                            REGISTER RING
                                                                            from £9.59
                                                                            from £9.59
                                                                            # 005
                                                                            MPN: 185044
                                                                            REGISTER RING
                                                                            from £14.69
                                                                            from £14.69
                                                                            # 006
                                                                            MPN: 185020
                                                                            BEARING SUPPORT
                                                                            from £74.92
                                                                            from £74.92
                                                                            # 007
                                                                            MPN: 185021
                                                                            ROLLER BEARING
                                                                            from £75.21
                                                                            from £75.21
                                                                            # 008
                                                                            MPN: 196667
                                                                            RING NUT
                                                                            from £32.68
                                                                            from £32.68
                                                                            # 009
                                                                            MPN: 182287
                                                                            3RD AND 4TH DRIVEN GEAR
                                                                            from £220.44
                                                                            from £220.44
                                                                            # 010
                                                                            MPN: 980138557
                                                                            5TH AND 6TH DRIVEN GEAR
                                                                            from £233.63
                                                                            from £233.63
                                                                            # 011
                                                                            MPN: 188497
                                                                            SPACER
                                                                            from £27.62
                                                                            from £27.62
                                                                            # 012
                                                                            MPN: 184014
                                                                            ROLLER CAGE
                                                                            from £10.23
                                                                            from £10.23
                                                                            # 013
                                                                            MPN: 182293
                                                                            COMPLETE PINION FOR 2ND GEAR
                                                                            from £146.76
                                                                            from £146.76
                                                                            # 014
                                                                            MPN: 183976
                                                                            FLEXIBLE RING
                                                                            from £6.58
                                                                            from £6.58
                                                                            # 014
                                                                            MPN: 185036
                                                                            FLEXIBLE RING
                                                                            from £19.67
                                                                            from £19.67
                                                                            # 014
                                                                            MPN: 185037
                                                                            FLEXIBLE RING
                                                                            from £23.23
                                                                            from £23.23
                                                                            # 015
                                                                            MPN: 183971
                                                                            BUSHING
                                                                            from £43.35
                                                                            from £43.35
                                                                            # 016
                                                                            MPN: 184016
                                                                            ROLLER CAGE
                                                                            from £12.61
                                                                            from £12.61
                                                                            # 017
                                                                            MPN: 182299
                                                                            COMPLETE PINION FOR 1ST GEAR
                                                                            from £341.40
                                                                            from £341.40
                                                                            # 018
                                                                            MPN: 183972
                                                                            RING
                                                                            from £41.85
                                                                            from £41.85
                                                                            # 018
                                                                            MPN: 185040
                                                                            RING
                                                                            from £23.32
                                                                            from £23.32
                                                                            # 018
                                                                            MPN: 185041
                                                                            RING
                                                                            from £20.22
                                                                            from £20.22
                                                                            # 019
                                                                            MPN: 184020
                                                                            ROLLER BEARING
                                                                            from £77.55
                                                                            from £77.55
                                                                            # 020
                                                                            MPN: 184042
                                                                            FLEXIBLE RING
                                                                            from £6.78
                                                                            from £6.78
                                                                            # 021
                                                                            MPN: 198602
                                                                            COMPLETE PINION FOR REVERSE GEAR
                                                                            from £619.18
                                                                            from £619.18
                                                                            # 022
                                                                            MPN: 184018
                                                                            ROLLER CAGE
                                                                            from £15.35
                                                                            from £15.35
                                                                            # 023
                                                                            MPN: 326260
                                                                            REVERSE GEAR COMPLETE SYNCHRONIZER
                                                                            from £1,179.41
                                                                            from £1,179.41
                                                                            This part replaces part number 193439
                                                                            # 024
                                                                            MPN: 184041
                                                                            FLEXIBLE RING
                                                                            from £2.55
                                                                            from £2.55
                                                                            # 025
                                                                            MPN: 14303624
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 026
                                                                            MPN: 10571379
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 027
                                                                            MPN: 182279
                                                                            COMPLETE OIL PUMP
                                                                            from £335.92
                                                                            from £335.92
                                                                            # 028
                                                                            MPN: 185164
                                                                            1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                                            from £715.46
                                                                            from £715.46
                                                                            # 029
                                                                            MPN: 198622
                                                                            PIN
                                                                            from £52.23
                                                                            from £52.23
                                                                            # 030
                                                                            MPN: 184017
                                                                            ROLLER CASING
                                                                            from £4.88
                                                                            from £4.88
                                                                            # 031
                                                                            MPN: 183975
                                                                            RING
                                                                            from £13.77
                                                                            from £13.77
                                                                            # 032
                                                                            MPN: 198612
                                                                            IDLE GEAR FOR REVERSE
                                                                            from £360.87
                                                                            from £360.87
                                                                            # 033
                                                                            -
                                                                            PAD FOR SYNCHRONIZER
                                                                            # 034
                                                                            -
                                                                            BALL
                                                                            # 035
                                                                            -
                                                                            SPRING FOR BALL
                                                                            # 036
                                                                            MPN: 188320
                                                                            PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                                            from £6.75
                                                                            from £6.75
                                                                            # 037
                                                                            MPN: 193440
                                                                            PADS/SYNCHRO REVERSE GEAR KIT
                                                                            from £2.32
                                                                            from £2.32
                                                                            This part replaces part number 193484
                                                                            # 038
                                                                            MPN: 182326
                                                                            SPACER
                                                                            from £38.46
                                                                            from £38.46
                                                                            # 039
                                                                            MPN: 185713
                                                                            OIL CONVEYOR
                                                                            from £15.64
                                                                            from £15.64
                                                                            # 040
                                                                            MPN: 183976
                                                                            FLEXIBLE RING
                                                                            Thickness mm. 2,10-
                                                                            from £6.58
                                                                            from £6.58
                                                                            # 040
                                                                            MPN: 185036
                                                                            FLEXIBLE RING
                                                                            Thickness mm. 1,85 - Possible fitting
                                                                            from £19.67
                                                                            from £19.67
                                                                            # 040
                                                                            MPN: 185037
                                                                            FLEXIBLE RING
                                                                            Thickness mm. 1,60 - Possible fitting
                                                                            from £23.23
                                                                            from £23.23
                                                                            # 041
                                                                            MPN: 203800
                                                                            RING
                                                                            Thickness mm. 7,6-
                                                                            from £13.62
                                                                            from £13.62
                                                                            # 041
                                                                            MPN: 203801
                                                                            RING
                                                                            Thickness mm. 7,3 - As Alternative
                                                                            from £26.21
                                                                            from £26.21
                                                                            # 042
                                                                            MPN: 200979
                                                                            SPACER
                                                                            from £33.70
                                                                            from £33.70
