121 - LH cylinder head

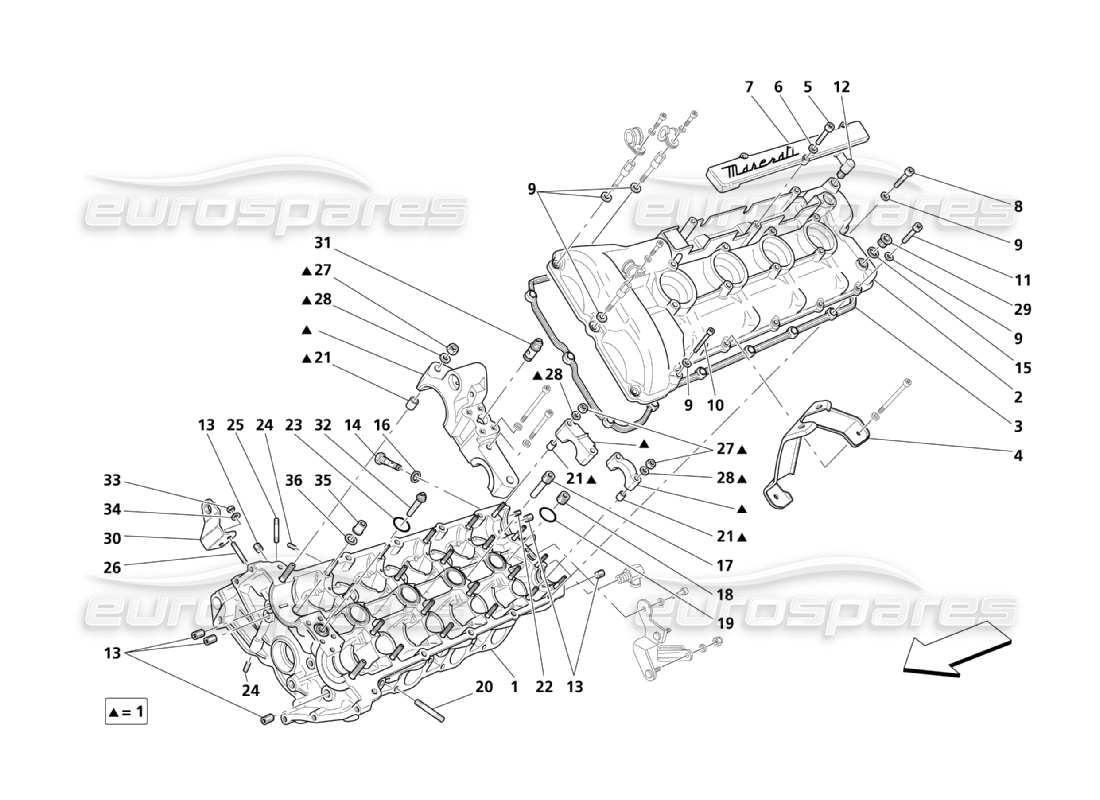

Maserati QTP. (2003) 4.2 LH Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 980020008

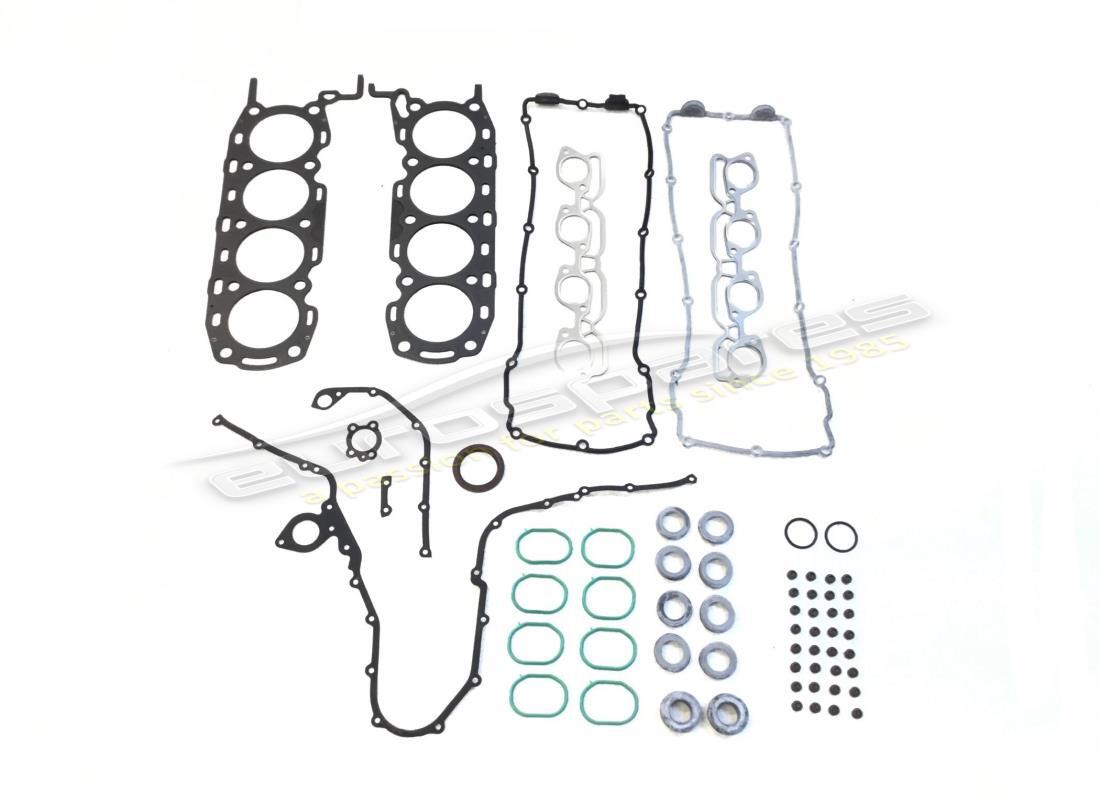

TOP END GASKET SET
from £439.95
from £439.95
# 001
MPN: 189360
COMPLETE LH HEAD
Supersession
Supersession
This part replaces part number 187999 - and 1 more. Click to view details
# 002
MPN: 187816

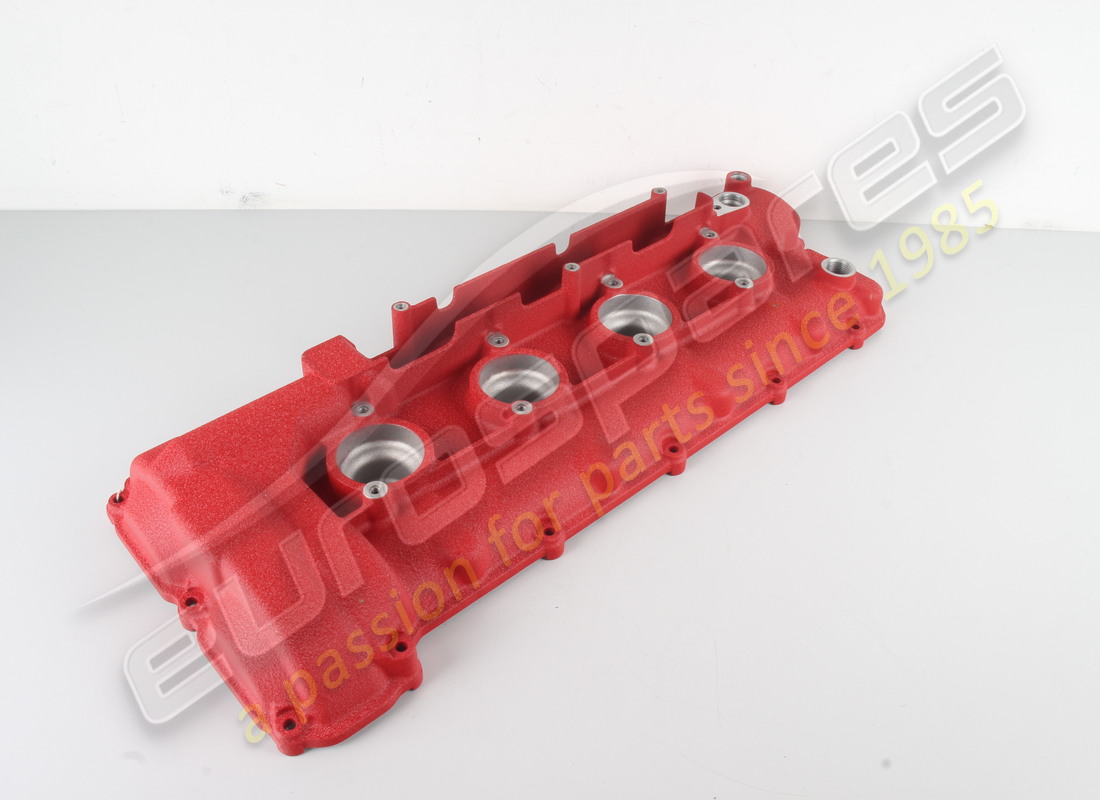

LH CYLINDERS HEAD COVER
from £110.75
from £110.75
# 003
MPN: 198928
LH HEAD COVER GASKET
from £33.60
from £33.60
# 004
MPN: 195436
SECONDARY AIR VALVE FIX. BRACKET
Supersession
Supersession
# 005
MPN: 14304424
SCREW
from £0.52
from £0.52
# 006
MPN: 14497878
WASHER
from £0.47
from £0.47
# 007
MPN: 185313
LH HARNESS SMALL COVER
from £37.53
from £37.53
# 008
MPN: 156834
SCREW
from £1.56
from £1.56
# 009
MPN: 11197774
WASHER
from £0.52
from £0.52
# 010
MPN: 156830
SCREW
from £0.47
from £0.47
# 011
MPN: 157218
SCREW
from £0.47
from £0.47
# 012
MPN: 124342
THREADED UNION
from £3.59
from £3.59
# 013
MPN: 14326001
THREADED PLUG
from £0.47
from £0.47
# 014
MPN: 180267
OIL NONRETURN VALVE
from £18.82
from £18.82
# 015
MPN: 10263360
GASKET
from £0.47
from £0.47
# 016
MPN: 10261060
GASKET
from £0.53
from £0.53
This part replaces part number 274036
# 017
MPN: 183447
THREADED PLUG
from £4.67
from £4.67
# 018
MPN: 164400
THREADED PLUG
from £1.86
from £1.86
# 019
MPN: 187706
GASKET
from £3.27
from £3.27
# 020
MPN: 13543424
STUD
from £1.03
from £1.03
# 021
MPN: 102725
CENTERING DOWEL
from £0.62
from £0.62
# 022
MPN: 14326150
THREADED PLUG
from £0.53
from £0.53
# 023
MPN: 134233
O.R. GASKET
from £0.47
from £0.47
# 024
MPN: 199760
THREADED PLUG
from £0.47
from £0.47
# 025
MPN: 13541224
STUD
from £35.23
from £35.23
# 026
MPN: 13516624
STUD
from £0.70
from £0.70
# 027
MPN: 15896211
NUT
Supersession
Supersession
# 028
MPN: 11197774
WASHER
from £0.51
from £0.51
# 029
MPN: 187963
PLUG
from £3.67
from £3.67
# 030
MPN: 187142
BRACKET
from £16.44
from £16.44
# 031
MPN: 184681
OIL PRESSURE CHECK VALVE
from £241.27
from £241.27
# 032
MPN: 180266
OIL FILTER
Supersession
Supersession
# 033
MPN: 16100814
NUT
from £0.71
from £0.71
# 034
MPN: 11193874
WASHER
from £0.47
from £0.47
# 035
MPN: 183524
NUT
from £0.98
from £0.98
# 036
MPN: 151117
WASHER
from £0.32
from £0.32
This part replaces part number 300266 - and 1 more. Click to view details
