062 - Dashboard: Leather Upholstery

Maserati QTP V8 Evoluzione Dashboard: Leather Upholstery Parts Diagram

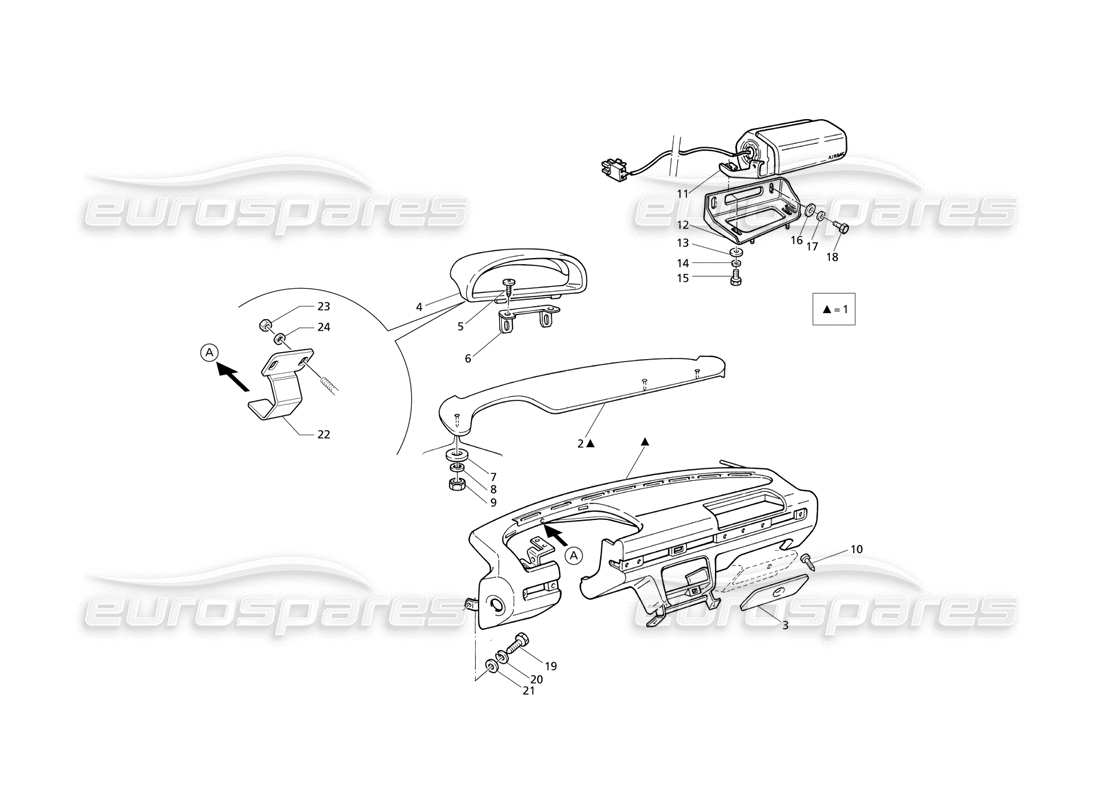

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 000
                                          MPN: 374523870
                                          BECKER GRAND PRIX STEREO (TAPE PLAYER + CD CHANGER)
                                          from £336.00
                                          from £336.00
                                          # 001
                                          MPN: 9819001..
                                          UPHOLSTERED DASHBOARD LH DRIVE
                                          - in the order, add the two digits of leather color or - alcantara code
                                          Supersession
                                          Supersession
                                          # 001
                                          MPN: 9819002..
                                          UPHOLSTERED DASHBOARD RH DRIVE
                                          - in the order, add the two digits of leather color or - alcantara code
                                          Supersession
                                          Supersession
                                          # 002
                                          MPN: 9819003..
                                          DASHBOARD UPPER TRIMMING (LH DRIVE)
                                          - in the order, add the two digits of leather color or - alcantara code
                                          Supersession
                                          Supersession
                                          # 002
                                          MPN: 9819004..
                                          DASHBOARD UPPER TRIMMING (RH DRIVE)
                                          - in the order, add the two digits of leather color or - alcantara code
                                          # 003
                                          MPN: 9819008..
                                          GLOVE BOX TRIMMING
                                          - in the order, add the two digits of leather color or - alcantara code
                                          # 004
                                          MPN: 9819007..
                                          CLUSTER DOME
                                          - in the order, add the two digits of leather color or - alcantara code
                                          # 005
                                          MPN: 119935190
                                          SCREW
                                          from £1.08
                                          from £1.08
                                          # 006
                                          MPN: 372300171
                                          BRACKET
                                          from £2.82
                                          from £2.82
                                          # 007
                                          MPN: 314520406
                                          SHIM
                                          from £0.70
                                          from £0.70
                                          # 008
                                          MPN: 136110055
                                          WASHER
                                          from £0.78
                                          from £0.78
                                          # 009
                                          MPN: 14084011
                                          NUT
                                          from £0.52
                                          from £0.52
                                          # 010
                                          MPN: 119935095
                                          SCREW
                                          from £1.08
                                          from £1.08
                                          # 011
                                          MPN: 9819005..
                                          PASSENGER SIDE AIRBAG (LH DRIVE)
                                          - in the order, add the two digits of leather color or - alcantara code
                                          Supersession
                                          Supersession
                                          # 011
                                          MPN: 9819006..
                                          PASSENGER SIDE AIRBAG (RH DRIVE)
                                          - in the order, add the two digits of leather color or - alcantara code
                                          from £446.25
                                          from £446.25
                                          # 012
                                          MPN: 372308465
                                          PASSANGER AIRBAG SUPPORT LH DRIVE
                                          from £50.75
                                          from £50.75
                                          # 012
                                          MPN: 372396465
                                          PASSANGER AIRBAG SUPPORT RH DRIVE
                                          from £27.91
                                          from £27.91
                                          # 013
                                          MPN: 163020080
                                          FLAT WASHER
                                          from £1.08
                                          from £1.08
                                          # 014
                                          MPN: 12601270
                                          SPRING WASHER
                                          Supersession
                                          Supersession
                                          This part replaces part number 10571570
                                          # 015
                                          MPN: 10902121
                                          SCREW
                                          from £0.71
                                          from £0.71
                                          # 016
                                          MPN: 136110110
                                          FLAT WASHER
                                          from £2.18
                                          from £2.18
                                          # 017
                                          MPN: 10571779
                                          SPRING WASHER
                                          from £0.47
                                          from £0.47
                                          # 018
                                          MPN: 100708020
                                          SCREW
                                          from £0.70
                                          from £0.70
                                          # 019
                                          MPN: 96890
                                          SCREW
                                          from £2.20
                                          from £2.20
                                          # 020
                                          MPN: 10571779
                                          SPRING WASHER
                                          from £0.47
                                          from £0.47
                                          # 021
                                          MPN: 12645021
                                          SHIM
                                          from £1.63
                                          from £1.63
                                          # 022
                                          MPN: 372380170
                                          BRACKET
                                          from £2.33
                                          from £2.33
                                          # 023
                                          MPN: 10794011
                                          NUT
                                          from £0.26
                                          from £0.26
                                          This part replaces part number 10794040
                                          # 024
                                          MPN: 12642801
                                          WASHER
                                          from £0.47
                                          from £0.47
