maserati qtp v8 evoluzione sound systems parts diagram

059.3 - Sound Systems

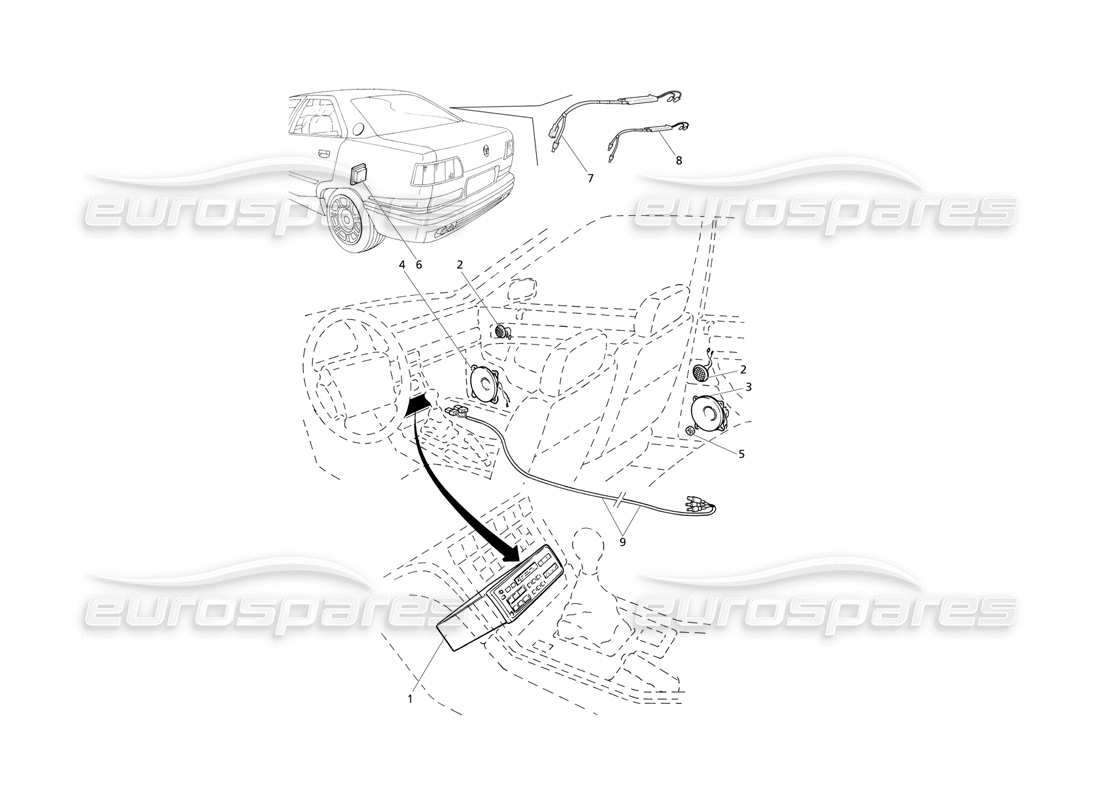

Maserati QTP V8 Evoluzione Sound Systems Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
Part in stock
Available in a part set
Part supersession in stock
Available in a part set to order (subject to availability)
Part available to order (subject to availability)
Available in a part kit
                    Part number
                    # 001
                    MPN: 383500106
                    Sound System
                    from £1,309.52
                    from £1,309.52
                    # 002
                    MPN: 373500118
                    TWEETER SPEAKER
                    from £13.89
                    from £13.89
                    # 003
                    MPN: 373500116
                    WOOFER SPEAKER
                    from £15.21
                    from £15.21
                    # 004
                    MPN: 373500115
                    WOOFER SPEAKER
                    from £19.83
                    from £19.83
                    # 005
                    MPN: 13831811
                    FLANGED NUT
                    from £0.47
                    from £0.47
                    # 006
                    MPN: 980000942
                    CONTROL UNIT
                    from £155.41
                    from £155.41
                    # 007
                    MPN: 373380136
                    AERIAL AMPLIFIER
                    from £80.89
                    from £80.89
                    # 008
                    MPN: 373380137
                    AERIAL FILTER
                    from £15.96
                    from £15.96
                    # 009
                    MPN: 373500112
                    CD CHANGER WIRING
                    from £47.81
                    from £47.81
