maserati qtp v8 evoluzione external finishing - badges parts diagram

052 - External Finishing - Badges

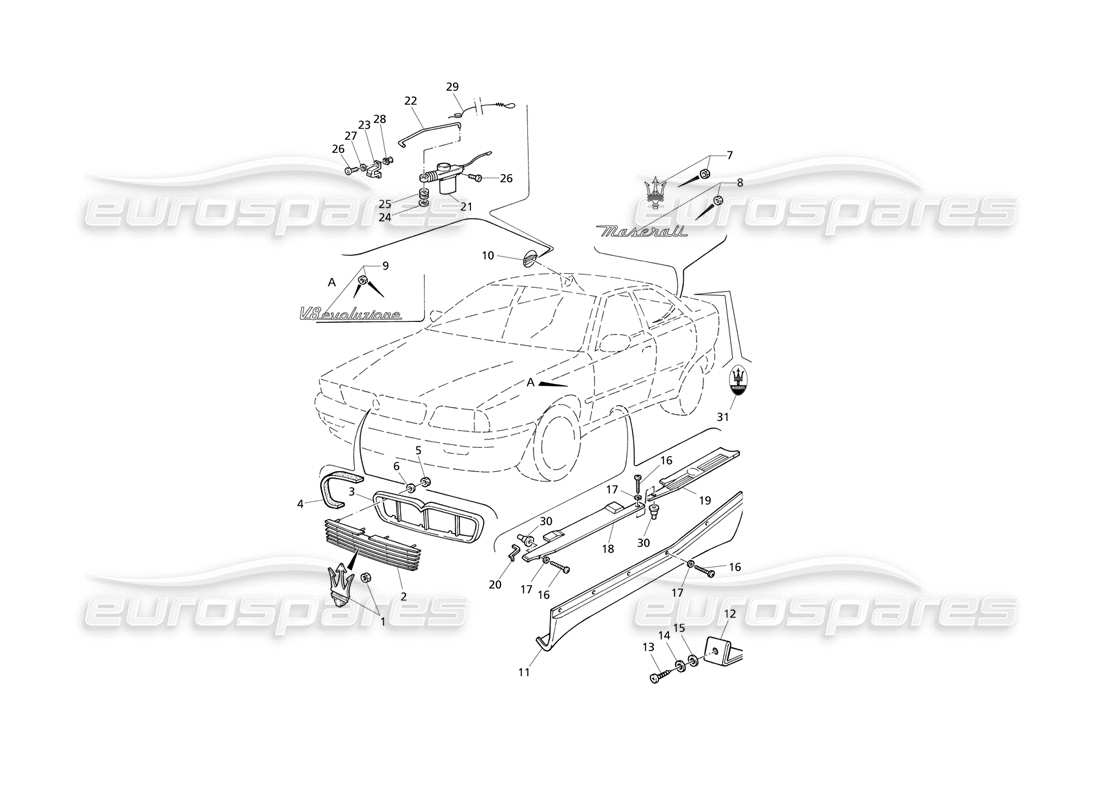

Maserati QTP V8 Evoluzione External Finishing - Badges Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 374180304
                                                            Badge
                                                            from £100.48
                                                            from £100.48
                                                            # 003
                                                            MPN: 374100307

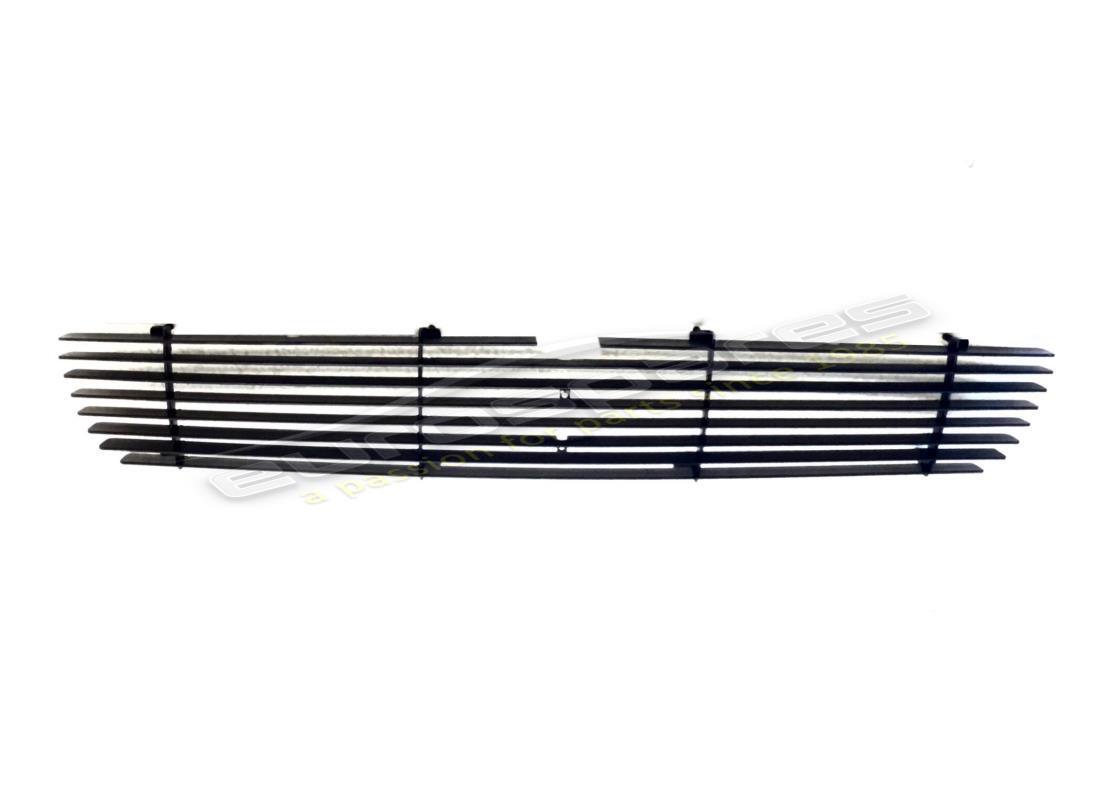

                                                            Frame
                                                            from £39.48
                                                            from £39.48
                                                            # 004
                                                            MPN: 374180400
                                                            SEAL
                                                            from £1.55
                                                            from £1.55
                                                            # 005
                                                            MPN: 14084217
                                                            NUT
                                                            Supersession
                                                            Supersession
                                                            # 006
                                                            MPN: 374100310
                                                            WASHER
                                                            Supersession
                                                            Supersession
                                                            # 007
                                                            MPN: 374780109
                                                            REAR BADGE
                                                            from £43.72
                                                            from £43.72
                                                            # 008
                                                            MPN: 374780111
                                                            Maserati NAME
                                                            from £52.49
                                                            from £52.49
                                                            # 009
                                                            MPN: 374590112
                                                            V8 EVOLUZIONE LABEL
                                                            from £26.25
                                                            from £26.25
                                                            # 010
                                                            MPN: 372580143
                                                            PETROL TANK FLAP
                                                            from £43.75
                                                            from £43.75
                                                            This part replaces part number 372500143
                                                            # 011
                                                            MPN: 378330239

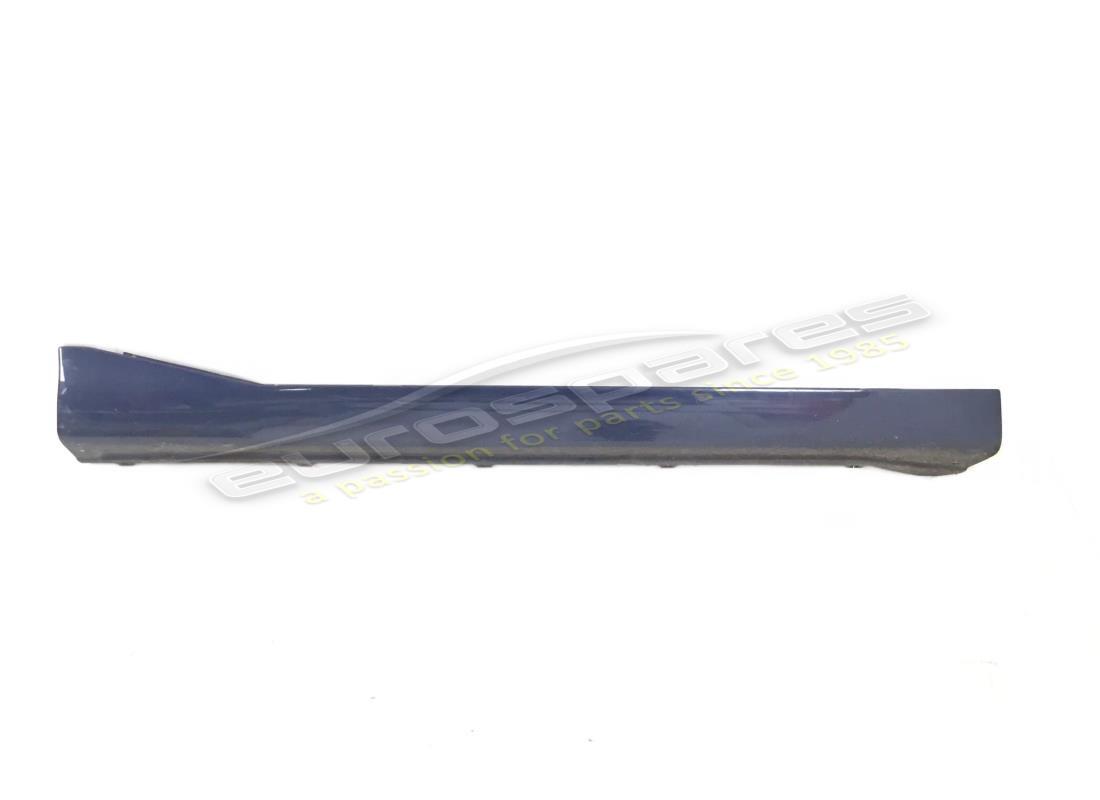

                                                            LH SIDE MEMBER COVER
                                                            from £89.25
                                                            from £89.25
                                                            This part replaces part number 378300239 - and 1 more. Click to view details
                                                            # 011
                                                            MPN: 378330240
                                                            RH SIDE MEMBER COVER
                                                            from £89.25
                                                            from £89.25
                                                            This part replaces part number 378300240 - and 1 more. Click to view details
                                                            # 012
                                                            MPN: 378390915

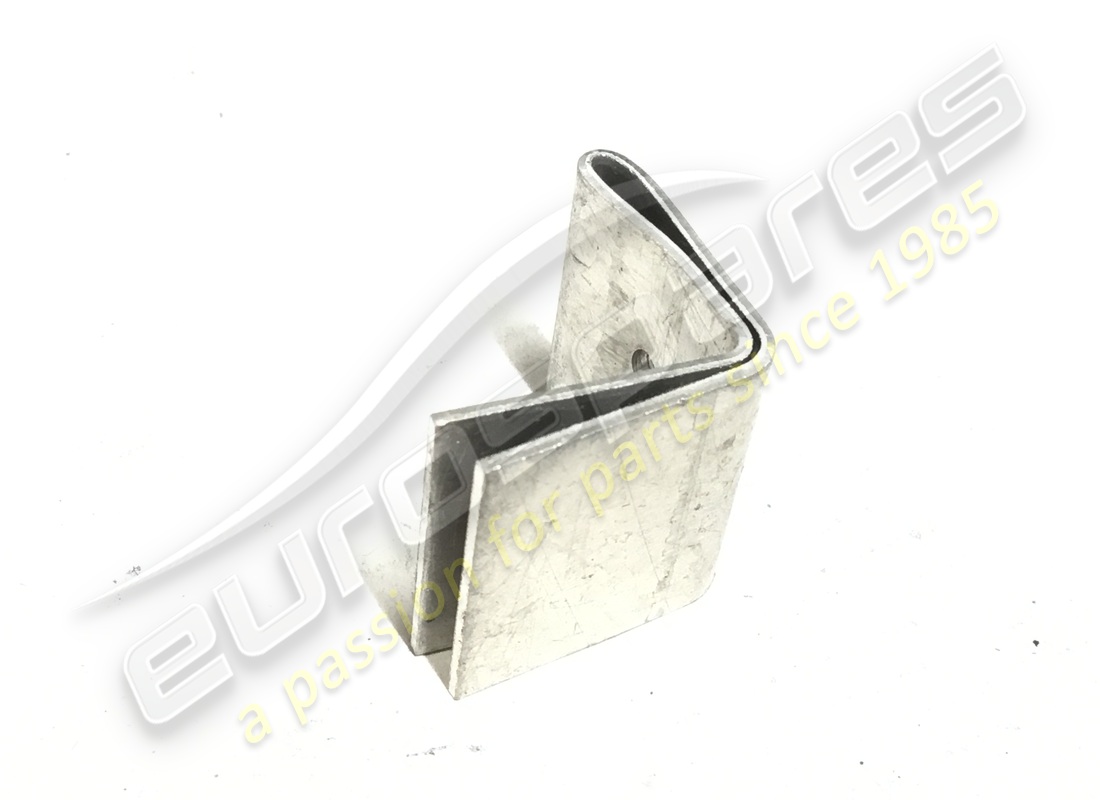

                                                            HOOK
                                                            from £1.93
                                                            from £1.93
                                                            This part replaces part number 378300357 which we have in stock
                                                            # 013
                                                            MPN: 15958001
                                                            SELF THREADING SCREW
                                                            from £1.55
                                                            from £1.55
                                                            # 014
                                                            MPN: 135700050
                                                            KNURLED WASHER
                                                            from £1.08
                                                            from £1.08
                                                            # 015
                                                            MPN: 136110055
                                                            WASHER
                                                            from £0.78
                                                            from £0.78
                                                            # 016
                                                            MPN: 13270670
                                                            SCREW
                                                            from £0.84
                                                            from £0.84
                                                            This part replaces part number 10373221
                                                            # 017
                                                            MPN: 14497670
                                                            WASHER
                                                            from £1.08
                                                            from £1.08
                                                            # 018
                                                            MPN: 370380830
                                                            CHROME PLATED FRONT RH SILL
                                                            from £127.91
                                                            from £127.91
                                                            This part replaces part number 378380312 - and 1 more. Click to view details
                                                            # 018
                                                            MPN: 370380831
                                                            CHROME PLATED FRONT LH SILL
                                                            from £127.91
                                                            from £127.91
                                                            This part replaces part number 378380311 - and 1 more. Click to view details
                                                            # 019
                                                            MPN: 370380832
                                                            CHROME PLATED FRONT RH SILL
                                                            from £61.62
                                                            from £61.62
                                                            This part replaces part number 378380322 - and 1 more. Click to view details
                                                            # 019
                                                            MPN: 370380833
                                                            CHROME PLATED FRONT LH SILL
                                                            from £54.57
                                                            from £54.57
                                                            This part replaces part number 378380321 - and 1 more. Click to view details
                                                            # 020
                                                            MPN: 398750315
                                                            SILL SEAL PLATED FRONT RH SILL
                                                            - Section In meters - order minimum amount of 2 m or multiples
                                                            from £1.08
                                                            from £1.08
                                                            # 021
                                                            MPN: 323320195
                                                            ACTUATOR
                                                            from £27.59
                                                            from £27.59
                                                            This part replaces part number 313320195
                                                            # 022
                                                            MPN: 372530520
                                                            TIE ROD
                                                            from £7.62
                                                            from £7.62
                                                            # 023
                                                            MPN: 312520144
                                                            PAWL
                                                            from £5.56
                                                            from £5.56
                                                            # 024
                                                            MPN: 53451389
                                                            TIE ROD CLIP
                                                            from £1.08
                                                            from £1.08
                                                            # 025
                                                            MPN: 30211310
                                                            TIE ROD RUBBER PAD
                                                            from £1.05
                                                            from £1.05
                                                            # 026
                                                            MPN: 119142160
                                                            SCREW
                                                            from £0.84
                                                            from £0.84
                                                            # 027
                                                            MPN: 135900043
                                                            WASHER
                                                            from £1.08
                                                            from £1.08
                                                            This part replaces part number 14496207
                                                            # 028
                                                            MPN: 312520499
                                                            NUT SCREW
                                                            from £0.70
                                                            from £0.70
                                                            # 029
                                                            MPN: 398150360
                                                            FLAP EMERGENCY CORD
                                                            from £2.85
                                                            from £2.85
                                                            # 030
                                                            MPN: 378300744
                                                            THREADED BUSH
                                                            from £0.70
                                                            from £0.70
                                                            # 031
                                                            MPN: 374700400
                                                            REAR OVAL BADGE
                                                            - Valid for special version
                                                            from £182.72
                                                            from £182.72
