041.2 - Clutch Pedal and Pump Pedal Support (RH Drive)

Maserati QTP V8 Evoluzione Clutch Pedal and Pump Pedal Support (R.H. Drive) Parts Diagram

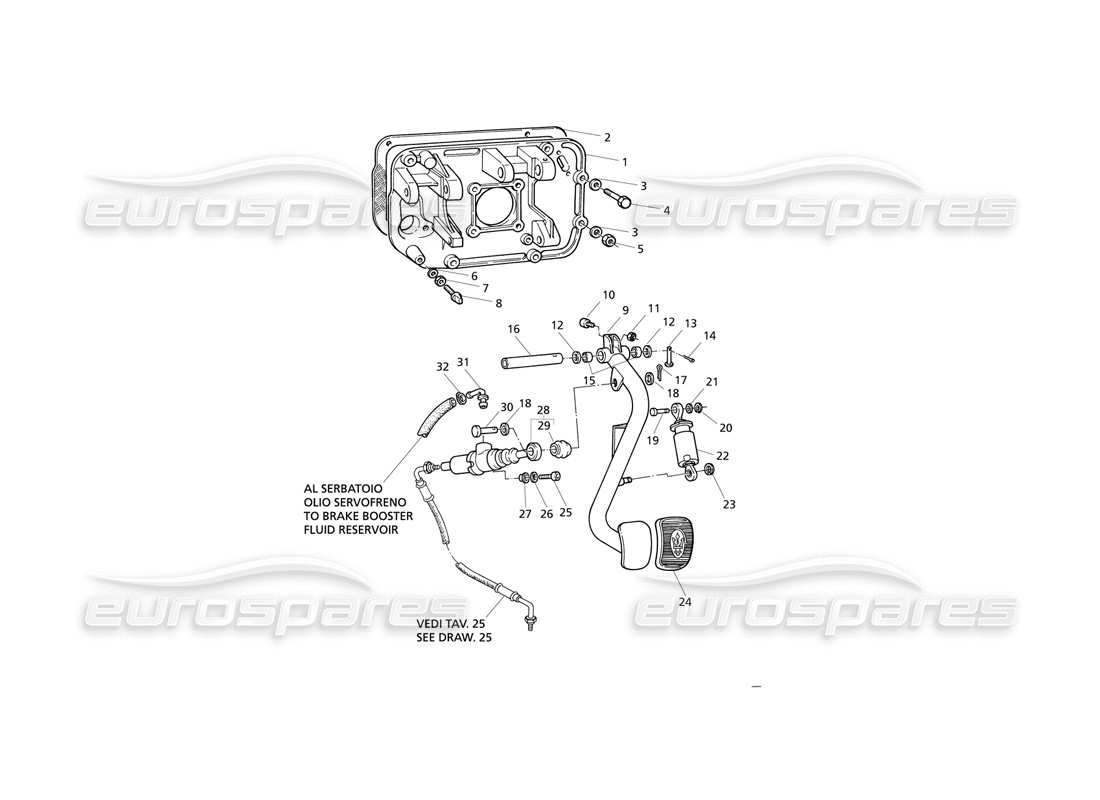

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 378496304
          SUPPORT FOR PEDAL ASSY
          - Valid for M.T. version
          from £1,138.75
          from £1,138.75
          # 001
          MPN: 378497304
          SUPPORT FOR PEDAL ASSY
          - Valid for A.T. version
          from £626.31
          from £626.31
          # 002
          MPN: 378496348
          GASKET
          from £9.66
          from £9.66
          # 003
          MPN: 14496501
          WASHER
          from £0.84
          from £0.84
          # 004
          MPN: 16044121
          SCREW
          from £0.71
          from £0.71
          # 005
          MPN: 16104421
          NUT
          from £0.81
          from £0.81
          # 006
          MPN: 12604279
          SPRING WASHER
          - Valid for M.T. version
          from £0.47
          from £0.47
          # 007
          MPN: 15896221
          NUT
          - Valid for M.T. version
          from £0.71
          from £0.71
          # 008
          MPN: 318420114
          LIMIT STOP
          - Valid for M.T. version
          from £1.92
          from £1.92
          # 009
          MPN: 378496122
          CLUTCH PEDAL
          - Valid for M.T. version
          from £241.01
          from £241.01
          # 010
          MPN: 318420114
          LIMIT STOP
          - Valid for M.T. version
          from £1.92
          from £1.92
          # 011
          MPN: 15896221
          NUT
          - Valid for M.T. version
          from £0.71
          from £0.71
          # 012
          MPN: 368402321
          SPACER WASHER
          - Valid for M.T. version
          from £1.08
          from £1.08
          # 013
          MPN: 378480377
          PIN
          - Valid for M.T. version
          from £50.07
          from £50.07
          # 014
          MPN: 58841309
          SAFETY CLIP
          - Valid for M.T. version
          from £2.00
          from £2.00
          This part replaces part number 670000498 - and 2 more. Click to view details
          # 015
          MPN: 318420320
          BUSH
          - Valid for M.T. version
          from £9.66
          from £9.66
          # 016
          MPN: 378496329
          PIN
          - Valid for M.T. version
          from £49.13
          from £49.13
          # 017
          MPN: 58841309
          SAFETY CLIP
          - Valid for M.T. version
          from £2.00
          from £2.00
          This part replaces part number 670000498 - and 2 more. Click to view details
          # 018
          MPN: 97955
          FLAT WASHER
          - Valid for M.T. version
          from £1.31
          from £1.31
          # 019
          MPN: 378419377
          PIN
          - Valid for M.T. version
          from £11.29
          from £11.29
          # 020
          MPN: 11087970
          SEEGER RING
          - Valid for M.T. version
          from £0.70
          from £0.70
          # 021
          MPN: 14496501
          WASHER
          - Valid for M.T. version
          from £0.84
          from £0.84
          # 022
          MPN: 378400854
          CLUTCH PEDAL SERVO CONTROL
          - Valid for M.T. version
          from £41.19
          from £41.19
          # 023
          MPN: 11088076
          SEEGER RING
          - Valid for M.T. version
          from £0.47
          from £0.47
          # 024
          MPN: 378430300
          BRAKE AND CLUTCH PEDAL COVER
          - Valid for M.T. version
          from £70.19
          from £70.19
          This part replaces part number 191496
          # 025
          MPN: 14433121
          ALLEN SCREW
          - Valid for M.T. version
          from £1.21
          from £1.21
          # 026
          MPN: 12604279
          SPRING WASHER
          - Valid for M.T. version
          from £0.47
          from £0.47
          # 027
          MPN: 378419378
          BUSH
          - Valid for M.T. version
          from £4.64
          from £4.64
          # 028
          MPN: 378200101
          CLUTCH MASTER CYLINDER 3/4
          - Valid for M.T. version
          from £225.00
          from £225.00
          # 029
          MPN: 9532
          BSHING SECUR. CLUTCH PUMP
          - Valid for M.T. version
          from £2.31
          from £2.31
          # 030
          MPN: 378400358
          PIN
          - Valid for M.T. version
          from £14.76
          from £14.76
          # 031
          MPN: 378200340
          UNION
          - Valid for M.T. version
          from £5.28
          from £5.28
          # 032
          MPN: 13119770
          CLAMP
          - Valid for M.T. version
          from £1.08
          from £1.08
          # 033
          MPN: 19026489
          RUBBER HOSE
          - Valid for M.T. version - Section in meters - order minimum amount of 2 m or multiples
          from £5.92
          from £5.92
