maserati qtp v8 evoluzione brake and accelerator pedals (lh drive) parts diagram

041.1 - Brake and Accelerator Pedals (LH Drive)

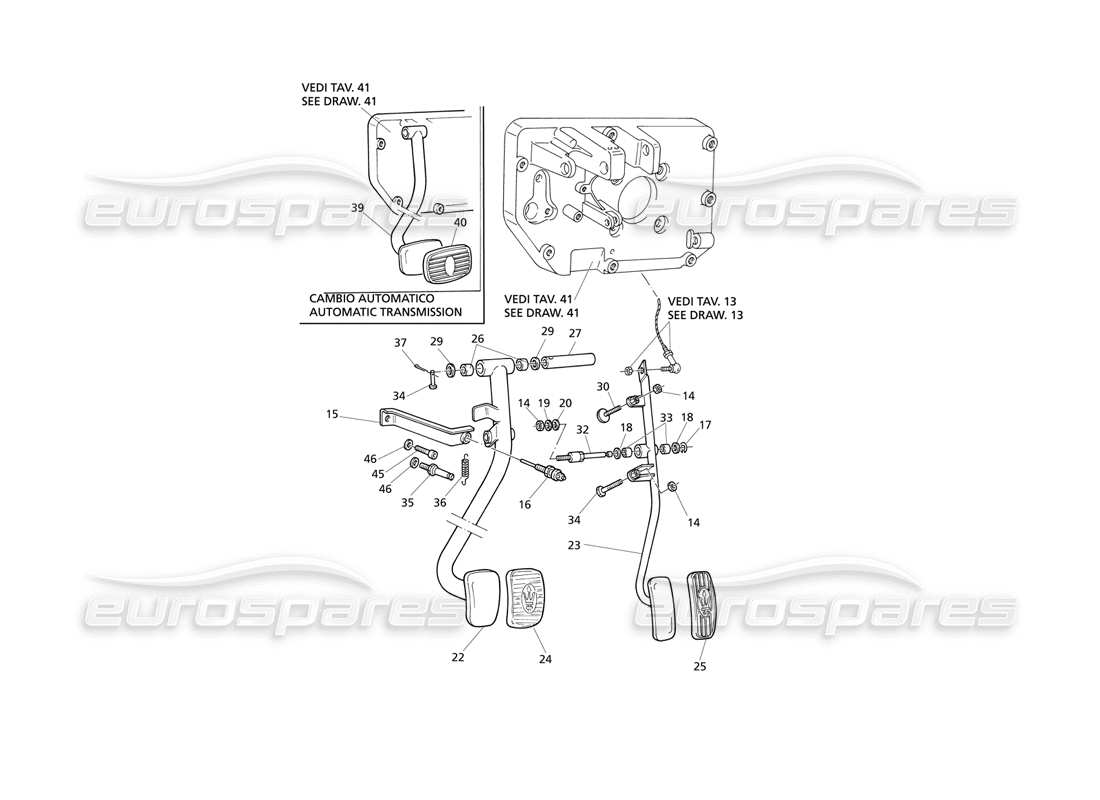

Maserati QTP V8 Evoluzione Brake and Accelerator Pedals (L.H. Drive) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 022
                                MPN: 378480104
                                BRAKE PEDAL
                                - Valid for M.T. version
                                from £146.72
                                from £146.72
                                # 023
                                MPN: 378480113
                                SPEED PEDAL
                                from £18.24
                                from £18.24
                                This part replaces part number 378433113
                                # 024
                                MPN: 378430300
                                BRAKE AND CLUTCH PEDAL COVER
                                - Valid for M.T. version
                                from £70.50
                                from £70.50
                                This part replaces part number 191496
                                # 025
                                MPN: 318420301
                                SPEED PEDAL COVER
                                from £1.52
                                from £1.52
                                # 026
                                MPN: 318420320
                                BUSH
                                from £9.70
                                from £9.70
                                # 027
                                MPN: 378430329
                                PIN
                                from £46.25
                                from £46.25
                                # 029
                                MPN: 368402321
                                SPACER WASHER
                                from £1.08
                                from £1.08
                                # 030
                                MPN: 364700180
                                LIMIT STOP
                                from £2.84
                                from £2.84
                                # 031
                                MPN: 378480377
                                PIN
                                from £50.29
                                from £50.29
                                # 032
                                MPN: 378400341
                                PIN
                                from £15.52
                                from £15.52
                                # 033
                                MPN: 318420334
                                BUSH
                                from £1.55
                                from £1.55
                                # 034
                                MPN: 10903221
                                SCREW
                                from £1.08
                                from £1.08
                                # 035
                                MPN: 378400368
                                PIN
                                from £81.49
                                from £81.49
                                # 036
                                MPN: 368402308
                                SPRING
                                from £2.98
                                from £2.98
                                # 037
                                MPN: 58841309
                                SAFETY CLIP
                                from £1.95
                                from £1.95
                                This part replaces part number 670000498 - and 2 more. Click to view details
                                # 039
                                MPN: 378481104
                                BRAKE PEDAL
                                - Valid for A.T. version
                                from £765.74
                                from £765.74
                                # 040
                                MPN: 318432300
                                PEDAL COVER
                                - Valid for A.T. version
                                from £2.42
                                from £2.42
                                # 046
                                MPN: 135910064
                                FLAT WASHER
