041 - Clutch Pedal and Pump Pedal Support (LH Drive)

Maserati QTP V8 Evoluzione Clutch Pedal and Pump Pedal Support (L.H. Drive) Parts Diagram

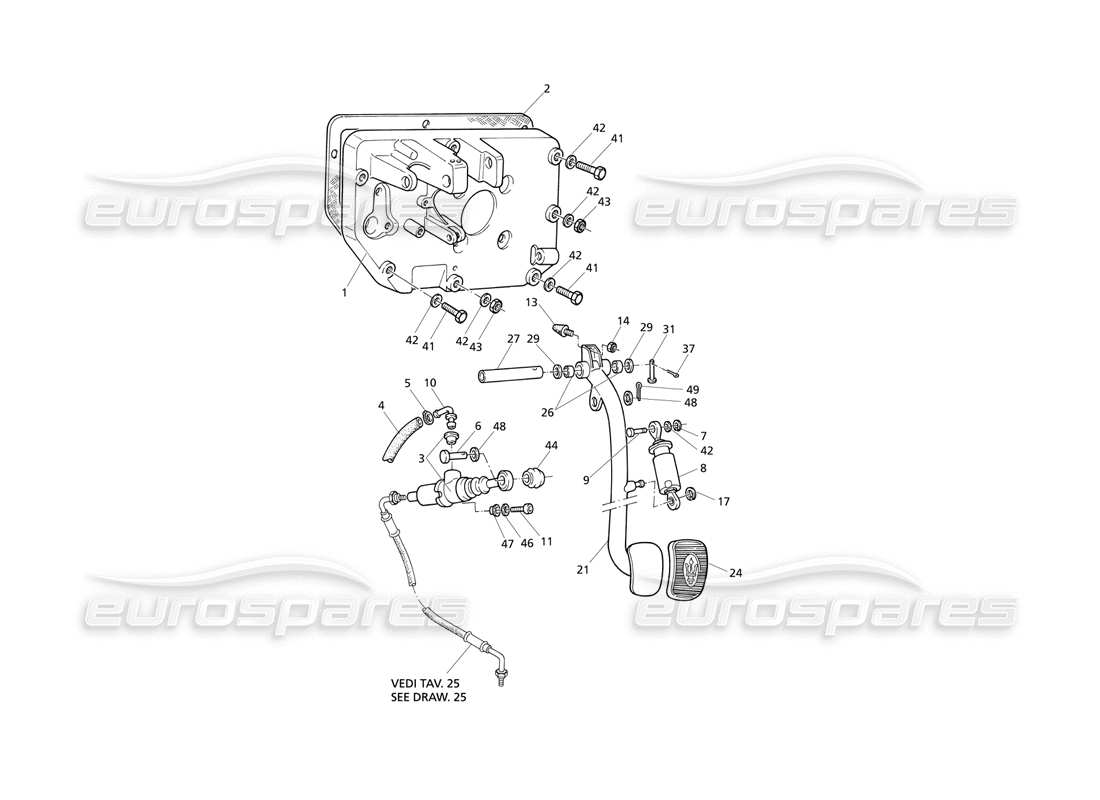

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 378480304
                                    SUPPORT FOR PEDAL ASSY
                                    - Valid for M.T. version
                                    from £2,686.90
                                    from £2,686.90
                                    # 001
                                    MPN: 378481304
                                    SUPPORT FOR PEDAL ASSY
                                    - Valid for A.T. version
                                    from £335.80
                                    from £335.80
                                    # 002
                                    MPN: 378400348
                                    GASKET
                                    from £9.61
                                    from £9.61
                                    # 003
                                    MPN: 378200101
                                    PUMP
                                    - Valid for M.T. version
                                    from £225.00
                                    from £225.00
                                    # 004
                                    MPN: 19026489
                                    TUBE
                                    - Valid for M.T. version
                                    from £5.89
                                    from £5.89
                                    # 005
                                    MPN: 559221338
                                    CLAMP
                                    - Valid for M.T. version
                                    from £0.68
                                    from £0.68
                                    # 006
                                    MPN: 378400358
                                    PIN
                                    - Valid for M.T. version
                                    from £14.69
                                    from £14.69
                                    # 007
                                    MPN: 11087970
                                    SEEGER RING
                                    from £0.68
                                    from £0.68
                                    # 008
                                    MPN: 378400854
                                    CLUTCH PEDAL SERVO CONTROL
                                    - Valid for M.T. version
                                    from £41.01
                                    from £41.01
                                    # 009
                                    MPN: 378419377
                                    PIN
                                    - Valid for M.T. version
                                    from £11.24
                                    from £11.24
                                    # 010
                                    MPN: 378200340
                                    UNION
                                    - Valid for M.T. version
                                    from £5.26
                                    from £5.26
                                    # 011
                                    MPN: 14433121
                                    ALLEN SCREW
                                    from £1.20
                                    from £1.20
                                    # 013
                                    MPN: 364700180
                                    LIMIT STOP
                                    from £2.82
                                    from £2.82
                                    # 014
                                    MPN: 15896221
                                    NUT
                                    from £0.71
                                    from £0.71
                                    # 017
                                    MPN: 150800090
                                    SEEGER RING
                                    from £0.47
                                    from £0.47
                                    # 021
                                    MPN: 378480122
                                    CLUTCH PEDAL
                                    - Valid for M.T. version
                                    from £145.48
                                    from £145.48
                                    # 024
                                    MPN: 378430300
                                    BRAKE AND CLUTCH PEDAL COVER
                                    - Valid for M.T. version
                                    from £69.89
                                    from £69.89
                                    This part replaces part number 191496
                                    # 026
                                    MPN: 318420320
                                    BUSH
                                    from £9.61
                                    from £9.61
                                    # 027
                                    MPN: 378430329
                                    PIN
                                    from £45.85
                                    from £45.85
                                    # 029
                                    MPN: 368402321
                                    SPACER WASHER
                                    from £1.07
                                    from £1.07
                                    # 031
                                    MPN: 378480377
                                    PIN
                                    from £49.86
                                    from £49.86
                                    # 037
                                    MPN: 58841309
                                    SAFETY CLIP
                                    from £1.94
                                    from £1.94
                                    This part replaces part number 670000498 - and 2 more. Click to view details
                                    # 041
                                    MPN: 16044121
                                    SCREW
                                    from £0.71
                                    from £0.71
                                    # 042
                                    MPN: 14496501
                                    WASHER
                                    from £0.84
                                    from £0.84
                                    # 043
                                    MPN: 16104421
                                    NUT
                                    from £0.81
                                    from £0.81
                                    # 044
                                    MPN: 9532
                                    BUSHING SECUR. CLUTCH PUMP
                                    - Valid for M.T. version
                                    from £2.31
                                    from £2.31
                                    # 046
                                    MPN: 12604279
                                    SPRING WASHER
                                    from £0.47
                                    from £0.47
                                    # 047
                                    MPN: 378419378
                                    BUSH
                                    - Valid for M.T. version
                                    from £4.62
                                    from £4.62
                                    # 048
                                    MPN: 97955
                                    FLAT WASHER
                                    from £1.31
                                    from £1.31
                                    # 049
                                    MPN: 33065
                                    SPLIT PIN
                                    from £0.68
                                    from £0.68
