028.1 - Automatic Transmission Outside Controls

Maserati QTP V8 Evoluzione Automatic Transmission Outside Controls Parts Diagram

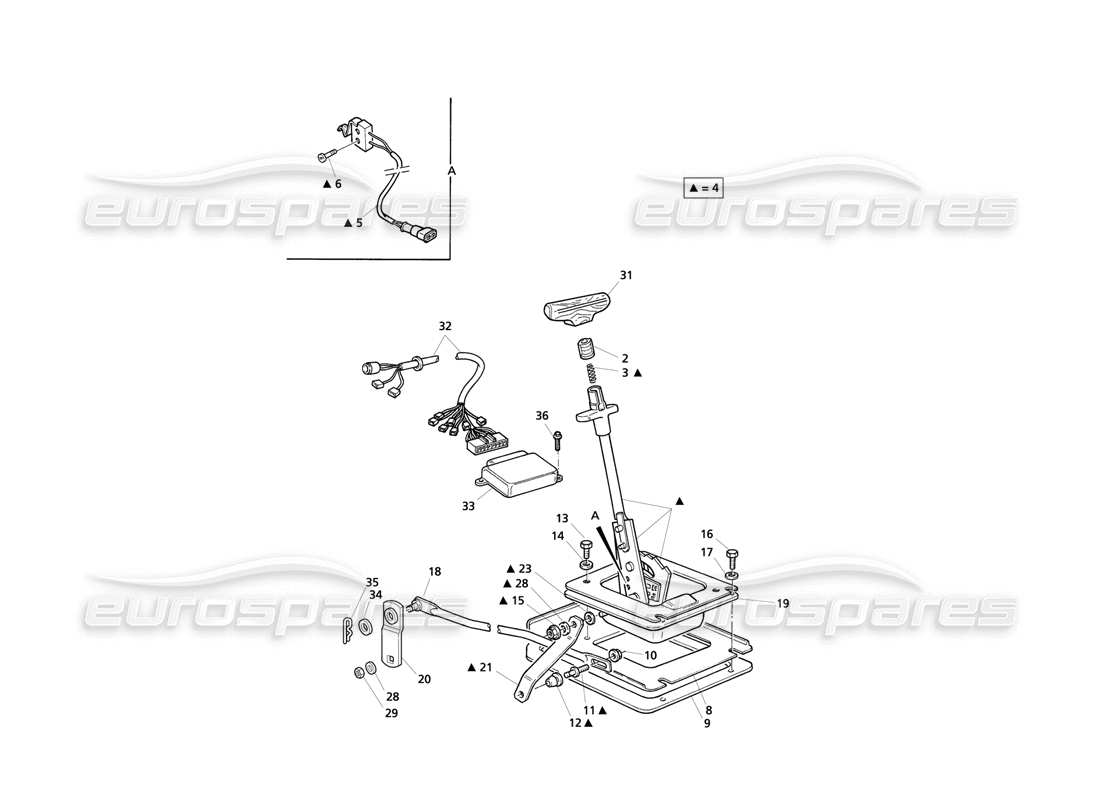

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 002
MPN: 315232417
BUSH
- Valid for A.T. version
from £0.92
from £0.92
This part replaces part number 375206313
# 003
MPN: 315232418
SPRING
- Valid for A.T. version
from £5.10
from £5.10
# 004
MPN: 375231016
GEAR SELECTOR
- Valid for A.T. version - Until supplies last (Pre
from £164.63
from £164.63
# 004
MPN: 375231016
GEAR SELECTOR
- Valid for A.T. version - From assembly 2339 (Post
from £164.63
from £164.63
# 005
MPN: 373308224
MICROSWITCH
- Valid for A.T. version
from £23.04
from £23.04
# 006
MPN: 111502014
SCREW
- Valid for A.T. version
from £0.86
from £0.86
# 008
MPN: 365209151
PLATE
- Valid for A.T. version
from £8.46
from £8.46
# 009
MPN: 315232407
GASKET
- Valid for A.T. version
from £1.94
from £1.94
# 010
MPN: 128350080
NUT
- Valid for A.T. version
Supersession
Supersession
# 011
MPN: 315255401
THREADED PIN
- Valid for A.T. version - Until supplies last (Pre
from £64.64
from £64.64
# 011
MPN: 385205401
THREADED PIN
- Valid for A.T. version - From assembly 2339 (Post
from £35.55
from £35.55
This part replaces part number 315255401 which we have in stock - and 1 more. Click to view details
# 012
MPN: 315232402
BUSH
- Valid for A.T. version
from £14.82
from £14.82
This part replaces part number 325255402
# 013
MPN: 10977621
SCREW
- Valid for A.T. version
from £1.08
from £1.08
# 014
MPN: 135600050
WASHER
- Valid for A.T. version
from £0.78
from £0.78
# 015
MPN: 128350080
NUT
- Valid for A.T. version
Supersession
Supersession
# 016
MPN: 167200625
BOLT
- Valid for A.T. version
from £2.49
from £2.49
# 017
MPN: 169020406
WASHER
- Valid for A.T. version
from £0.78
from £0.78
# 018
MPN: 375231150
AUTOM. TRANSMISSION CONTROL ROD
- Valid for A.T. version - Until supplies last (Pre
Supersession
Supersession
# 018
MPN: 375291150
AUTOM. TRANSMISSION CONTROL ROD
- Valid for A.T. version - From assembly 2339 (Post
from £11.25
from £11.25
This part replaces part number 375231150 - and 1 more. Click to view details
# 019
MPN: 315232408
GASKET
- Valid for A.T. version
from £1.55
from £1.55
# 020
MPN: 375231416
LEVER
- Valid for A.T. version
from £18.18
from £18.18
# 021
MPN: 375231400
LEVER
- Valid for A.T. version - Until supplies last (Pre
from £7.92
from £7.92
# 021
MPN: 375291400
LEVER
- Valid for A.T. version - From assembly 2339 (Post
from £4.36
from £4.36
# 023
MPN: 12544574
CRINKLE WASHER
- Valid for A.T. version
from £1.51
from £1.51
This part replaces part number 10519620
# 028
MPN: 312220411
WASHER
- Valid for A.T. version
from £0.47
from £0.47
# 029
MPN: 315255410
NUT
- Valid for A.T. version
from £1.08
from £1.08
# 031
MPN: 375281519
TRANSMISSION KNOB
- Valid for A.T. version
from £33.54
from £33.54
# 032
MPN: 372990100
GEARBOX HARNESS
- Valid for A.T. version
from £154.09
from £154.09
# 033
MPN: 372931110
CONTROL UNIT
- Valid for A.T. version
from £633.74
from £633.74
# 034
MPN: 317851395
WASHER
- Valid for A.T. version
from £1.08
from £1.08
# 035
MPN: 58841309
SAFETY CLIP
- Valid for A.T. version
from £2.00
from £2.00
This part replaces part number 670000498 - and 2 more. Click to view details
# 036
MPN: 11730624
SCREW
- Valid for A.T. version
from £0.47
from £0.47
