019 - Engine Cooling Cabin Heating (LH Drive)

Maserati QTP V8 Evoluzione Engine Cooling Cabin Heating (L.H. Drive) Parts Diagram

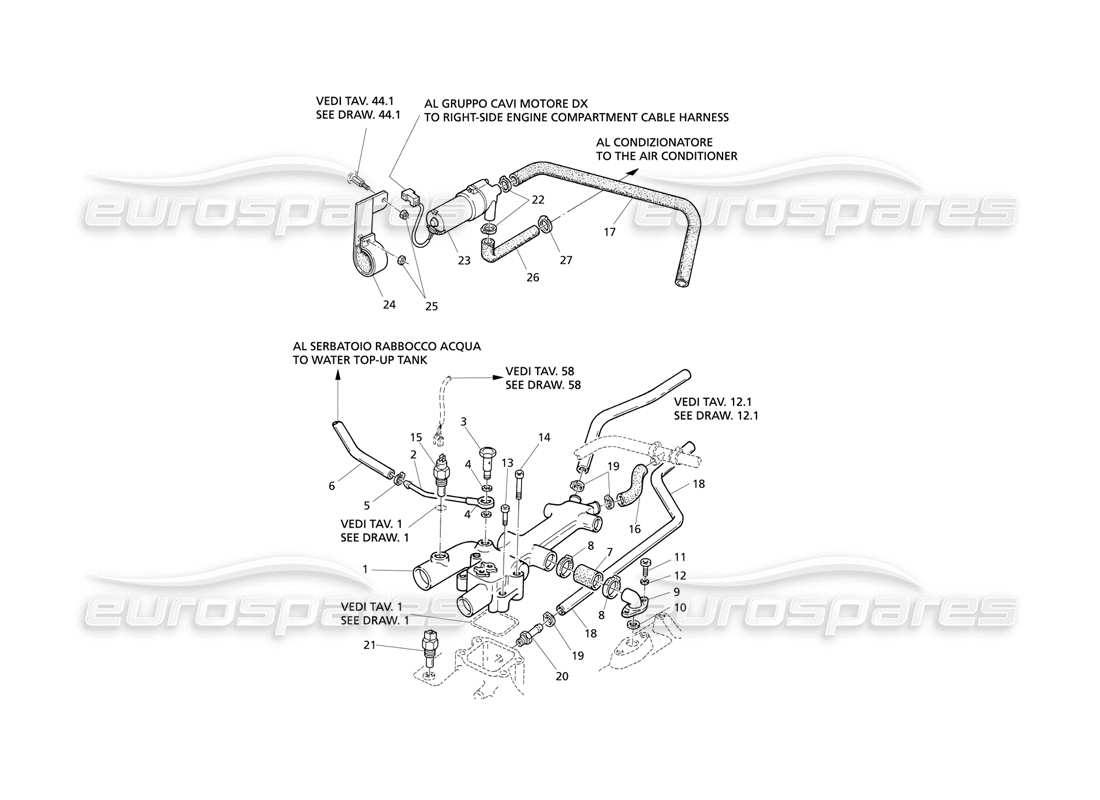

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 578048000
                                                      THERMOSTAT CASE
                                                      from £69.10
                                                      from £69.10
                                                      # 002
                                                      MPN: 578041800
                                                      UNION
                                                      from £6.76
                                                      from £6.76
                                                      # 003
                                                      MPN: 312020510
                                                      UNION SCREW
                                                      from £2.68
                                                      from £2.68
                                                      This part replaces part number 193520 - and 1 more. Click to view details
                                                      # 004
                                                      MPN: 319220424
                                                      GASKET
                                                      from £0.70
                                                      from £0.70

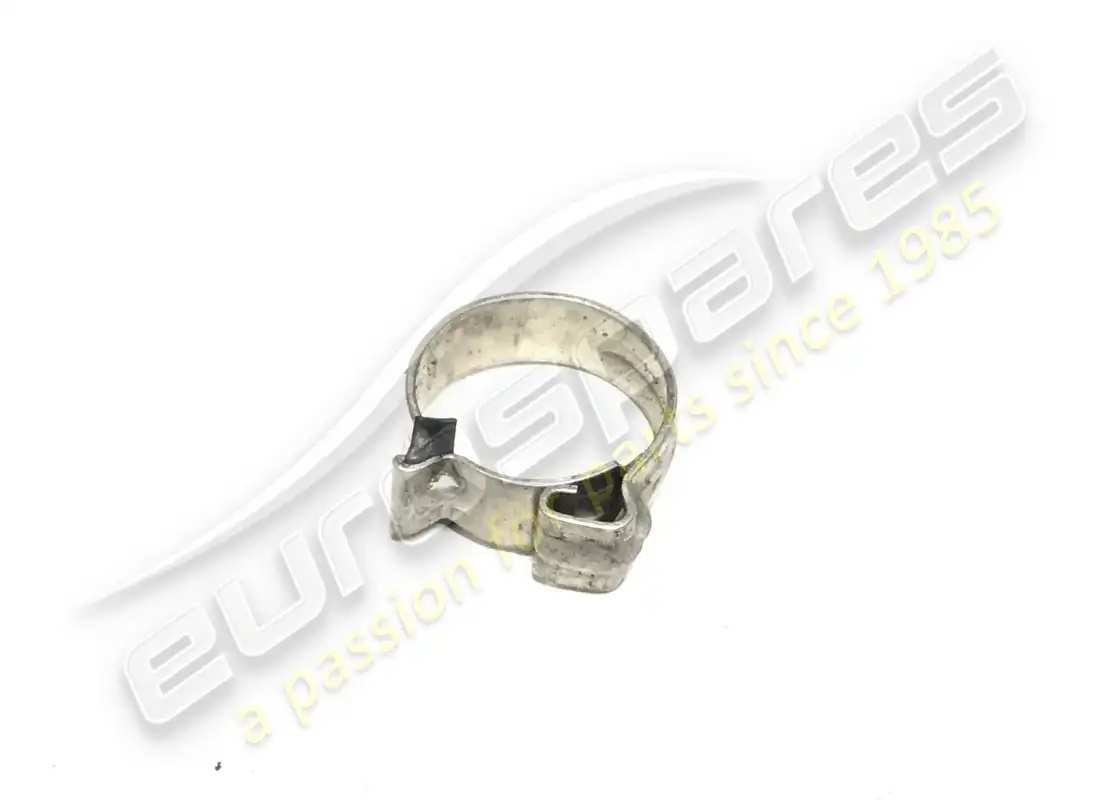

                                                      # 005
                                                      MPN: 13119270
                                                      CLAMP
                                                      from £1.08
                                                      from £1.08
                                                      # 006
                                                      MPN: 19058089
                                                      SLEEVE
                                                      - Section In meters
                                                      from £9.66
                                                      from £9.66
                                                      This part replaces part number 379200379 - and 2 more. Click to view details

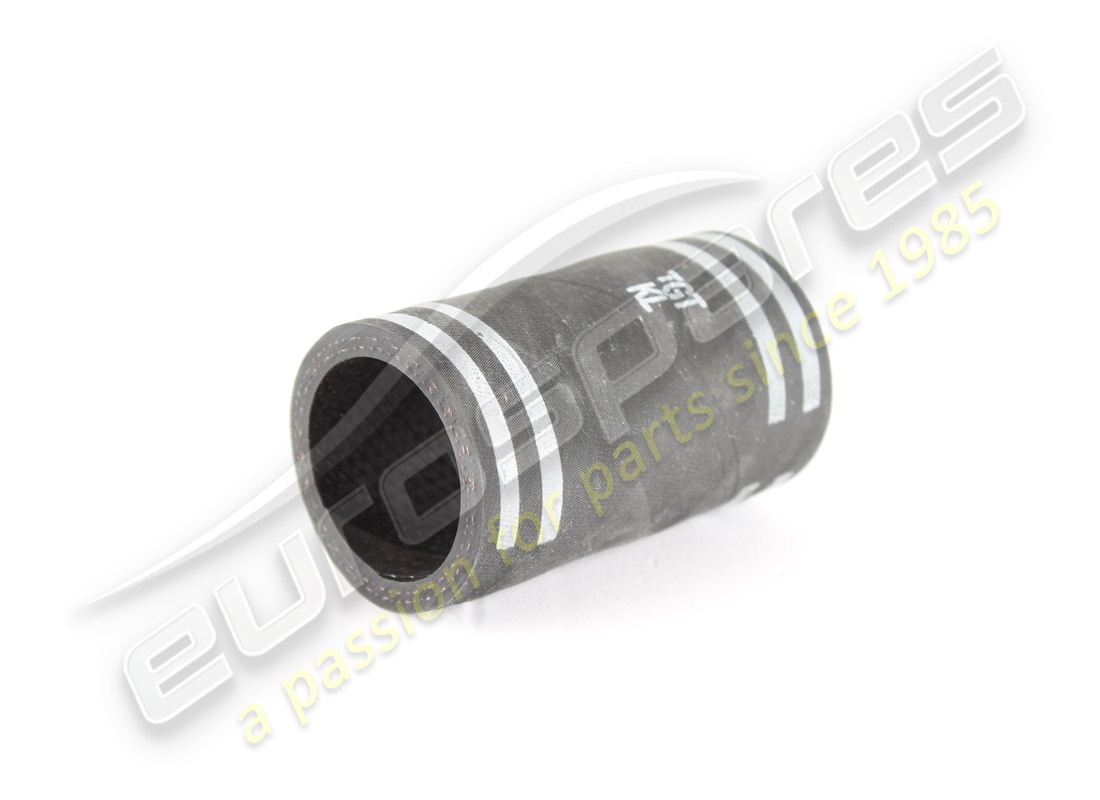

                                                      # 007
                                                      MPN: 585042600
                                                      SLEEVE
                                                      from £10.35
                                                      from £10.35
                                                      This part replaces part number 479042602 - and 1 more. Click to view details
                                                      # 008
                                                      MPN: 312420114
                                                      CLAMP
                                                      from £2.31
                                                      from £2.31
                                                      # 009
                                                      MPN: 479009902
                                                      UNION
                                                      from £17.22
                                                      from £17.22

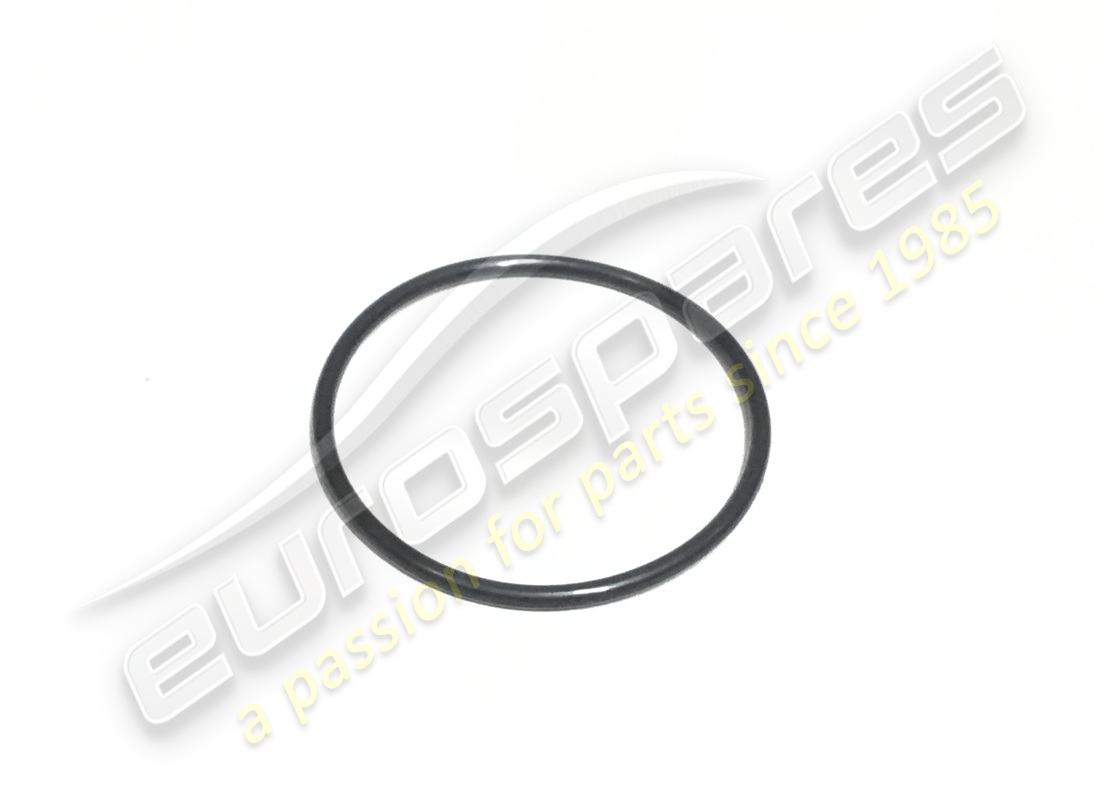

                                                      # 010
                                                      MPN: 14454380
                                                      RUBBER GASKET
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 192415131
                                                      # 011
                                                      MPN: 14305221
                                                      ALLEN SCREW
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 311053394
                                                      # 012
                                                      MPN: 14496421
                                                      GASKET
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 84154
                                                      # 013
                                                      MPN: 14306520
                                                      ALLEN SCREW
                                                      from £1.31
                                                      from £1.31
                                                      # 014
                                                      MPN: 14306921
                                                      ALLEN SCREW
                                                      from £0.71
                                                      from £0.71
                                                      # 015
                                                      MPN: 470042800
                                                      THERMOSTAT
                                                      from £13.35
                                                      from £13.35
                                                      This part replaces part number 313630102
                                                      # 016
                                                      MPN: 578369600
                                                      SLEEVE
                                                      from £85.67
                                                      from £85.67
                                                      # 017
                                                      MPN: 375590480
                                                      SLEEVE
                                                      from £15.00
                                                      from £15.00
                                                      This part replaces part number 588042200
                                                      # 018
                                                      MPN: 479042501
                                                      SLEEVE
                                                      from £6.98
                                                      from £6.98
                                                      # 019
                                                      MPN: 374091382
                                                      CLAMP 25X35
                                                      from £0.70
                                                      from £0.70
                                                      This part replaces part number 374090382
                                                      # 020
                                                      MPN: 479018400
                                                      UNION
                                                      from £11.40
                                                      from £11.40
                                                      This part replaces part number 390450340
                                                      # 021
                                                      MPN: 470079700
                                                      WATER TEMPERATURE SENSORS
                                                      from £55.37
                                                      from £55.37
                                                      # 022
                                                      MPN: 374090387
                                                      CLAMP 20X32
                                                      Supersession
                                                      Supersession
                                                      # 023
                                                      MPN: 375501486
                                                      HEATER PUMP
                                                      from £80.12
                                                      from £80.12
                                                      # 024
                                                      MPN: 375501224
                                                      PUMP SUPPORT
                                                      Supersession
                                                      Supersession
                                                      # 025
                                                      MPN: 13832111
                                                      NUT
                                                      from £1.08
                                                      from £1.08
                                                      # 026
                                                      MPN: 375590479
                                                      SLEEVE
                                                      from £10.43
                                                      from £10.43
                                                      # 027
                                                      MPN: 186402024
                                                      COLLAR
                                                      Supersession
                                                      Supersession
                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
