013 - Intake Manifold and Injection System

Maserati QTP V8 Evoluzione Intake Manifold and Injection System Parts Diagram

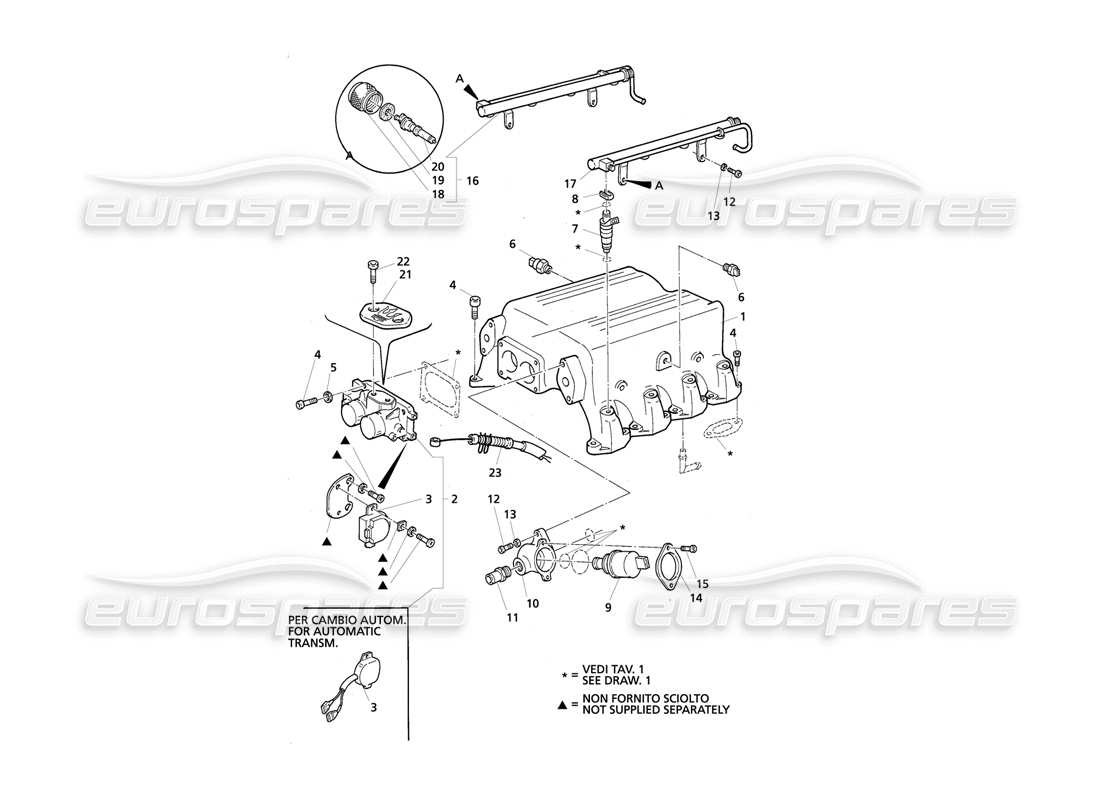

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 479002502
                                        INTAKE MANIFOLD
                                        from £425.66
                                        from £425.66
                                        # 002
                                        MPN: 578064600
                                        COMPLETE THROTTLE BODY
                                        - Valid for M.T. version
                                        from £422.63
                                        from £422.63
                                        # 002
                                        MPN: 578064610
                                        COMPLETE THROTTLE BODY
                                        - Valid for A.T. version
                                        from £189.00
                                        from £189.00
                                        # 003
                                        MPN: 578079900
                                        POTENTIOMETER
                                        - Valid for M.T. version
                                        from £503.15
                                        from £503.15
                                        # 003
                                        MPN: 578079910
                                        POTENTIOMETER
                                        - Valid for A.T. version
                                        from £486.24
                                        from £486.24
                                        # 004
                                        MPN: 14305521
                                        ALLEN SCREW
                                        from £0.47
                                        from £0.47
                                        # 005
                                        MPN: 14496421
                                        WASHER
                                        Supersession
                                        Supersession
                                        This part replaces part number 84154
                                        # 006
                                        MPN: 470079700
                                        AIR TEMPERATURE SENSOR
                                        from £100.26
                                        from £100.26
                                        # 007
                                        MPN: 470063003
                                        INJECTOR
                                        from £95.49
                                        from £95.49
                                        # 008
                                        MPN: 470063400
                                        INJECTOR RETAINING SPRING
                                        from £1.20
                                        from £1.20
                                        # 009
                                        MPN: 578063900
                                        AIR MODULATING SOLENOID VALVE
                                        from £237.02
                                        from £237.02
                                        # 010
                                        MPN: 578001000
                                        BODY SEC. SOLENOID VALVE
                                        from £20.99
                                        from £20.99
                                        This part replaces part number 479001001 which we have in stock - and 1 more. Click to view details
                                        # 011
                                        MPN: 571072300
                                        UNION
                                        from £7.65
                                        from £7.65
                                        This part replaces part number 312220481
                                        # 012
                                        MPN: 14306321
                                        ALLEN SCREW
                                        from £0.51
                                        from £0.51
                                        # 014
                                        MPN: 475062200
                                        FLANGE
                                        from £4.62
                                        from £4.62
                                        # 015
                                        MPN: 14305721
                                        ALLEN SCREW
                                        from £1.35
                                        from £1.35
                                        # 016
                                        MPN: 578060002
                                        RH PETROL DELIVERY MANIFOLD
                                        from £33.53
                                        from £33.53
                                        This part replaces part number 578060000 - and 1 more. Click to view details
                                        # 017
                                        MPN: 578060102
                                        LH PETROL DELIVERY MANIFOLD
                                        from £125.88
                                        from £125.88
                                        This part replaces part number 578060100 - and 1 more. Click to view details
                                        # 018
                                        MPN: 97414
                                        SCREW PLUG
                                        (minimum order quantity = 4)
                                        from £1.66
                                        from £1.66
                                        # 019
                                        MPN: 97084
                                        GASKET
                                        from £1.54
                                        from £1.54
                                        # 020
                                        MPN: 495062900
                                        PETROL BREATHER VALVE
                                        from £4.49
                                        from £4.49
                                        # 021
                                        MPN: 578063500
                                        THROTTLE BODY COVER
                                        from £12.77
                                        from £12.77
                                        # 022
                                        MPN: 14305121
                                        ALLEN SCREW
                                        from £0.47
                                        from £0.47
                                        # 023
                                        MPN: 378290118
                                        ACCELERATOR CABLE
                                        - LH drive version
                                        from £139.08
                                        from £139.08
                                        This part replaces part number 378280118
                                        # 023
                                        MPN: 378296118
                                        ACCELERATOR CABLE
                                        - RH drive version
                                        from £17.85
                                        from £17.85
