Maserati QTP V8 Evoluzione Cylinders Heads, R.H. Frame Parts Diagram

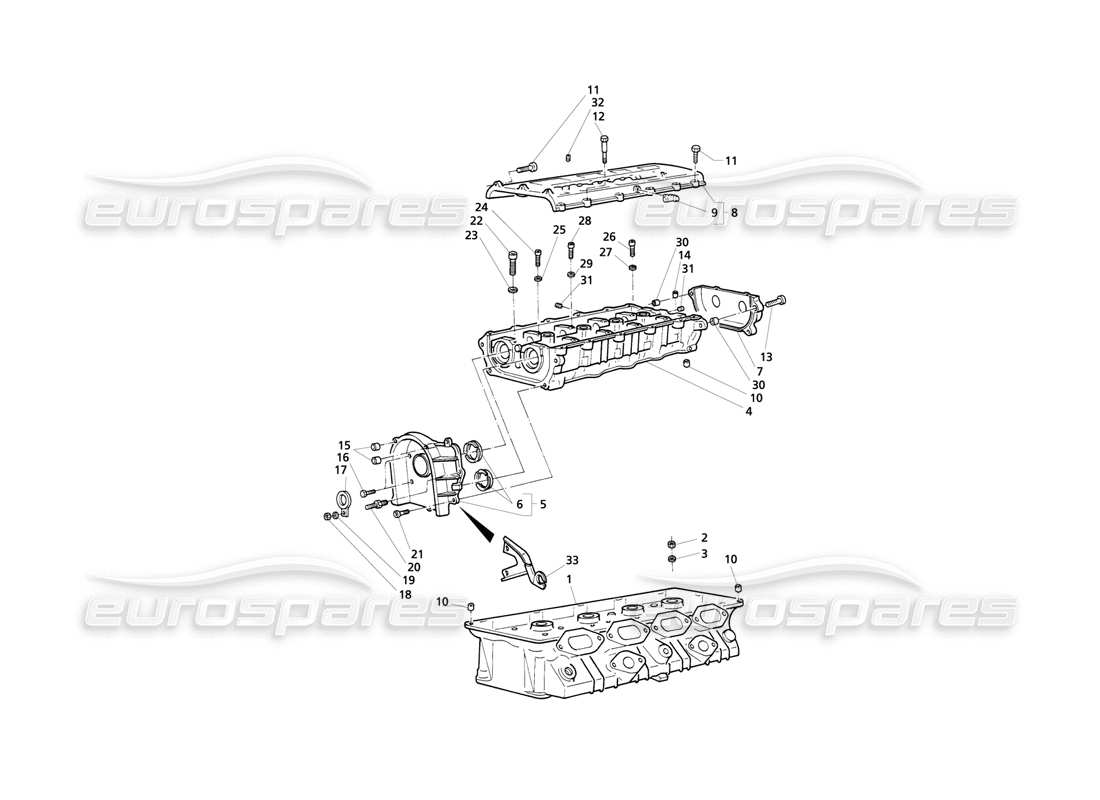

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 578000001
                                                                  BARE HEAD (WITH SEATS AND GUIDES)
                                                                  from £1,645.26
                                                                  from £1,645.26
                                                                  # 002
                                                                  MPN: 475005401
                                                                  NUT SEC. HEADS TO CYL. BLOCK
                                                                  from £10.55
                                                                  from £10.55
                                                                  This part replaces part number 475005400 which we have in stock
                                                                  # 003
                                                                  MPN: 13507563

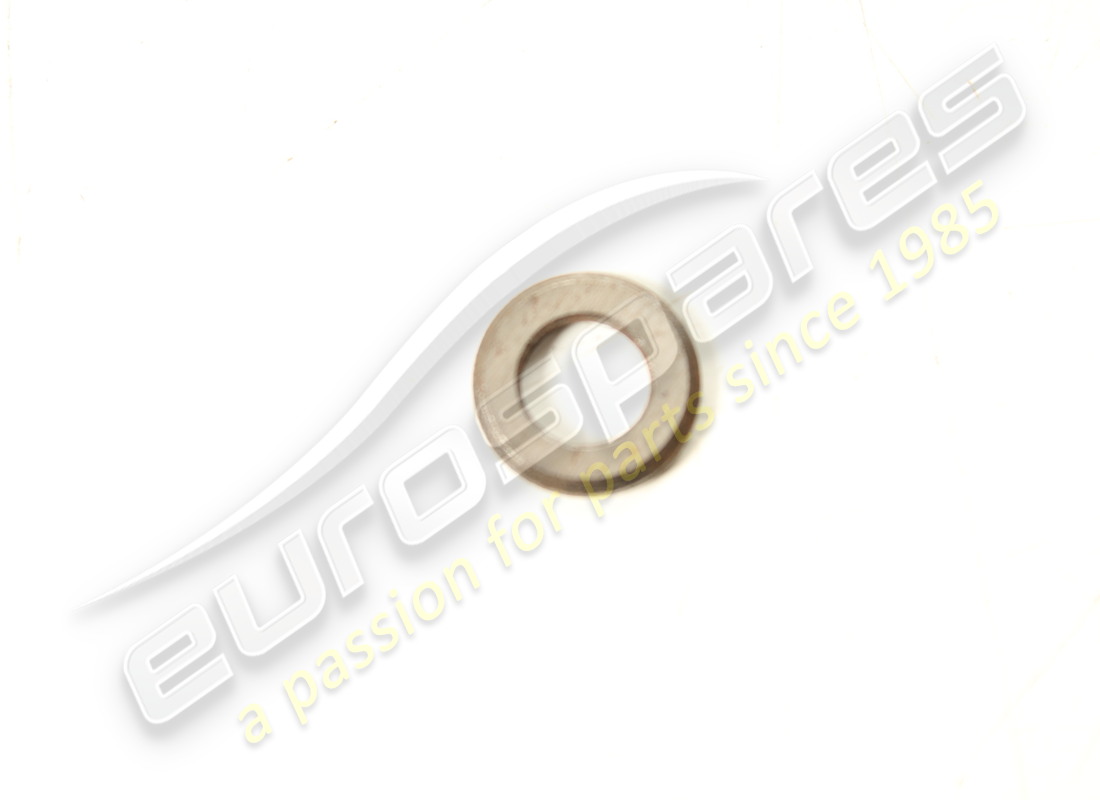

                                                                  FLAT WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 479009000
                                                                  # 004
                                                                  MPN: 479007600
                                                                  Frame
                                                                  from £330.55
                                                                  from £330.55
                                                                  This part replaces part number 391050014 - and 1 more. Click to view details
                                                                  # 005
                                                                  MPN: 479000700
                                                                  UPPER COVER
                                                                  from £37.90
                                                                  from £37.90
                                                                  # 006
                                                                  -
                                                                  CENTRING RING
                                                                  # 007
                                                                  MPN: 479001400
                                                                  REAR COVER
                                                                  from £55.41
                                                                  from £55.41
                                                                  # 008
                                                                  MPN: 479008801
                                                                  UPPER COVER COMPLETE WITH UNION
                                                                  from £59.30
                                                                  from £59.30
                                                                  This part replaces part number 391050011 - and 1 more. Click to view details
                                                                  # 009
                                                                  MPN: 479008001
                                                                  OIL BREATHER UNION
                                                                  from £2.33
                                                                  from £2.33
                                                                  # 010
                                                                  MPN: 310620369

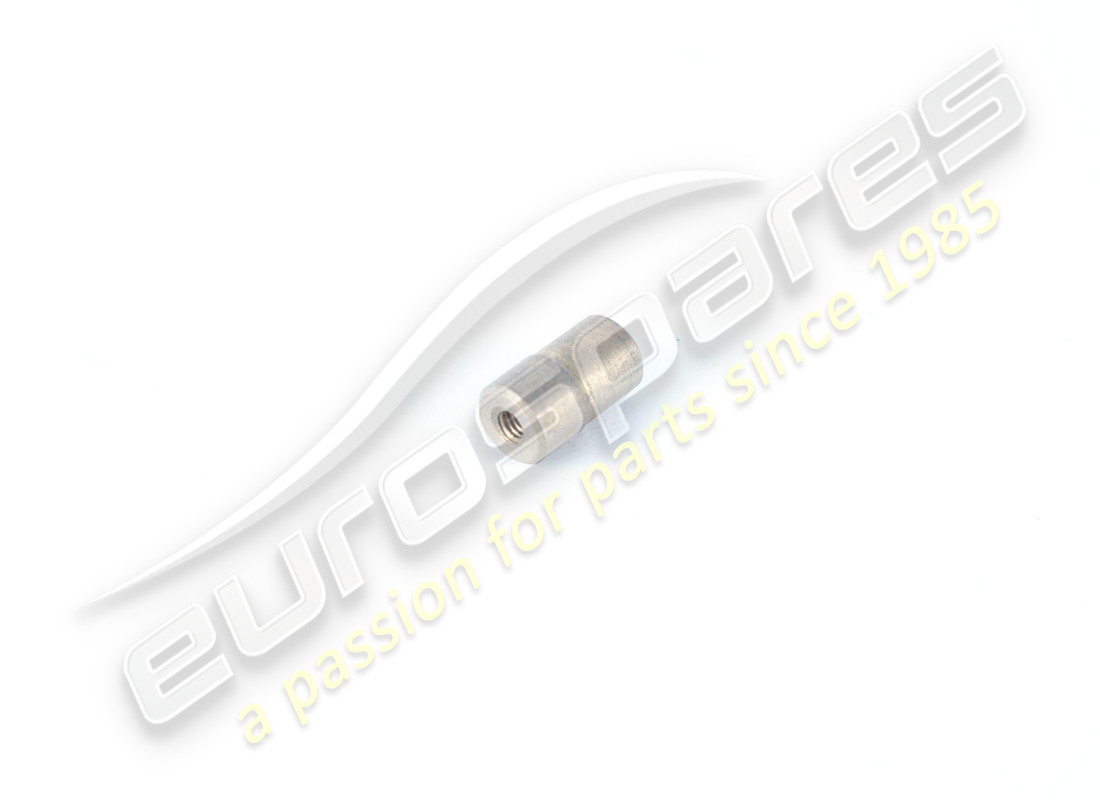

                                                                  HEAD FRAME CENTRING DOWEL
                                                                  from £1.94
                                                                  from £1.94
                                                                  # 011
                                                                  MPN: 14433121

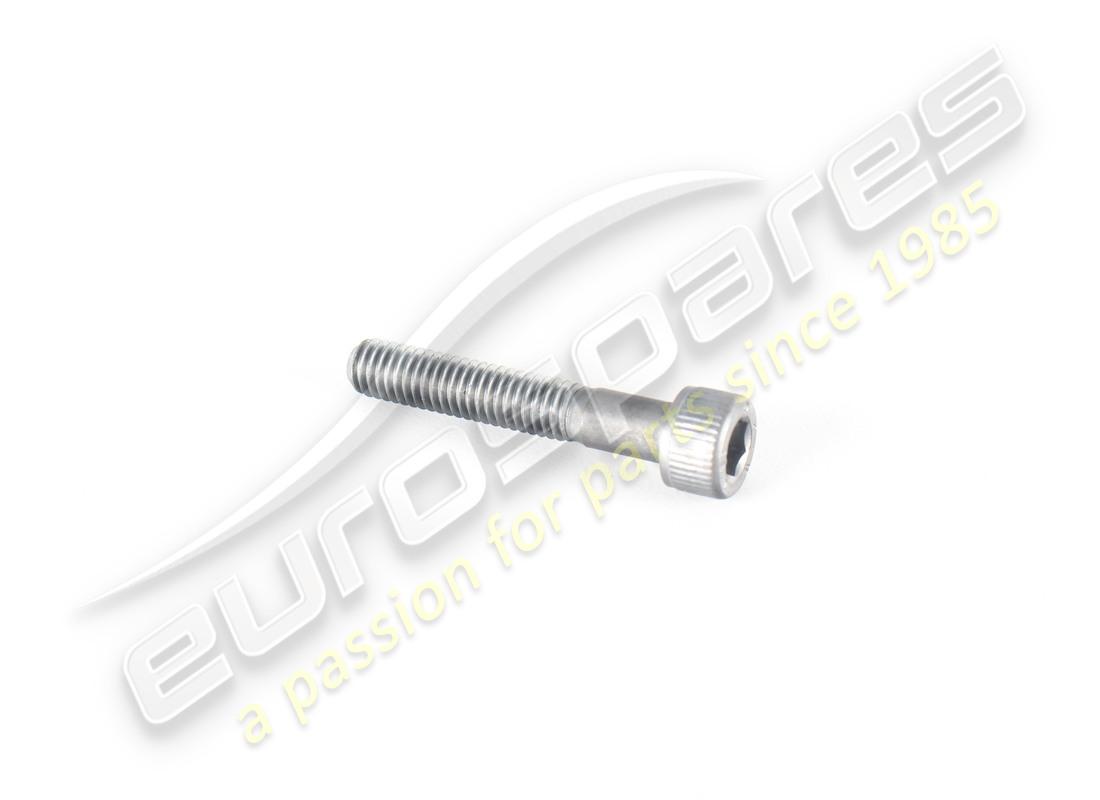

                                                                  ALLEN SCREW
                                                                  from £1.10
                                                                  from £1.10
                                                                  # 012
                                                                  MPN: 479001500
                                                                  STUD
                                                                  from £34.53
                                                                  from £34.53
                                                                  # 013
                                                                  MPN: 14306520
                                                                  ALLEN SCREW
                                                                  from £1.32
                                                                  from £1.32
                                                                  # 014
                                                                  MPN: 479002400
                                                                  OIL CALIBRATION DOWEL
                                                                  from £3.26
                                                                  from £3.26
                                                                  # 015
                                                                  MPN: 83302
                                                                  CENTRING DOWEL
                                                                  from £8.69
                                                                  from £8.69
                                                                  # 016
                                                                  MPN: 96601
                                                                  INTERNAL SCREW SEC. FRONT COVER
                                                                  from £3.18
                                                                  from £3.18
                                                                  # 017
                                                                  MPN: 578009400
                                                                  COMPLETE FAIRLEAD
                                                                  from £7.76
                                                                  from £7.76
                                                                  # 018
                                                                  MPN: 12575421
                                                                  STOP NUT
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 12575411
                                                                  # 019
                                                                  MPN: 14496421
                                                                  FLAT WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 84154
                                                                  # 020
                                                                  MPN: 479009100
                                                                  STUD SEC. EXT. FRONT COVER
                                                                  from £5.59
                                                                  from £5.59
                                                                  # 021
                                                                  MPN: 14306421
                                                                  ALLEN SCREW SEC. EXT. FRT COV.
                                                                  Supersession
                                                                  Supersession
                                                                  # 022
                                                                  MPN: 14302220
                                                                  8X1.25X50 ALLEN SCREW SECURING FRAME
                                                                  from £1.32
                                                                  from £1.32
                                                                  # 023
                                                                  MPN: 14496527
                                                                  Ø 8 WASHER
                                                                  from £0.59
                                                                  from £0.59
                                                                  # 024
                                                                  MPN: 14305920
                                                                  6X1X45 ALLEN SCREW SEC. INT. FRAME
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 025
                                                                  MPN: 14496400
                                                                  Ø 6 WASHER
                                                                  from £0.86
                                                                  from £0.86
                                                                  # 026
                                                                  MPN: 14306621
                                                                  8X1.25X35 ALEN SCREW SEC. EXT. CAPS
                                                                  from £0.86
                                                                  from £0.86
                                                                  # 027
                                                                  MPN: 311053307
                                                                  Ø 8 WASHER
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 028
                                                                  MPN: 14305620
                                                                  6X1X35 ALLEN SCREW SEC. INTERM. CAPS
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 029
                                                                  MPN: 479005800
                                                                  Ø 6 WASHER
                                                                  from £0.78
                                                                  from £0.78
                                                                  # 030
                                                                  MPN: 311820308
                                                                  REAR COV. CENTR. DOWEL
                                                                  from £0.70
                                                                  from £0.70
                                                                  # 031
                                                                  MPN: 96400
                                                                  6X1X6 DOWEL CLOSING OIL DELIVERY HOLE
                                                                  from £3.26
                                                                  from £3.26
                                                                  # 032
                                                                  MPN: 96618
                                                                  DOWEL CLOSING HOLE ON UPP. COVER
                                                                  from £1.08
                                                                  from £1.08
                                                                  This part replaces part number 96617
                                                                  # 033
                                                                  MPN: 578524000
                                                                  ACCELERATOR CABLE SEC. BRACKET
                                                                  from £13.66
                                                                  from £13.66
