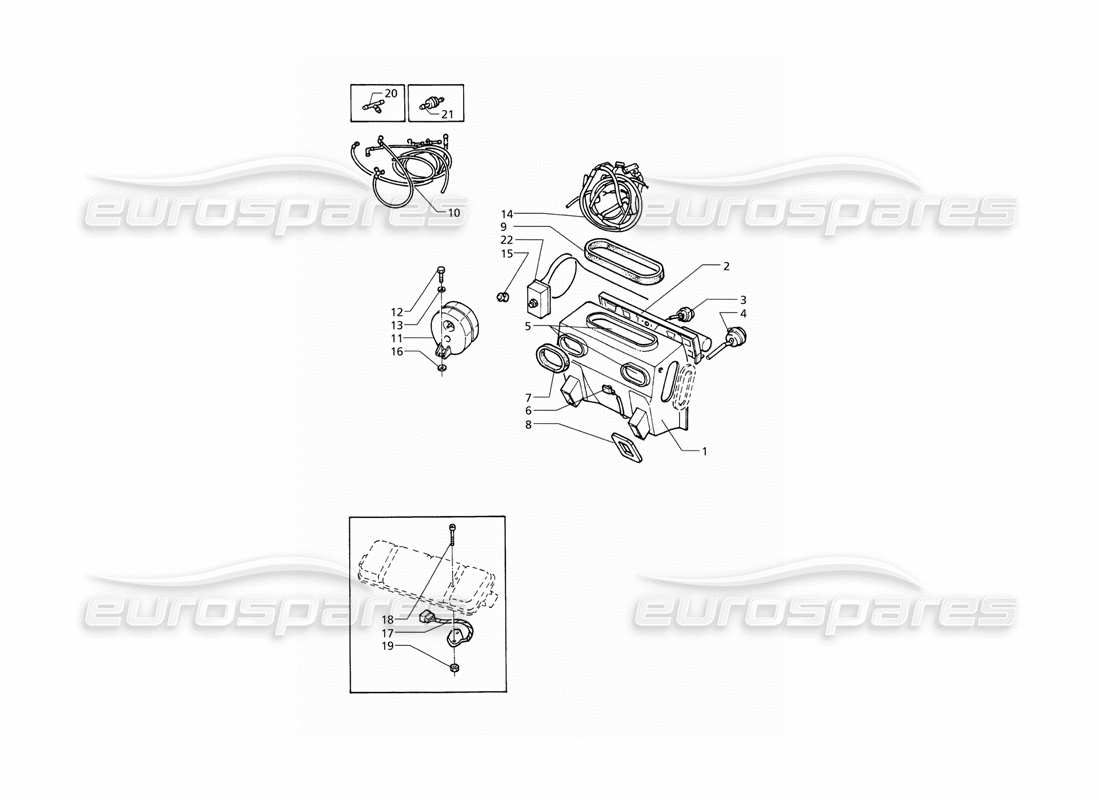

Maserati QTP V8 (1998) Automatic Air Conditioner Assy (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 315520471
                                              FRONT BOX
                                              from £10.97
                                              from £10.97
                                              This part replaces part number 315520384
                                              # 002
                                              MPN: 315520472
                                              UPPER COVER
                                              # 003
                                              MPN: 315520162
                                              TWO-POSITION ACTUATOR
                                              from £4.56
                                              from £4.56
                                              # 004
                                              MPN: 315520159
                                              FLOOR AIR CONTROL ACTUATOR
                                              from £12.81
                                              from £12.81
                                              # 005
                                              MPN: 315520134
                                              AIR DELIVERY FLAP
                                              # 006
                                              MPN: 315520206
                                              MIXED AIR TEMPERATURE SENSOR
                                              from £18.83
                                              from £18.83
                                              # 007
                                              MPN: 315520396
                                              NOZZLE GASKET
                                              # 008
                                              MPN: 315520397
                                              NOZZLE GASKET
                                              from £3.47
                                              from £3.47
                                              # 009
                                              MPN: 315520394
                                              NOZZLE GASKET
                                              # 010
                                              MPN: 315520208
                                              PNEUMATIC SYSTEM
                                              from £10.20
                                              from £10.20
                                              # 011
                                              MPN: 30551155
                                              VACUUM CYLINDER
                                              # 013
                                              MPN: 169020005
                                              WASHER
                                              from £1.08
                                              from £1.08
                                              # 014
                                              MPN: 315551211
                                              WIRING
                                              from £112.13
                                              from £112.13
                                              # 015
                                              MPN: 53211308
                                              FAIRLEAD
                                              from £0.57
                                              from £0.57
                                              # 016
                                              MPN: 312520511
                                              GASKET
                                              from £1.70
                                              from £1.70
                                              # 017
                                              MPN: 315520196
                                              EXTERNAL AIR TEMPERATURE PROBE
                                              from £13.70
                                              from £13.70
                                              # 018
                                              MPN: 112804020
                                              SCREW
                                              # 019
                                              MPN: 122600040
                                              NUT
                                              from £0.47
                                              from £0.47
                                              # 020
                                              MPN: 315520424
                                              THREE-WAY UNION
                                              from £0.50
                                              from £0.50
                                              # 021
                                              MPN: 315520153
                                              CHECK VALVE WITH BREATHER
                                              from £8.81
                                              from £8.81
                                              # 022
                                              MPN: 313350205
                                              DEFROSTING THERMOSTAT
                                              from £3.77
                                              from £3.77
