maserati qtp v8 (1998) seats: structures and accessories parts diagram

066.2 - Seats: Structures and Accessories

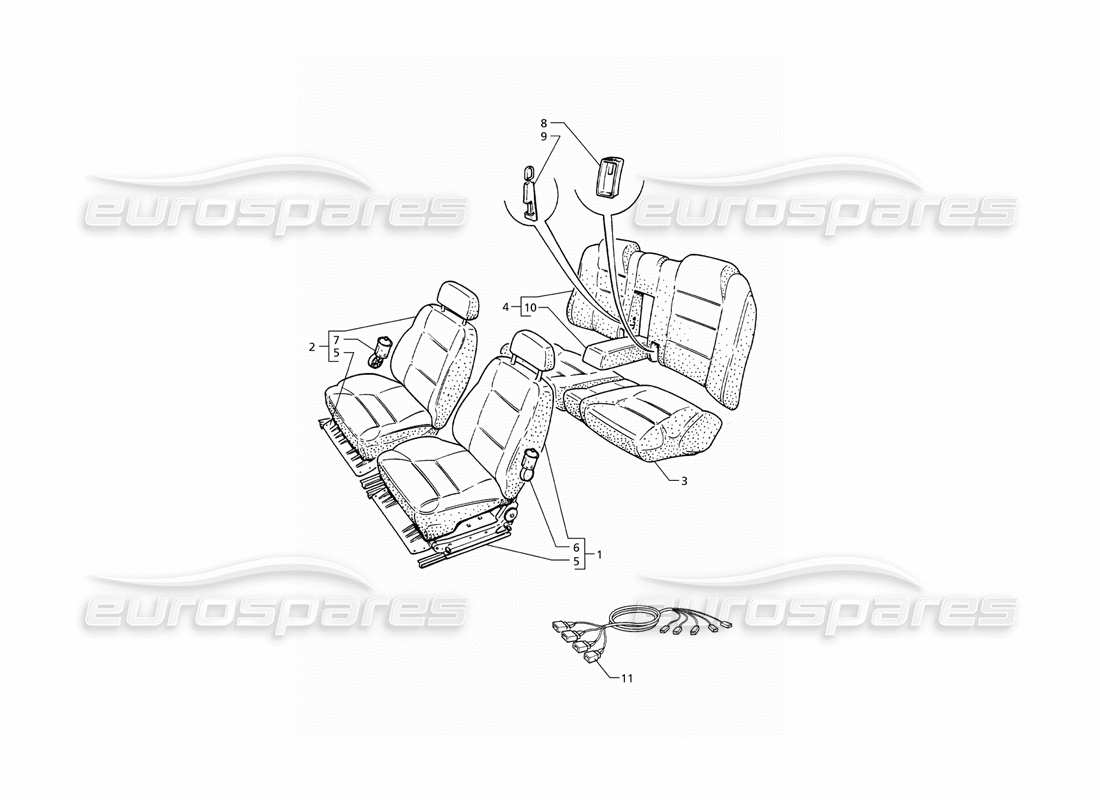

Maserati QTP V8 (1998) Seats: Structures and Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 376900033
                        FRONT LH SEAT ASSY, TO BE UPHOLSTERED
                        from £1,174.37
                        from £1,174.37
                        # 002
                        MPN: 376900034
                        FRONT RH SEAT ASSY, TO BE UPHOLSTERED
                        from £1,174.37
                        from £1,174.37
                        # 003
                        MPN: 376900051
                        REAR CUSHION ASSY, TO BE UPHOLSTERED
                        # 004
                        MPN: 376900058
                        REAR SEATBACK ASSY, TO BE UPHOLSTERED
                        # 005
                        MPN: 376900009
                        FRONT SEATS ADJUSTMENT UNIT
                        from £368.70
                        from £368.70
                        # 006
                        MPN: 373300189
                        LH SEATBACK ADJUSTMENT MOTOR
                        from £157.89
                        from £157.89
                        # 007
                        MPN: 373300190
                        RH SEATBACK ADJUSTMENT MOTOR
                        from £145.21
                        from £145.21
                        # 008
                        MPN: 376900305
                        LH BUCKLE HOOKUP SEAT
                        from £3.89
                        from £3.89
                        # 008
                        MPN: 376900306
                        RH BUCKLE HOOKUP SEAT
                        from £3.28
                        from £3.28
                        # 009
                        MPN: 376900307
                        REAR LH ARMREST HOOK
                        from £7.73
                        from £7.73
                        # 009
                        MPN: 376900308
                        REAR RH ARMREST HOOK
                        from £7.73
                        from £7.73
                        # 010
                        MPN: 376900254
                        REAR LH ARMREST
                        # 011
                        MPN: 373001166
                        SEAT WIRING
                        from £40.96
                        from £40.96
