maserati qtp v8 (1998) electrical system: dashboard and battery (rhd) parts diagram

059.1GD - Electrical System: Dashboard and Battery (RHD)

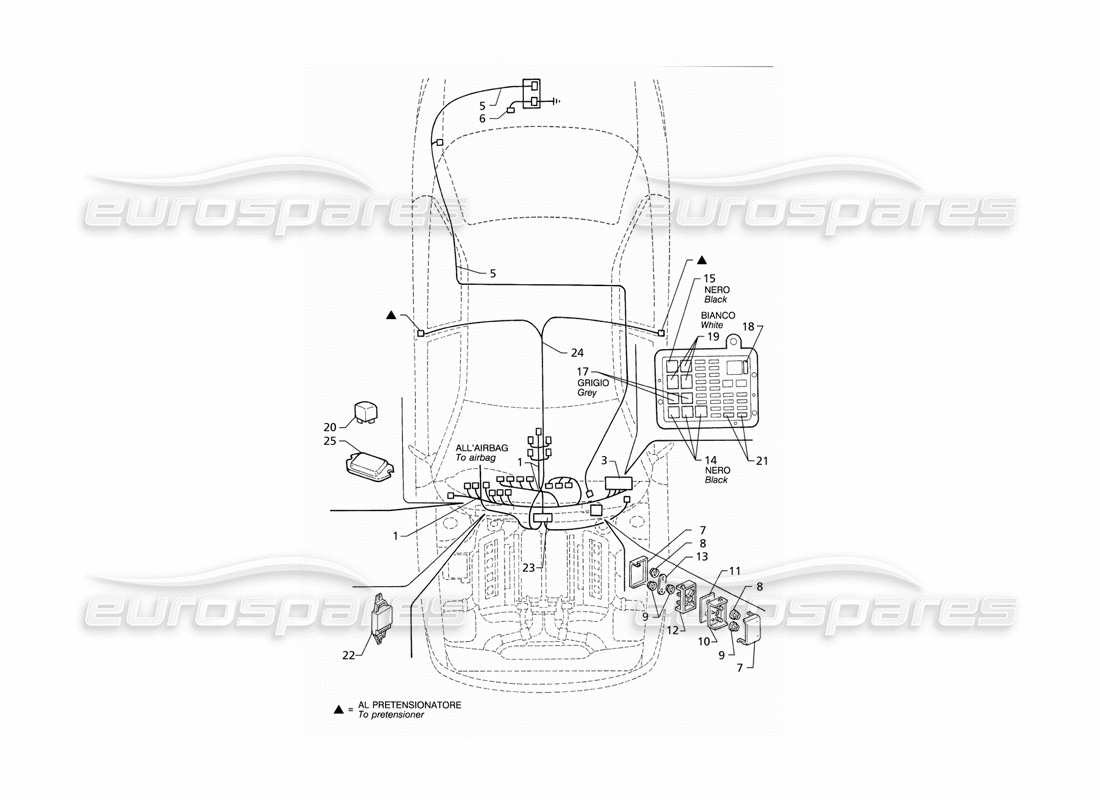

Maserati QTP V8 (1998) Electrical System: Dashboard and Battery (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          MPN: 373040107
                                          DASHBOARD WIRING
                                          from £838.83
                                          from £838.83
                                          LHD DASHBOARD WIRING Genuine Maserati Part - New (to order)
                                          # 003
                                          MPN: 373030102
                                          RELAY / FUSE SUPPORT
                                          from £46.72
                                          from £46.72
                                          COMPLETE ECU MOUNT Genuine Maserati Part - New (to order)
                                          # 005
                                          MPN: 373040149
                                          BATTERY POSITIVE CABLE
                                          BATTERY POSITIVE CABLE Genuine Maserati Part - New (to order)
                                          # 006
                                          MPN: 373000150
                                          BATTERY NEGATIVE CABLE
                                          from £12.79
                                          from £12.79
                                          BATTERY NEGATIVE CABLE Genuine Maserati Part - New (to order)
                                          # 007
                                          MPN: 393050340
                                          COVER
                                          Supersession
                                          Supersession
                                          Genuine Maserati Part (no longer available to order)
                                          # 010
                                          MPN: 393050342
                                          BODY WITH COUPLINGS
                                          from £11.61
                                          from £11.61
                                          Terminal Board Genuine Maserati Part - New (to order)
                                          Terminal Board Genuine Maserati Part - Used In stock
                                          Complete
                                          # 011
                                          MPN: 393050343
                                          GASKET
                                          from £1.81
                                          from £1.81
                                          GASKET Genuine Maserati Part - New (to order)
                                          # 012
                                          MPN: 393050341
                                          INSULATING BODY
                                          from £2.43
                                          from £2.43
                                          INSULATING BODY Genuine Maserati Part - New (to order)
                                          # 013
                                          MPN: 393050344
                                          CONNECTOR
                                          from £1.83
                                          from £1.83
                                          CONNECTING ELEMENT Genuine Maserati Part - New (to order)
                                          # 014
                                          MPN: 313320134
                                          BOSCH RELAY
                                          from £20.28
                                          from £20.28
                                          This part replaces part number 184101
                                          BOSCH RELE' 30 AMP.X 9468 332 Genuine Maserati Part - New In stock
                                          # 015
                                          MPN: 373300112
                                          BELTS DEVICE
                                          from £79.85
                                          from £79.85
                                          SEAT BELTS AND LIGHTS ECU Genuine Maserati Part - New (to order)
                                          # 017
                                          MPN: 373330193
                                          DOOR LOCK CONTROL UNIT
                                          from £49.00
                                          from £49.00
                                          CONTROL UNIT Genuine Maserati Part - New (to order)
                                          # 018
                                          MPN: 373000124
                                          HEAT PROTECTION
                                          from £8.22
                                          from £8.22
                                          SWITCH Genuine Maserati Part - New (to order)
                                          # 020
                                          MPN: 363302115
                                          INTERMITTANCE
                                          from £8.29
                                          from £8.29
                                          This part replaces part number 313320115
                                          TIMER Genuine Maserati Part - New (to order)
                                          # 021
                                          MPN: 373330139
                                          RELAY
                                          from £4.02
                                          from £4.02
                                          MICRORELAY Genuine Maserati Part - New In stock
                                          # 022
                                          MPN: 373300129
                                          INSIDE LIGHTS TIMER
                                          from £24.22
                                          from £24.22
                                          This part replaces part number 363302129
                                          TIMER Genuine Maserati Part - New (to order)
                                          # 023
                                          MPN: 373300167
                                          AIRBAG CONTROL UNIT
                                          - Pre-modification supplied while supplies last - The post-modification parts are interchangeable with pre-modification parts provided they are replaced in pairs
                                          from £776.33
                                          from £776.33
                                          CONTROL UNIT Genuine Maserati Part - New (to order)
                                          CONTROL UNIT Genuine Maserati Part - Used In stock
                                          # 023
                                          MPN: 373301167
                                          AIRBAG CONTROL UNIT (NEW CONNECTOR)
                                          - Post-modification - The post-modification parts are interchangeable with pre-modification parts provided they are replaced in pairs
                                          from £317.85
                                          from £317.85
                                          AIRBAG ECU (TRW) Genuine Maserati Part - New (to order)
                                          # 024
                                          MPN: 373000158
                                          AIRBAG WIRING
                                          - Pre-modification supplied while supplies last - The post-modification parts are interchangeable with pre-modification parts provided they are replaced in pairs
                                          from £175.15
                                          from £175.15
                                          CABLAGGIO AIR BAG 01158+01 Genuine Maserati Part - New (to order)
                                          # 024
                                          MPN: 373001158
                                          AIRBAG WIRING (NEW CONNECTOR)
                                          - Post-modification - The post-modification parts are interchangeable with pre-modification parts provided they are replaced in pairs
                                          from £209.81
                                          from £209.81
                                          WIRING Genuine Maserati Part - New In stock
                                          # 025
                                          MPN: 373330151
                                          ELECTRIC WINDOWS CONTROL UNIT
                                          from £60.96
                                          from £60.96
                                          POWER WINDOW ECU 7773 Genuine Maserati Part - New (to order)
