maserati qtp v8 (1998) electrical system: engine compartment (lhd) parts diagram

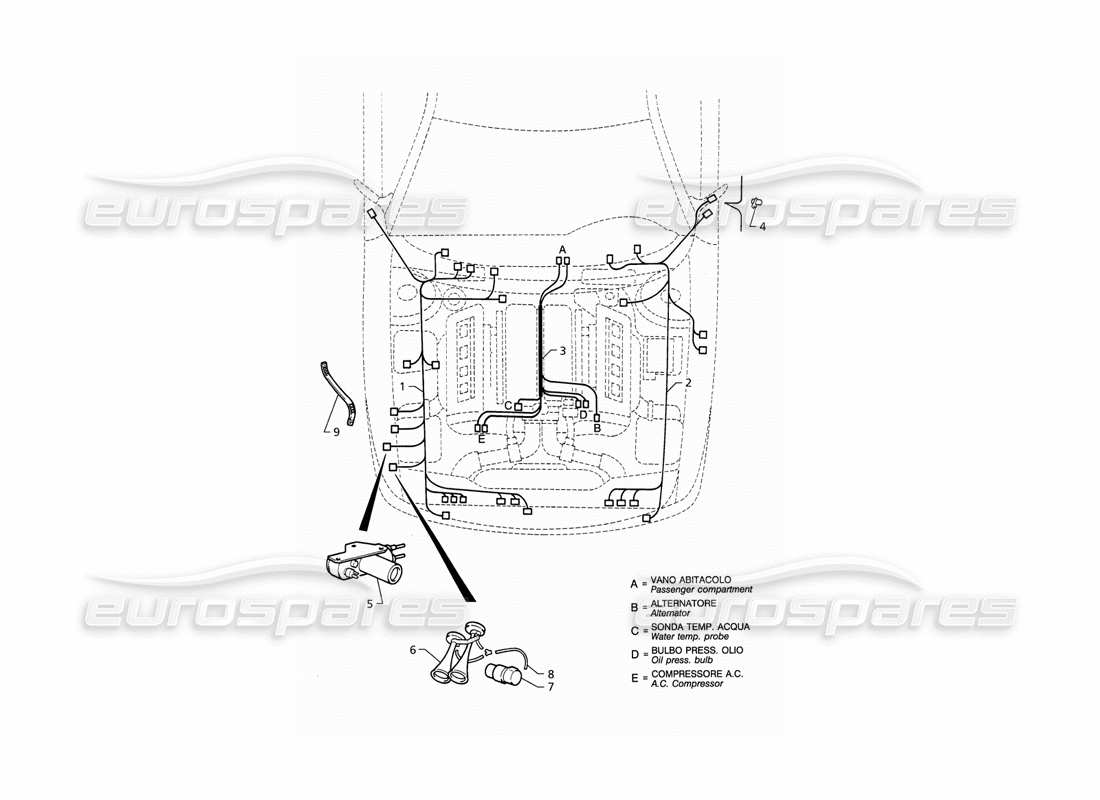

058GS - Electrical System: Engine Compartment (LHD)

Maserati QTP V8 (1998) Electrical System: Engine Compartment (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 373030142
                    ENGINE COMPARTMENT RH WIRING
                    from £169.73
                    from £169.73
                    # 002
                    MPN: 373030143
                    ENGINE COMPARTMENT LH WIRING
                    from £177.82
                    from £177.82
                    # 003
                    MPN: 373030123
                    ENGINE WIRING
                    from £424.55
                    from £424.55
                    # 004
                    MPN: 393650307
                    EXTERNAL TEMPERATURE SENSOR
                    from £27.63
                    from £27.63
                    # 005
                    MPN: 325520172
                    VACUUM PUMP
                    from £99.75
                    from £99.75
                    # 006
                    MPN: 313320006
                    HORN ASSY
                    from £19.02
                    from £19.02
                    # 007
                    MPN: 313320146
                    COMPRESSOR
                    from £56.33
                    from £56.33
                    # 008
                    MPN: 314020316
                    TUBE
                    from £1.80
                    from £1.80
                    This part replaces part number 313320325
                    # 009
                    MPN: 393050151
                    ENGINE/CHASSIS GROUND BRAID
                    from £3.75
                    from £3.75
