042GD - ABS Hydraulic Brake Lines (RHD)

Maserati QTP V8 (1998) ABS Hydraulic Brake Lines (RHD) Parts Diagram

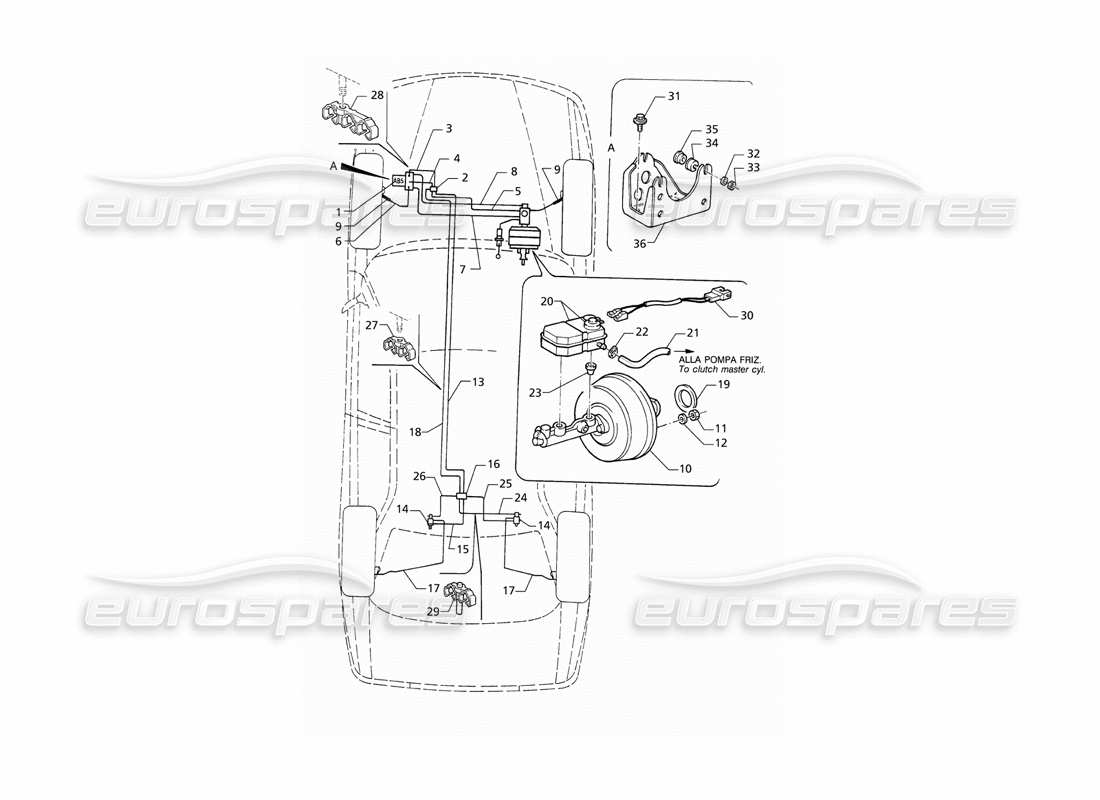

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 363802315
                                                                      A.B.S. UNIT
                                                                      from £895.00
                                                                      from £895.00
                                                                      # 002
                                                                      MPN: 367402325
                                                                      TUBE BRANCHING BLOCK
                                                                      from £17.15
                                                                      from £17.15
                                                                      # 003
                                                                      MPN: 377430149
                                                                      RETURN TUBE FROM BLOCK
                                                                      from £14.23
                                                                      from £14.23
                                                                      # 004
                                                                      MPN: 377430144
                                                                      DELIVERY TUBE TO BLOCK
                                                                      from £13.18
                                                                      from £13.18
                                                                      # 005
                                                                      MPN: 367402146
                                                                      FRONT RH BRAKE CONNECTING TUBE
                                                                      from £18.10
                                                                      from £18.10
                                                                      # 006
                                                                      MPN: 377430143
                                                                      FRONT LH BRAKE CONNECTING TUBE
                                                                      Supersession
                                                                      Supersession
                                                                      # 007
                                                                      MPN: 377419140
                                                                      FRONT BRAKE UNIT- PUMP CONNECTING TUBE
                                                                      from £27.94
                                                                      from £27.94
                                                                      # 008
                                                                      MPN: 377419142
                                                                      REAR BRAKE UNIT- PUMP CONNECTING TUBE
                                                                      from £24.30
                                                                      from £24.30
                                                                      # 009
                                                                      MPN: 367402129
                                                                      FRONT BRAKE HOSE
                                                                      from £15.02
                                                                      from £15.02
                                                                      # 010
                                                                      MPN: 377430112
                                                                      BRAKE BOOSTER WITH MASTER CYLINDER
                                                                      from £393.88
                                                                      from £393.88
                                                                      This part replaces part number 377400112 which we have in stock - and 2 more. Click to view details
                                                                      # 011
                                                                      MPN: 125100080
                                                                      NUT
                                                                      from £0.86
                                                                      from £0.86
                                                                      # 013
                                                                      MPN: 377400161
                                                                      DELIVERY TUBE TO REAR BRAKES
                                                                      from £29.02
                                                                      from £29.02
                                                                      This part replaces part number 377400159
                                                                      # 014
                                                                      MPN: 367402336
                                                                      BRAKE PROPORTIONING VALVE
                                                                      from £160.29
                                                                      from £160.29
                                                                      # 015
                                                                      MPN: 377400157
                                                                      LH MANIFOLD- BLOCK CONNECTING TUBE
                                                                      from £10.77
                                                                      from £10.77
                                                                      # 016
                                                                      MPN: 377400325
                                                                      TUBE BRANCHING BLOCK
                                                                      from £38.84
                                                                      from £38.84
                                                                      # 017
                                                                      MPN: 377400155
                                                                      REAR BRAKE HOSE
                                                                      from £42.27
                                                                      from £42.27
                                                                      # 018
                                                                      MPN: 377400162
                                                                      RETUR TUBE TO BLOCK
                                                                      from £29.02
                                                                      from £29.02
                                                                      # 019
                                                                      MPN: 367402309
                                                                      RING
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 020
                                                                      MPN: 377430104
                                                                      BRAKE FLUID RESERVOIR
                                                                      Supersession
                                                                      Supersession
                                                                      # 022
                                                                      MPN: 377430314
                                                                      PROTECTIVE SPRING
                                                                      from £1.41
                                                                      from £1.41
                                                                      # 023
                                                                      MPN: 377430319
                                                                      UNION ON MASTER CYLINDER
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 024
                                                                      MPN: 377400154
                                                                      RH MANIFOLD- BLOCK CONNECTING TUBE
                                                                      from £14.44
                                                                      from £14.44
                                                                      # 025
                                                                      MPN: 377400158
                                                                      RH MANIFOLD- BLOCK CONNECTING TUBE
                                                                      from £12.76
                                                                      from £12.76
                                                                      # 026
                                                                      MPN: 377400153
                                                                      LH MANIFOLD- BLOCK CONNECTING TUBE
                                                                      from £11.13
                                                                      from £11.13
                                                                      # 027
                                                                      MPN: 314022359
                                                                      CLAMP
                                                                      from £0.70
                                                                      from £0.70
                                                                      # 028
                                                                      MPN: 479362500
                                                                      PLUG
                                                                      - Valid for A.T. version
                                                                      from £2.31
                                                                      from £2.31
                                                                      # 029
                                                                      MPN: 314022359
                                                                      CLAMP
                                                                      from £0.70
                                                                      from £0.70
                                                                      # 030
                                                                      MPN: 377430157
                                                                      BRAKE FLUID TANK SUPPORT BRACKET
                                                                      from £0.78
                                                                      from £0.78
                                                                      # 031
                                                                      MPN: 11730624
                                                                      SCREW
                                                                      from £0.52
                                                                      from £0.52
                                                                      # 034
                                                                      MPN: 363802316
                                                                      CUP
                                                                      # 035
                                                                      MPN: 363802317
                                                                      RUBBER BUFFER
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 036
                                                                      MPN: 363802116
                                                                      A.B.S. SUPPORT
                                                                      from £57.75
                                                                      from £57.75
                                                                      # 037
                                                                      MPN: 379200408
                                                                      CLAMP
                                                                      - As necessary
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 038
                                                                      MPN: 377419334
                                                                      CLAMP
                                                                      - As necessary
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 039
                                                                      MPN: 83012
                                                                      CLAMP
                                                                      - As necessary
                                                                      from £0.70
                                                                      from £0.70
                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
