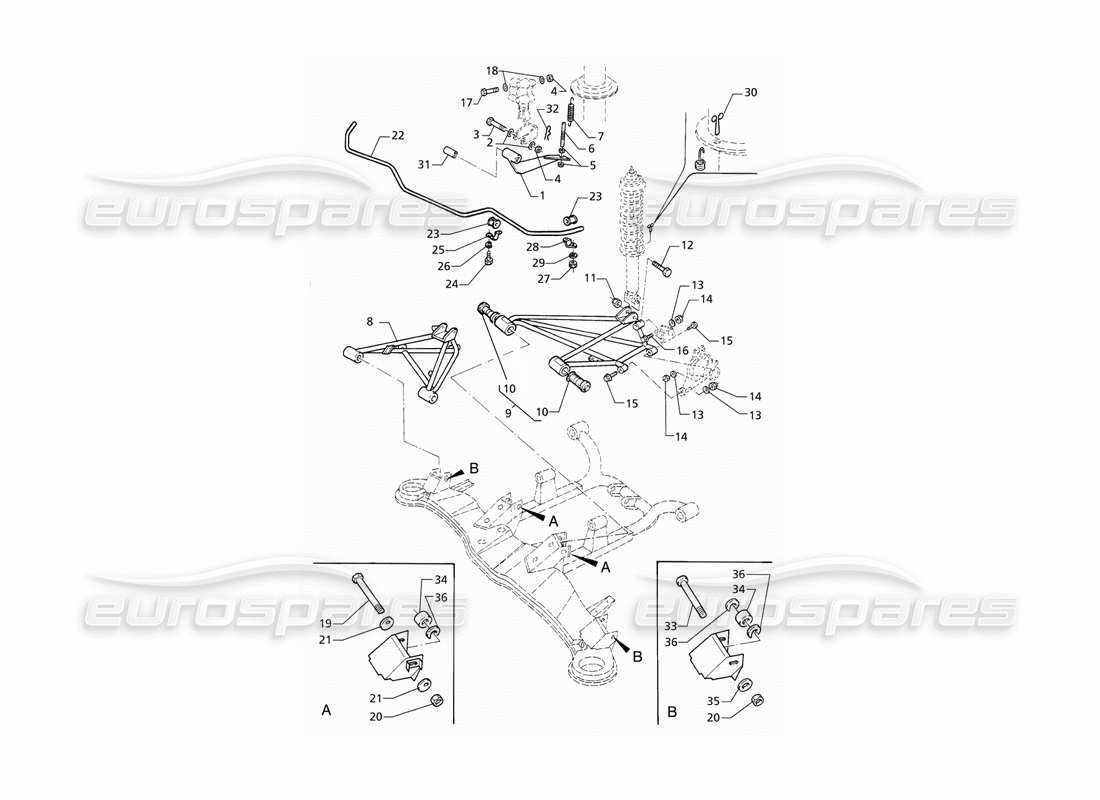

036.2 - (Post-Mod) Rear Suspension With Anti-Roll Bar

Maserati QTP V8 (1998) (Post-Mod) Rear Suspension With Anti-Roll Bar Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 377400156

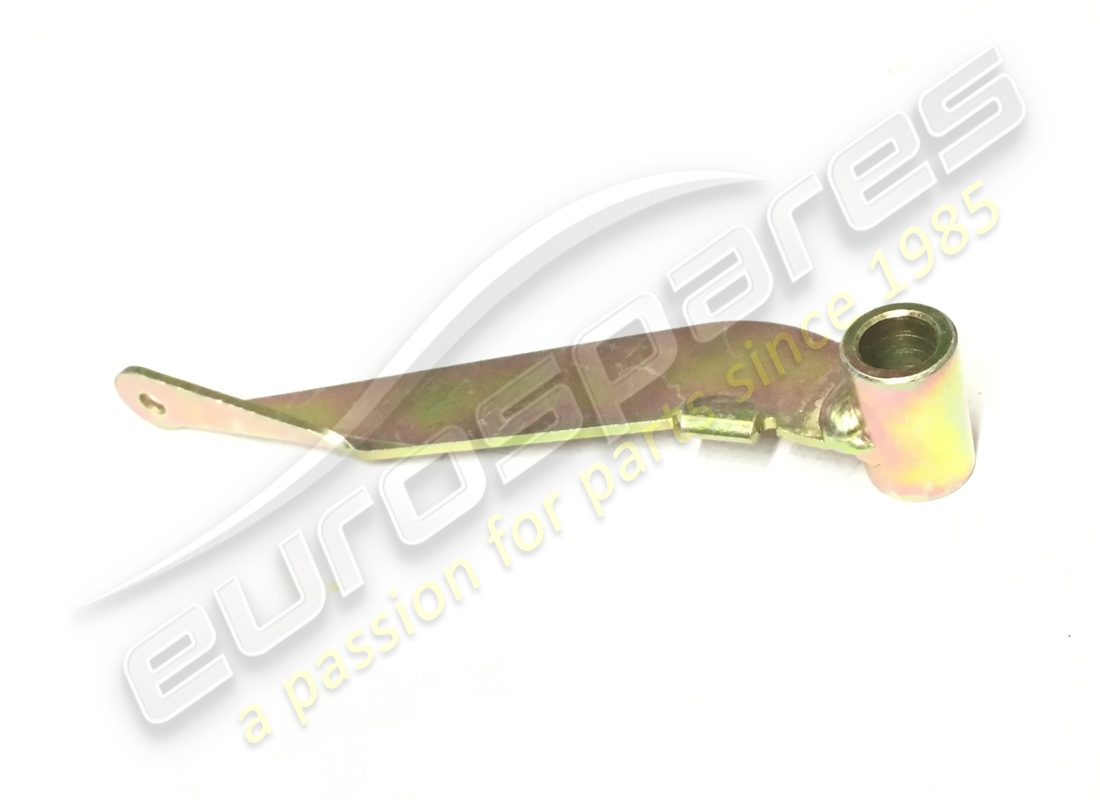

                                                                    LAOD APPORTIONING CONTROL LEVER
                                                                    from £13.65
                                                                    from £13.65
                                                                    # 003
                                                                    MPN: 157508040

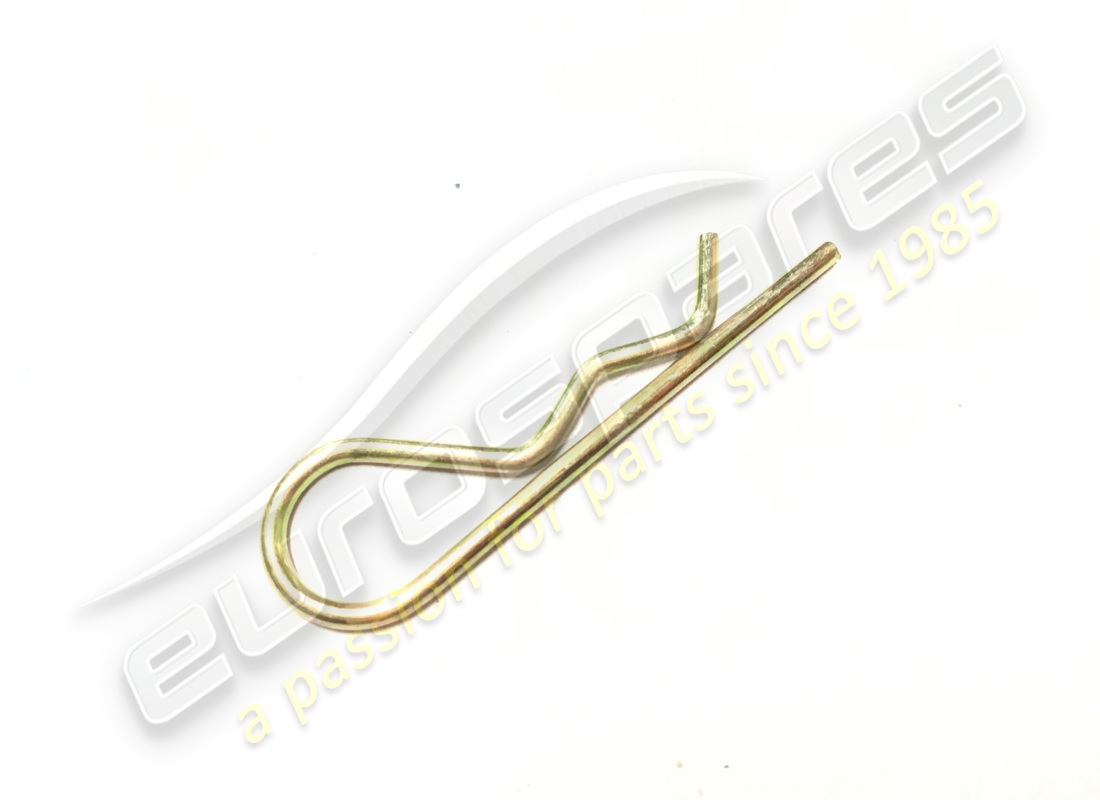

                                                                    PIN
                                                                    from £9.82
                                                                    from £9.82
                                                                    # 004
                                                                    MPN: 128350080
                                                                    SELF LOCKING NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 006
                                                                    MPN: 377400327
                                                                    ADJUSTING SCREW
                                                                    This table applies to those vehicles with serial numbers prior to: 180: M.T. LEFT H.D. 196: A.T. LEFT H.D. 109: M.T. RIGHT H.D. 111: A.T. RIGHT H.D.
                                                                    from £2.31
                                                                    from £2.31
                                                                    # 007
                                                                    MPN: 377400326
                                                                    SCREW
                                                                    from £4.30
                                                                    from £4.30
                                                                    # 008
                                                                    MPN: 377030014
                                                                    RH ARM
                                                                    from £708.97
                                                                    from £708.97
                                                                    This part replaces part number 377030102 - and 1 more. Click to view details
                                                                    # 009
                                                                    MPN: 377030013
                                                                    LH ARM
                                                                    from £658.94
                                                                    from £658.94
                                                                    This part replaces part number 377030101 which we have in stock - and 1 more. Click to view details
                                                                    # 010
                                                                    MPN: 377030100
                                                                    RUBBER BUSHING
                                                                    alternative use: 134883
                                                                    from £22.71
                                                                    from £22.71
                                                                    # 011
                                                                    MPN: 12575811
                                                                    SELF LOCKING NUT
                                                                    from £1.31
                                                                    from £1.31
                                                                    # 013
                                                                    MPN: 397050358
                                                                    WASHER
                                                                    from £4.56
                                                                    from £4.56
                                                                    # 014
                                                                    MPN: 128300120
                                                                    SELF LOCKING NUT
                                                                    # 015
                                                                    MPN: 397050353
                                                                    SCREW
                                                                    from £24.65
                                                                    from £24.65
                                                                    # 016
                                                                    MPN: 397050354
                                                                    SCREW
                                                                    from £25.11
                                                                    from £25.11
                                                                    # 017
                                                                    MPN: 84642
                                                                    BOLT
                                                                    Supersession
                                                                    Supersession
                                                                    # 019
                                                                    MPN: 377030350
                                                                    SCREW
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 020
                                                                    MPN: 15503925
                                                                    NUT
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 021
                                                                    MPN: 377030352
                                                                    WASHER WITH ECCENTRIC HOLE
                                                                    from £6.95
                                                                    from £6.95
                                                                    # 022
                                                                    MPN: 377000362
                                                                    STABILIZER BAR DIA. 15
                                                                    from £56.61
                                                                    from £56.61
                                                                    # 023
                                                                    MPN: 367002366
                                                                    FLEXIBLE BLOCK DIA. 15
                                                                    from £34.43
                                                                    from £34.43
                                                                    # 025
                                                                    MPN: 397050374
                                                                    U-BOLT
                                                                    from £1.93
                                                                    from £1.93
                                                                    # 027
                                                                    MPN: 128350080
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 028
                                                                    MPN: 397050368
                                                                    U-BOLT
                                                                    from £2.85
                                                                    from £2.85
                                                                    # 030
                                                                    MPN: 377000344
                                                                    CLIP
                                                                    from £20.25
                                                                    from £20.25
                                                                    # 031
                                                                    MPN: 377400328
                                                                    BUSH
                                                                    from £3.25
                                                                    from £3.25
                                                                    # 032
                                                                    MPN: 97929
                                                                    SPLIT PIN
                                                                    from £0.70
                                                                    from £0.70
                                                                    # 033
                                                                    MPN: 16247734
                                                                    SCREW
                                                                    from £5.48
                                                                    from £5.48
                                                                    # 034
                                                                    MPN: 377030319
                                                                    SPACER
                                                                    from £1.93
                                                                    from £1.93
                                                                    # 035
                                                                    MPN: 14496825
                                                                    FLAT WASHER
                                                                    from £1.21
                                                                    from £1.21
                                                                    # 036
                                                                    MPN: 377030378
                                                                    SHIM 0.50 MM.
                                                                    - As necessary
                                                                    from £3.17
                                                                    from £3.17
                                                                    # 036
                                                                    MPN: 377030379
                                                                    SHIM 0.75 MM.
                                                                    - As necessary
                                                                    from £3.86
                                                                    from £3.86
                                                                    # 036
                                                                    MPN: 377030380
                                                                    SHIM 1.00 MM.
                                                                    - As necessary
                                                                    from £17.23
                                                                    from £17.23
                                                                    # 036
                                                                    MPN: 377030381
                                                                    SHIM
                                                                    Thickness mm. 1,75
                                                                    from £3.86
                                                                    from £3.86
                                                                    # 036
                                                                    MPN: 377030382
                                                                    SHIM 3.00 MM.
                                                                    - As necessary
                                                                    from £4.56
                                                                    from £4.56
