028.2 - Automatic Transmission - Internal Parts

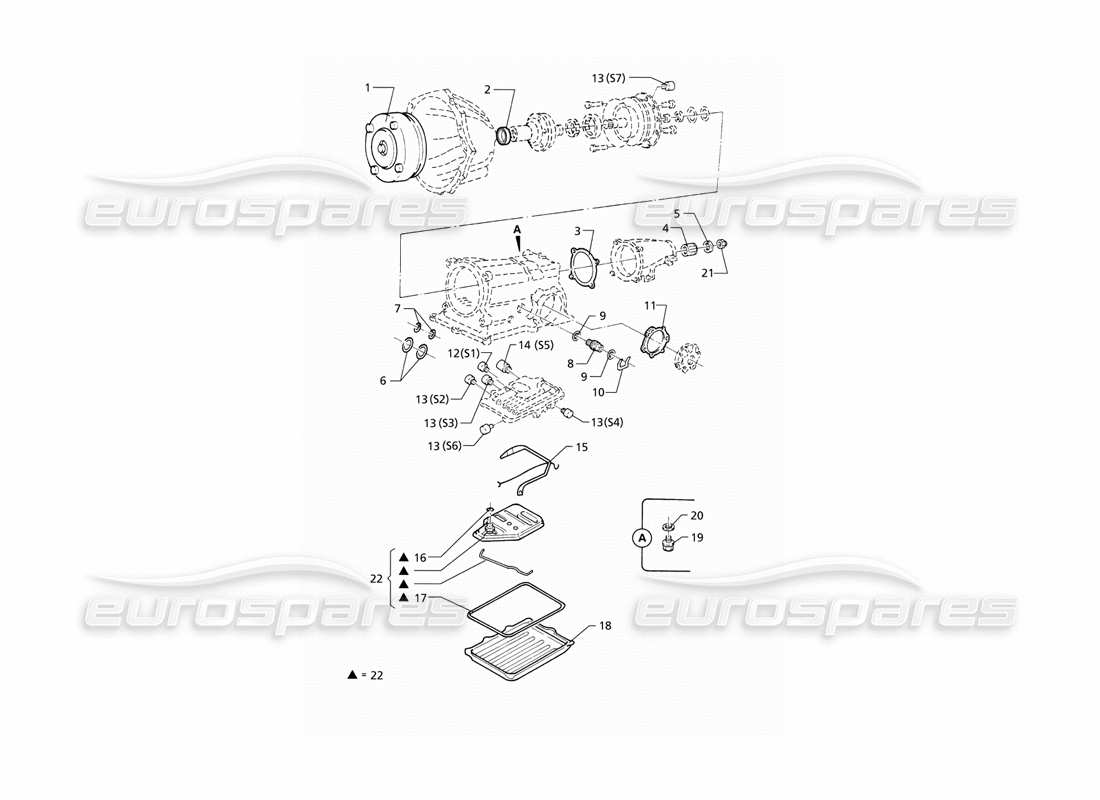

Maserati QTP V8 (1998) Automatic Transmission - Internal Parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 374831101

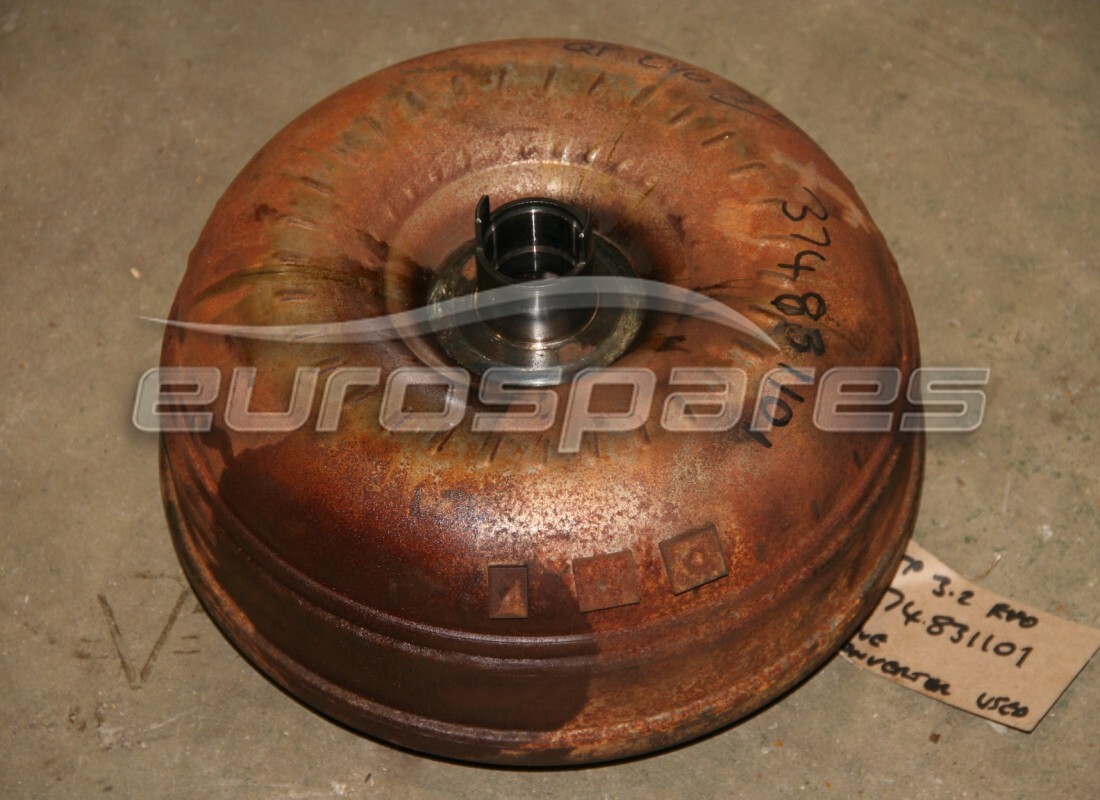

CONVERTER
- Valid for A.T. version
from £577.50
from £577.50
# 002
MPN: 374831331
PUMP SEAL
- Valid for A.T. version
from £7.27
from £7.27
# 003
MPN: 374831333
FLANGE GASKET
- Valid for A.T. version
from £15.63
from £15.63
# 004
MPN: 374831110
REAR BEARING
- Valid for A.T. version
from £33.17
from £33.17
# 005
MPN: 374831408
REAR SEAL
- Valid for A.T. version
from £22.83
from £22.83
# 006
MPN: 374831336
FR. SERVO OR. COVER
- Valid for A.T. version
from £7.66
from £7.66
# 007
MPN: 374831332
MANUAL SHAFT SEAL
- Valid for A.T. version
from £180.66
from £180.66
# 008
MPN: 372931310
10 PIN CONNECTOR
- Valid for A.T. version
from £11.81
from £11.81
# 009
MPN: 372931312
O-RING
- Valid for A.T. version
from £2.30
from £2.30
# 010
MPN: 372931311
SPRING
- Valid for A.T. version
from £2.17
from £2.17
# 011
MPN: 374831330
REAR SERVO COVER GASKET
- Valid for A.T. Version - (minimum order quantity = 2)
from £7.66
from £7.66
# 012
MPN: 372931205
SOLENOID (S1)
- Valid for A.T. version
from £90.60
from £90.60
# 013
MPN: 372931210
SOLENOID (S2-S3-S4-S6-S7)
- Valid for A.T. version
from £50.95
from £50.95
# 014
MPN: 372931220
SOLENOID (S5)
- Valid for A.T. version
from £291.70
from £291.70
# 015
MPN: 372931221
VALVES WIRING
- Valid for A.T. version
from £116.13
from £116.13
# 016
MPN: 374831320
INTERNAL O-RING FILTER
- Valid for A.T. version
from £3.50
from £3.50
# 017
MPN: 374831309
OIL SUMP GASKET
- Valid for A.T. version
from £11.72
from £11.72
# 018
MPN: 374831102
oil sump
- Valid for A.T. version
from £49.97
from £49.97
# 019
MPN: 374831322
OIL LEVEL PLUG
- Valid for A.T. version
from £16.17
from £16.17
# 020
MPN: 374831323
O-RING
- Valid for A.T. version
from £1.92
from £1.92
# 021
MPN: 374831500
FLANGE NUT
- Valid for A.T. version
from £59.91
from £59.91
# 022
MPN: 374831020
FILTER SERVICE KIT
- Valid for A.T. version
from £56.43
from £56.43
