maserati qtp v8 (1998) getrag manual transmission - 6 speed parts diagram

026 - Getrag Manual Transmission - 6 Speed

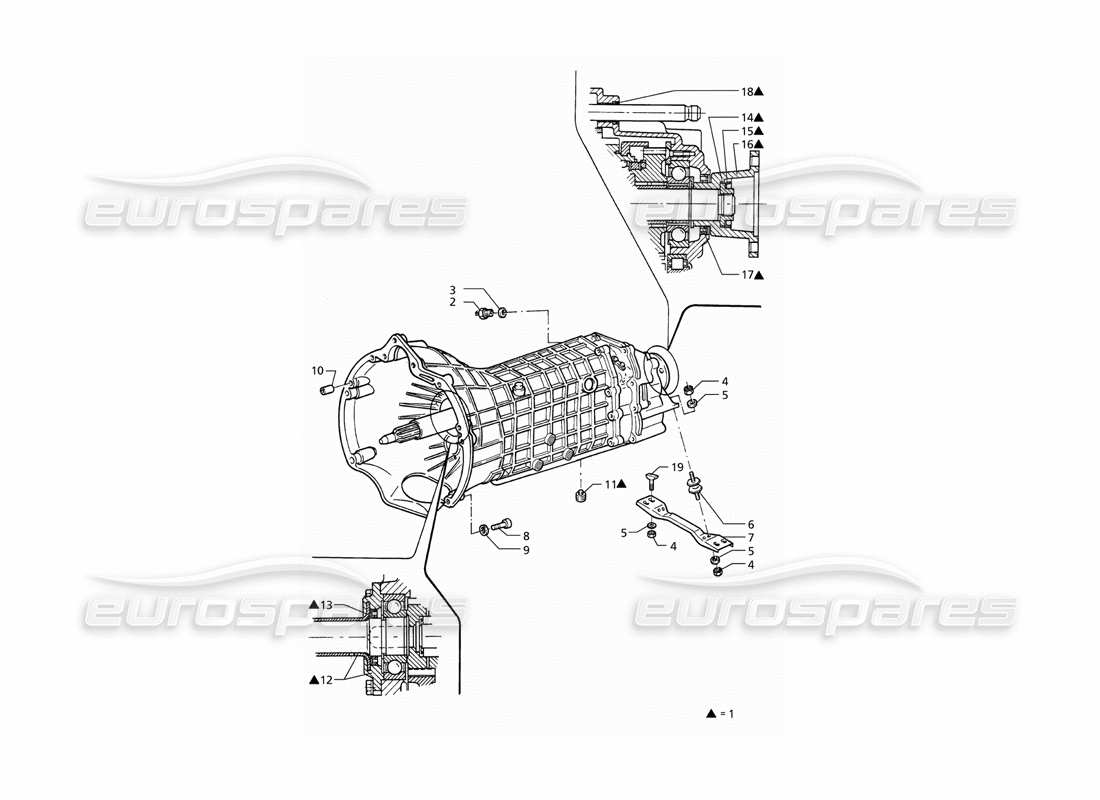

Maserati QTP V8 (1998) Getrag Manual Transmission - 6 Speed Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 374830006

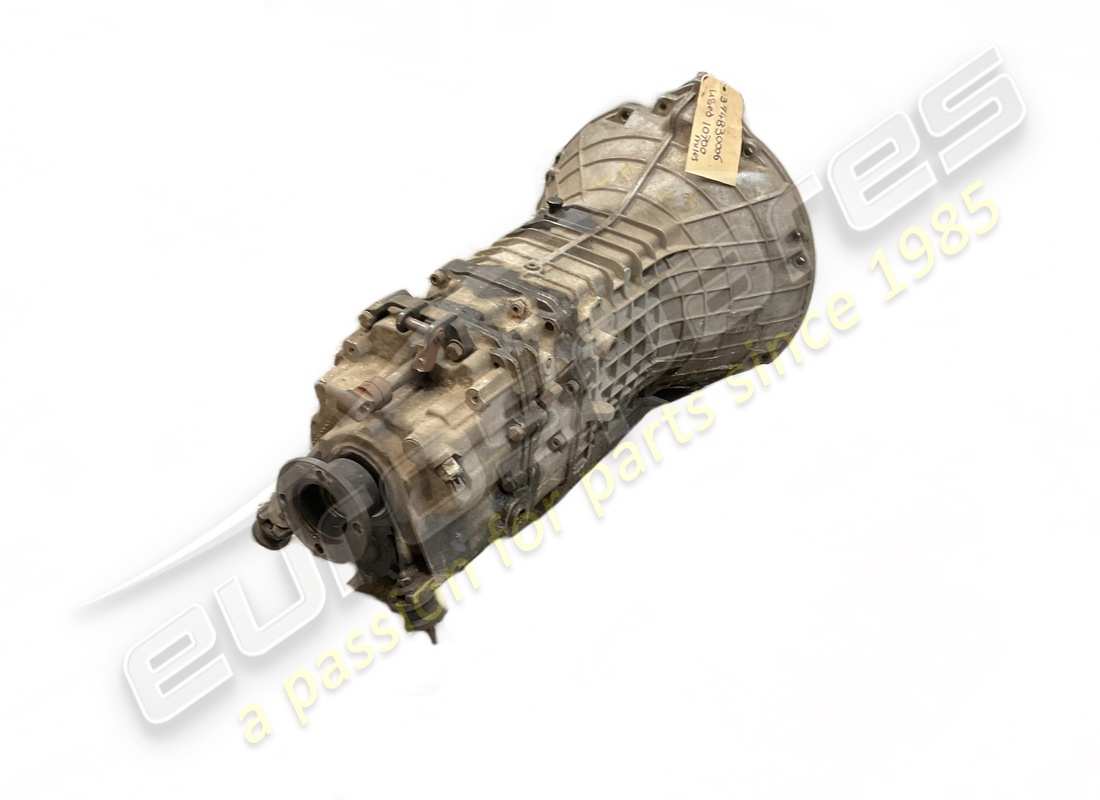

6-SPEED GEARBOX
- Valid for M.T. version
from £4,330.41
from £4,330.41
# 002
MPN: 323353131
REVERSE GEAR SWITCH
- Valid for M.T. version
from £18.08
from £18.08
# 003
MPN: 317851388
GASKET
- Valid for M.T. version
from £1.08
from £1.08
# 004
MPN: 314632309
SELF LOCKING NUT
- Valid for M.T. version
Supersession
Supersession
This part replaces part number 128350080
# 005
MPN: 314855306
WASHER
- Valid for M.T. version
from £2.17
from £2.17
# 006
MPN: 324853120
SPRING MOUNT
- Valid for M.T. version
from £16.91
from £16.91
This part replaces part number 314855119 - and 1 more. Click to view details
# 007
MPN: 394850305
MOUNT
- Valid for M.T. version
from £158.57
from £158.57
# 008
MPN: 108010040
SCREW
- Valid for M.T. version
# 009
MPN: 138410100
WASHER
- Valid for M.T. version
# 010
MPN: 310420311
DOWEL
- Valid for M.T. version
from £9.66
from £9.66
# 011
MPN: 394850408
MAGNETIC DRAIN PLUG
- Valid for M.T. version
from £4.64
from £4.64
# 012
MPN: 394850410
COVER
- Valid for M.T. version
Supersession
Supersession
# 013
MPN: 394850412

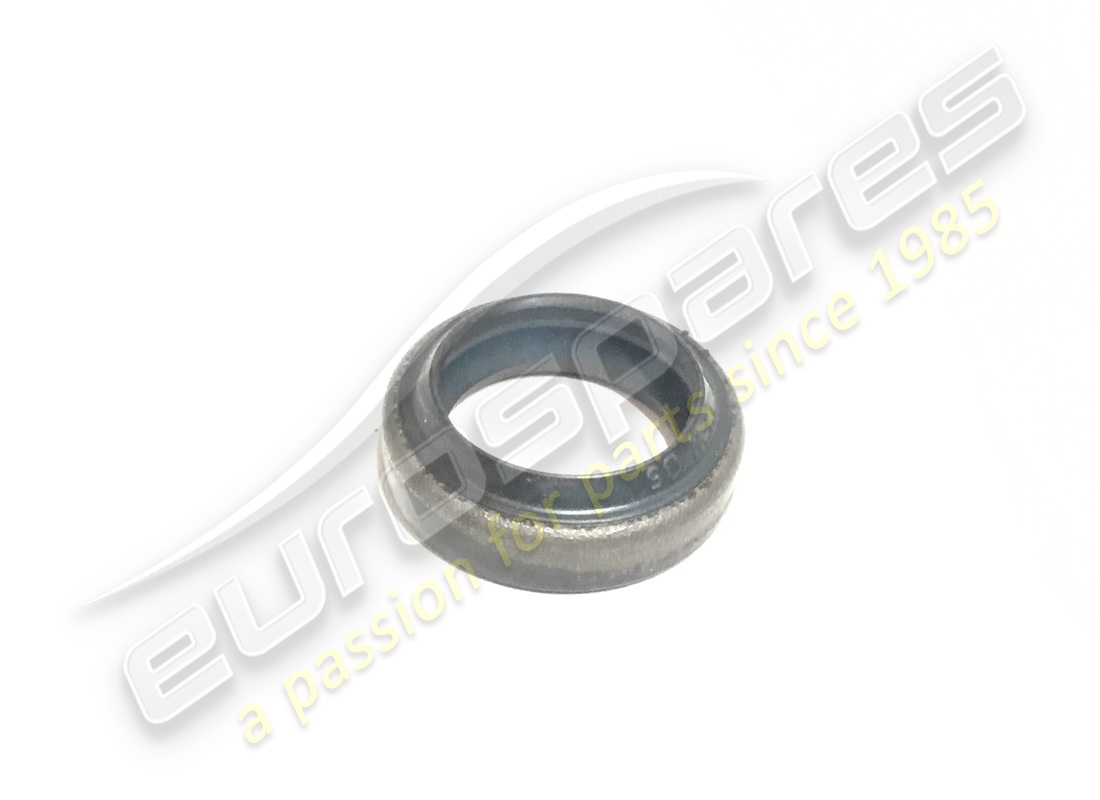

OIL SEAL
- Valid for M.T. version
from £5.56
from £5.56
# 014
MPN: 394850415
FLANGE
- Valid for M.T. version
from £4.17
from £4.17
# 015
MPN: 394850417
SECURING WASHER
- Valid for M.T. version
from £24.87
from £24.87
# 016
MPN: 324853425
OUTPUT FLANGE
- Valid for M.T. version
from £113.97
from £113.97
# 017
MPN: 324853420
OIL SEAL
- Valid for M.T. version
from £13.98
from £13.98
# 018
MPN: 324853419
OIL SEAL
- Valid for M.T. version
from £21.95
from £21.95
# 019
MPN: 314820303
SCREW
- Valid for M.T. version
from £12.44
from £12.44
