![maserati qtp v8 (1998) fuel tank parts diagram](/img/CxEAAMTaOW5_jyybZbn0XUkRlCEahQaZzse59OMiVTQeBTwXG1sD/maserati-qtp-v8-(1998)-part-diagram-023.webp)
023 - FUEL TANK

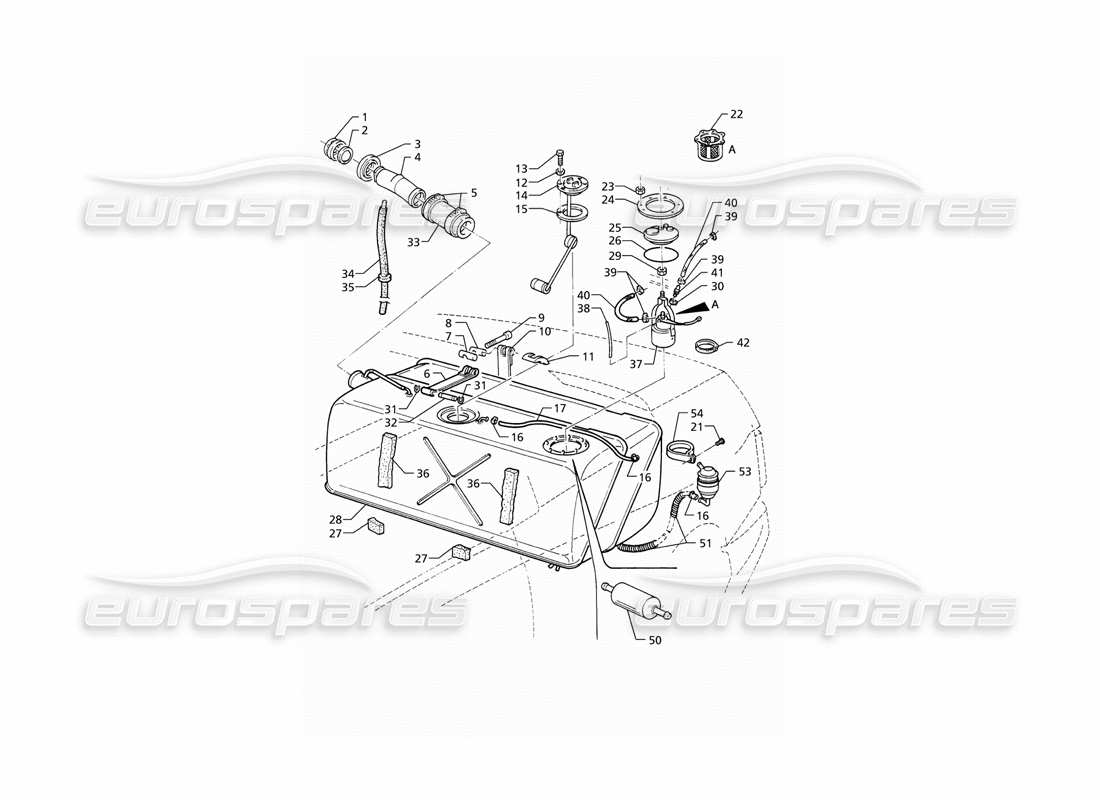

Maserati QTP V8 (1998) Fuel Tank Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 319220354
FUEL TANK CAP
from £9.69
from £9.69
This part replaces part number 319220007
# 002
MPN: 329232355

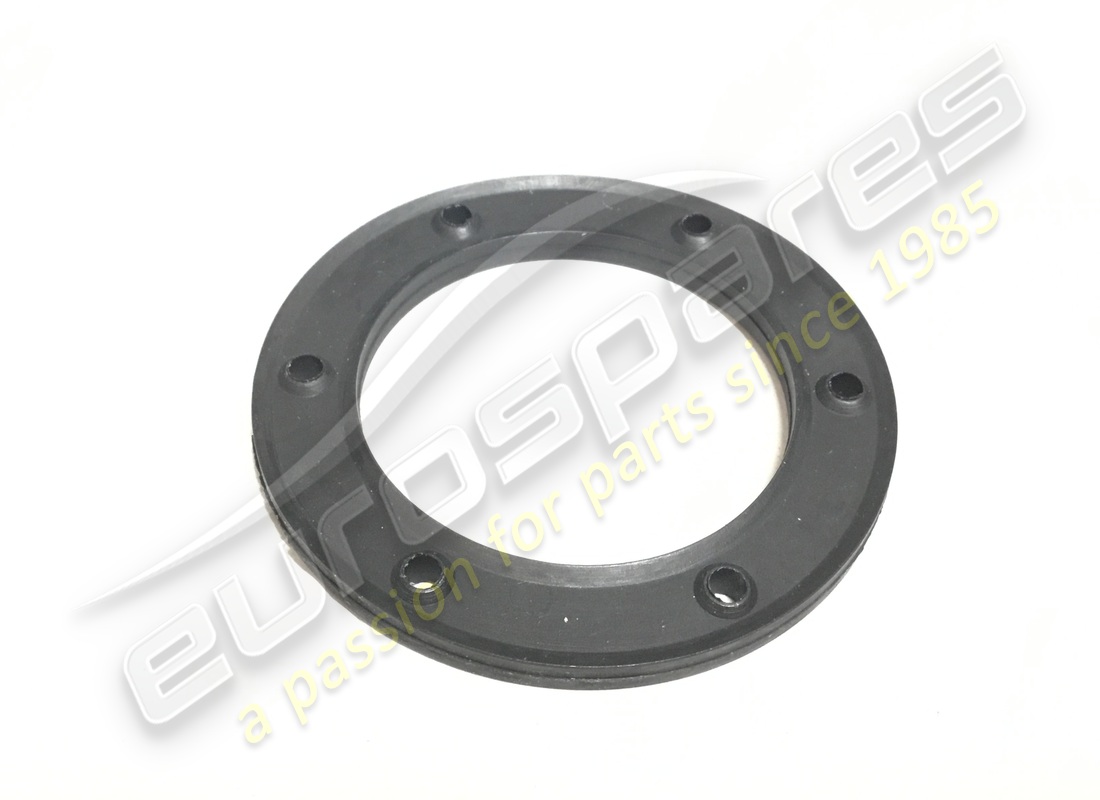

GASKET
from £10.29
from £10.29
# 003
MPN: 319250411
SEAL RING
from £3.98
from £3.98
This part replaces part number 329232410 - and 1 more. Click to view details
# 004
MPN: 379200117
FILLER NECK
from £59.95
from £59.95
# 005
MPN: 186404087

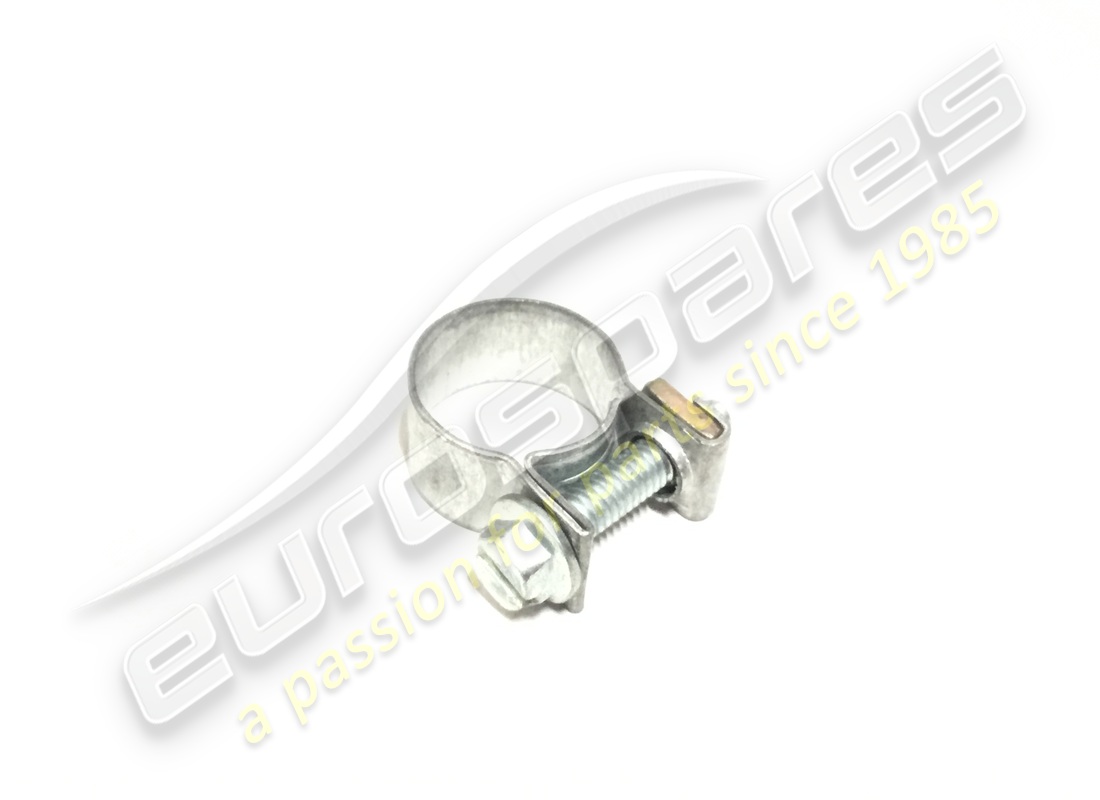

CLAMP
Supersession
Supersession
# 006
MPN: 379230384
TANK UPPER FASTENING STRIP
from £8.73
from £8.73
# 007
MPN: 53921332
STRIP PIN
from £2.34
from £2.34
# 008
MPN: 53921331
STRIP PIN
from £1.56
from £1.56
# 009
MPN: 53921333

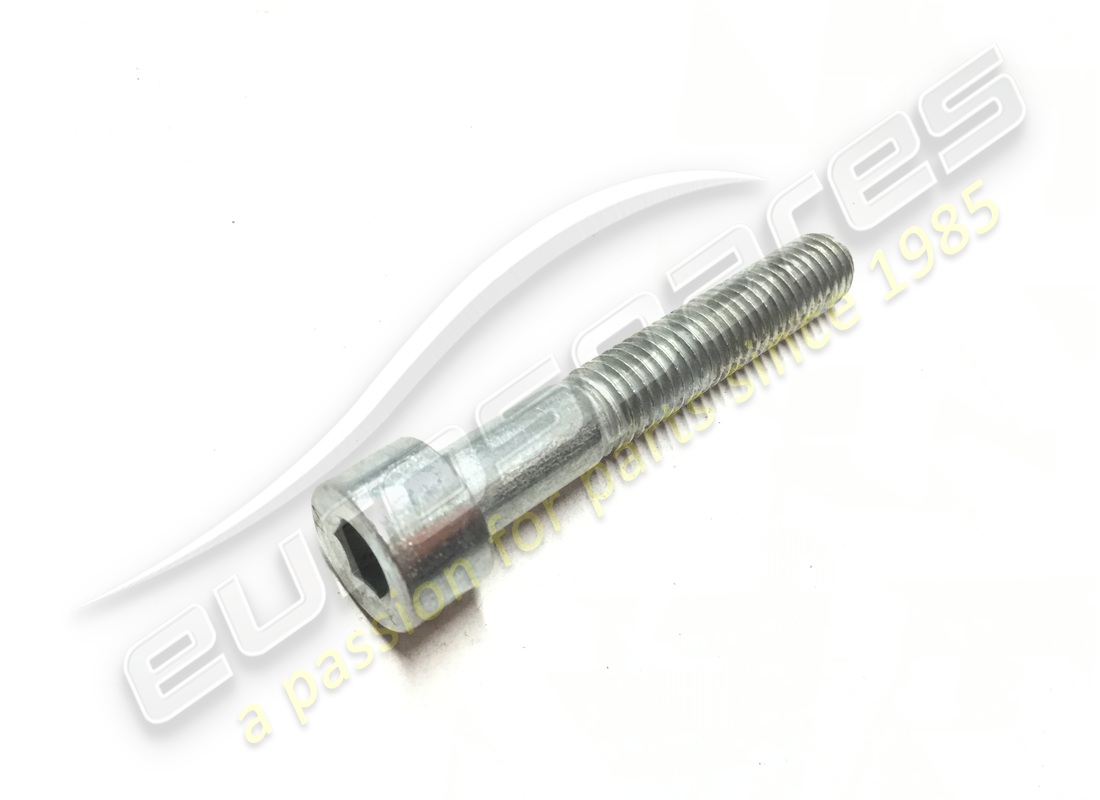

SCREW
from £1.87
from £1.87
# 010
MPN: 379230385
TANK LOWER FASTENING STRIP
from £8.73
from £8.73
# 011
MPN: 319220337
STRIP RETAINING BLOCK
from £1.95
from £1.95
# 012
MPN: 136220043
WASHER
# 013
MPN: 53361308
SCREW
Supersession
Supersession
# 014
MPN: 313620111
FUEL GAUGE
from £53.66
from £53.66
# 015
MPN: 33331300
GASKET
from £1.95
from £1.95
# 016
MPN: 30921110
CLAMP
# 017

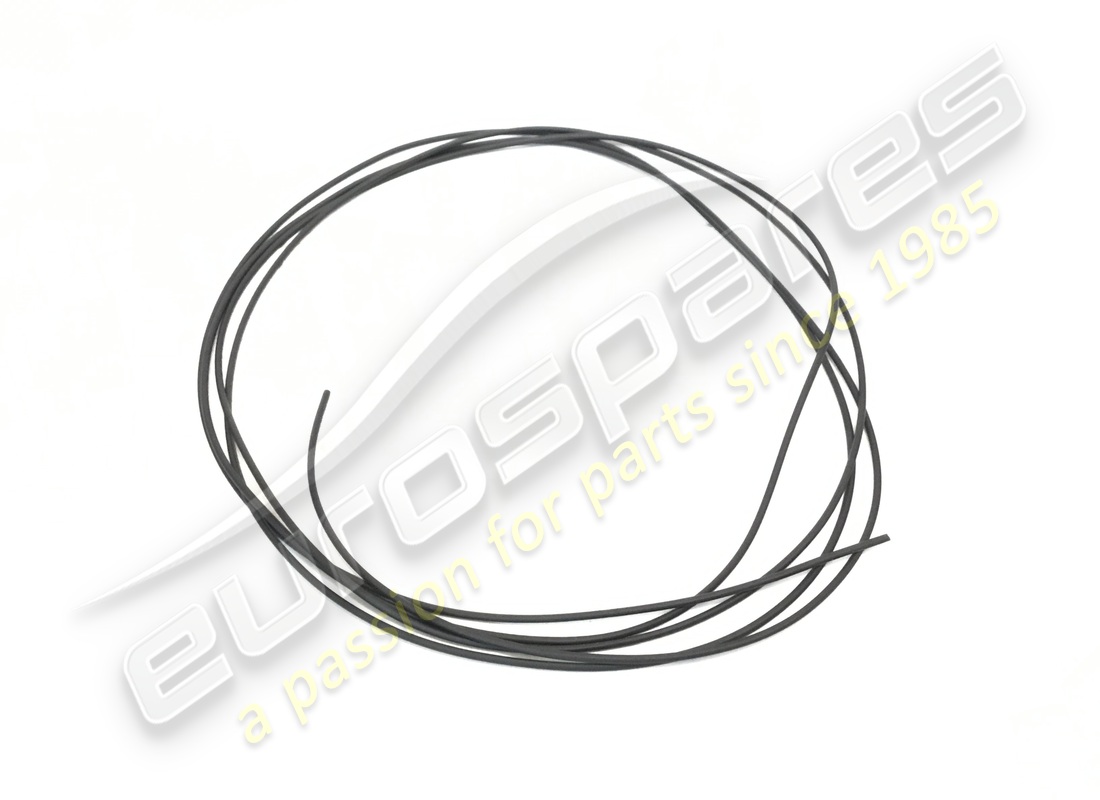

MPN: 318720336
SLEEVE
- Section in metres - order minimum amount of 1 m
Supersession
Supersession
This part replaces part number 319220391
# 021
MPN: 119142160
SCREW
from £0.86
from £0.86
# 022
MPN: 393750312
IN-TANK PETROL FILTER
from £4.02
from £4.02
# 023
MPN: 122700050
NUT
# 024
MPN: 399250446
FLANGE
from £13.97
from £13.97
# 025
MPN: 393750130
PETROL PUMP COVER
from £5.54
from £5.54
# 026
MPN: 393750309
GASKET
from £2.34
from £2.34
# 027
MPN: 379200399

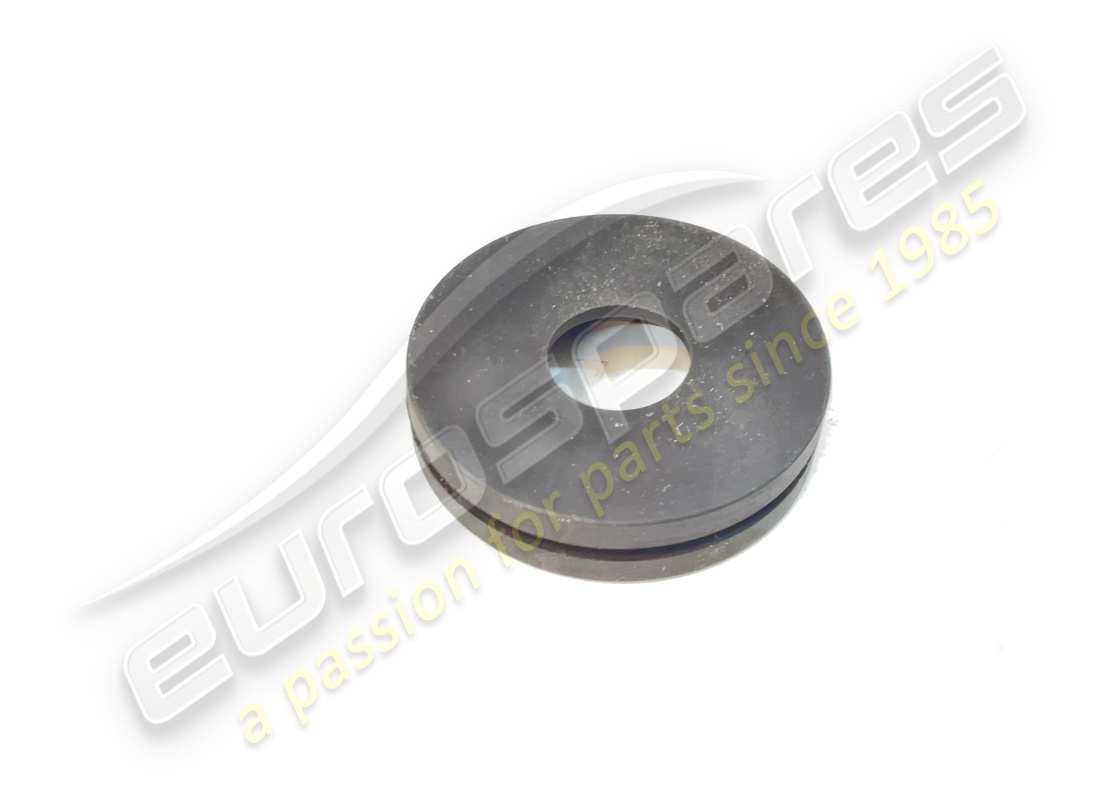

FELT PAD
from £1.56
from £1.56
This part replaces part number 319220399
# 028
MPN: 379230006
FUEL TANK
from £1,642.49
from £1,642.49
# 029
MPN: 122600060
NUT
# 030
MPN: 559221337
CLAMP
from £0.70
from £0.70
# 031
MPN: 150800050
SEEGER RING
# 032
MPN: 30921336
PIN
from £3.67
from £3.67
# 033
MPN: 339232382
SLEEVE
from £99.77
from £99.77
# 034
MPN: 30871325
DRAINAGE TUBE
from £1.29
from £1.29
# 035
MPN: 319220361
FAIRLEAD
from £2.34
from £2.34
# 036
MPN: 379200398
FELT PAD
from £2.34
from £2.34
This part replaces part number 319220398

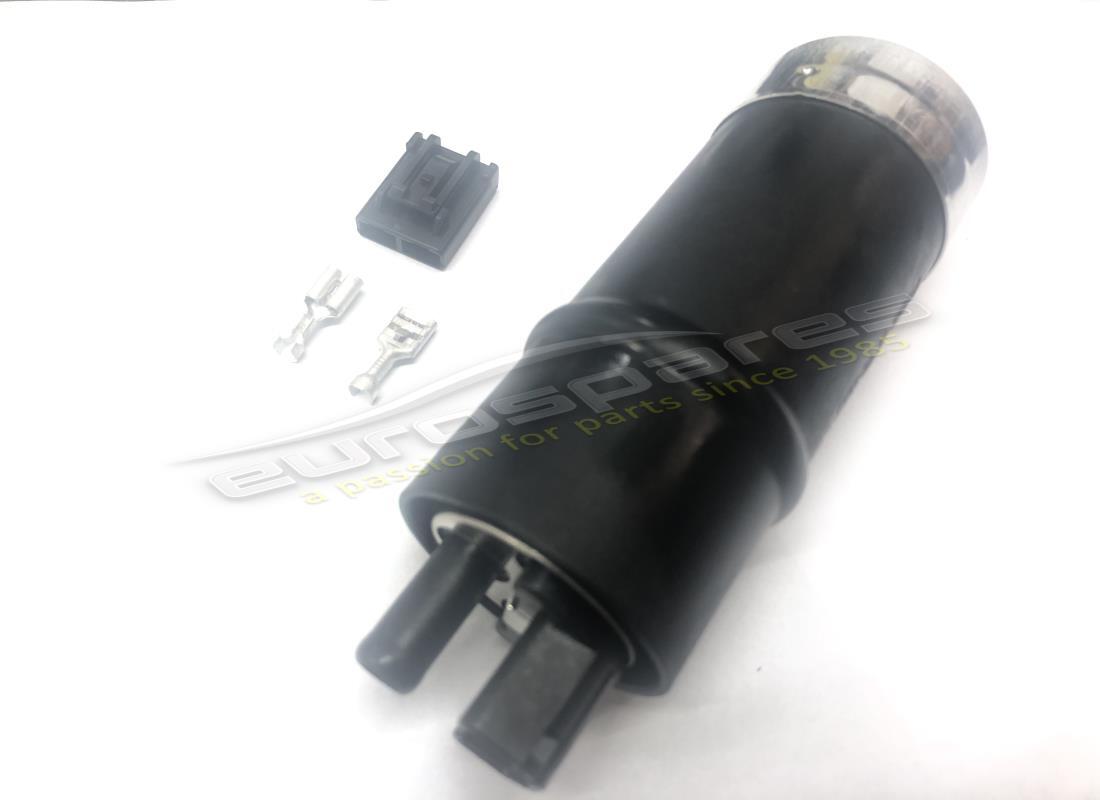

# 037
MPN: 393750135
IN-TANK FUEL PUMP
from £195.00
from £195.00
This part replaces part number 393750134
# 038
MPN: 97470
RUBBER GASKET
from £43.68
from £43.68
This part replaces part number 311053321 - and 1 more. Click to view details
# 039
MPN: 559221338
CLAMP
from £0.70
from £0.70
# 040
MPN: 398750368
SLEEVE
- Section in metres - order minimum amount of 1 m
Supersession
Supersession
# 041
MPN: 399250432
UNION
from £1.28
from £1.28
# 042
MPN: 186403060
CLAMP
from £1.09
from £1.09
# 050
MPN: 379200141
IN-TANK FUEL FILTER
Supersession
Supersession
This part replaces part number 319220141
# 051
MPN: 379200450
FUEL LINE SHIELD SPRING
from £2.63
from £2.63

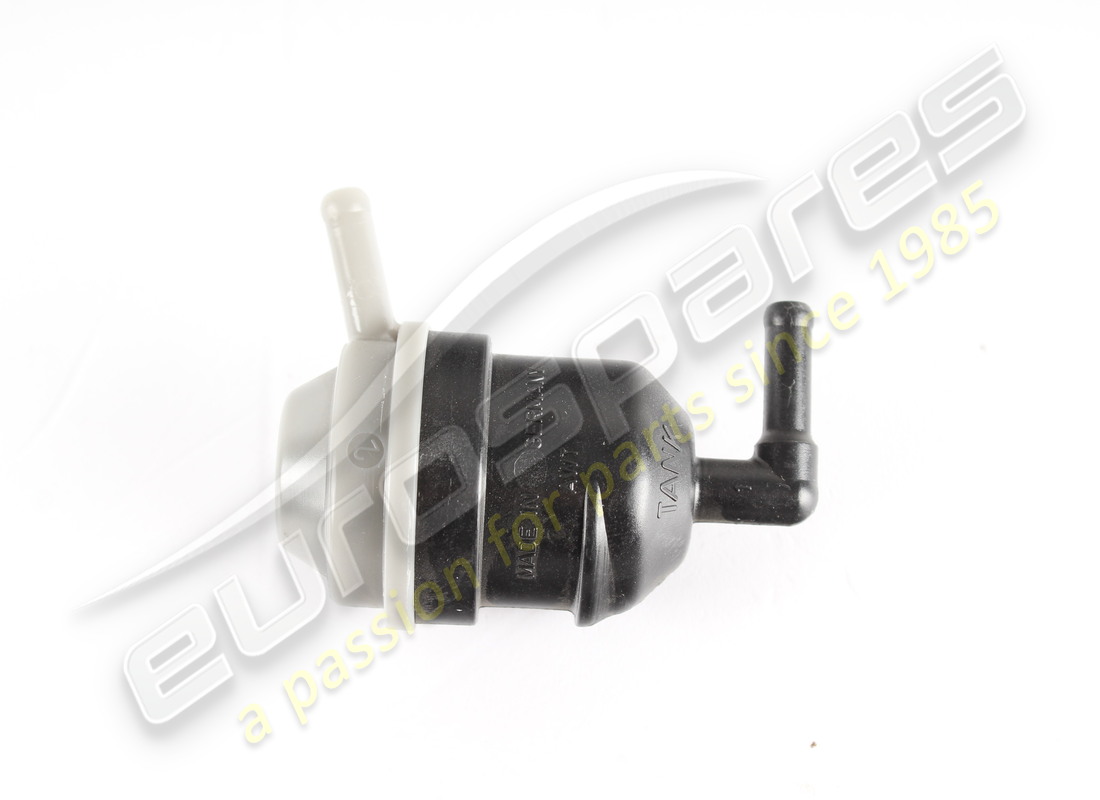

# 053
MPN: 379200102
CHECK VALVE FOR VEHICLE TURNOVER
from £17.05
from £17.05
This part replaces part number 319220102 - and 1 more. Click to view details
# 054
MPN: 379200410
CLAMP
from £1.56
from £1.56
