maserati qtp v8 (1998) engine cooling pipes and thermostat (lhd) parts diagram

019GS - Engine Cooling Pipes and Thermostat (LHD)

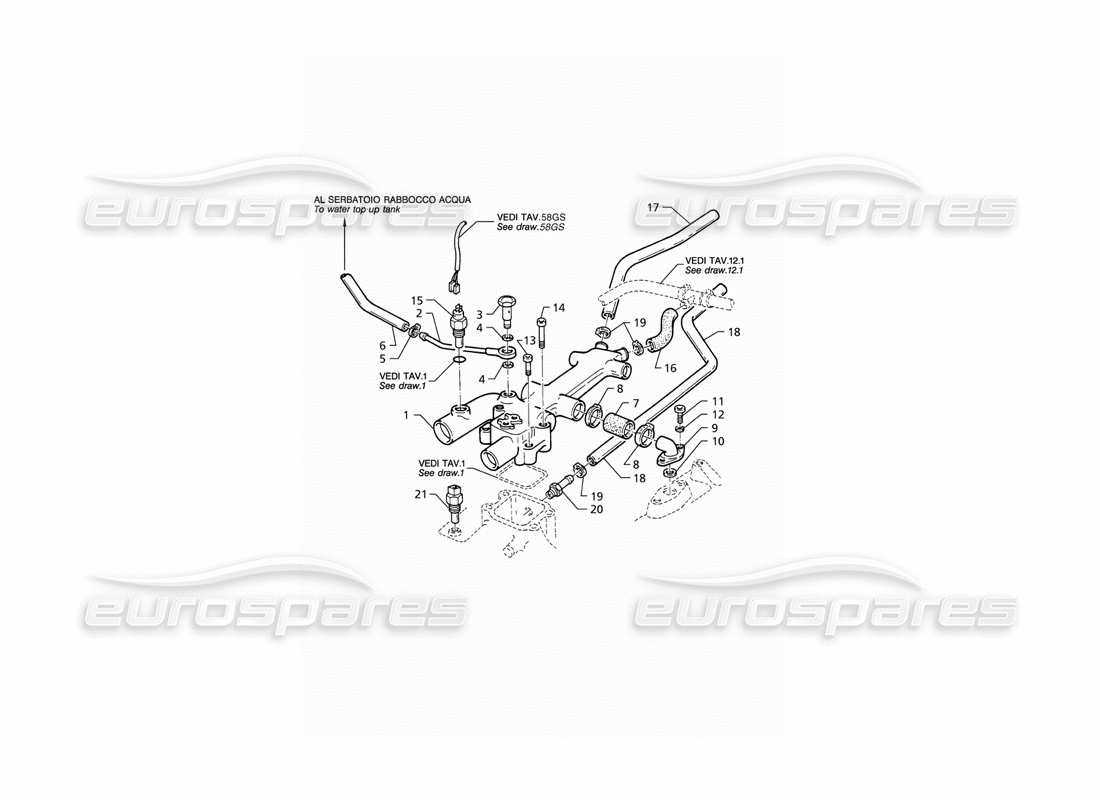

Maserati QTP V8 (1998) Engine Cooling Pipes and Thermostat (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 578048000
                                            THERMOSTAT CASE
                                            from £69.10
                                            from £69.10
                                            # 002
                                            MPN: 578041800
                                            UNION
                                            from £6.76
                                            from £6.76
                                            # 003
                                            MPN: 312020510
                                            UNION SCREW
                                            from £2.68
                                            from £2.68
                                            This part replaces part number 193520 - and 1 more. Click to view details
                                            # 004
                                            MPN: 319220424
                                            GASKET
                                            from £1.70
                                            from £1.70
                                            # 006
                                            MPN: 19058089
                                            SLEEVE
                                            from £9.66
                                            from £9.66
                                            This part replaces part number 379200379 - and 2 more. Click to view details
                                            # 007
                                            MPN: 395550352
                                            SLEEVE
                                            from £21.00
                                            from £21.00
                                            # 008
                                            MPN: 312420114

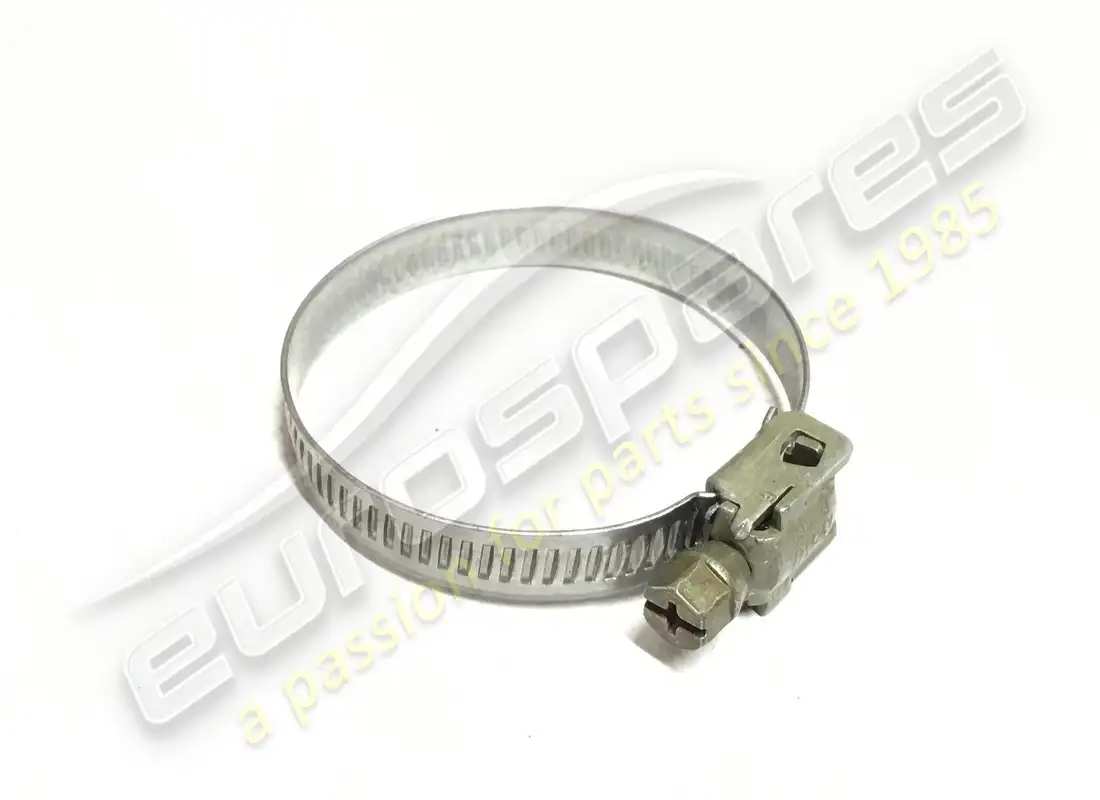

                                            CLAMP
                                            from £2.31
                                            from £2.31
                                            # 009
                                            MPN: 390650367
                                            UNION
                                            from £42.00
                                            from £42.00
                                            # 010
                                            MPN: 192415131
                                            RUBBER GASKET
                                            Supersession
                                            Supersession
                                            # 011
                                            MPN: 95683
                                            ALLEN SCREW
                                            # 012
                                            MPN: 312220411
                                            GASKET
                                            from £0.47
                                            from £0.47
                                            # 014
                                            MPN: 95679
                                            ALLEN SCREW
                                            # 015
                                            MPN: 470042800
                                            THERMOSTAT
                                            from £13.35
                                            from £13.35
                                            This part replaces part number 313630102
                                            # 016
                                            MPN: 578369600
                                            SLEEVE
                                            from £85.67
                                            from £85.67
                                            # 017
                                            MPN: 578042200
                                            SLEEVE
                                            from £7.40
                                            from £7.40
                                            # 019
                                            MPN: 312020410
                                            CLAMP
                                            from £2.16
                                            from £2.16
                                            # 020
                                            MPN: 390450340
                                            UNION
                                            Supersession
                                            Supersession
                                            # 021
                                            MPN: 470079700
                                            WATER TEMPERATURE SENSORS
                                            from £55.37
                                            from £55.37
