maserati qtp v8 (1998) air filter and ducts parts diagram

014 - Air Filter and Ducts

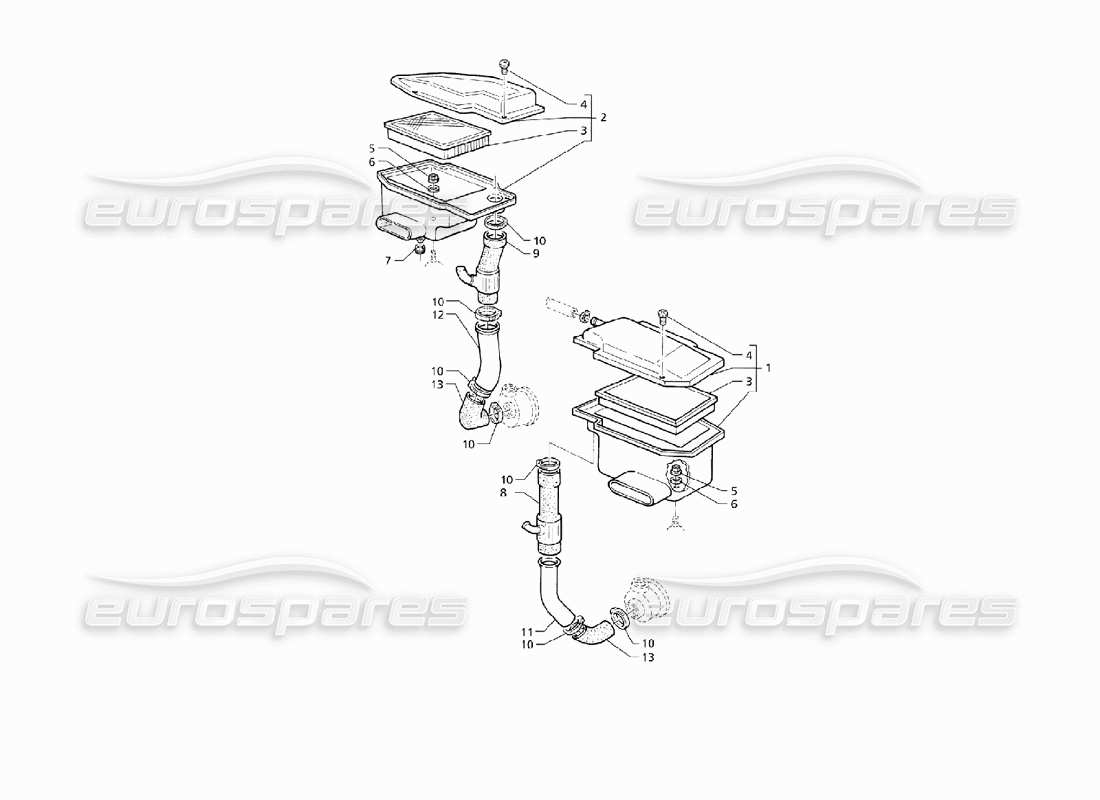

Maserati QTP V8 (1998) Air Filter and Ducts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 372430053
                            LH BOX ASSY + AIR FILTER
                            Supersession
                            Supersession
                            # 002
                            MPN: 372430054
                            RH BOX ASSY + AIR FILTER
                            Supersession
                            Supersession
                            # 003
                            MPN: 372430303

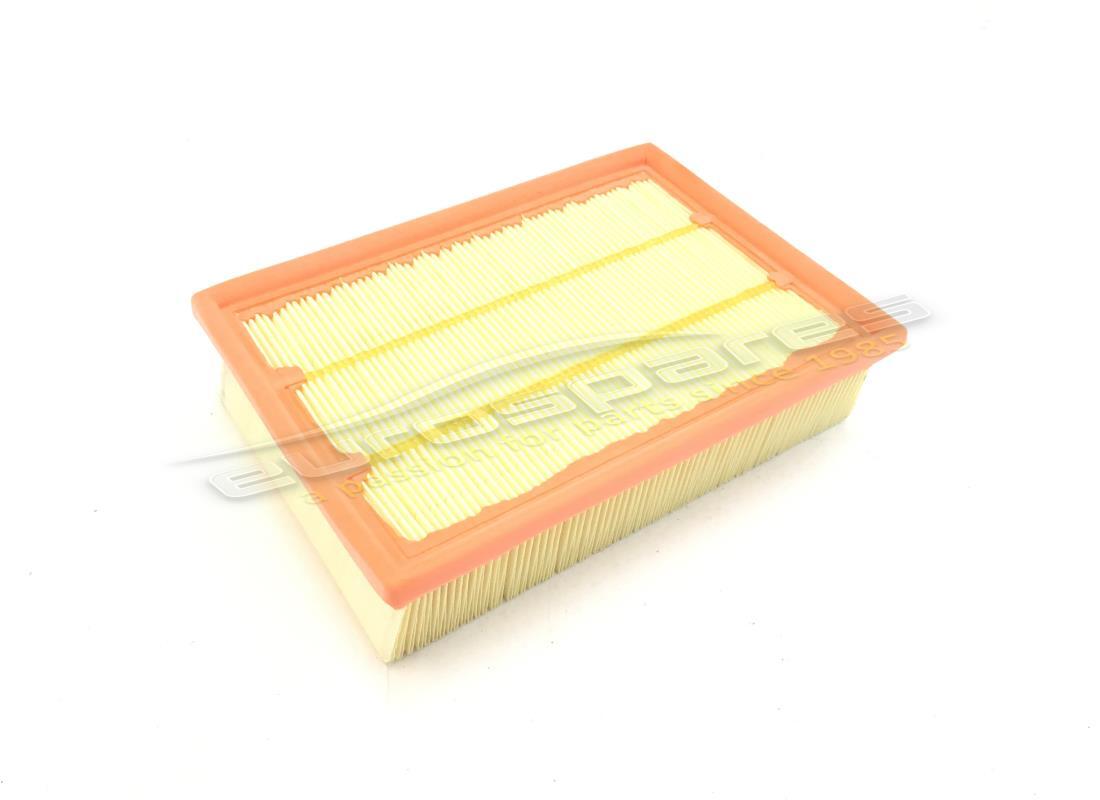

                            AIR FILTER
                            from £57.75
                            from £57.75
                            # 006
                            MPN: 163020060
                            WASHER
                            from £2.55
                            from £2.55
                            # 007
                            MPN: 315520375
                            FAIRLEAD
                            Supersession
                            Supersession
                            # 008
                            MPN: 372430319
                            LH RUBBER HOSE
                            from £36.50
                            from £36.50
                            # 009
                            MPN: 372430318
                            RH RUBBER HOSE
                            from £36.50
                            from £36.50
                            # 010
                            MPN: 312420106
                            CLAMP
                            Supersession
                            Supersession
                            # 011
                            MPN: 372430333
                            LH METAL PIPE
                            from £19.30
                            from £19.30
                            # 012
                            MPN: 372430334
                            RH METAL PIPE
                            from £20.23
                            from £20.23
                            # 013
                            MPN: 372430329
                            SLEEVE
                            Supersession
                            Supersession
