013.1 - Intake Manifold and Injection System

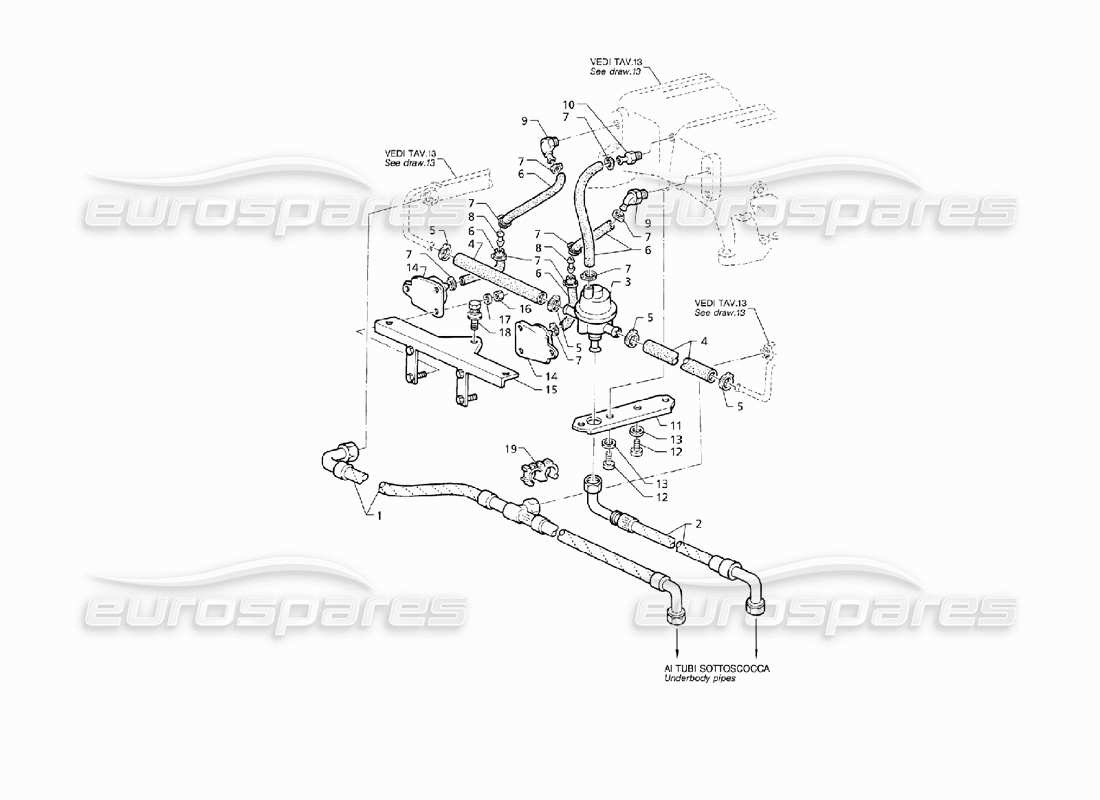

Maserati QTP V8 (1998) Intake Manifold and Injection System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 578064203
                                    PETROL DELIVERY TUBE
                                    from £121.40
                                    from £121.40
                                    This part replaces part number 578064202 - and 1 more. Click to view details
                                    # 002
                                    MPN: 578066900
                                    PETROL RETURN TUBE
                                    from £70.52
                                    from £70.52
                                    This part replaces part number 379230135 - and 1 more. Click to view details
                                    # 003
                                    MPN: 475073601
                                    PETROL PRESSURE REGULATOR (3 BAR)
                                    from £91.08
                                    from £91.08
                                    # 004
                                    MPN: 97892
                                    SLEEVE
                                    - Section in metres - order minimum amount of 1 m or multiples of 1 m
                                    from £65.58
                                    from £65.58
                                    This part replaces part number 19058189 - and 1 more. Click to view details
                                    # 006
                                    MPN: 300100803
                                    SLEEVE
                                    - Section in metres - order minimum amount of 2 m
                                    from £54.95
                                    from £54.95
                                    This part replaces part number 318720329
                                    # 007
                                    MPN: 312050310
                                    CLAMP
                                    from £1.08
                                    from £1.08
                                    # 008
                                    MPN: 313620303
                                    UNION
                                    from £0.78
                                    from £0.78
                                    # 009
                                    MPN: 585064500
                                    UNION
                                    from £63.34
                                    from £63.34
                                    This part replaces part number 578064500
                                    # 010
                                    MPN: 95517
                                    UNION
                                    Supersession
                                    Supersession
                                    # 011
                                    MPN: 479005000
                                    PRESSURE REGULATOR SUPPORT
                                    from £3.64
                                    from £3.64
                                    # 012
                                    MPN: 108006012
                                    ALLEN SCREW
                                    from £0.54
                                    from £0.54
                                    # 013
                                    MPN: 312220411
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    # 014
                                    MPN: 313720118
                                    ABSOLUTE PRESSURE SENSOR
                                    Supersession
                                    Supersession
                                    # 015
                                    MPN: 373230103
                                    A.P. SENSORS SUPPORT
                                    from £5.52
                                    from £5.52
                                    # 017
                                    MPN: 135900064
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    # 018
                                    MPN: 11730624
                                    BOLT ASSY SEC. SUPPORT
                                    from £0.53
                                    from £0.53
                                    # 019
                                    MPN: 377430342
                                    PIPE SECURING BLOCK
                                    from £0.70
                                    from £0.70
