013GD - Intake Manifold and Injection System (RHD)

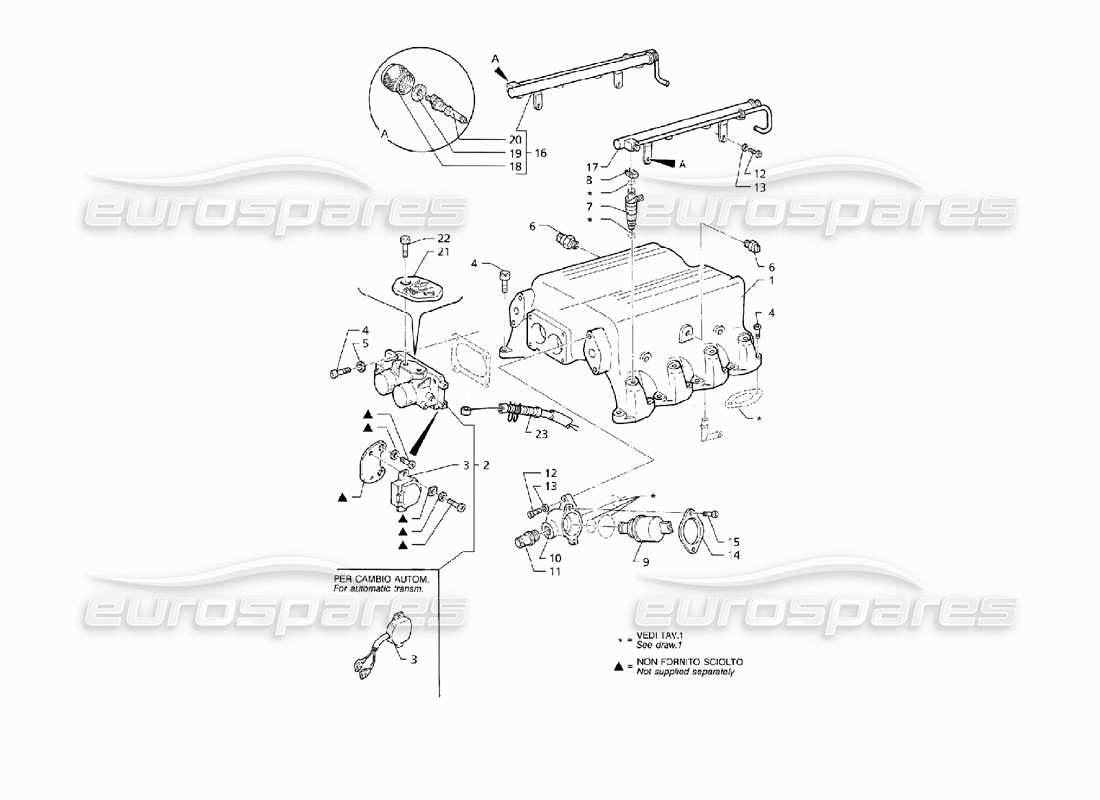

Maserati QTP V8 (1998) Intake Manifold and Injection System (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 479002502

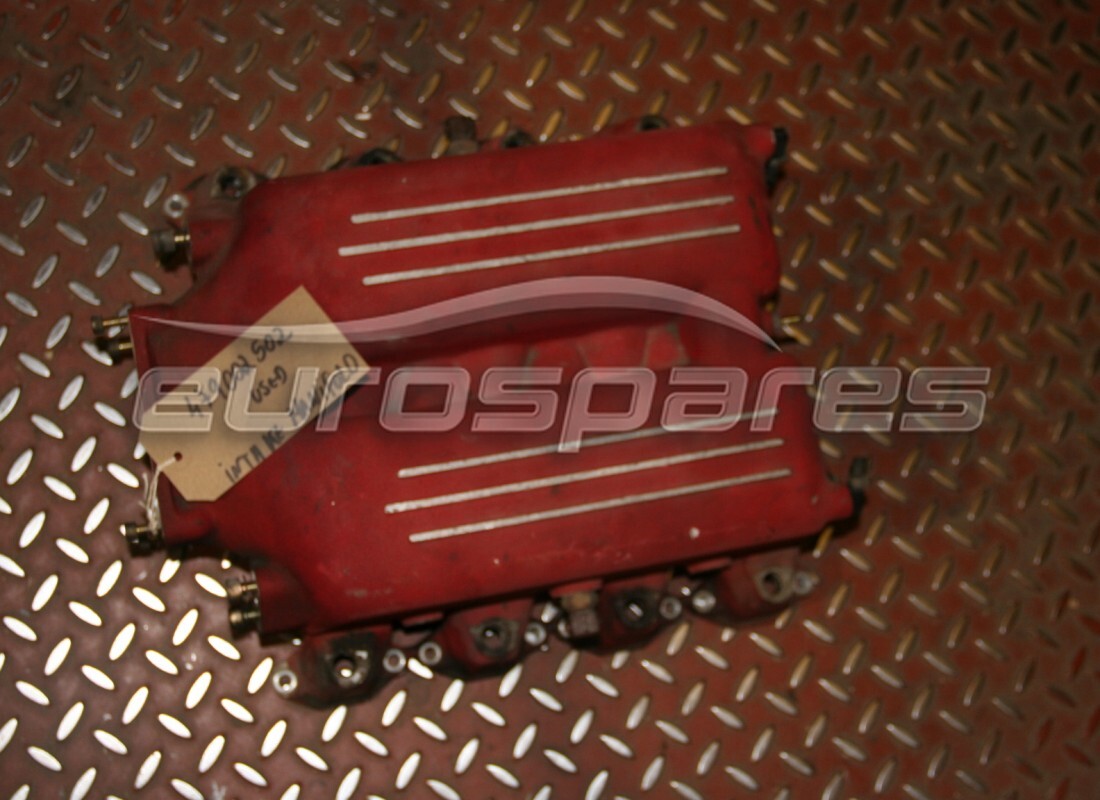

                                          INTAKE MANIFOLD
                                          from £427.48
                                          from £427.48
                                          # 002
                                          MPN: 578064600
                                          COMPLETE THROTTLE BODY
                                          - Valid for M.T. version
                                          from £424.44
                                          from £424.44
                                          # 002
                                          MPN: 578064610
                                          COMPLETE THROTTLE BODY
                                          - Valid for A.T. version
                                          from £189.00
                                          from £189.00
                                          # 003
                                          MPN: 578079900
                                          POTENTIOMETER
                                          - Valid for M.T. version
                                          from £505.31
                                          from £505.31
                                          # 003
                                          MPN: 578079910
                                          POTENTIOMETER
                                          - Valid for A.T. version
                                          from £488.32
                                          from £488.32
                                          # 005
                                          MPN: 312220411
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          # 006
                                          MPN: 470079700
                                          AIR TEMPERATURE SENSOR
                                          from £55.37
                                          from £55.37
                                          # 007
                                          MPN: 470063003

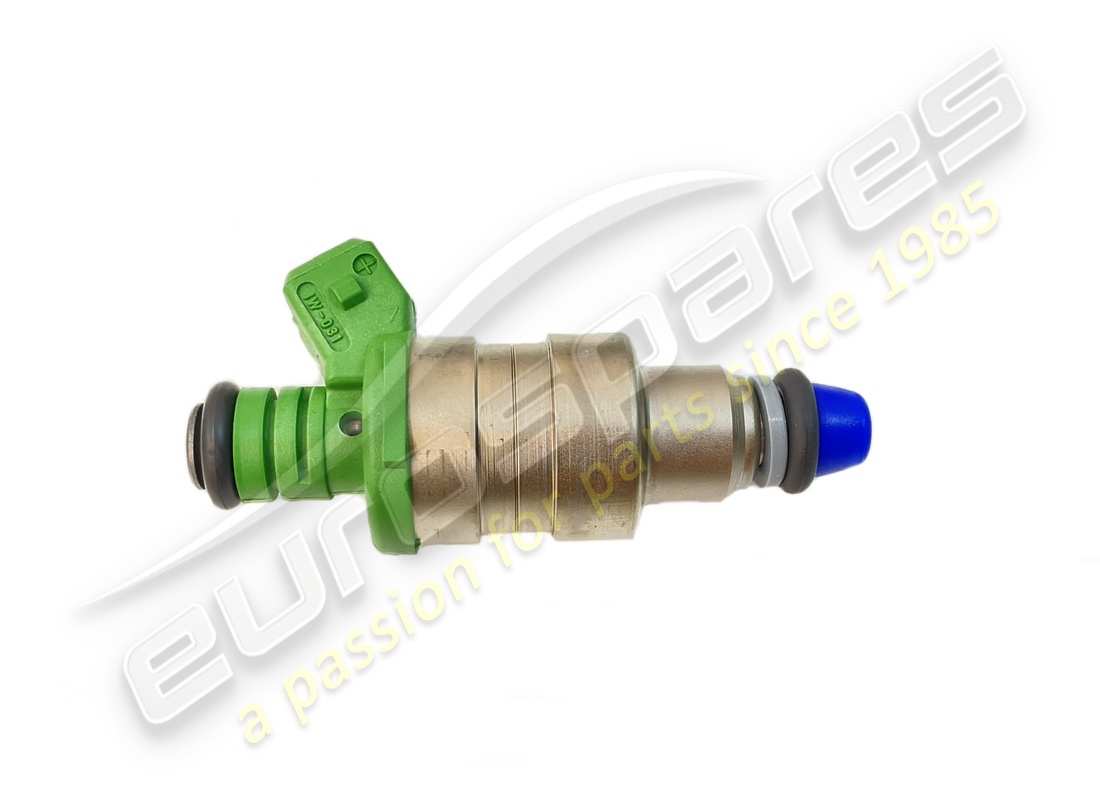

                                          INJECTOR
                                          from £95.88
                                          from £95.88
                                          # 008
                                          MPN: 313720313
                                          INJECTOR RETAINING SPRING
                                          # 009
                                          MPN: 578063900
                                          AIR MODULATING SOLENOID VALVE
                                          from £238.03
                                          from £238.03
                                          # 010
                                          MPN: 578001000
                                          BODY SEC. SOLENOID VALVE
                                          from £21.08
                                          from £21.08
                                          This part replaces part number 479001001 which we have in stock - and 1 more. Click to view details
                                          # 011
                                          MPN: 571072300
                                          UNION
                                          from £7.68
                                          from £7.68
                                          This part replaces part number 312220481
                                          # 012
                                          MPN: 108008020
                                          ALLEN SCREW
                                          # 016
                                          MPN: 578060000
                                          RH PETROL DELIVERY MANIFOLD
                                          Supersession
                                          Supersession
                                          # 017
                                          MPN: 578060100
                                          LH PETROL DELIVERY MANIFOLD
                                          Supersession
                                          Supersession
                                          # 018
                                          MPN: 97414
                                          SCREW PLUG
                                          (minimum order quantity = 4)
                                          from £1.67
                                          from £1.67
                                          # 019
                                          MPN: 97084
                                          GASKET
                                          from £1.55
                                          from £1.55
                                          # 020
                                          MPN: 495062900
                                          PETROL BREATHER VALVE
                                          from £4.51
                                          from £4.51
                                          # 021
                                          MPN: 578063500
                                          THROTTLE BODY COVER
                                          from £12.83
                                          from £12.83
                                          # 022
                                          MPN: 108006012
                                          ALLEN SCREW
                                          from £0.54
                                          from £0.54
                                          # 023
                                          MPN: 378240118
                                          RH DRIVE ACCELERATOR CABLE
                                          from £42.00
                                          from £42.00
