maserati qtp v8 (1998) oil pump and water pump parts diagram

009 - oil pump and water pump

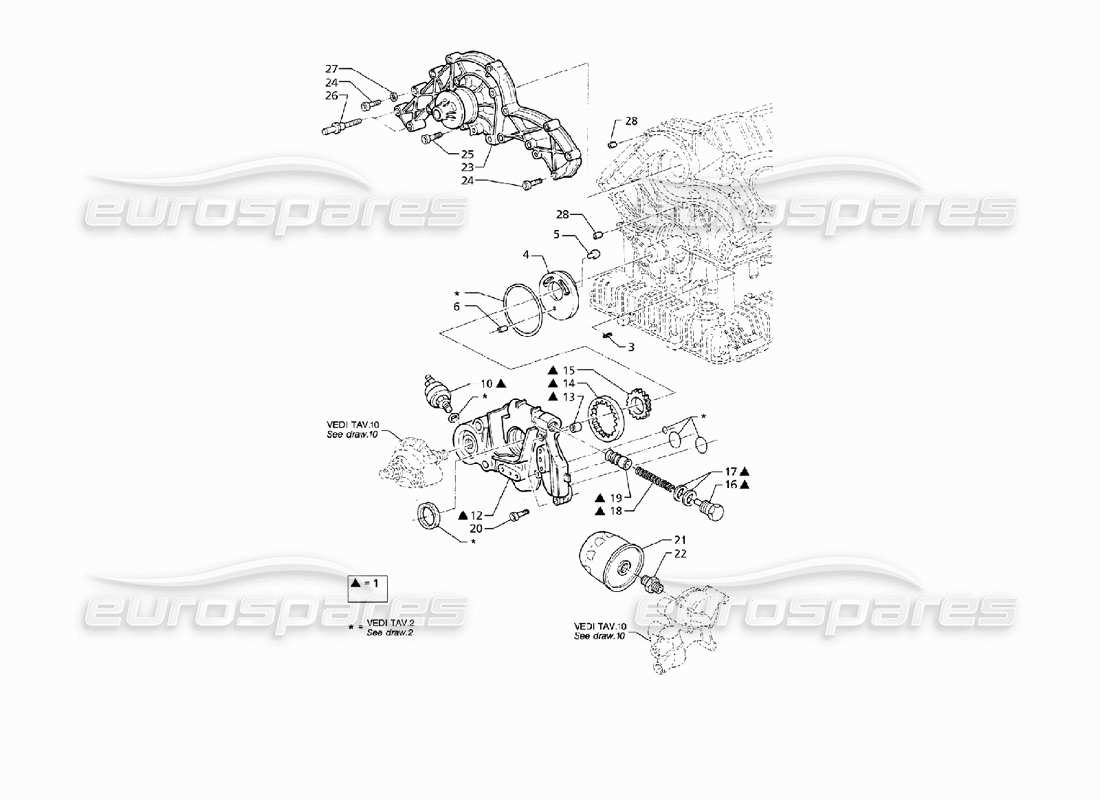

Maserati QTP V8 (1998) Oil Pump and Water Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 391850006
                                              OIL PUMP ASSY
                                              from £196.41
                                              from £196.41
                                              # 003
                                              MPN: 97054
                                              Key
                                              from £0.70
                                              from £0.70
                                              # 004
                                              MPN: 571982100
                                              OIL PUMP KEY
                                              from £72.63
                                              from £72.63
                                              This part replaces part number 311820321
                                              # 005
                                              MPN: 501047800
                                              PIN
                                              from £33.62
                                              from £33.62
                                              # 006
                                              MPN: 311820325
                                              CENTRING ROLLER
                                              from £102.20
                                              from £102.20
                                              # 010
                                              MPN: 313620105
                                              OIL PRESS. SENDER
                                              USE 470043300
                                              # 010
                                              MPN: 452043301
                                              OIL PRESS. SENDER
                                              from £30.68
                                              from £30.68
                                              This part replaces part number 470043300
                                              # 010
                                              MPN: 470043300
                                              OIL PRESS. SENDER
                                              USE 452043301
                                              Supersession
                                              Supersession
                                              # 012
                                              MPN: 391850326
                                              OIL CONTROL UNIT
                                              from £183.12
                                              from £183.12
                                              # 013
                                              MPN: 311820309
                                              DOWEL
                                              from £16.69
                                              from £16.69
                                              # 017
                                              MPN: 311820317
                                              GASKET
                                              from £0.70
                                              from £0.70
                                              # 019
                                              MPN: 311820319
                                              PRESSURE RELIEF VALVE
                                              from £12.19
                                              from £12.19
                                              # 021
                                              MPN: 479040900

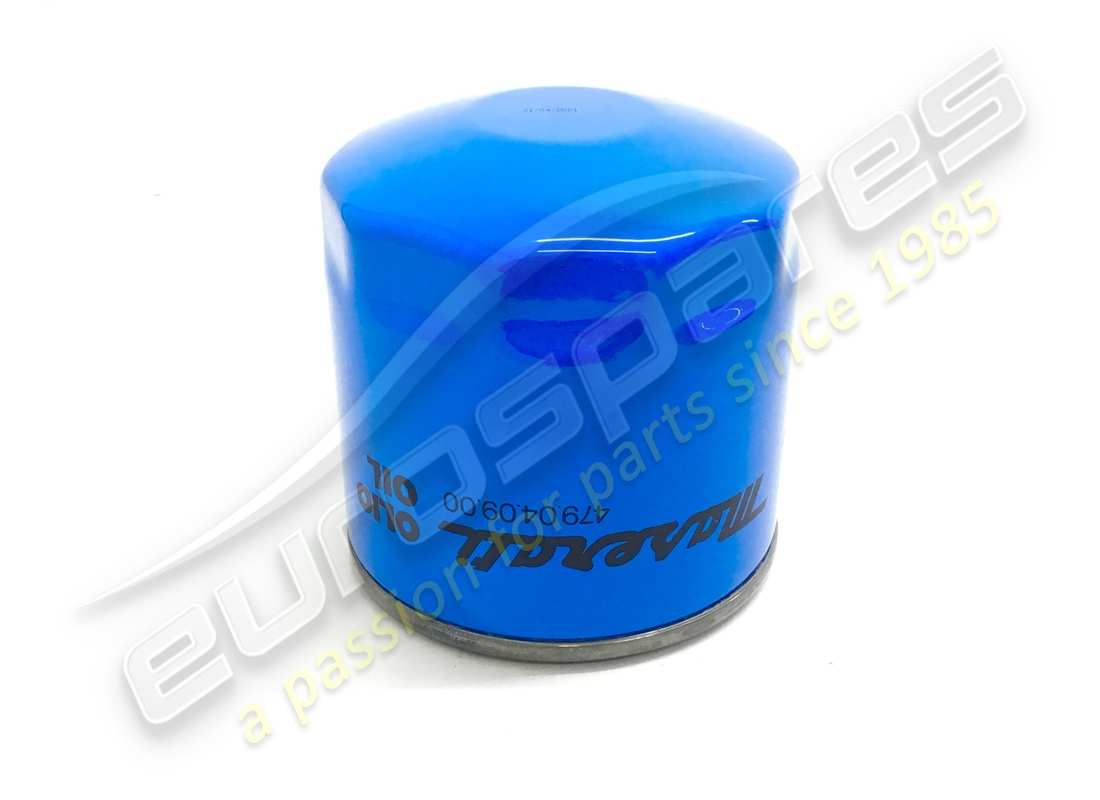

                                              OIL FILTER
                                              from £12.05
                                              from £12.05
                                              # 023
                                              MPN: 578045900

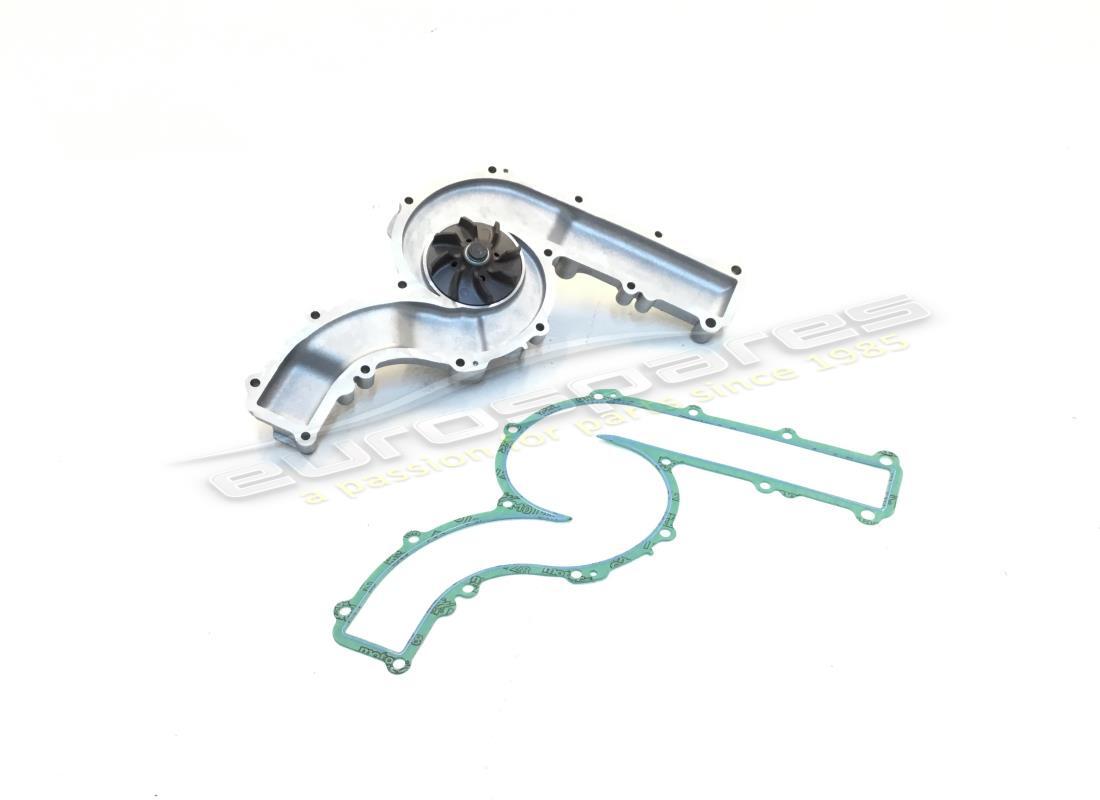

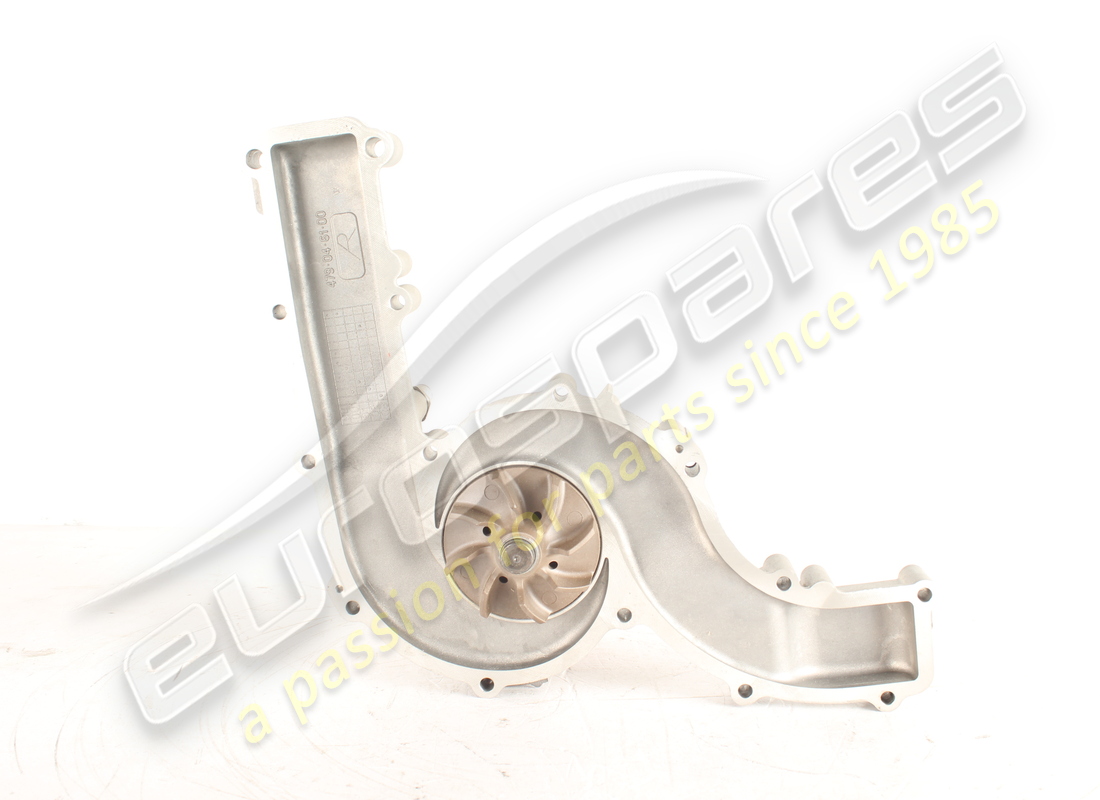

                                              WATER PUMP ASSY + GASKET
                                              from £624.75
                                              from £624.75
                                              This part replaces part number 479045900
                                              # 026
                                              MPN: 479045100
                                              STUD
                                              from £94.80
                                              from £94.80
                                              # 027
                                              MPN: 97042
                                              COPPER GASKET
                                              from £0.78
                                              from £0.78
                                              # 028
                                              MPN: 314020329
                                              CENTRING ROLLER
                                              from £1.93
                                              from £1.93
