maserati qtp v8 (1998) cylinders heads, rh frame parts diagram

006 - cylinders heads, RH frame

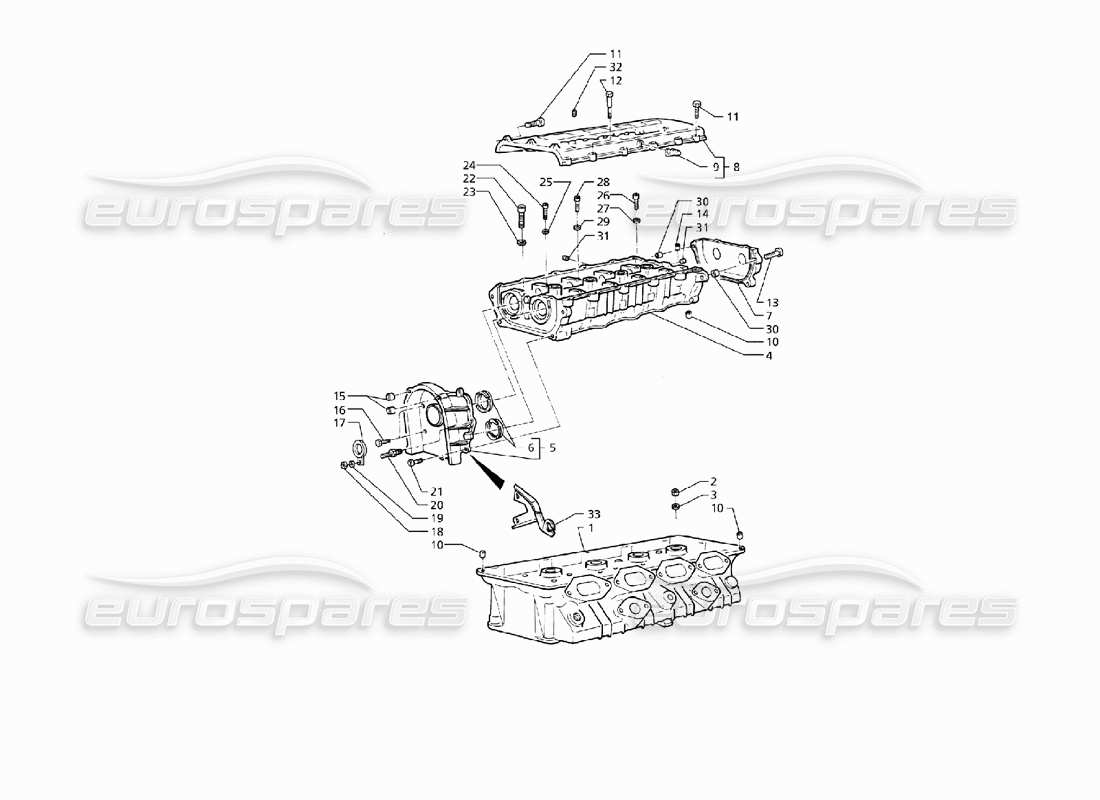

Maserati QTP V8 (1998) Cylinders Heads, R.H. Frame Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 390650004
                                                                  BARE HEAD (WITH SEATS AND GUIDES)
                                                                  from £997.50
                                                                  from £997.50
                                                                  Maserati PART 390650004 Genuine Maserati Part - New (to order)
                                                                  Maserati PART 390650004 Genuine Maserati Part - Used In stock
                                                                  # 002
                                                                  MPN: 475005401
                                                                  NUT SEC. HEADS TO CYL. BLOCK
                                                                  from £10.42
                                                                  from £10.42
                                                                  This part replaces part number 475005400 which we have in stock
                                                                  HEAD FASTENING FLANGED NUT M Genuine Maserati Part - New In stock
                                                                  # 003
                                                                  MPN: 97853
                                                                  FLAT WASHER
                                                                  from £16.17
                                                                  from £16.17
                                                                  This part replaces part number 13507563
                                                                  WASHER (97853) Genuine Ferrari Part - New (to order)
                                                                  WASHER 12,25X22X2,5 Genuine Maserati Part - New In stock
                                                                  # 004
                                                                  MPN: 391050014
                                                                  Frame
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 006
                                                                  -
                                                                  CENTRING RING
                                                                  # 007
                                                                  MPN: 390650305
                                                                  REAR COVER
                                                                  from £194.25
                                                                  from £194.25
                                                                  Maserati PART 390650305 Genuine Maserati Part - New (to order)
                                                                  Maserati PART 390650305 Genuine Maserati Part - Used In stock
                                                                  # 008
                                                                  MPN: 479008801
                                                                  UPPER COVER COMPLETE WITH UNION
                                                                  from £58.55
                                                                  from £58.55
                                                                  This part replaces part number 391050011 - and 1 more. Click to view details
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  COVER Genuine Maserati Part - Used In stock
                                                                  # 009
                                                                  MPN: 391050315
                                                                  OIL BREATHER UNION
                                                                  Maserati PART 391050315 Genuine Maserati Part - New (to order)
                                                                  # 010
                                                                  MPN: 310620369
                                                                  HEAD-FRAME CENTRING DOWEL
                                                                  from £1.92
                                                                  from £1.92
                                                                  HEAD/FRAMEW. C.DOWEL D.10X8.25X6 Genuine Maserati Part - New (to order)
                                                                  # 014
                                                                  MPN: 390650365
                                                                  OIL CALIBRATION DOWEL
                                                                  Maserati PART 390650365 Genuine Maserati Part - New (to order)
                                                                  # 015
                                                                  MPN: 83302
                                                                  CENTRING DOWEL
                                                                  from £8.58
                                                                  from £8.58
                                                                  CENTRING DOWEL D=8X6 L=5. Genuine Maserati Part - New In stock
                                                                  # 016
                                                                  MPN: 96601
                                                                  INTERNAL SCREW SEC. FRONT COVER
                                                                  from £3.14
                                                                  from £3.14
                                                                  VITE TE M 8X1.25X 20 BN0096 Genuine Maserati Part - New (to order)

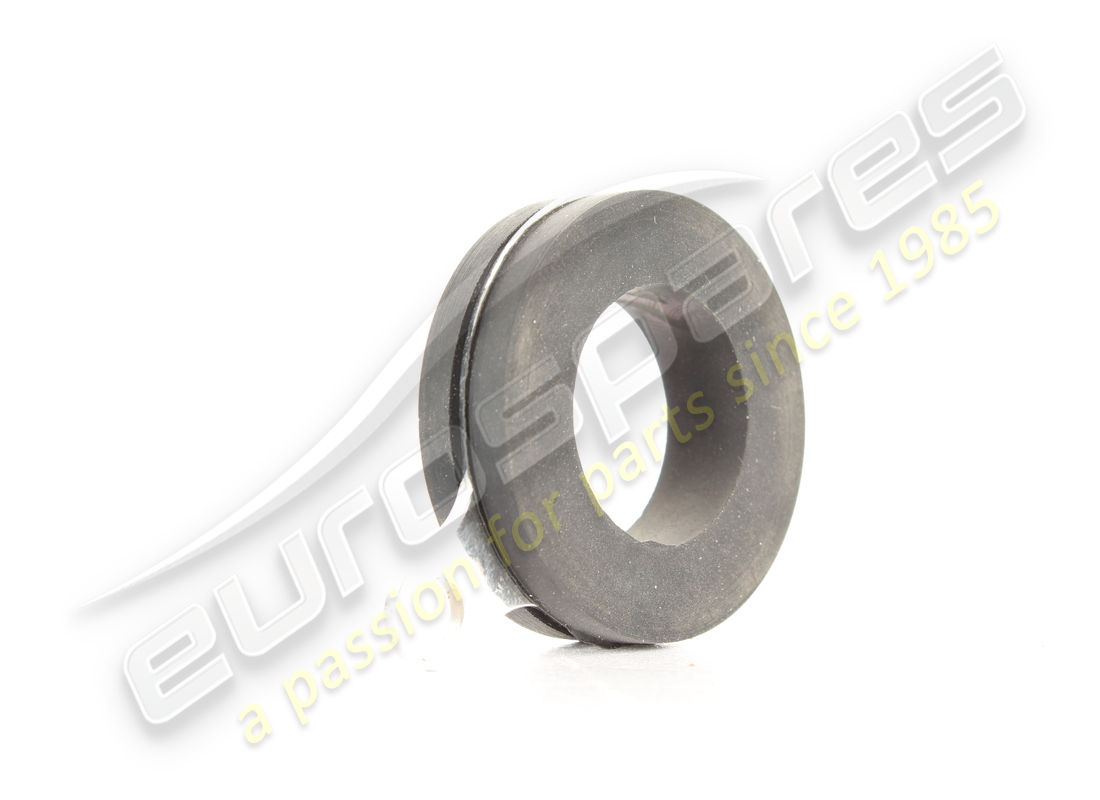

                                                                  # 017
                                                                  MPN: 578009400
                                                                  COMPLETE FAIRLEAD
                                                                  from £7.66
                                                                  from £7.66
                                                                  CABLE GUIDE FOR OIL BLEEDER PIPE Genuine Maserati Part - New In stock
                                                                  # 019
                                                                  MPN: 312220411
                                                                  FLAT WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  ROSETTA Genuine Maserati Part - New (to order)
                                                                  # 020
                                                                  MPN: 479009100
                                                                  STUD SEC. EXT. FRONT COVER
                                                                  from £5.52
                                                                  from £5.52
                                                                  STUD Genuine Maserati Part - New (to order)
                                                                  # 021
                                                                  MPN: 14306424
                                                                  ALLEN SCREW SEC. EXT. FRT COV.
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 14306421
                                                                  SCREW (14306424) Genuine Ferrari Part - New In stock
                                                                  SCREW Genuine Maserati Part - New In stock
                                                                  # 022
                                                                  MPN: 96953
                                                                  8X1.25X50 ALLEN SCREW SECURING FRAME
                                                                  8X1.25X50 ALLEN SCREW SECURING FRAME Genuine Maserati Part - New (to order)
                                                                  # 023
                                                                  MPN: 47075
                                                                  Ø 8 WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 024
                                                                  MPN: 96954
                                                                  6X1X45 ALLEN SCREW SEC. INT. FRAME
                                                                  6X1X45 ALLEN SCREW SEC. INT. FRAME Genuine Maserati Part - New (to order)
                                                                  # 025
                                                                  MPN: 135900064
                                                                  Ø 6 WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  ROSETTA PIANA Genuine Maserati Part - New (to order)
                                                                  # 026
                                                                  MPN: 108008035
                                                                  8X1.25X35 ALEN SCREW SEC. EXT. CAPS
                                                                  Maserati PART 108008035 Genuine Maserati Part - New (to order)
                                                                  # 027
                                                                  MPN: 96638
                                                                  Ø 8 WASHER
                                                                  Ø 8 WASHER Genuine Maserati Part - New (to order)
                                                                  # 028
                                                                  MPN: 97028
                                                                  6X1X35 ALLEN SCREW SEC. INTERM. CAPS
                                                                  6x1x35 ALLEN SCREW SECUR. INTERM. CAPS Genuine Maserati Part - New (to order)
                                                                  # 030
                                                                  MPN: 311820308
                                                                  REAR COV. CENTR. DOWEL
                                                                  from £0.68
                                                                  from £0.68
                                                                  DOWEL D.10X8X8.25 Genuine Maserati Part - New (to order)
                                                                  # 031
                                                                  MPN: 96400
                                                                  6X1X6 DOWEL CLOSING OIL DELIVERY HOLE
                                                                  from £3.21
                                                                  from £3.21
                                                                  DOWEL Genuine Maserati Part - New In stock
                                                                  # 032
                                                                  MPN: 96618
                                                                  DOWEL CLOSING HOLE ON UPP. COVER
                                                                  from £1.07
                                                                  from £1.07
                                                                  This part replaces part number 96617
                                                                  GRANO D.6X1X8 CON DRILOK Genuine Maserati Part - New In stock
                                                                  # 033
                                                                  MPN: 578524000
                                                                  ACCELERATOR CABLE SEC. BRACKET
                                                                  from £13.49
                                                                  from £13.49
                                                                  BRACHET Genuine Maserati Part - New (to order)
