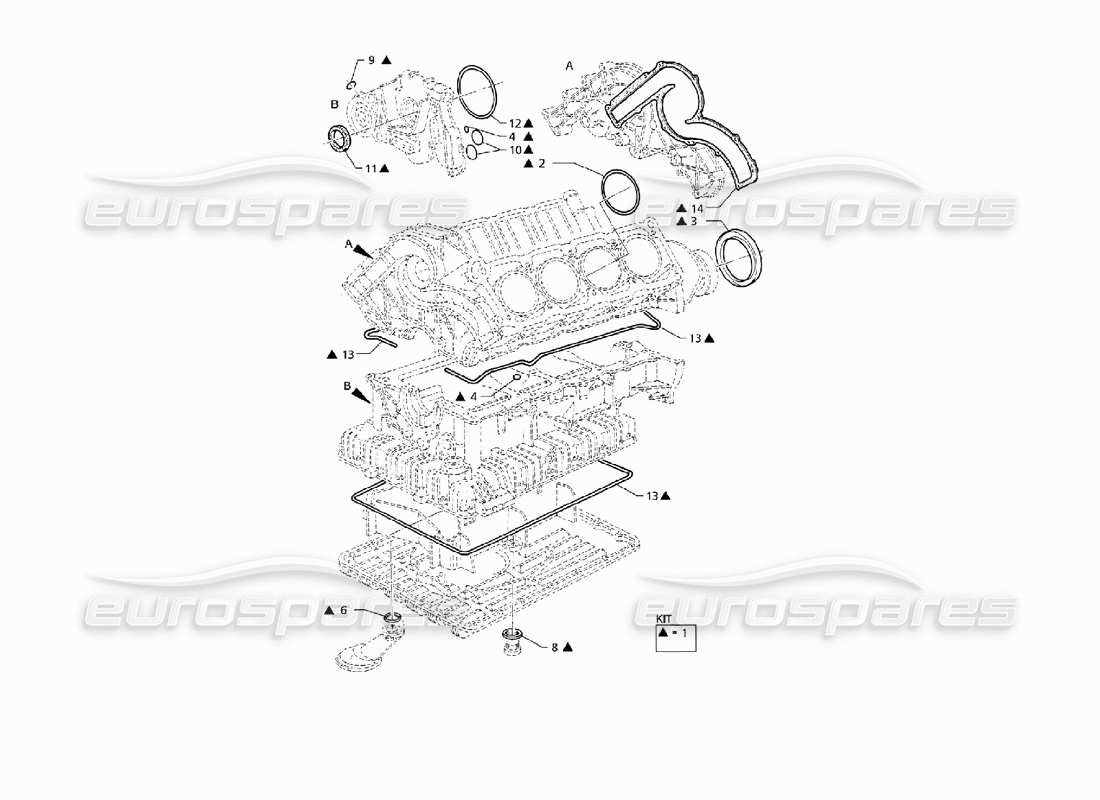

002 - gaskets and oil seals for block overhaul
Maserati QTP V8 (1998) Gaskets and Oil Seals for Block Overhaul Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 390450008
BOTTOM END GASKET SET
from £233.80
from £233.80
# 002
MPN: 390650422
CYLINDER CAMS RUBBER GASKET
from £5.10
from £5.10
# 003
MPN: 585412800

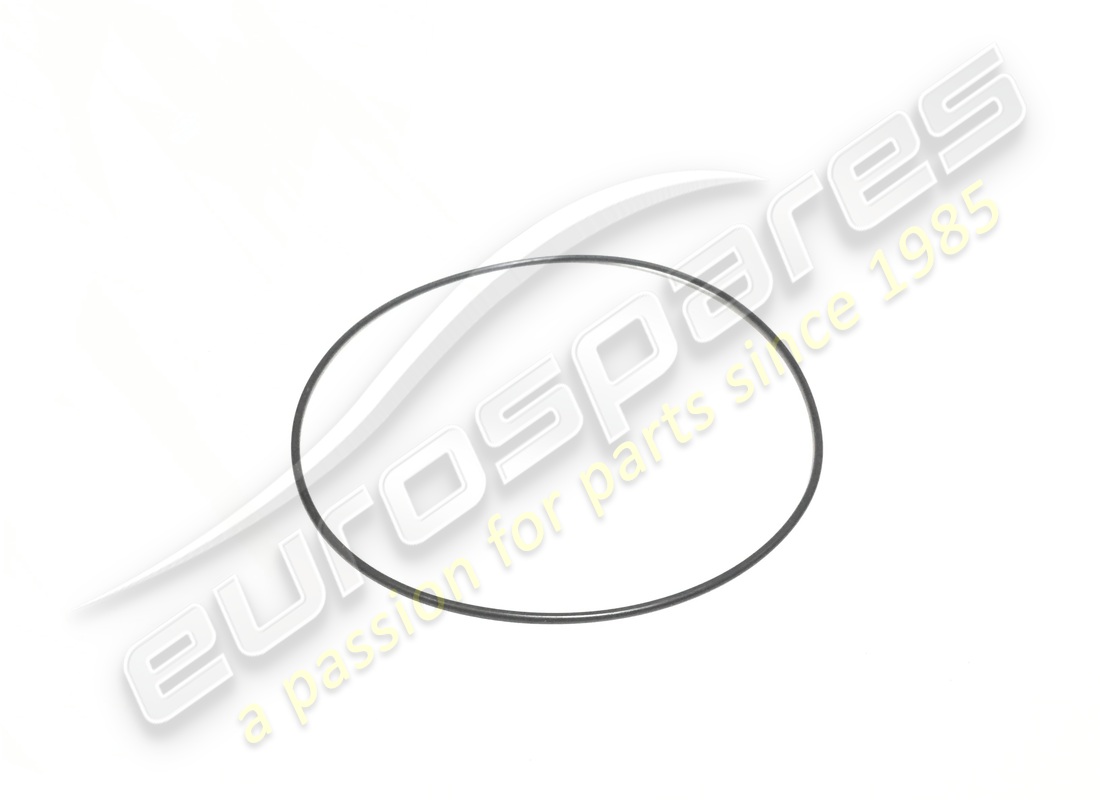

SEALING RING
from £27.43
from £27.43
This part replaces part number 311420104
# 004
MPN: 14452981
SEALING RING
from £0.77
from £0.77
# 006
MPN: 390450341
RUBBER GASKET
# 008
MPN: 10262260
GASKET
from £2.85
from £2.85
This part replaces part number 310420304
# 009
MPN: 319220424
COPPER WASHER
from £1.05
from £1.05
# 010
MPN: 14454181
SEALING RING
from £1.16
from £1.16
# 011
MPN: 311020368
SEALING RING
from £8.25
from £8.25
This part replaces part number 190400351
# 012
MPN: 14465881
SEAL RING
from £4.64
from £4.64
# 013
MPN: 97470
RUBBER GASKET
from £43.68
from £43.68
This part replaces part number 311053321 - and 1 more. Click to view details
# 014
MPN: 479046200
WATER PUMP GASKET
from £16.69
from £16.69
