maserati qtp v6 evoluzione rear doors: windows and regulators parts diagram

050.1 - Rear Doors: Windows and Regulators

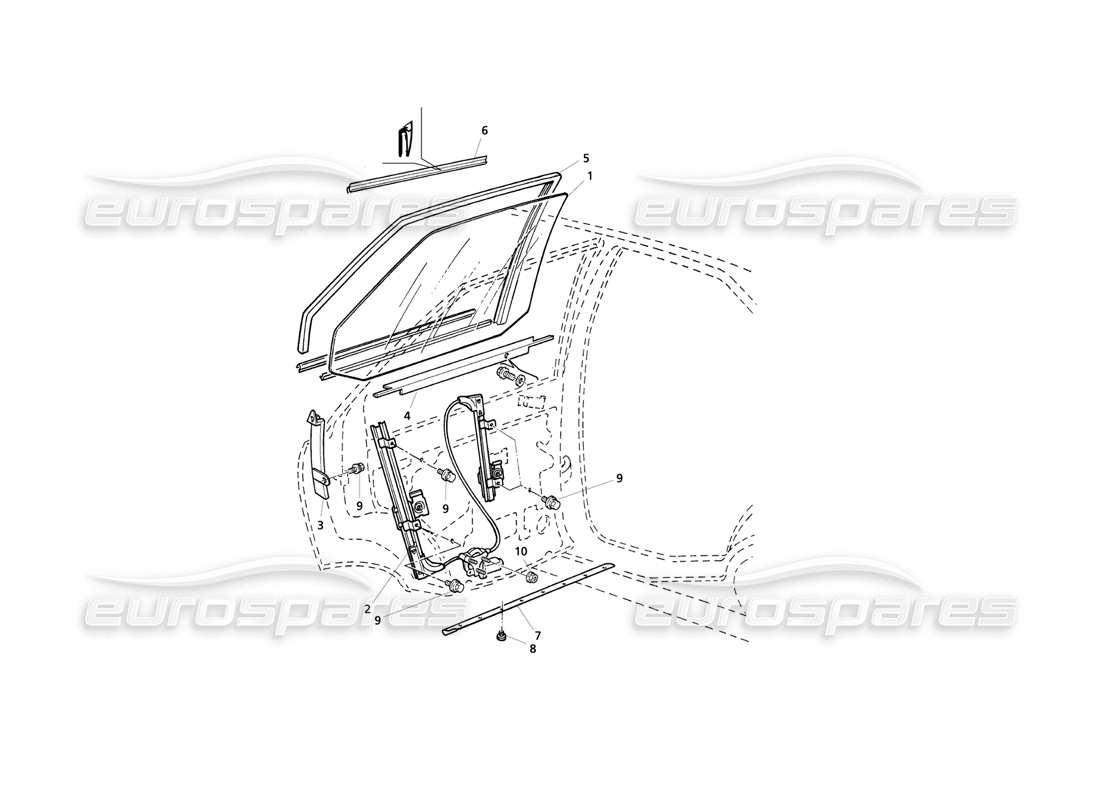

Maserati QTP V6 Evoluzione Rear Doors: Windows and Regulators Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 377700629
                      LH WINDABLE WINDOW
                      from £45.13
                      from £45.13
                      This part replaces part number 377700205 which we have in stock - and 1 more. Click to view details
                      # 001
                      MPN: 377700630
                      RH WINDABLE WINDOW
                      from £45.13
                      from £45.13
                      This part replaces part number 377700206 - and 1 more. Click to view details
                      # 002
                      MPN: 377705071
                      LH WINDOW RAISER
                      from £381.53
                      from £381.53
                      This part replaces part number 377700071
                      # 002
                      MPN: 377705072
                      RH WINDOW RAISER
                      from £381.53
                      from £381.53
                      This part replaces part number 377700072
                      # 003
                      MPN: 377700215
                      FRONT LH WINDOW GUIDE CHANNEL
                      from £6.77
                      from £6.77
                      # 003
                      MPN: 377700216
                      FRONT RH WINDOW GUIDE CHANNEL
                      from £6.38
                      from £6.38
                      # 004
                      MPN: 377730651
                      INNER WINDOW SCRAPER SEAL
                      from £59.95
                      from £59.95
                      # 005
                      MPN: 377780223
                      LH WINDOW GUIDE SEAL
                      from £20.06
                      from £20.06
                      # 005
                      MPN: 377780224
                      RH WINDOW GUIDE SEAL
                      from £20.06
                      from £20.06
                      # 006
                      MPN: 377780662
                      EX. LH WINDOW SCRAPER SEAL
                      from £21.69
                      from £21.69
                      This part replaces part number 377730662 - and 1 more. Click to view details
                      # 006
                      MPN: 377780663
                      EX. RH WINDOW SCRAPER SEAL
                      from £21.69
                      from £21.69
                      This part replaces part number 377730663 - and 1 more. Click to view details
                      # 007
                      MPN: 374530753
                      LH SEAL UNDER SEAL
                      from £5.07
                      from £5.07
                      # 007
                      MPN: 374530754
                      RH SEAL UNDER SEAL
                      from £5.07
                      from £5.07
                      # 008
                      MPN: 374530456
                      DUST SEAL SECURING PLUG
                      from £1.07
                      from £1.07
                      # 009
                      MPN: 11730624
                      SCREW + WASHER
                      from £0.51
                      from £0.51
                      # 010
                      MPN: 14040614
                      NUT + WASHER
                      from £0.47
                      from £0.47
