maserati qtp v6 evoluzione boot: carpets parts diagram

047.1 - Boot: Carpets

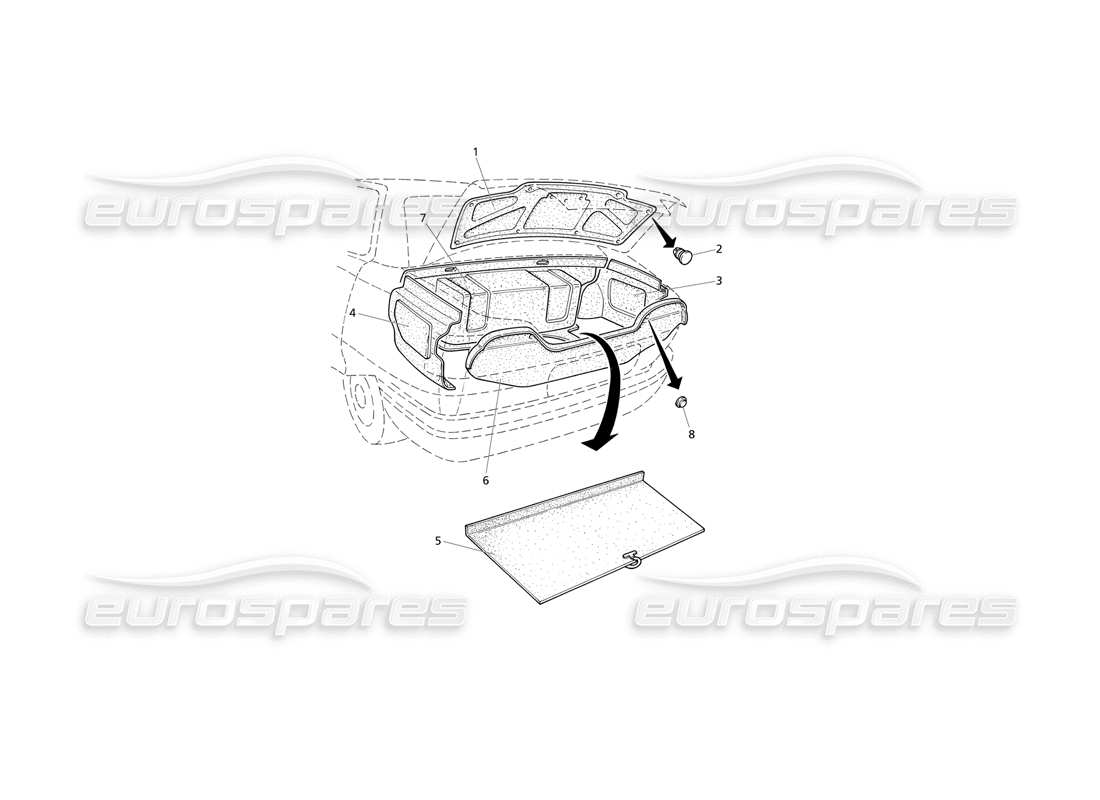

Maserati QTP V6 Evoluzione Boot: Carpets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 371580456
                  BOOT LID UPHOLSTERY
                  from £19.39
                  from £19.39
                  # 002
                  MPN: 312520504
                  PLUG
                  from £2.33
                  from £2.33
                  # 003
                  MPN: 371507458
                  SIDE RH CARPET
                  from £61.98
                  from £61.98
                  # 004
                  MPN: 371507457
                  SIDE LH CARPET
                  from £52.73
                  from £52.73
                  # 005
                  MPN: 371507120
                  BOOT FLOOR UPHOLSTERY, COMPLETE
                  from £73.15
                  from £73.15
                  # 006
                  MPN: 371500123
                  REAR WALL UPHOLSTERY, COMPLETE
                  from £46.16
                  from £46.16
                  # 007
                  MPN: 371580121
                  TANK COMPARTMENT PAMEL
                  from £52.82
                  from £52.82
                  # 008
                  MPN: 374700353
                  BOOT REAR WALL SECUR. PLUGS
                  from £1.07
                  from £1.07
