maserati qtp v6 evoluzione body shell: outer panels parts diagram

044 - Body Shell: Outer Panels

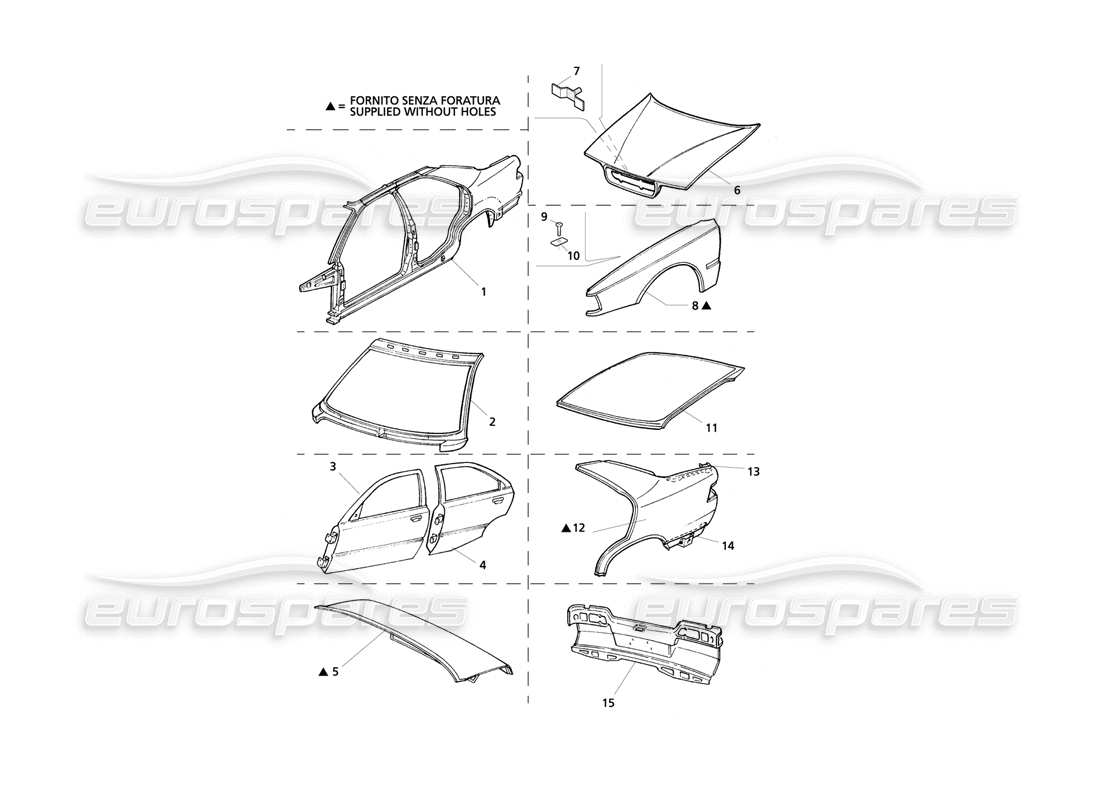

Maserati QTP V6 Evoluzione Body Shell: Outer Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            -
                            COMPLETE LH SIDE PANEL
                            # 001
                            -
                            COMPLETE RH SIDE PANEL
                            # 002
                            MPN: 372500148
                            WINDSCREEN RING
                            from £314.18
                            from £314.18

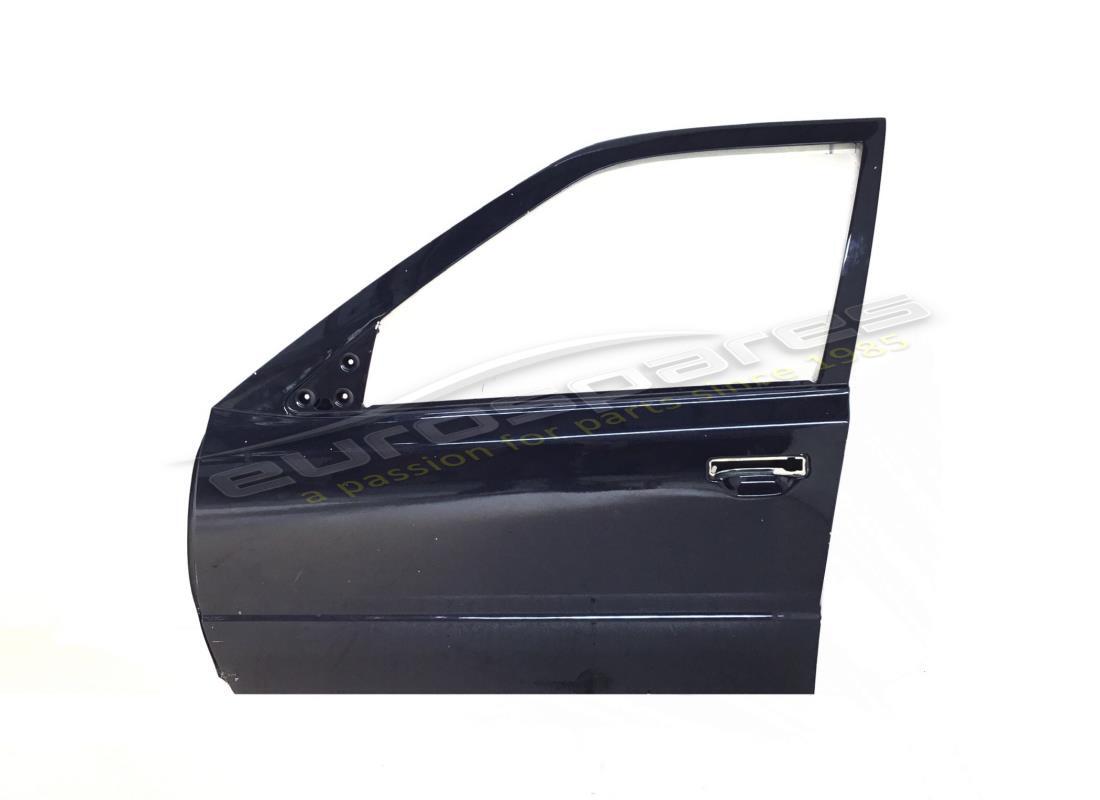

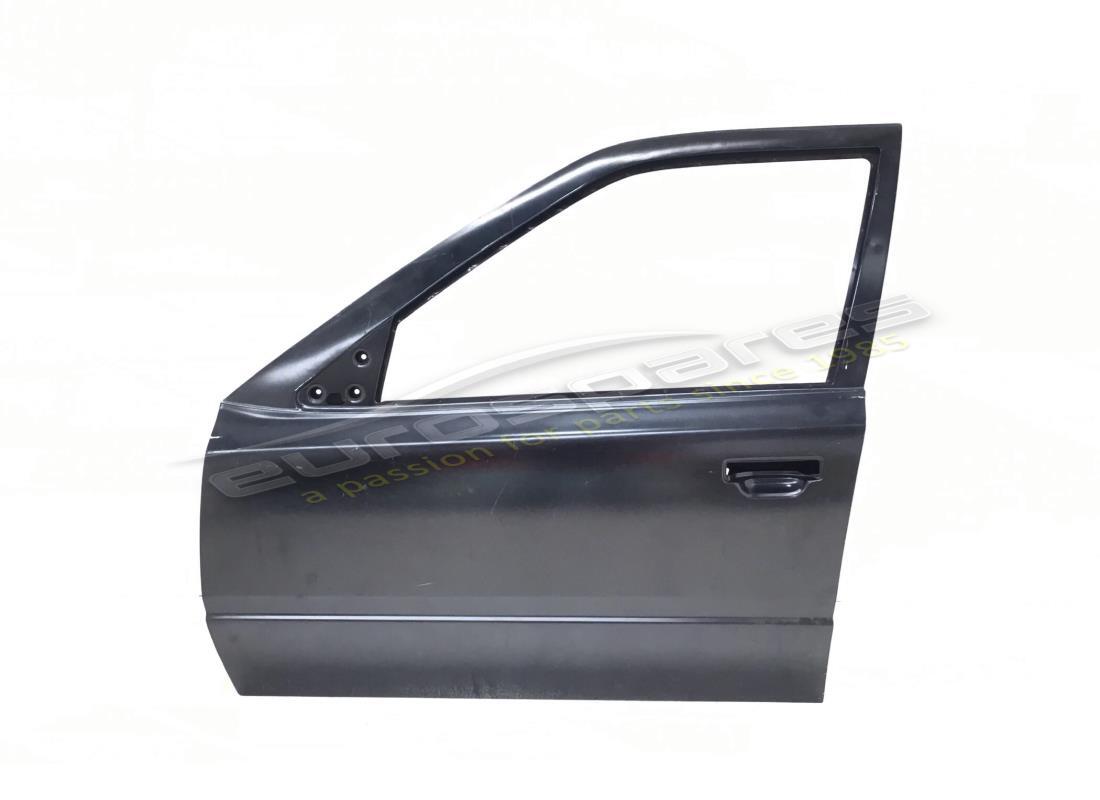

                            # 003
                            MPN: 374580103
                            COMPLETE LH FRONT DOOR
                            from £309.75
                            from £309.75

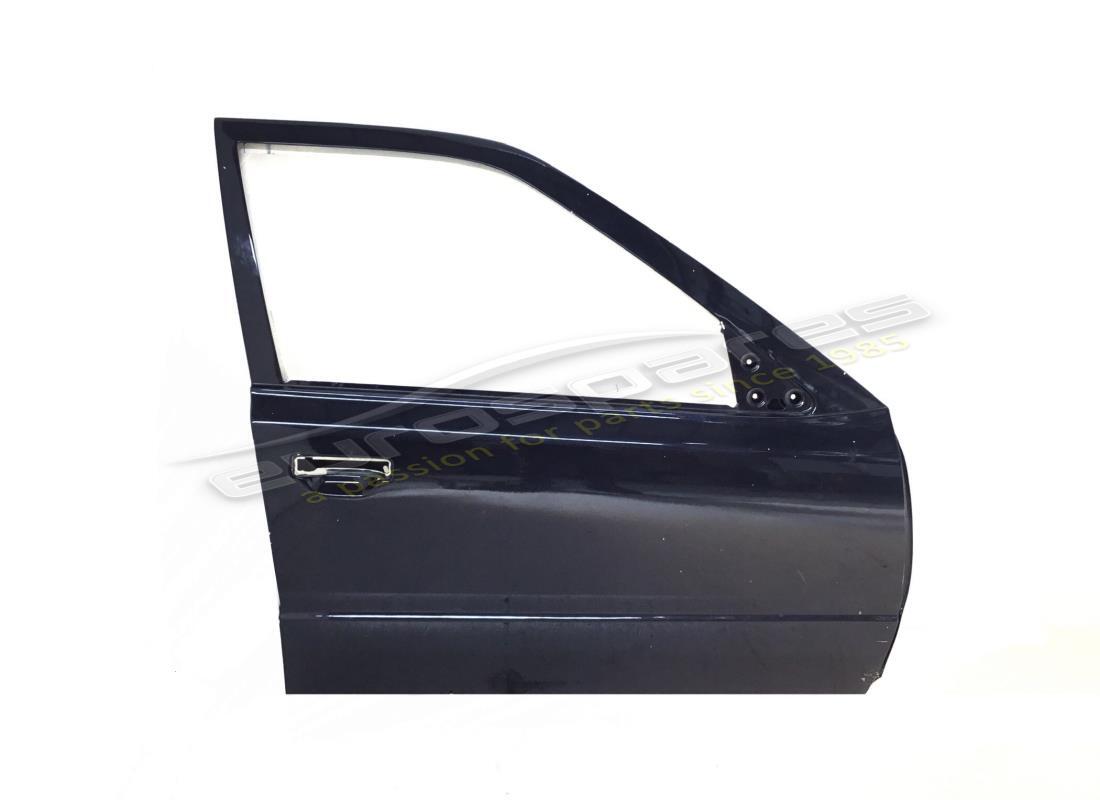

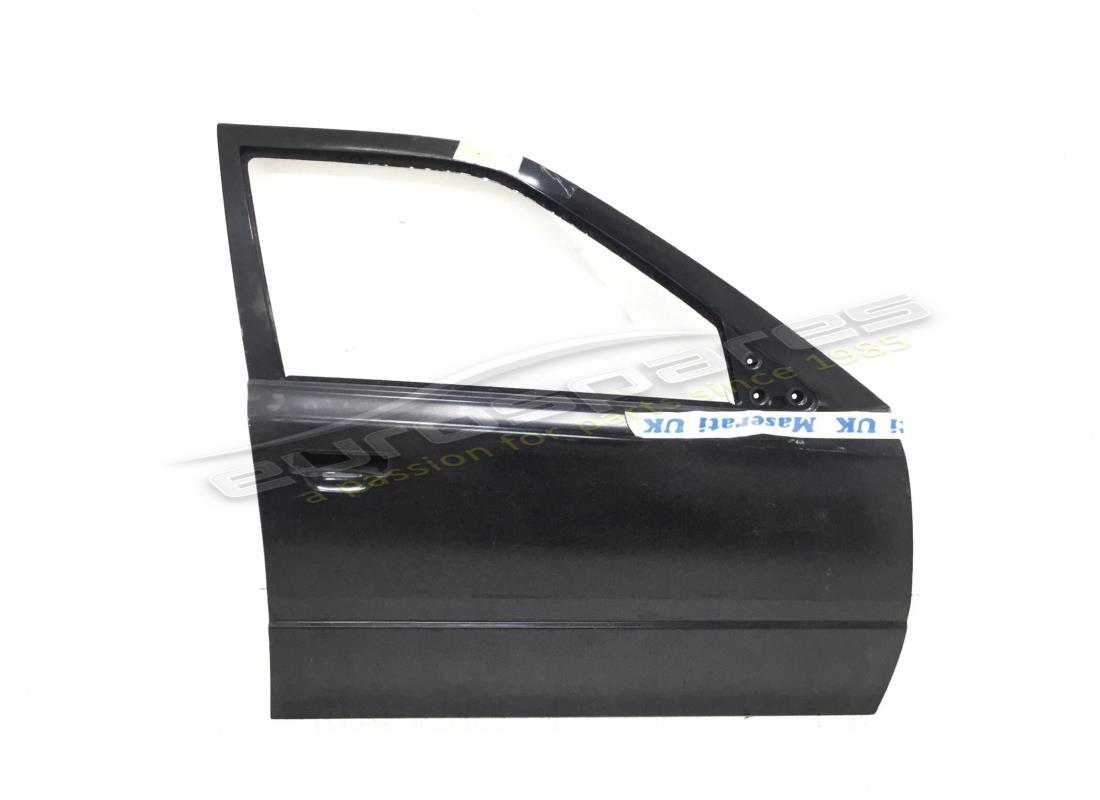

                            # 003
                            MPN: 374580104
                            COMPLETE RH FRONT DOOR
                            from £519.75
                            from £519.75

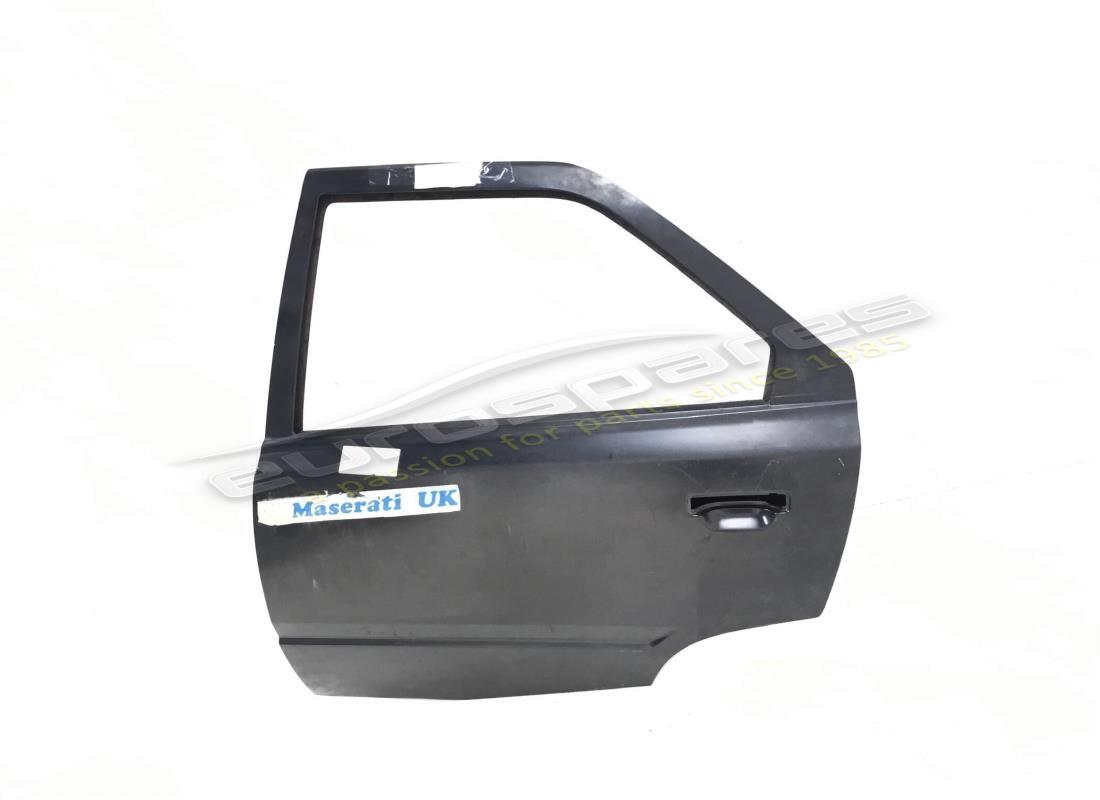

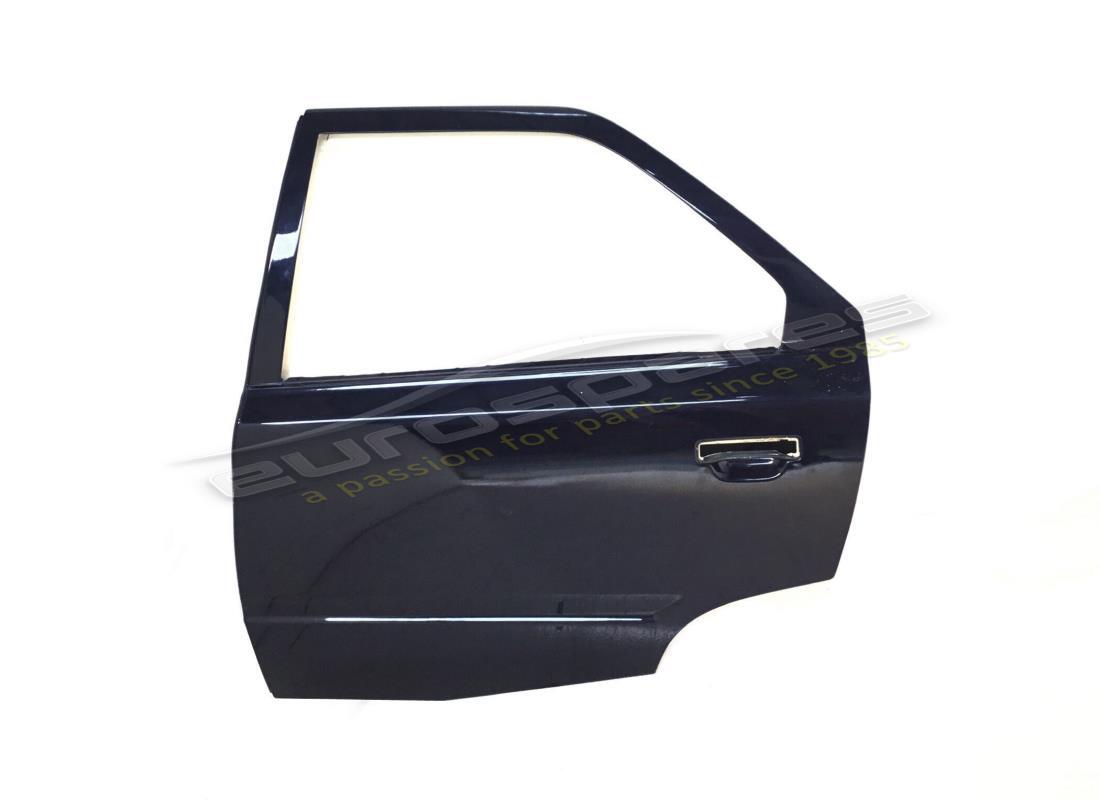

                            # 004
                            MPN: 374580203
                            COMPLETE LH REAR DOOR
                            from £650.18
                            from £650.18

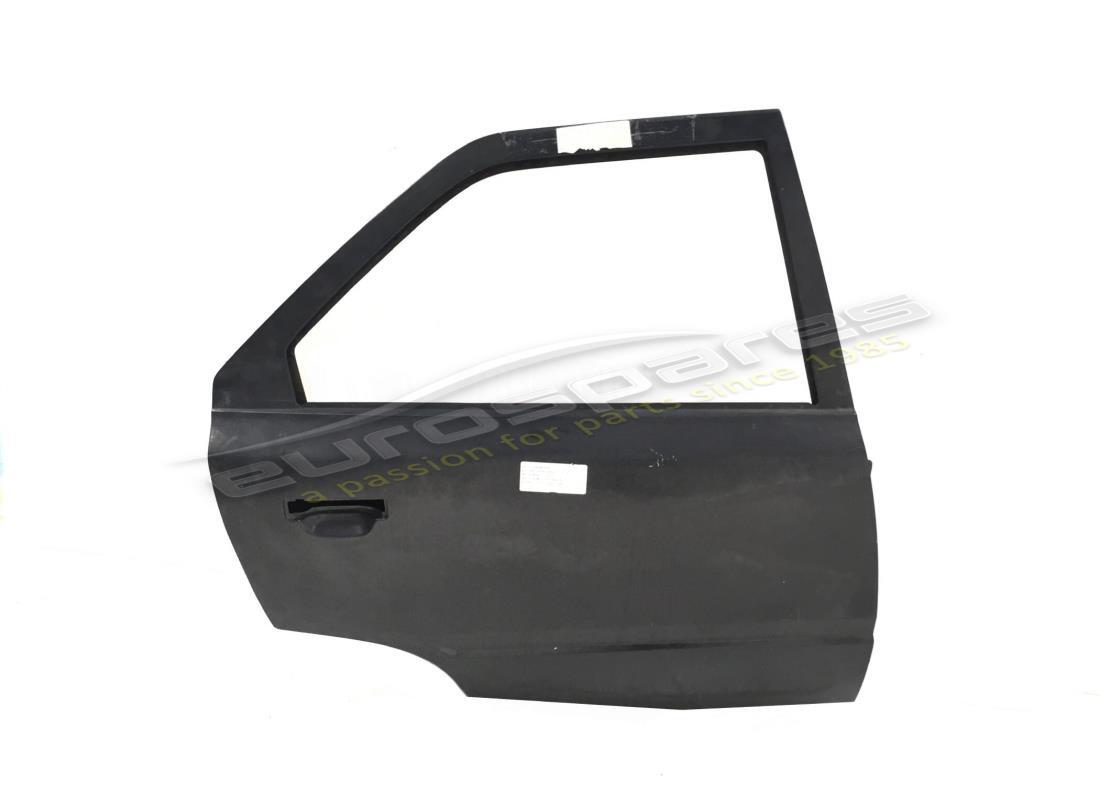

                            # 004
                            MPN: 374580204
                            COMPLETE RH REAR DOOR
                            from £650.18
                            from £650.18
                            # 004
                            MPN: 374583203
                            LH REAR DOOR WITH OVAL BADGE SEAT
                            - Valid for special version
                            from £1,391.68
                            from £1,391.68
                            # 004
                            MPN: 374583204
                            RH REAR DOOR WITH OVAL BADGE SEAT
                            - Valid for special version
                            from £1,391.68
                            from £1,391.68
                            # 005
                            MPN: 374700100
                            BOOT LID
                            from £264.20
                            from £264.20
                            # 006
                            MPN: 374300100
                            COMPLETE BONNET
                            from £800.00
                            from £800.00
                            # 007
                            MPN: 374305407
                            PLATE FIXING BONNET RELEASE LEVER
                            from £19.00
                            from £19.00
                            # 008
                            MPN: 372500301
                            COMPLETE LH FRONT FENDER
                            from £278.20
                            from £278.20
                            # 008
                            MPN: 372500302
                            COMPLETE RH FRONT FENDER
                            from £152.25
                            from £152.25
                            # 009
                            MPN: 372500594
                            SCREW
                            from £4.23
                            from £4.23
                            # 010
                            MPN: 372500591
                            PLATE
                            from £0.92
                            from £0.92
                            # 011
                            MPN: 372500465
                            ROOF (WITHOUT HOLE FOR RADIO AERIAL)
                            from £175.10
                            from £175.10
                            This part replaces part number 372500466
                            # 012
                            MPN: 372500378
                            REAR RH FENDER
                            from £555.19
                            from £555.19
                            # 012
                            MPN: 372500379
                            REAR LH FENDER (WITHOUT FALSE FLAP SEAT)
                            from £275.41
                            from £275.41
                            # 013
                            MPN: 372500137
                            REAR LH DRIP CHANNEL
                            from £14.69
                            from £14.69
                            # 013
                            MPN: 372500138
                            REAR RH DRIP CHANNEL
                            from £16.23
                            from £16.23
                            # 014
                            MPN: 372500127
                            REAR LH CONNECTION BETW. FLOOR AND FENDER
                            from £12.41
                            from £12.41
                            # 014
                            MPN: 372500128
                            REAR RH CONNECTION BETW. FLOOR AND FENDER
                            from £14.11
                            from £14.11
                            # 015
                            MPN: 371390228
                            REAR CROSS MEMBER
                            from £472.50
                            from £472.50
                            This part replaces part number 371380220
