maserati qtp v6 evoluzione wheel rims parts diagram

043 - Wheel Rims

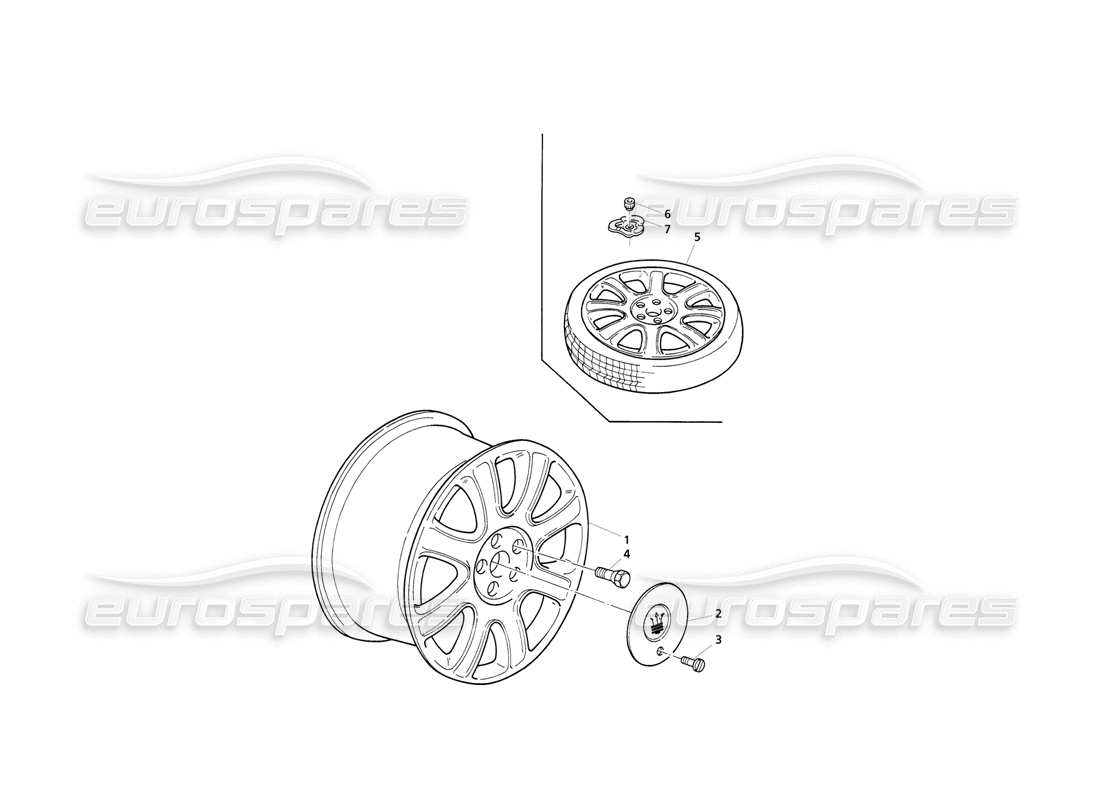

Maserati QTP V6 Evoluzione Wheel Rims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 000

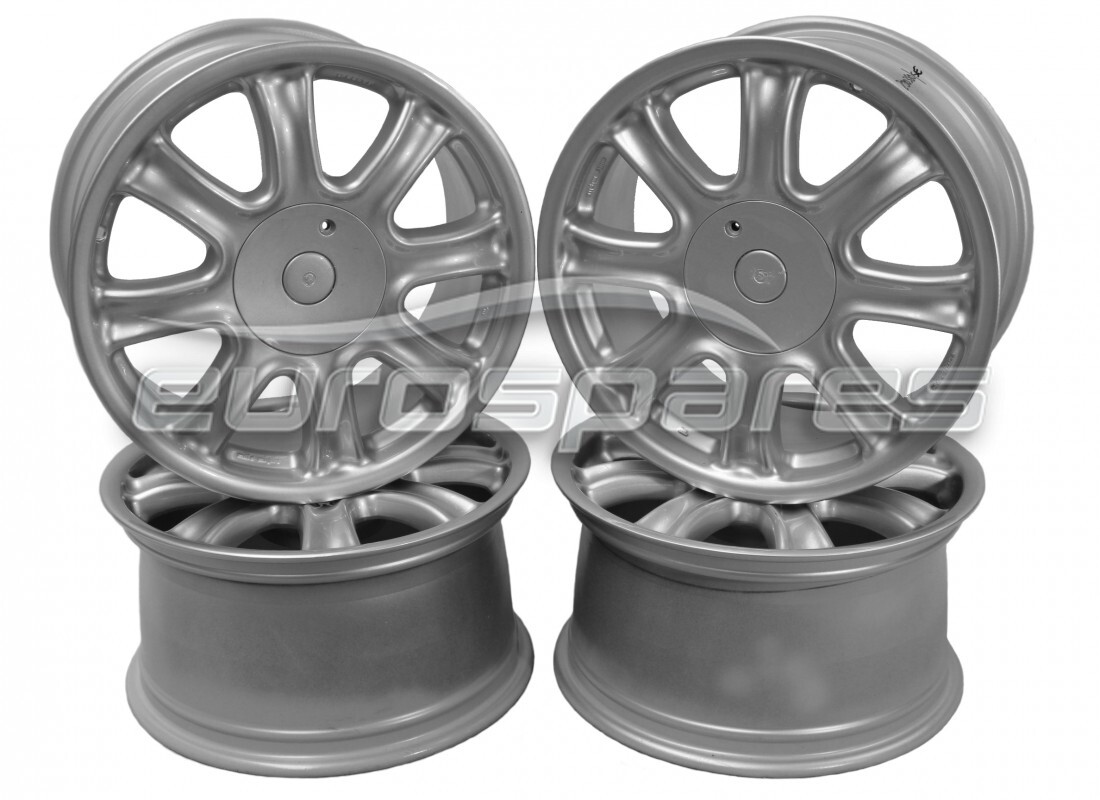

                MPN: 377230380/SET
                WHEEL SET
                from £2,094.75
                from £2,094.75
                # 001

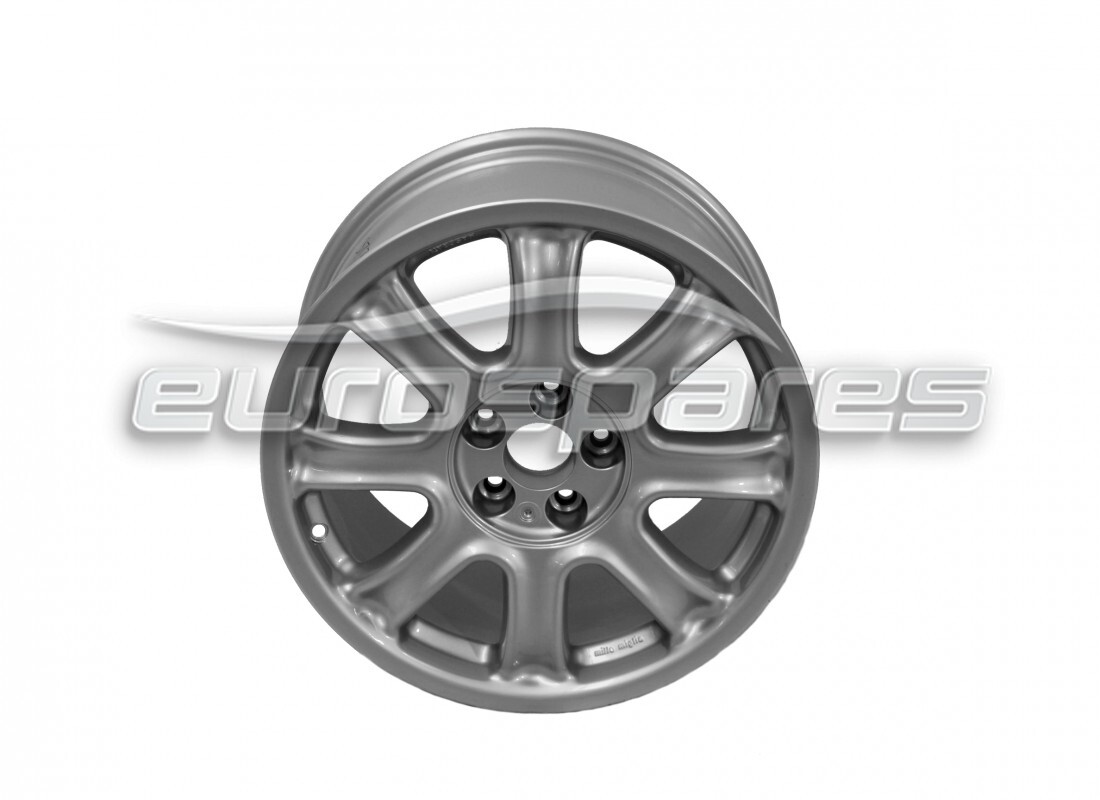

                MPN: 377230378
                FRONT RIM 8JX17
                from £209.86
                from £209.86
                # 001
                MPN: 377230380
                REAR RIM 9JX17
                from £167.62
                from £167.62
                # 002
                MPN: 377230362
                HUB CAP COVER
                from £37.82
                from £37.82
                # 003
                MPN: 377200365
                ANTI THEFT SCREW
                from £40.36
                from £40.36
                # 004
                MPN: 377200308
                WHEEL SECURING BOLT
                from £5.51
                from £5.51
                # 004
                MPN: 377200308LB
                LOCKING WHEEL BOLT
                Set of 4x bolts and 1x tool
                # 005
                MPN: 377230019
                SPARE WHEEL WITH TYRE
                from £313.08
                from £313.08
                # 006
                MPN: 372500491
                SPARE WHEEL SEC. NUT
                from £4.66
                from £4.66
                # 007
                MPN: 372500497
                SPARE WHEEL SEC. PLATE
                from £6.44
                from £6.44
