maserati qtp v6 evoluzione front exhaust system parts diagram

024 - Front Exhaust System

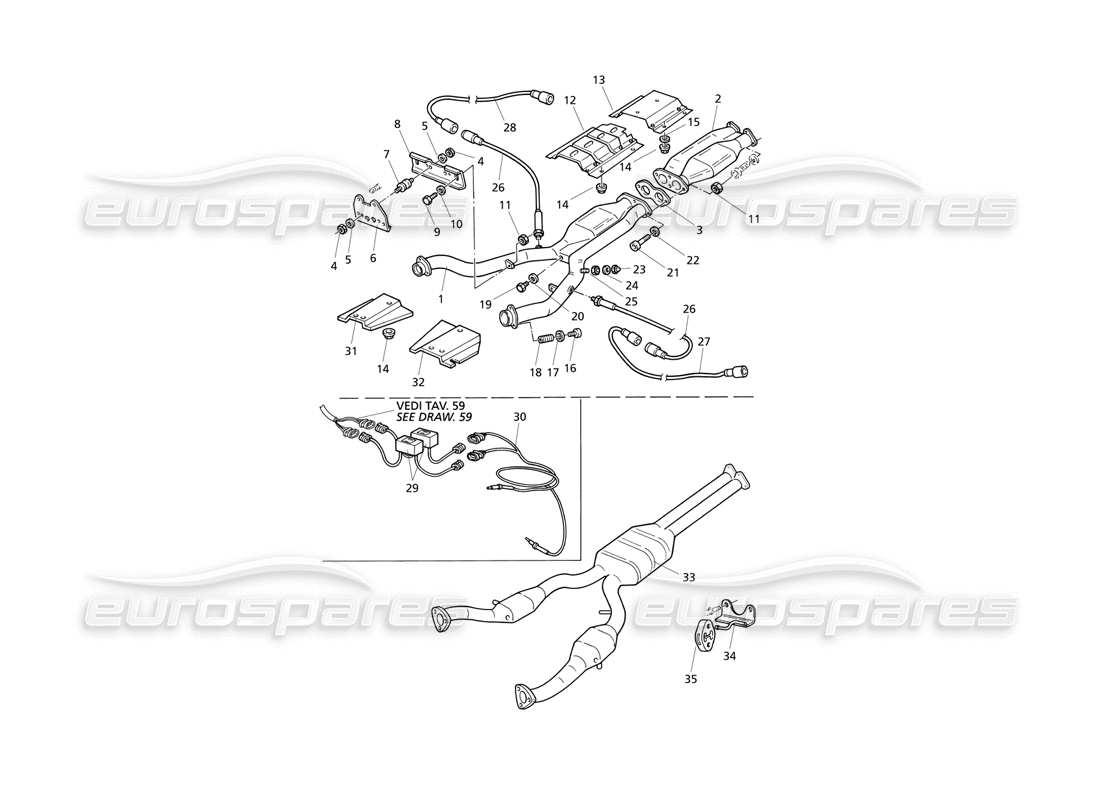

Maserati QTP V6 Evoluzione Front Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 379001104
                                                                FRONT PIPE WITH CATALYSER
                                                                from £2,571.42
                                                                from £2,571.42
                                                                This part replaces part number 369001104
                                                                # 002
                                                                MPN: 379001105
                                                                CENTRE CATALYSER
                                                                from £624.75
                                                                from £624.75
                                                                This part replaces part number 369001105 - and 1 more. Click to view details
                                                                # 003
                                                                MPN: 369000343
                                                                GASKET
                                                                from £6.93
                                                                from £6.93
                                                                # 004
                                                                MPN: 128350080
                                                                STOP NUT
                                                                Supersession
                                                                Supersession
                                                                # 005
                                                                MPN: 369000341
                                                                WASHER
                                                                from £1.07
                                                                from £1.07
                                                                # 006
                                                                MPN: 379000338
                                                                FRONT PLATE
                                                                from £5.54
                                                                from £5.54
                                                                # 006
                                                                MPN: 379006338
                                                                FRONT PLATE
                                                                from £4.62
                                                                from £4.62
                                                                # 007
                                                                MPN: 324853120
                                                                RUBBER BUSHING
                                                                from £16.85
                                                                from £16.85
                                                                This part replaces part number 314855119 - and 1 more. Click to view details
                                                                # 008
                                                                MPN: 379000339
                                                                REAR PLATE
                                                                from £5.54
                                                                from £5.54
                                                                # 008
                                                                MPN: 379006339
                                                                REAR PLATE
                                                                from £10.00
                                                                from £10.00
                                                                # 010
                                                                MPN: 163020080
                                                                WASHER
                                                                from £1.07
                                                                from £1.07
                                                                # 011
                                                                MPN: 14058519
                                                                COPPER STOP NUT
                                                                from £0.52
                                                                from £0.52
                                                                This part replaces part number 312051309 which we have in stock
                                                                # 012
                                                                MPN: 379031118
                                                                CENTRE BULKHEAD
                                                                - Valid for M.T. version
                                                                from £34.93
                                                                from £34.93
                                                                # 012
                                                                MPN: 379090118
                                                                CENTRE BULKHEAD
                                                                - Valid for A.T. version
                                                                from £39.86
                                                                from £39.86
                                                                # 013
                                                                MPN: 379031137
                                                                REAR BULKHEAD
                                                                from £43.15
                                                                from £43.15
                                                                # 015
                                                                MPN: 135100064
                                                                FLAT WASHER
                                                                from £1.07
                                                                from £1.07
                                                                # 016
                                                                MPN: 349000301
                                                                ALLEN SCREW
                                                                from £3.16
                                                                from £3.16
                                                                # 017
                                                                MPN: 14496601
                                                                FLAT WASHER
                                                                Supersession
                                                                Supersession
                                                                # 018
                                                                MPN: 319030313
                                                                SPRING
                                                                from £1.40
                                                                from £1.40
                                                                # 019
                                                                MPN: 319053326
                                                                PLUG
                                                                from £0.68
                                                                from £0.68
                                                                # 020
                                                                MPN: 319220424
                                                                GASKET
                                                                from £1.02
                                                                from £1.02
                                                                # 023
                                                                MPN: 319030328
                                                                BLIND NUT
                                                                from £1.62
                                                                from £1.62
                                                                # 024
                                                                MPN: 134700105
                                                                WASHER
                                                                from £1.07
                                                                from £1.07
                                                                # 025
                                                                MPN: 319030329
                                                                NUT
                                                                from £0.76
                                                                from £0.76
                                                                # 026
                                                                MPN: 473082340
                                                                LAMBDA SENSOR
                                                                from £487.34
                                                                from £487.34
                                                                # 027
                                                                MPN: 393750111
                                                                LH SENSOR EXTENSION TO IE/AE WIRING
                                                                from £15.82
                                                                from £15.82
                                                                # 028
                                                                MPN: 393750108
                                                                RH SENSOR EXTENSION TO IE/AE WIRING
                                                                from £18.62
                                                                from £18.62
                                                                # 029
                                                                MPN: 363309174
                                                                CONTROL UNIT
                                                                from £150.72
                                                                from £150.72
                                                                # 030
                                                                MPN: 363309175
                                                                THERMOCOUPLE ASSEMBLY
                                                                from £236.13
                                                                from £236.13
                                                                # 031
                                                                MPN: 379031200
                                                                FRONT RH BULKHEAD
                                                                from £58.71
                                                                from £58.71
                                                                # 032
                                                                MPN: 379031201
                                                                FRONT LH BULKHEAD
                                                                from £58.71
                                                                from £58.71
                                                                # 033
                                                                MPN: 379080104
                                                                PIPE CATALYSER
                                                                - Valid for A.T. version
                                                                from £1,322.81
                                                                from £1,322.81
                                                                # 034
                                                                MPN: 379031501
                                                                TRANSMISSION SUPPORT PLATE
                                                                - Valid for A.T. version
                                                                from £11.39
                                                                from £11.39
                                                                # 035
                                                                MPN: 389000506
                                                                RUBBER SUPPORT
                                                                - Valid for A.T. version
                                                                from £20.06
                                                                from £20.06
