015 - Heat Exchanger Pipes LH Side

Maserati QTP V6 Evoluzione Heat Exchanger Pipes L.H. Side Parts Diagram

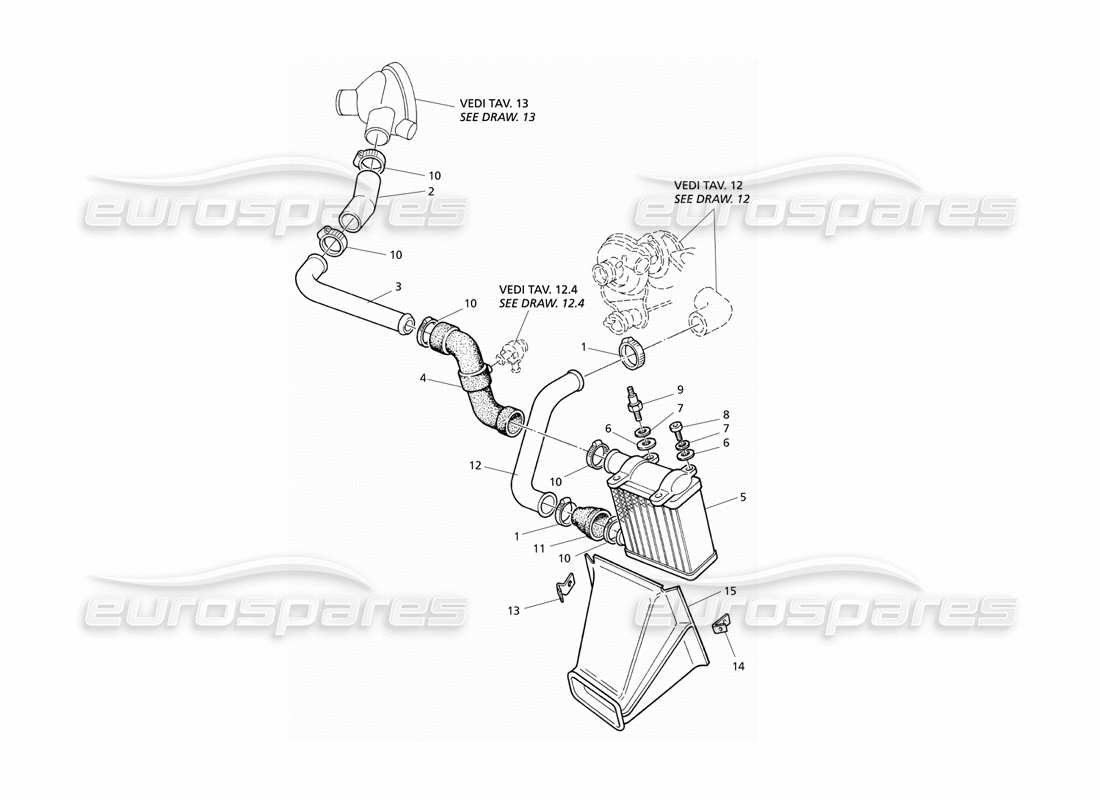

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 13000790
CLAMP
from £0.47
from £0.47
This part replaces part number 312420106
# 002
MPN: 372080467
SLEEVE
from £8.74
from £8.74
# 003
MPN: 372080478
PIPE
from £15.73
from £15.73
# 004
MPN: 372090479
SLEEVE
from £73.22
from £73.22
# 005
MPN: 382000140
Intercooler
from £237.67
from £237.67
This part replaces part number 382000139 - and 1 more. Click to view details
# 006
MPN: 12645021
FLAT WASHER
from £1.63
from £1.63
# 007
MPN: 12601370
SPRING WASHER
from £0.84
from £0.84
# 008
MPN: 14306221
ALLEN SCREW
from £1.43
from £1.43
# 009
MPN: 372490534
M6 M8 STUD
from £17.69
from £17.69
# 010
MPN: 13000890
CLAMP
from £0.60
from £0.60
This part replaces part number 312020136
# 011
MPN: 372090477
SLEEVE
from £56.19
from £56.19
# 012
MPN: 372080475
PIPE
from £100.55
from £100.55
# 013
MPN: 372000610
AIR DEFLECTOR SEC. BRACKET
from £1.63
from £1.63
# 014
MPN: 372000612
AIR DEFLECTOR SEC. BRACKET
from £1.78
from £1.78
# 015
MPN: 372090257
LH AIR DEFLECTOR
from £29.95
from £29.95
