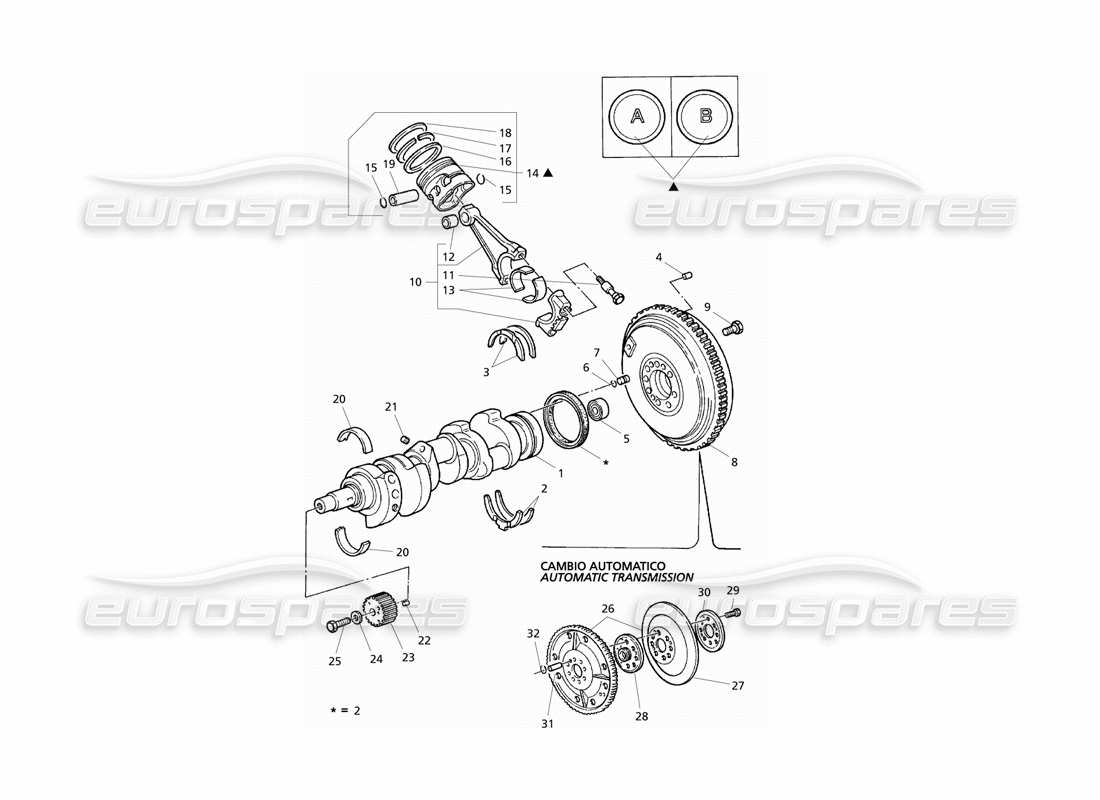

005 - Crankshaft, Pistons, Conrods & Flywheel
Maserati QTP V6 Evoluzione Crankshaft, Pistons, Conrods & Flywheel Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 581988000
crankshaft
- Valid for M.T. version
Supersession
Supersession
This part replaces part number 340802002 - and 1 more. Click to view details
# 001
MPN: 588988010
crankshaft
- Valid for A.T. version
from £0.47
from £0.47
# 002
MPN: 479021702
LOWER SHIM RING
-Thrust bearing- Class A-
from £10.86
from £10.86
This part replaces part number 310820305 - and 2 more. Click to view details
# 003
MPN: 479021302
UPPER SHIM RING
-Thrust bearing- Class A-
from £10.86
from £10.86
This part replaces part number 310820310 - and 1 more. Click to view details
# 004
MPN: 311453303
DOWEL
- Valid for M.T. version
from £9.74
from £9.74
# 005
MPN: 178003015
BEARING
- Valid for M.T. version
from £15.64
from £15.64
# 006
MPN: 310820302
RETAINING RING
from £1.09
from £1.09
# 007
MPN: 310820301
DOWEL
from £2.88
from £2.88
# 008
MPN: 324662340
FLYWHEEL ASSY
- Valid for M.T. version
from £1,147.23
from £1,147.23
# 009
MPN: 324662342
SCREW
- Valid for M.T. version
from £3.67
from £3.67
# 010
MPN: 464023300
CONNECTING ROD, ASSY
- In the order, specify the weight (coloured sticker) - and the class stamped on conn. rod cap
from £131.25
from £131.25
# 011
-
SCREW
# 012
-
BUSHING
# 013
MPN: 452020901
STANDARD BIG END BEARING
Supersession
Supersession
# 014
MPN: 588025300
PISTON WITH RINGS
from £235.18
from £235.18
This part replaces part number 477025302
# 015
MPN: 459022300
RETAINING RING
from £1.18
from £1.18
# 016
MPN: 477022600
OIL SCRAPER
from £30.78
from £30.78
This part replaces part number 341200327
# 017
MPN: 341200328
LOWER PISTON RING
Supersession
Supersession
# 018
MPN: 477022401
UPPER PISTON RING
from £5.14
from £5.14
This part replaces part number 477022400
# 019
-
GUDGEON PIN
# 019
MPN: 452020901/A
STANDARD CON ROD BEARING (COMPLETE SET)
from £969.83
from £969.83
This part replaces part number 452020901
# 020
MPN: 479020201
STANDARD MAIN BEARING
from £232.74
from £232.74
This part replaces part number 479020301
# 021
MPN: 14328300
CRANKSHAFT OIL PLUG
from £1.56
from £1.56
# 022
MPN: 470023100
DOWEL
from £1.56
from £1.56
This part replaces part number 311020324 which we have in stock
# 023
MPN: 475024900
TOOTHED PULLEY
from £32.61
from £32.61
This part replaces part number 465024901
# 024
MPN: 311020308
WASHER
from £13.25
from £13.25
# 025
MPN: 11113021
SCREW
from £1.56
from £1.56
# 026
MPN: 574100500
DISC TOOTHED GEAR ASSY
- Valid for A.T. version
from £173.82
from £173.82
# 027
MPN: 578100200
DISC
- Valid for A.T. version
from £85.86
from £85.86
# 028
MPN: 578100600
FLANGE
- Valid for A.T. version
from £182.77
from £182.77
# 029
MPN: 314655301
SCREW
- Valid for A.T. version
Supersession
Supersession
# 030
MPN: 374631303
PLATE
- Valid for A.T. version
from £1.29
from £1.29
# 031
MPN: 374631302
DOWEL
- Valid for A.T. version
from £5.14
from £5.14
# 032
MPN: 310820302
RETAINING RING
- Valid for A.T. version
from £1.09
from £1.09
