003.1 - engine block and oil sump

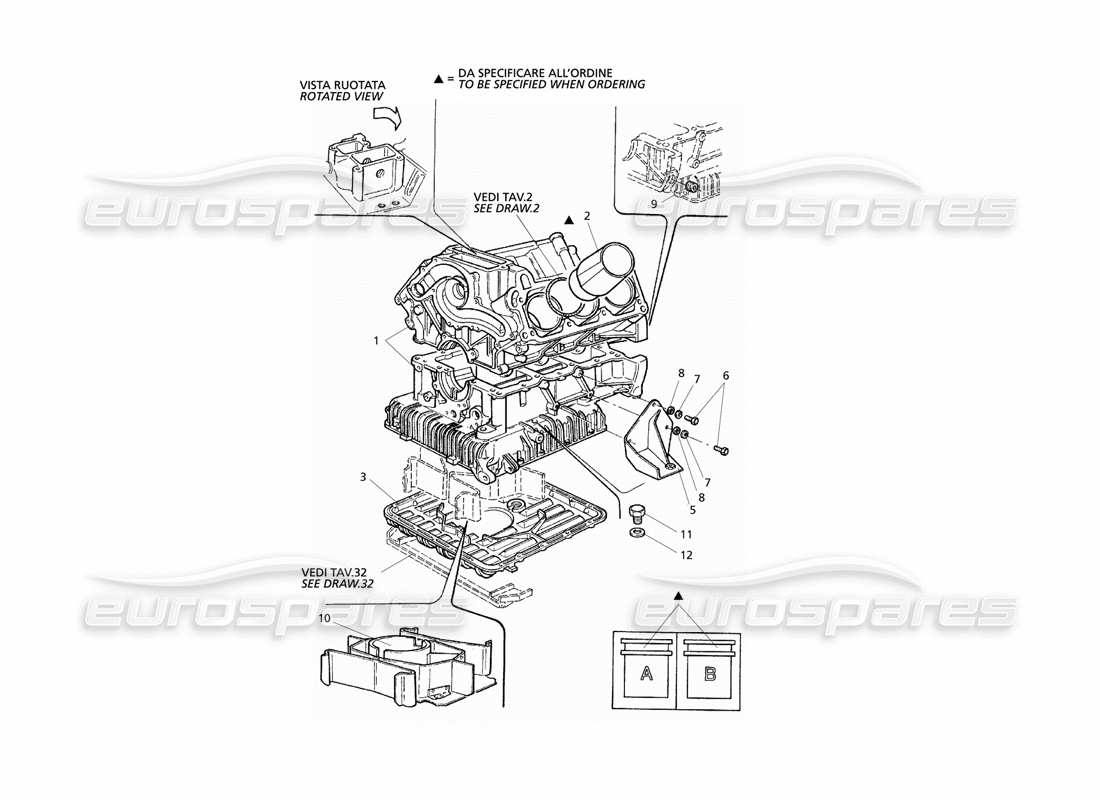

Maserati QTP V6 Evoluzione Engine Block and Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 588942200
                    BLOCK
                    from £1,242.85
                    from £1,242.85
                    # 001
                    MPN: 980001002
                    PARTIAL ENGINE (MT)
                    - Valid for M.T. version
                    # 002
                    MPN: 464010100
                    LINER FOR CYLINDERS
                    from £280.88
                    from £280.88
                    This part replaces part number 340600316
                    # 002
                    MPN: 980001003
                    PARTIAL ENGINE (AT)
                    - Valid for A.T. version
                    # 003
                    MPN: 470010900
                    engine oil sump
                    Supersession
                    Supersession
                    # 005
                    MPN: 331244800
                    RH ENGINE SUPPORT
                    from £16.34
                    from £16.34
                    # 005
                    MPN: 331244900
                    L. H. ENGINE SUPPORT
                    from £15.64
                    from £15.64
                    # 006
                    MPN: 11106224
                    BOLT
                    from £1.55
                    from £1.55
                    # 007
                    MPN: 14496601
                    FLAT WASHER
                    Supersession
                    Supersession
                    # 008
                    MPN: 134700105
                    LOCK WASHER
                    from £1.08
                    from £1.08
                    # 009
                    MPN: 312020368
                    WIRE INLET
                    from £0.57
                    from £0.57
                    # 010
                    MPN: 580011000
                    OIL SUMP PLATE
                    from £9.23
                    from £9.23
                    This part replaces part number 571983900
                    # 011
                    MPN: 319053326
                    PLUG
                    from £0.70
                    from £0.70
                    # 012
                    MPN: 10296160
                    GASKET
                    from £0.47
                    from £0.47
