maserati qtp v6 (1996) automatic air conditioner assy (lhd) parts diagram

071GS - Automatic Air Conditioner Assy (LHD)

Maserati QTP V6 (1996) Automatic Air Conditioner Assy (LHD) Parts Diagram

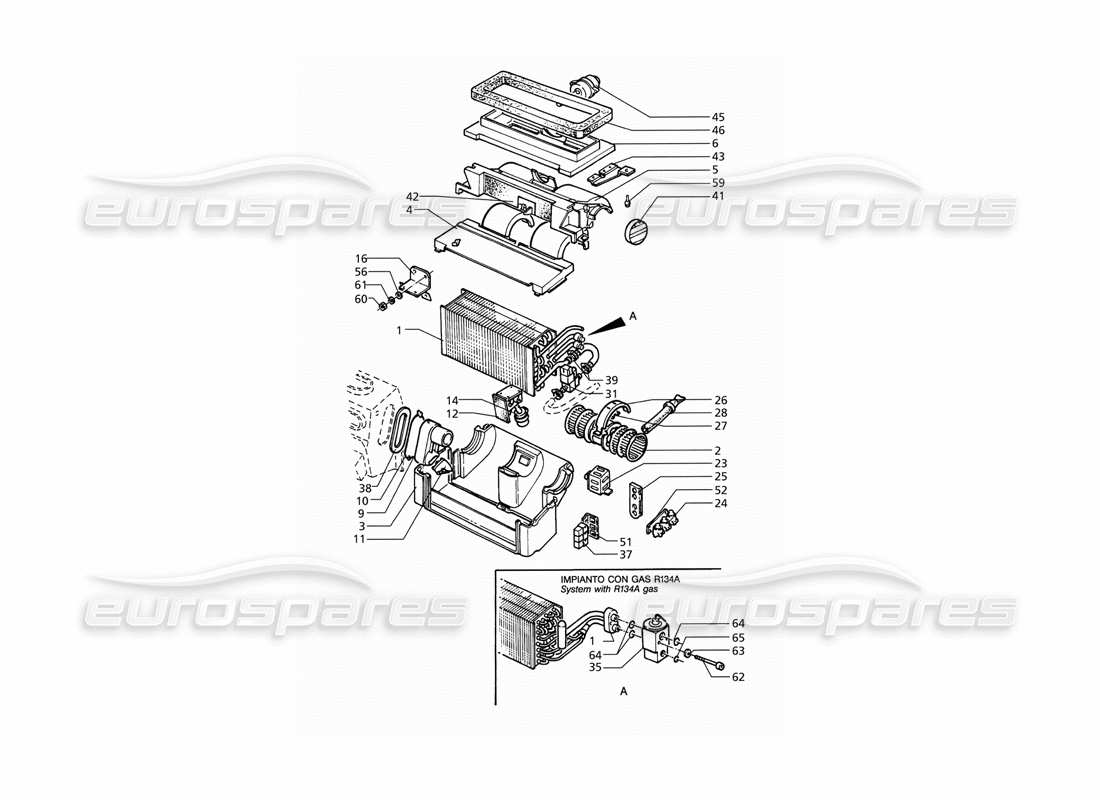

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 375500165
HEATER EVAPORATOR
from £309.52
from £309.52
RADIATING PACK W/OUT EXPANSION VA Genuine Maserati Part - New (to order)
# 002
MPN: 315520167
ELECTRIC FAN
from £220.23
from £220.23
ELECTRIC FAN 046851045 Genuine Maserati Part - New (to order)
# 003
MPN: 315551380
LOWER BOX
from £17.16
from £17.16
LOWER BOX Genuine Maserati Part - New (to order)
# 004
MPN: 315520381
INTERMEDIATE BOX
from £12.68
from £12.68
SCATOLA INTERMEDIA Genuine Maserati Part - New (to order)
# 005
MPN: 315551382
UPPER BOX
from £19.39
from £19.39
UPPER BOX Genuine Maserati Part - New (to order)
# 006
MPN: 315520470
DUCT
from £42.14
from £42.14
CONVOGLIATORE Genuine Maserati Part - New (to order)
# 009
MPN: 315520473
LH AIR NOZZLE
from £8.48
from £8.48
BOCCAGLIO ARIA SX Genuine Maserati Part - New (to order)
# 009
MPN: 315520474
RH AIR NOZZLE
from £8.48
from £8.48
RH AIR PIPE NECK Genuine Maserati Part - New (to order)
# 010
MPN: 315520163
FLAP FOR LH AIR NOZZLE
from £3.21
from £3.21
This part replaces part number 315520129
SPORTELLO RIVESTIMENTO FIANC Genuine Maserati Part - New (to order)
# 010
MPN: 315520164
FLAP FOR RH AIR NOZZLE
from £4.13
from £4.13
This part replaces part number 315520130
RH DOOR 050.760.006 Genuine Maserati Part - New (to order)
# 011
MPN: 315520387
VENT
from £18.64
from £18.64
INNER DUCT Genuine Maserati Part - New (to order)
# 012
MPN: 315520018
FLAP, ASSY
from £10.38
from £10.38
LOWER DOOR ASSY Genuine Maserati Part - New (to order)
# 014
MPN: 315520158
REAR DOOR AIR CONTROL ACTUATOR
from £9.20
from £9.20
ACTUATOR 050.760.048 Genuine Maserati Part - New (to order)
# 016
MPN: 315520138
AIR CONDITIONER SUPPORT BRACKET
from £3.24
from £3.24
PAD Genuine Maserati Part - New (to order)
# 023
MPN: 315520143
RESISTANCE
from £17.20
from £17.20
RESISTENZA 050760050 Genuine Maserati Part - New (to order)
# 024
MPN: 315520207
PNEUMATIC SYSTEM SOLENOID VALVE
from £41.27
from £41.27
SOLENOID VALVE Genuine Maserati Part - New (to order)
# 025
MPN: 315520475
GASKET
GASKET Genuine Maserati Part - New (to order)
# 026
MPN: 315520402
BRACKET
PAD Genuine Maserati Part - New (to order)
# 027
MPN: 315520403
DAMPER
GASKET Genuine Maserati Part - New (to order)
# 028
MPN: 315520017
CONDENSATE DRAINAGE TUBE
from £1.76
from £1.76
EXHAUST PIPE Genuine Maserati Part - New (to order)
# 031
MPN: 315522144
COCK, ASSY
from £396.93
from £396.93
CPL. VALVE BORL.050761008 Genuine Maserati Part - New (to order)
# 035
MPN: 375500166
BLOCK EXPANSION VALVE
from £58.13
from £58.13
EXPANSION VALVE = 5,121,508-338 5 Genuine Maserati Part - New (to order)
# 037
MPN: 30331137
RELAY
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 038
MPN: 315520483
GASKET
from £3.83
from £3.83
SIDE VENT GASKET 050.760. Genuine Maserati Part - New (to order)
# 039
MPN: 315520415
CLAMP
CLAMP Genuine Maserati Part - New (to order)
# 041
MPN: 315551416
THROTTLE FLAP
from £4.63
from £4.63
THROTTLE DOOR 050727047 Genuine Maserati Part - New (to order)
# 042
MPN: 315520136
AIR FLAP
AIR FLAP Genuine Maserati Part - New (to order)
# 043
MPN: 315520419
LH BRACKET FOR AIR CONDITIONER
LH BRACKET FOR AIR CONDITIONER Genuine Maserati Part - New (to order)
# 043
MPN: 315520420
RH BRACKET FOR AIR CONDITIONER
RH BRACKET FOR AIR CONDITIONER Genuine Maserati Part - New (to order)
# 045
MPN: 315520160
AIR FLAP ACTUATOR
from £3.84
from £3.84
ACTUATOR 050220015 A.C.55072 Genuine Maserati Part - New (to order)
# 046
MPN: 315520422
GASKET
from £2.90
from £2.90
GASKET Genuine Maserati Part - New (to order)
# 051
MPN: 315520477
RELAY SUPPORTING BRACKET
from £18.09
from £18.09
STAFFA RELE' BORL. 050761005 Genuine Maserati Part - New (to order)
# 052
MPN: 315520478
SOLENOID VALVE SUPPORTING BRACKET
SOLENOID VALVE SUPPORTING BRACKET Genuine Maserati Part - New (to order)
# 056
MPN: 169020406
WASHER
from £0.77
from £0.77
FLAT WASHER Genuine Maserati Part - New In stock
# 059
MPN: 314320345
SCREW
from £41.65
from £41.65
ENGINE COMPT. LID FASTENING SCREW Genuine Maserati Part - New (to order)
# 061
MPN: 135600060
SPRING WASHER
from £0.77
from £0.77
WASHER 6.15X11.8 Genuine Maserati Part - New In stock
# 062
MPN: 14304821
SCREW
from £0.53
from £0.53
SCREW 6X1X55 Genuine Maserati Part - New In stock
Genuine Ferrari Part (no longer available to order)
# 063
MPN: 84157
WASHER
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 064
MPN: 375500458
GROMMET
from £5.28
from £5.28
OR 13,4X2,4 09601600 VAL.ESP Genuine Maserati Part - New In stock
# 065
MPN: 375500457
GROMMET
from £3.60
from £3.60
O R 6,7X1,8 09601400 VAL.ESP Genuine Maserati Part - New In stock
