070.1 - Heating Pump

Maserati QTP V6 (1996) Heating Pump Parts Diagram

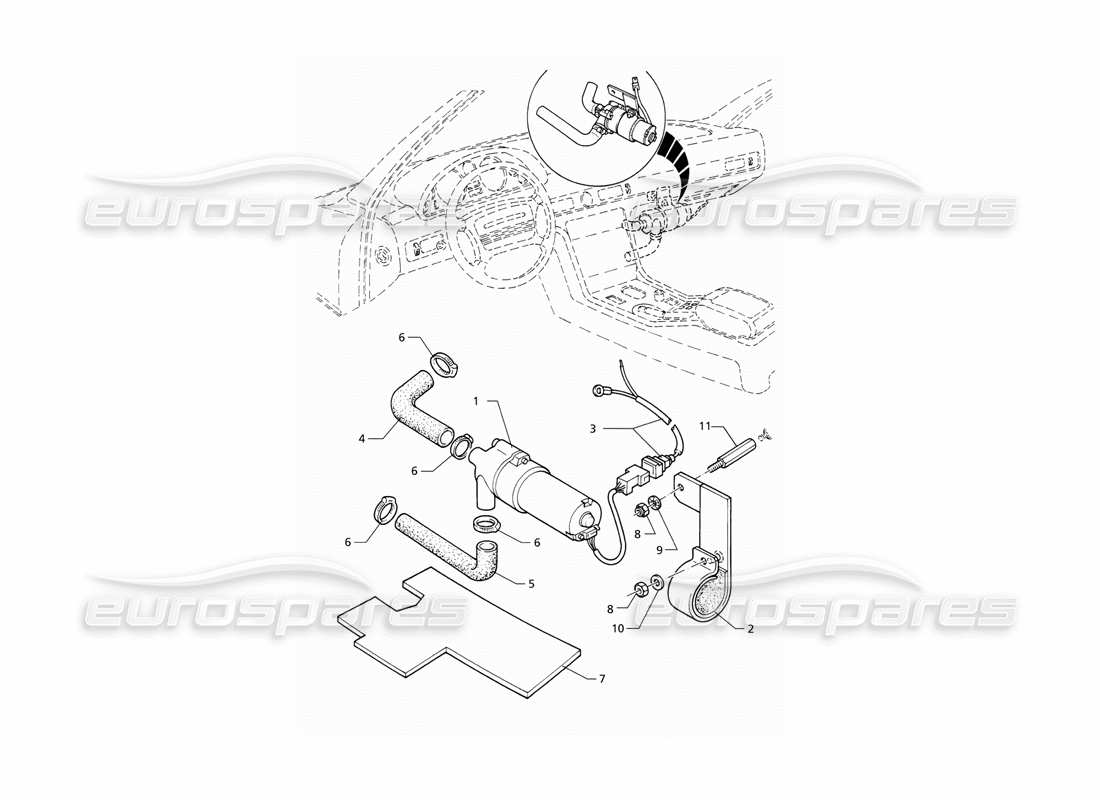

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 375501486
                        Heating Pump
                        from £80.12
                        from £80.12
                        # 002
                        MPN: 375501224
                        PUMP SUPPORT BRACKET
                        Supersession
                        Supersession
                        # 003
                        MPN: 373030175
                        PUMP SUPPLY WIRING
                        from £26.97
                        from £26.97
                        # 004
                        MPN: 375501479
                        WATER INLET SLEEVE
                        from £5.49
                        from £5.49
                        # 005
                        MPN: 375501480
                        WATER OUTLET SLEEVE
                        from £6.54
                        from £6.54
                        # 006
                        MPN: 186402028
                        CLAMP
                        from £1.55
                        from £1.55
                        # 007
                        MPN: 375501485
                        INSULATING FELT
                        from £2.05
                        from £2.05
                        # 009
                        MPN: 163030060
                        FLAT WASHER
                        from £1.08
                        from £1.08
                        # 010
                        MPN: 135600060
                        FLAT WASHER
                        from £0.78
                        from £0.78
                        # 011
                        MPN: 375508606
                        STUD
                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
