maserati qtp v6 (1996) electrical system: boot-doors-passanger compartment (lhd) parts diagram

059GS - Electrical System: Boot-Doors-Passanger Compartment (LHD)

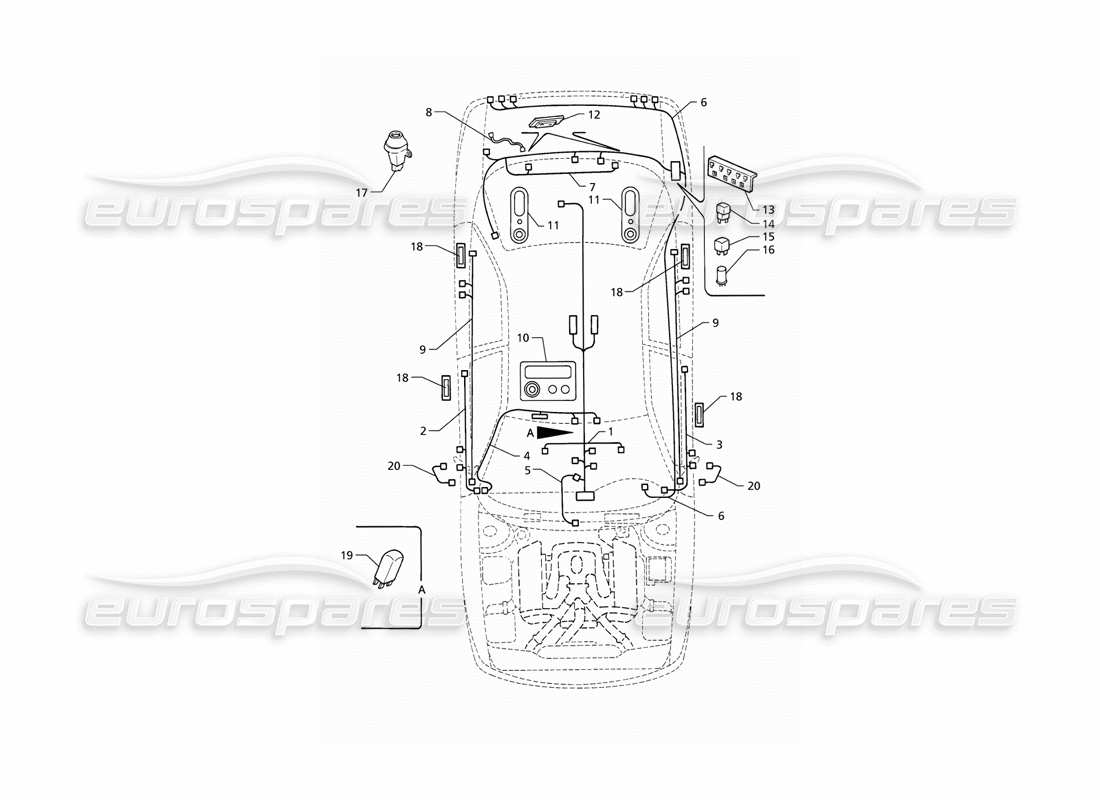

Maserati QTP V6 (1996) Electrical System: Boot-Doors-Passanger Compartment (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 373040107
DASHBOARD WIRING
from £711.19
from £711.19
# 003
MPN: 373030102
RELAY / FUSE SUPPORT
from £39.57
from £39.57
# 005
MPN: 373040149
BATTERY POSITIVE CABLE
# 006
MPN: 373000150
BATTERY NEGATIVE CABLE
from £11.05
from £11.05
# 007
MPN: 393050340
COVER
Supersession
Supersession
# 010
MPN: 393050342
BODY WITH COUPLINGS
from £10.02
from £10.02
# 011
MPN: 393050343
GASKET
from £1.54
from £1.54
# 012
MPN: 393050341
INSULATING BODY
from £2.13
from £2.13
# 013
MPN: 393050344
CONNECTOR
from £1.78
from £1.78
# 014
MPN: 313320134
BOSCH RELAY
from £17.52
from £17.52
This part replaces part number 184101
# 015
MPN: 373300112
BELTS DEVICE
from £67.33
from £67.33
# 017
MPN: 373330193
DOOR LOCK CONTROL UNIT
from £41.31
from £41.31
# 018
MPN: 373000124
HEAT PROTECTION
from £7.09
from £7.09
# 019
MPN: 30331161
EXCHANGE RELAY
# 020
MPN: 363302115
INTERMITTANCE
from £7.16
from £7.16
This part replaces part number 313320115
# 021
MPN: 373330139
RELAY
from £4.02
from £4.02
# 022
MPN: 373300129
INSIDE LIGHTS TIMER
from £20.69
from £20.69
This part replaces part number 363302129
# 023
MPN: 373300167
AIRBAG CONTROL UNIT
- Pre modification supplied while supplies last
from £1,190.07
from £1,190.07
# 023
MPN: 373301167
AIRBAG CONTROL UNIT (NEW CONNECTOR)
- Post modification
from £267.97
from £267.97
# 024
MPN: 373000158
AIRBAG WIRING
- Pre modification supplied while supplies last
from £171.95
from £171.95
# 024
MPN: 373001158
AIRBAG WIRING (NEW CONNECTOR)
- Post modification
from £177.87
from £177.87
