maserati qtp v6 (1996) windscreen wiper and washer (lhd) parts diagram

055GS - Windscreen Wiper and Washer (LHD)

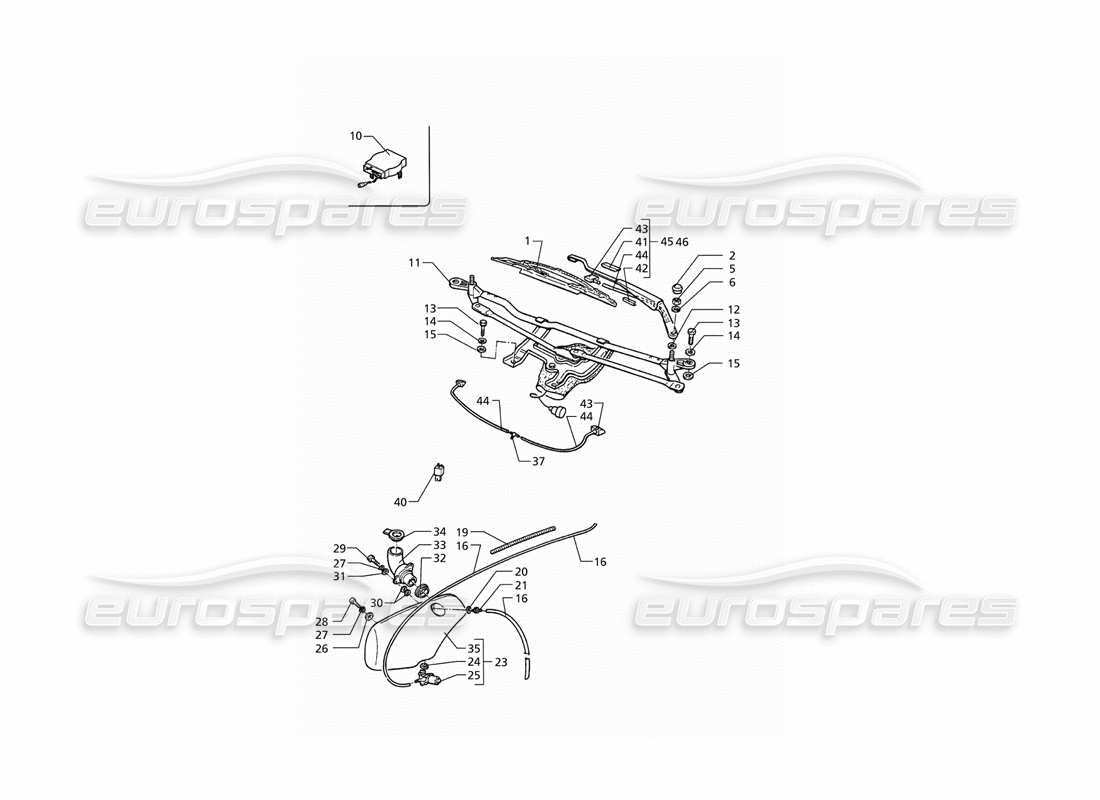

Maserati QTP V6 (1996) Windscreen Wiper and Washer (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 313352158
                                                                    BLADE WITH SPOILER
                                                                    from £54.28
                                                                    from £54.28
                                                                    This part replaces part number 323356128 - and 2 more. Click to view details
                                                                    # 002
                                                                    MPN: 393350327
                                                                    CUP
                                                                    from £2.33
                                                                    from £2.33
                                                                    # 003
                                                                    MPN: 373315171
                                                                    RH ARM ASSY
                                                                    from £12.44
                                                                    from £12.44
                                                                    # 004
                                                                    MPN: 373315173
                                                                    LH ARM ASSY
                                                                    from £12.19
                                                                    from £12.19
                                                                    # 005
                                                                    MPN: 125100080
                                                                    NUT
                                                                    from £0.86
                                                                    from £0.86
                                                                    # 007
                                                                    MPN: 373300202
                                                                    WINDSHIELD WIPER INTERMITTENCE RELAY
                                                                    from £64.39
                                                                    from £64.39
                                                                    # 011
                                                                    MPN: 373315100
                                                                    WINDSHIELD WIPER ASSY
                                                                    from £106.05
                                                                    from £106.05
                                                                    # 012
                                                                    MPN: 136110110
                                                                    SHIM
                                                                    from £2.18
                                                                    from £2.18
                                                                    # 015
                                                                    MPN: 163030060
                                                                    WASHER
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 016
                                                                    MPN: 378700323
                                                                    PIPING
                                                                    - Section in metres - order minimum amount of 2 m or multiples
                                                                    from £0.99
                                                                    from £0.99
                                                                    # 017
                                                                    MPN: 373300335
                                                                    NOZZLE
                                                                    from £4.34
                                                                    from £4.34
                                                                    # 018
                                                                    MPN: 30871323
                                                                    PIPING
                                                                    - Section in metres - order minimum amount of 2 m or multiples
                                                                    from £1.08
                                                                    from £1.08
                                                                    This part replaces part number 398150312 - and 1 more. Click to view details
                                                                    # 019
                                                                    MPN: 97218
                                                                    CORRUGATED PIPE
                                                                    - Section in metres - order minimum amount of 2 m or multiples
                                                                    from £1.87
                                                                    from £1.87
                                                                    This part replaces part number 188340 - and 1 more. Click to view details
                                                                    # 020
                                                                    MPN: 330874000
                                                                    GROMMET
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 021
                                                                    MPN: 312230461
                                                                    UNION
                                                                    from £0.99
                                                                    from £0.99
                                                                    # 022
                                                                    MPN: 54812330
                                                                    PIPE
                                                                    # 023
                                                                    MPN: 398150132
                                                                    TANK WITH PUMP
                                                                    from £44.86
                                                                    from £44.86
                                                                    This part replaces part number 398150024
                                                                    # 024
                                                                    MPN: 30331302
                                                                    GASKET
                                                                    from £0.70
                                                                    from £0.70
                                                                    # 025
                                                                    MPN: 373300183
                                                                    WINDSHIELD WASHER PUMP
                                                                    from £15.14
                                                                    from £15.14
                                                                    This part replaces part number 330907620
                                                                    # 026
                                                                    MPN: 135900064
                                                                    FLAT WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 028
                                                                    MPN: 112806016
                                                                    SCREW
                                                                    # 030
                                                                    MPN: 398150324
                                                                    SHIM
                                                                    from £1.55
                                                                    from £1.55
                                                                    # 032
                                                                    MPN: 398150328
                                                                    GASKET
                                                                    from £23.04
                                                                    from £23.04
                                                                    # 033
                                                                    MPN: 398150192
                                                                    PIPE UNION
                                                                    from £4.15
                                                                    from £4.15
                                                                    This part replaces part number 398150329
                                                                    # 034
                                                                    MPN: 398150327
                                                                    PLUG
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 035
                                                                    MPN: 398150132
                                                                    Tank
                                                                    from £44.86
                                                                    from £44.86
                                                                    This part replaces part number 398150024
                                                                    # 037
                                                                    MPN: 30811310
                                                                    THREE WAY UNION
                                                                    from £0.79
                                                                    from £0.79
                                                                    # 040
                                                                    MPN: 363302115
                                                                    DIRECTION INDICATOR INTERMITTENCE
                                                                    from £7.22
                                                                    from £7.22
                                                                    This part replaces part number 313320115
                                                                    # 041
                                                                    MPN: 373300336
                                                                    HOSE RETAINER ON WINDSHIELD WIPER ARM
                                                                    from £3.09
                                                                    from £3.09
                                                                    # 042
                                                                    MPN: 373300337
                                                                    SIDE HOSE RETAINER ON WINDSHIELD WIPER ARM
                                                                    from £1.08
                                                                    from £1.08
