maserati qtp v6 (1996) pedal assy and clutch pump (rhd) parts diagram

041GD - Pedal Assy and Clutch Pump (RHD)

Maserati QTP V6 (1996) Pedal Assy and Clutch Pump (RHD) Parts Diagram

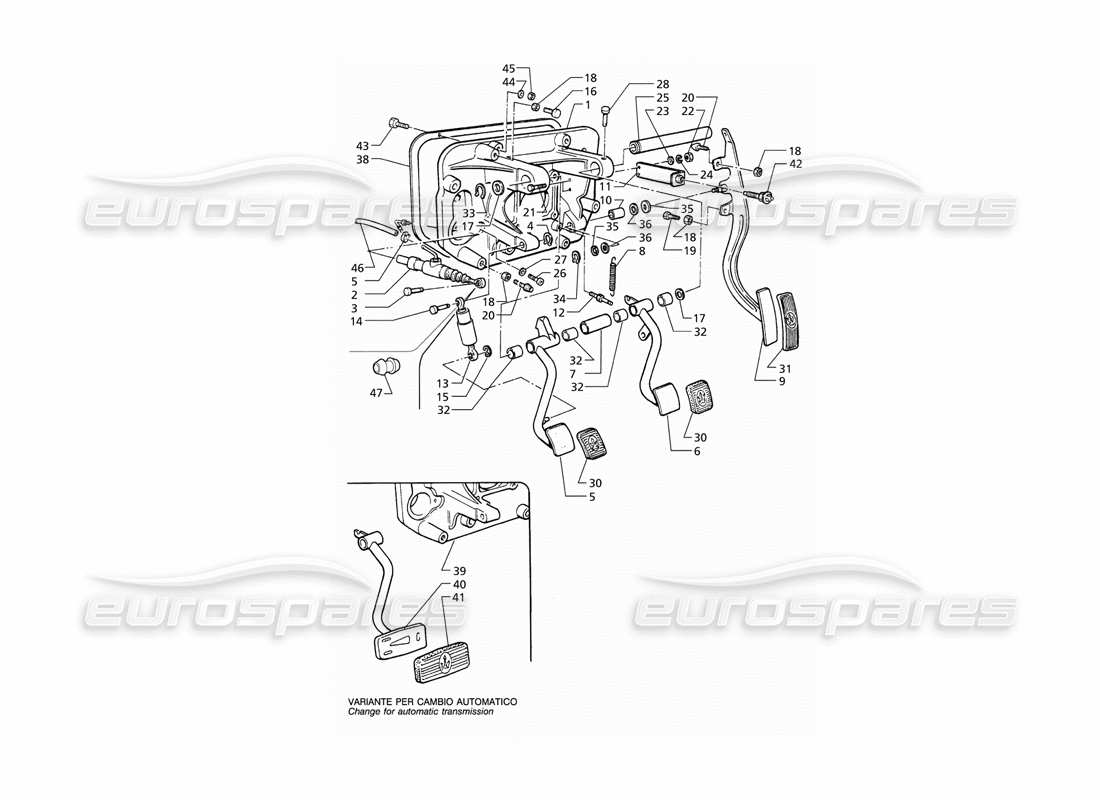

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 378419304
                                                                        SUPPORT
                                                                        from £27.76
                                                                        from £27.76
                                                                        # 002
                                                                        MPN: 378200101
                                                                        PUMP
                                                                        from £225.00
                                                                        from £225.00
                                                                        # 003
                                                                        MPN: 378419358
                                                                        PIN
                                                                        from £21.33
                                                                        from £21.33
                                                                        # 004
                                                                        MPN: 71509
                                                                        SEEGER RING
                                                                        Supersession
                                                                        Supersession
                                                                        # 005
                                                                        MPN: 378421122
                                                                        CLUTCH PEDAL
                                                                        from £68.25
                                                                        from £68.25
                                                                        # 006
                                                                        MPN: 378419104
                                                                        BRAKE PEDAL
                                                                        from £68.25
                                                                        from £68.25
                                                                        # 007
                                                                        MPN: 378419319
                                                                        SPACER
                                                                        from £8.46
                                                                        from £8.46
                                                                        # 008
                                                                        MPN: 368402308
                                                                        SPRING
                                                                        from £2.96
                                                                        from £2.96
                                                                        # 009
                                                                        MPN: 328470113
                                                                        SPEED PEDAL
                                                                        from £40.44
                                                                        from £40.44
                                                                        # 010
                                                                        MPN: 470037700
                                                                        BUSH
                                                                        from £9.25
                                                                        from £9.25
                                                                        This part replaces part number 311020336
                                                                        # 011
                                                                        MPN: 378400120
                                                                        IDROSTOP SUPPORT
                                                                        from £21.95
                                                                        from £21.95
                                                                        # 012
                                                                        MPN: 378400368
                                                                        PIN
                                                                        from £81.13
                                                                        from £81.13
                                                                        # 013
                                                                        MPN: 378400854
                                                                        CLUTCH PEDAL SERVO CONTROL
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        from £41.19
                                                                        from £41.19
                                                                        # 014
                                                                        MPN: 378419410
                                                                        PIN
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        from £27.27
                                                                        from £27.27
                                                                        # 015
                                                                        MPN: 150800090
                                                                        SEEGER RING
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 016
                                                                        MPN: 364700180
                                                                        LIMIT STOP
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        from £2.83
                                                                        from £2.83
                                                                        # 017
                                                                        MPN: 368402321
                                                                        SPACER WASHER
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 019
                                                                        MPN: 101206040
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 020
                                                                        MPN: 318420114
                                                                        LIMIT STOP
                                                                        from £1.92
                                                                        from £1.92
                                                                        # 022
                                                                        MPN: 47046
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        # 023
                                                                        MPN: 135600050
                                                                        SPRING WASHER
                                                                        from £0.78
                                                                        from £0.78
                                                                        # 024
                                                                        MPN: 69021
                                                                        FLAT WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 025
                                                                        MPN: 378419328
                                                                        PIN
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        from £37.53
                                                                        from £37.53
                                                                        # 025
                                                                        MPN: 378420328
                                                                        PIN
                                                                        - Valid for 2.8 A.T. version
                                                                        from £14.22
                                                                        from £14.22
                                                                        # 026
                                                                        MPN: 108006018
                                                                        ALLEN SCREW
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        # 027
                                                                        MPN: 378419378
                                                                        WASHER
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        from £4.64
                                                                        from £4.64
                                                                        # 028
                                                                        MPN: 378419377
                                                                        PIN
                                                                        from £11.29
                                                                        from £11.29
                                                                        # 029
                                                                        MPN: 58841309
                                                                        SAFETY CLIP
                                                                        from £2.00
                                                                        from £2.00
                                                                        This part replaces part number 670000498 - and 2 more. Click to view details
                                                                        # 030
                                                                        MPN: 318420300
                                                                        PEDAL COVER
                                                                        - Valid for 2.0 M.T. and 2.8 M.T. version
                                                                        from £3.25
                                                                        from £3.25
                                                                        # 031
                                                                        MPN: 318420301
                                                                        SPEED PEDAL COVER
                                                                        from £1.50
                                                                        from £1.50
                                                                        # 032
                                                                        MPN: 318420320
                                                                        BUSH
                                                                        from £9.66
                                                                        from £9.66
                                                                        # 033
                                                                        MPN: 151100180
                                                                        SEEGER RING
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 035
                                                                        MPN: 311020352
                                                                        WASHER
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 036
                                                                        MPN: 318420346
                                                                        NYLON WASHER
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 038
                                                                        MPN: 378419348
                                                                        GASKET
                                                                        from £6.41
                                                                        from £6.41
                                                                        # 039
                                                                        MPN: 378420304
                                                                        PEDAL ASSY SUPPORT
                                                                        from £15.27
                                                                        from £15.27
                                                                        # 040
                                                                        MPN: 378420104
                                                                        BRAKE PEDAL
                                                                        - Valid for 2.8 A.T. version
                                                                        from £178.50
                                                                        from £178.50
                                                                        # 041
                                                                        MPN: 318432300
                                                                        BRAKE PEDAL COVER
                                                                        - Valid for 2.8 A.T. version
                                                                        from £2.41
                                                                        from £2.41
                                                                        # 042
                                                                        MPN: 323850107
                                                                        IDROSTOP
                                                                        Supersession
                                                                        Supersession
                                                                        # 045
                                                                        MPN: 128350080
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        # 046
                                                                        MPN: 378200329
                                                                        TUBE
                                                                        from £0.57
                                                                        from £0.57
                                                                        # 047
                                                                        MPN: 9532
                                                                        BUSHING SECURING CLUTCH PUMP
                                                                        from £2.31
                                                                        from £2.31
