maserati qtp v6 (1996) hubs, rear brakes with a.b.s. and drive shafts parts diagram

039 - Hubs, Rear Brakes With A.B.S. and Drive Shafts

Maserati QTP V6 (1996) Hubs, Rear Brakes With A.B.S. and Drive Shafts Parts Diagram

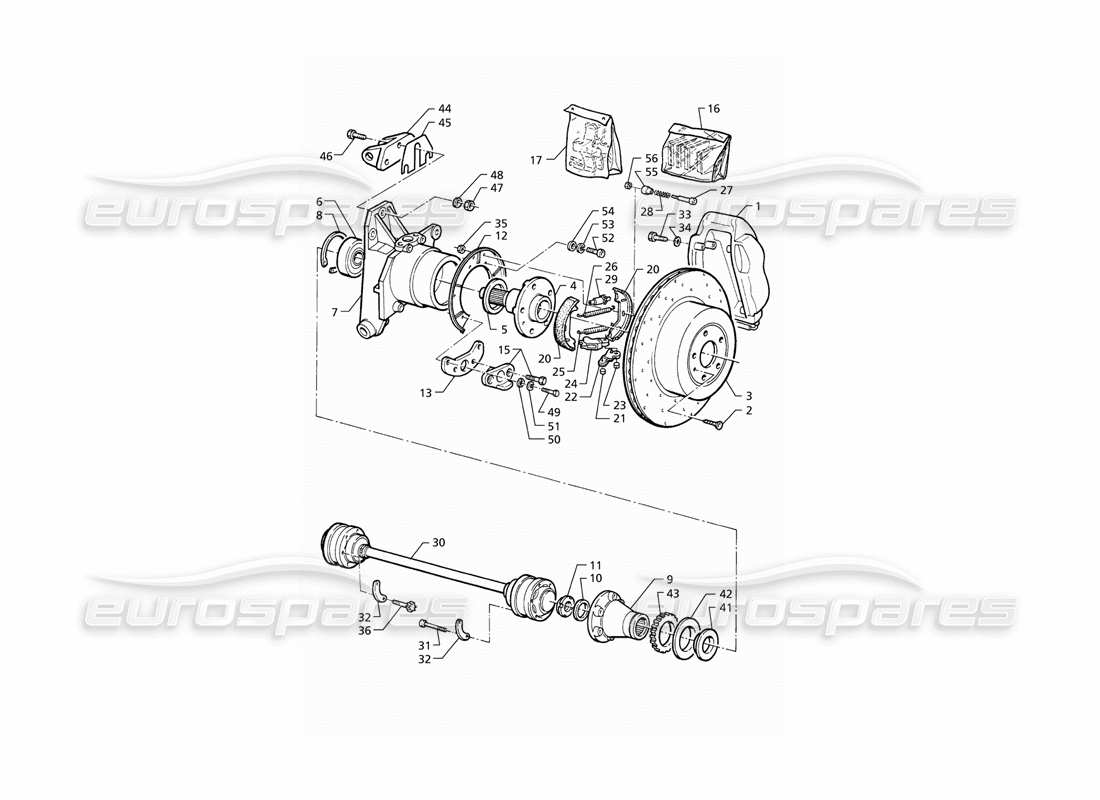

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 377230111
                                                                                                  REAR CALIPER LH ASSY
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 001
                                                                                                  MPN: 377230112
                                                                                                  REAR CALIPER RH ASSY
                                                                                                  from £572.82
                                                                                                  from £572.82
                                                                                                  # 003
                                                                                                  MPN: 377280351
                                                                                                  REAR BRAKE DISC
                                                                                                  from £199.22
                                                                                                  from £199.22
                                                                                                  This part replaces part number 377230351
                                                                                                  # 004
                                                                                                  MPN: 377230388
                                                                                                  REAR WHEEL HUB
                                                                                                  from £222.60
                                                                                                  from £222.60
                                                                                                  This part replaces part number 377200388
                                                                                                  # 005
                                                                                                  MPN: 397250346
                                                                                                  CUP
                                                                                                  from £19.86
                                                                                                  from £19.86
                                                                                                  # 006
                                                                                                  MPN: 397250343
                                                                                                  BEARING
                                                                                                  from £58.77
                                                                                                  from £58.77
                                                                                                  # 007
                                                                                                  MPN: 377000363
                                                                                                  LH HUB CARRIER
                                                                                                  from £210.00
                                                                                                  from £210.00
                                                                                                  # 007
                                                                                                  MPN: 377000364
                                                                                                  RH HUB CARRIER
                                                                                                  from £210.00
                                                                                                  from £210.00
                                                                                                  # 009
                                                                                                  MPN: 377200385
                                                                                                  SLEEVE
                                                                                                  from £42.82
                                                                                                  from £42.82
                                                                                                  # 010
                                                                                                  MPN: 397250354
                                                                                                  SHIM RING
                                                                                                  from £4.09
                                                                                                  from £4.09
                                                                                                  # 011
                                                                                                  MPN: 397250373
                                                                                                  SELF LOCKING RING NUT
                                                                                                  from £72.81
                                                                                                  from £72.81
                                                                                                  This part replaces part number 397250340
                                                                                                  # 012
                                                                                                  MPN: 378001348
                                                                                                  SHOE HOLDER DISC
                                                                                                  from £5.57
                                                                                                  from £5.57
                                                                                                  This part replaces part number 378001349
                                                                                                  # 013
                                                                                                  MPN: 378001350
                                                                                                  HANDBRAKE CONTROL SECURING PLATE
                                                                                                  from £28.67
                                                                                                  from £28.67
                                                                                                  # 015
                                                                                                  MPN: 318020115
                                                                                                  HAND BRAKE CABLE BRACKET
                                                                                                  from £18.09
                                                                                                  from £18.09
                                                                                                  # 016
                                                                                                  MPN: 370230042
                                                                                                  REAR BRAKE PAD, SET
                                                                                                  from £337.62
                                                                                                  from £337.62
                                                                                                  # 017
                                                                                                  MPN: 370201046
                                                                                                  BRAKE PAD SECURING KIT
                                                                                                  from £25.85
                                                                                                  from £25.85
                                                                                                  # 020
                                                                                                  MPN: 398050111
                                                                                                  HANDBRAKE SHOES
                                                                                                  Set of 4
                                                                                                  from £57.75
                                                                                                  from £57.75
                                                                                                  # 021
                                                                                                  MPN: 318020332
                                                                                                  PIN
                                                                                                  from £1.39
                                                                                                  from £1.39
                                                                                                  # 022
                                                                                                  MPN: 318020330
                                                                                                  CONTROL LEVER
                                                                                                  from £25.42
                                                                                                  from £25.42
                                                                                                  # 023
                                                                                                  MPN: 318020333
                                                                                                  PIN
                                                                                                  from £1.85
                                                                                                  from £1.85
                                                                                                  # 024
                                                                                                  MPN: 318020331
                                                                                                  SHOE
                                                                                                  from £32.20
                                                                                                  from £32.20
                                                                                                  # 025
                                                                                                  MPN: 398050334
                                                                                                  LOWER SPRING
                                                                                                  from £1.41
                                                                                                  from £1.41
                                                                                                  # 026
                                                                                                  MPN: 398050335
                                                                                                  UPPER SPRING
                                                                                                  from £1.76
                                                                                                  from £1.76
                                                                                                  # 027
                                                                                                  MPN: 378000336
                                                                                                  PIN
                                                                                                  from £2.47
                                                                                                  from £2.47
                                                                                                  # 028
                                                                                                  MPN: 318020337
                                                                                                  SPRING
                                                                                                  from £0.87
                                                                                                  from £0.87
                                                                                                  # 029
                                                                                                  MPN: 318020113
                                                                                                  ADJUSTING DEVICE FOR HAND BRAKE
                                                                                                  from £6.81
                                                                                                  from £6.81
                                                                                                  # 030
                                                                                                  MPN: 396050105
                                                                                                  DRIVE SHAFT ASSEMBLY
                                                                                                  from £152.25
                                                                                                  from £152.25
                                                                                                  # 031
                                                                                                  MPN: 396050338
                                                                                                  SCREW
                                                                                                  from £9.66
                                                                                                  from £9.66
                                                                                                  # 032
                                                                                                  MPN: 316020310
                                                                                                  PLATE
                                                                                                  from £1.93
                                                                                                  from £1.93
                                                                                                  # 035
                                                                                                  MPN: 377000328
                                                                                                  PLUG
                                                                                                  from £0.68
                                                                                                  from £0.68
                                                                                                  # 036
                                                                                                  MPN: 376000338
                                                                                                  SCREW
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 041
                                                                                                  MPN: 397250348
                                                                                                  SHIM WASHER
                                                                                                  from £9.12
                                                                                                  from £9.12
                                                                                                  # 042
                                                                                                  MPN: 397250353
                                                                                                  PROTECTION STRIP
                                                                                                  from £3.63
                                                                                                  from £3.63
                                                                                                  # 043
                                                                                                  MPN: 377200375
                                                                                                  WHEEL SPEED SENSOR
                                                                                                  from £24.35
                                                                                                  from £24.35
                                                                                                  # 044
                                                                                                  MPN: 397050359
                                                                                                  FORK
                                                                                                  from £54.19
                                                                                                  from £54.19
                                                                                                  # 045
                                                                                                  MPN: 397050357
                                                                                                  SHIM 2 MM
                                                                                                  from £3.63
                                                                                                  from £3.63
                                                                                                  # 045
                                                                                                  MPN: 397050370
                                                                                                  SHIM 1 MM
                                                                                                  from £2.32
                                                                                                  from £2.32
                                                                                                  # 047
                                                                                                  MPN: 128350080
                                                                                                  SELF LOCKING NUT
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 048
                                                                                                  MPN: 135910084
                                                                                                  WASHER
                                                                                                  # 054
                                                                                                  MPN: 312220411
                                                                                                  FLAT WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 055
                                                                                                  MPN: 378000338
                                                                                                  SHIM
                                                                                                  from £80.37
                                                                                                  from £80.37
                                                                                                  # 056
                                                                                                  MPN: 312432329
                                                                                                  NUT
                                                                                                  from £0.77
                                                                                                  from £0.77
